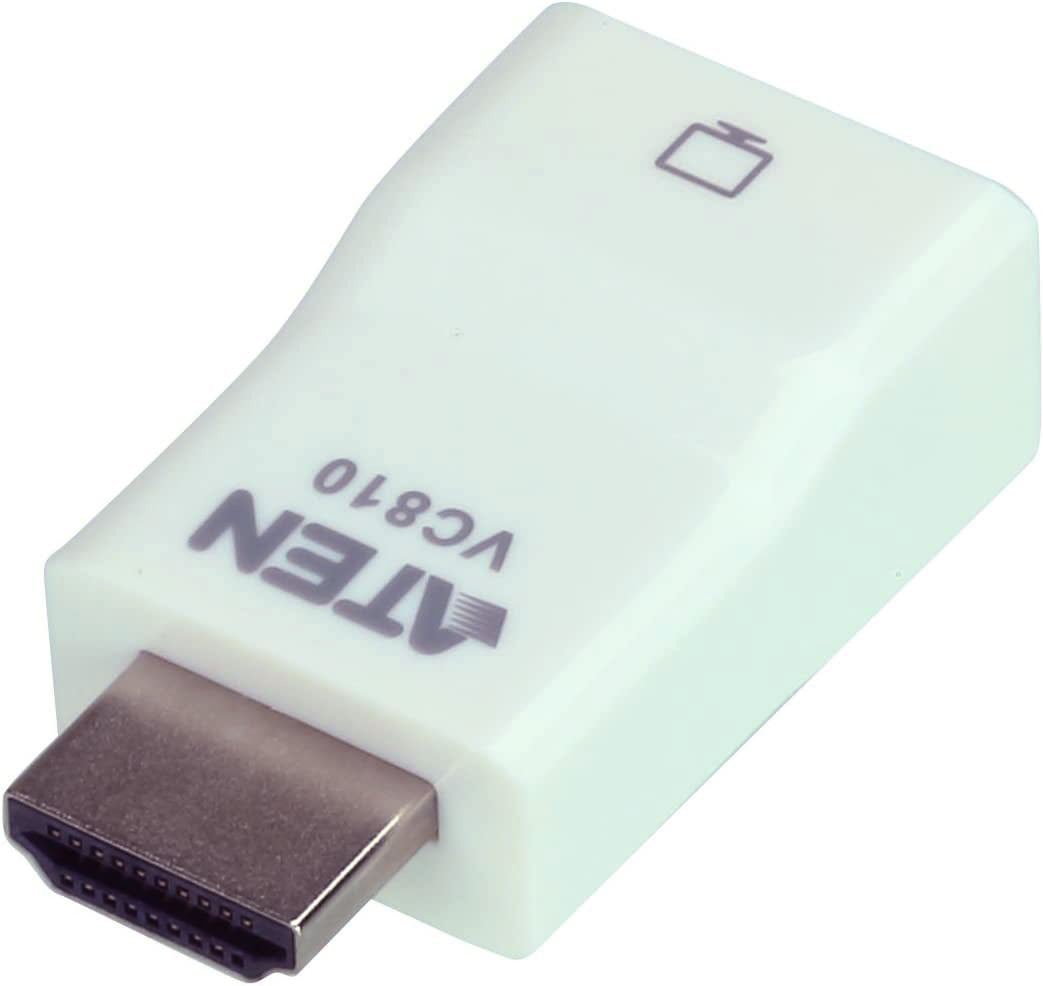

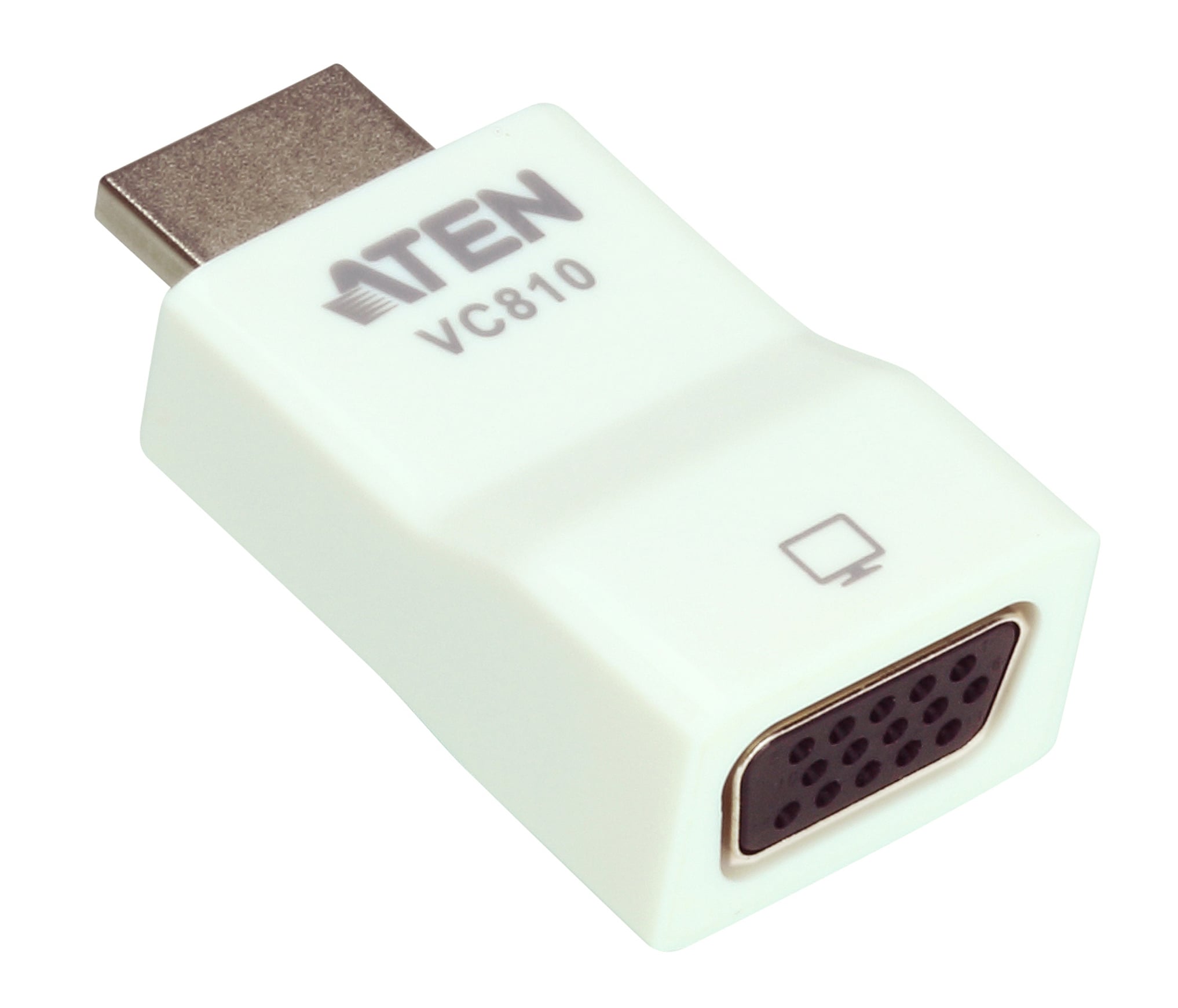

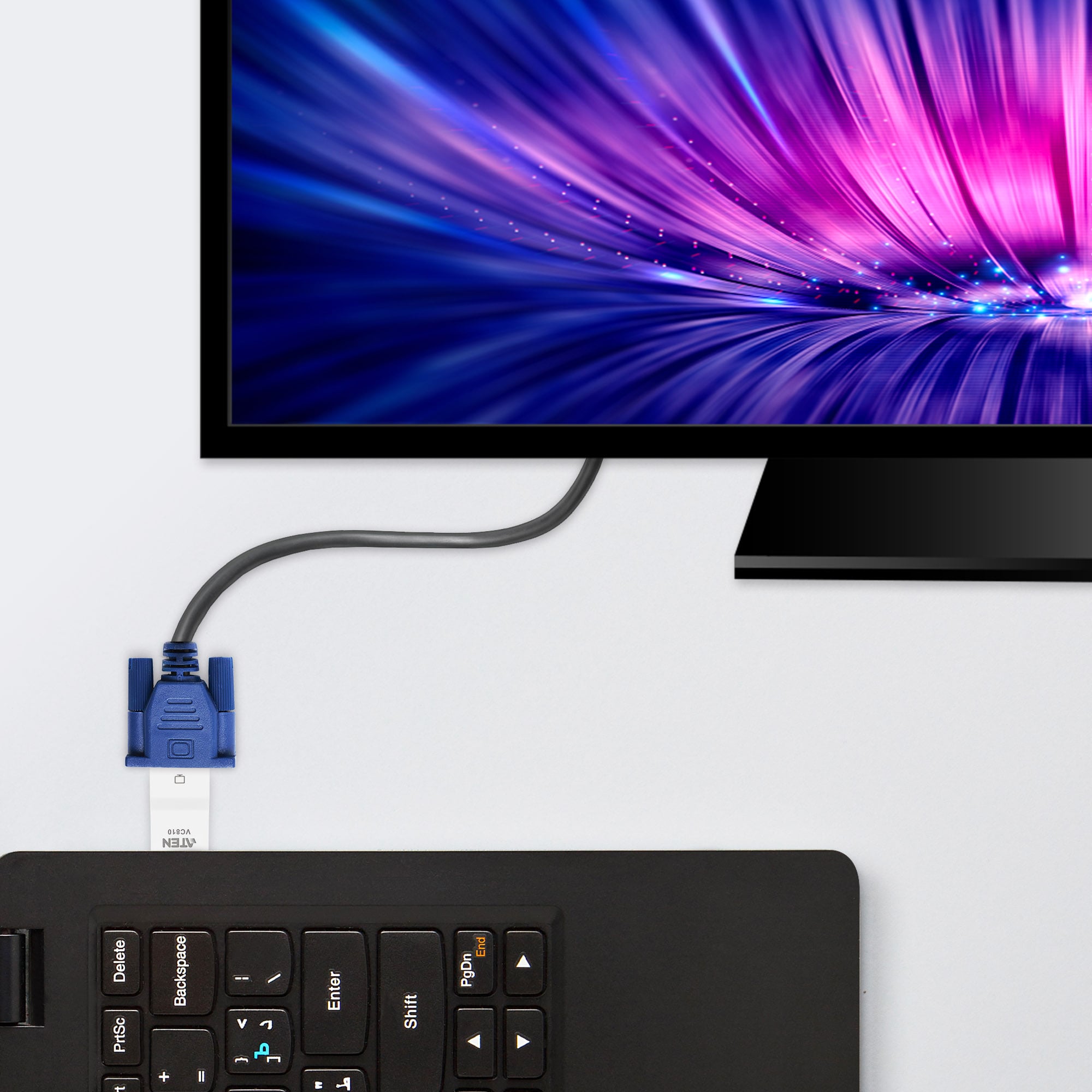

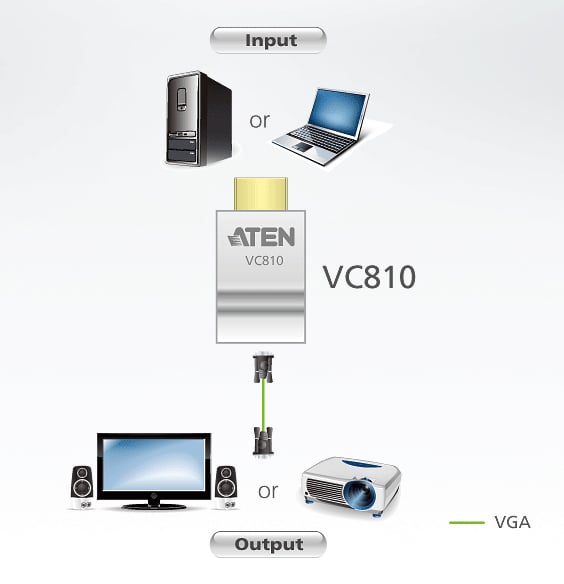

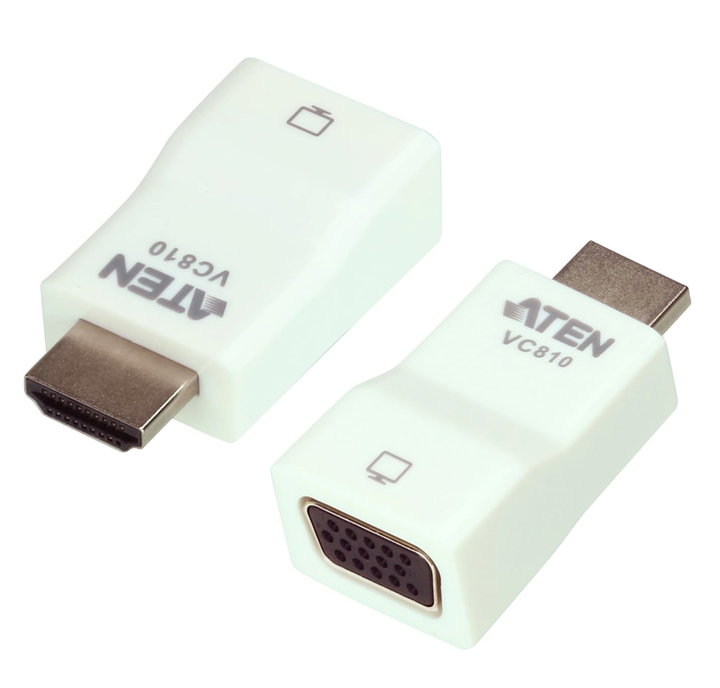

Aten VC 810 è a converter from HDMI to VGA that allows the connection of an HDMI source (e.g. laptop, PC, ultrabook, etc.) directly on a VGA screen (e.g. a projector, LCD monitor, etc.) without having to switch to a HDMI compatible screen at additional costs.
Supports the most frequently used video resolutions up to 1920 x 1200 .

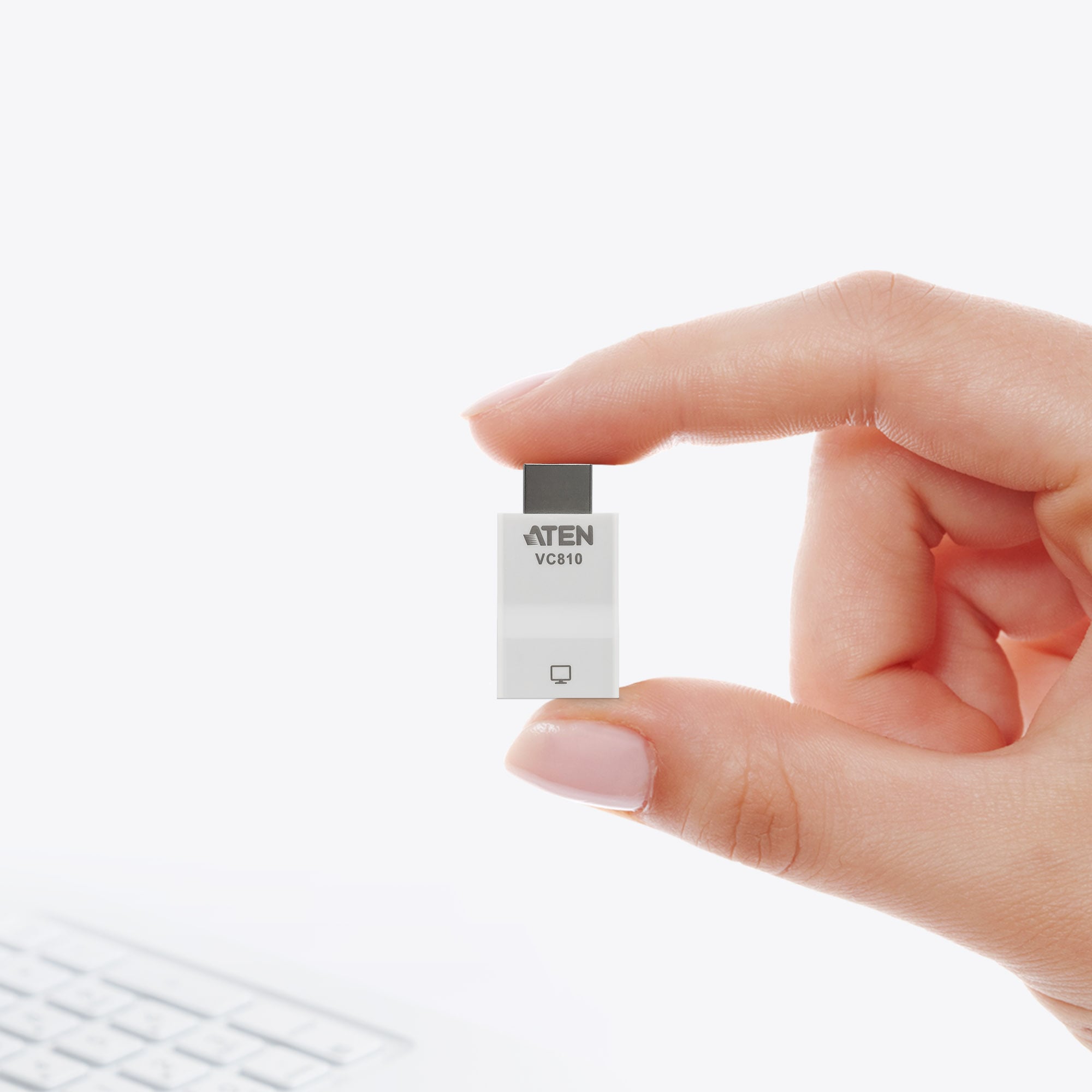

IDATA VC- 810 è compact and allows easy installation without needing any software, just run the hardware connections.
In addition, the plug-n-play converter does not require external power sources, and è therefore ideal for environments such as conference rooms where meetings or presentations take place, ensuring a large portabilityà, simple installation & handling.
Features- Convert HDMI signals to VGA output
- Qualità top video, up to 1920 x 1200 , Full HD 1080 p included.
- Supports many screen formats
- No power required
Technical specifications- Interfaces: 1 x HDMI type A male (black)
- Impedance: 100
- Interfaces: 1 x HDB- 15 female (black)
- Impedance: 75
- Pixel clock max.: 200 MHz
- Max resolution: Up to 1920 x 1200
- Operating temperature: 0 - 60 oC
- Storage temperature: - 10 - 70 oC
- Humidità: 40 - 85 % relative humidity, without condensation
- Structure: Plastic
- Weight: 0.01 kg (0.02 lb)
- Dimensions (L x P x A): 4.55 x 2.30 x 1.48 cm
Package contents- 1 x VC 810 converter from HDMI to VGA
