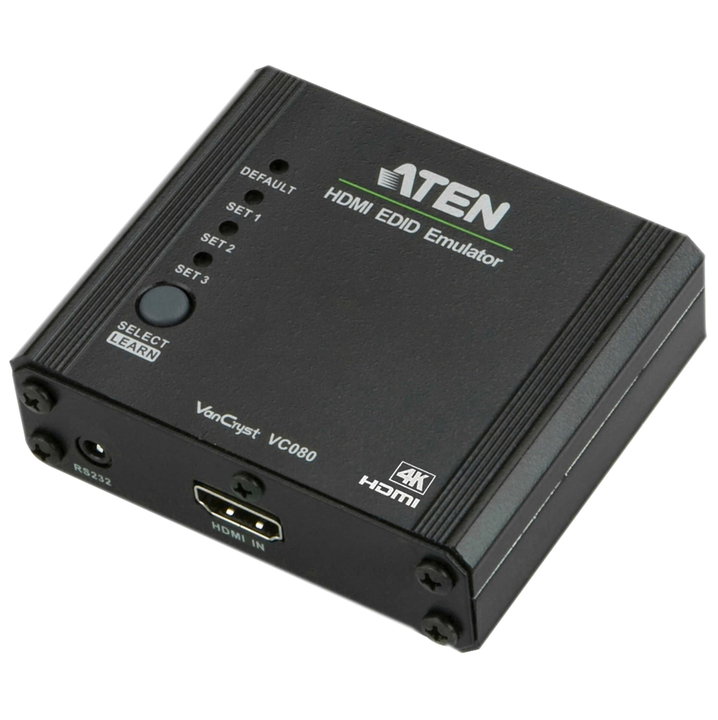

EDID emulator for HDMI Monitor - ATEN IDATA VC- 080

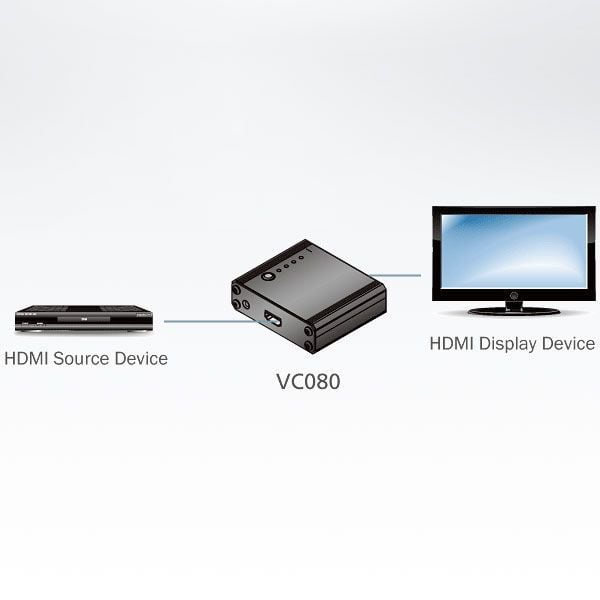

Aten VC 080 è an HDMI EDID emulator designed to emulate and store the EDID of a screen and provide consistent and reliable EDID data for a source HDMI device so as to efficiently optimize video resolution.

The HDMI EDID emulator from ATEN è a convenient tool that ensures a smooth visual experience in any video installation. The EDID emulator offers three flexible methods to select and switch from one mode à EDID to the other: mode à default, modeà programming, modeà learning. IDATA VC- 080 è equipped with an easy-to-use Wizard EDID that allows you to view, store and manage EDID settings with rapid à.



Features

• Superior video: 480 i HDTV resolutions, 480 p, 720 i, 720 p, 1080 i, and 1080 p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)


• EDID Wizard: allows easy management of EDID settings


• The Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to the remote control


• Selection of modeà EDID: default, learning, programming


• HDMI compatible (3 D, Deep Color) and HDCP


• Supports Dolby True HD and DTS HD Master Audio


• Automatic management of EDID communication between connected devices


• Velocità signal up to 2,25 Gbit for display support to 1080 p


• LED indicators of video source devices


• Supports wide screen formats


• Supports hot connection to the system


• No external power supply required*



* If the video source does not provide sufficient power, connect a power cable.



Technical specifications

• Video Input

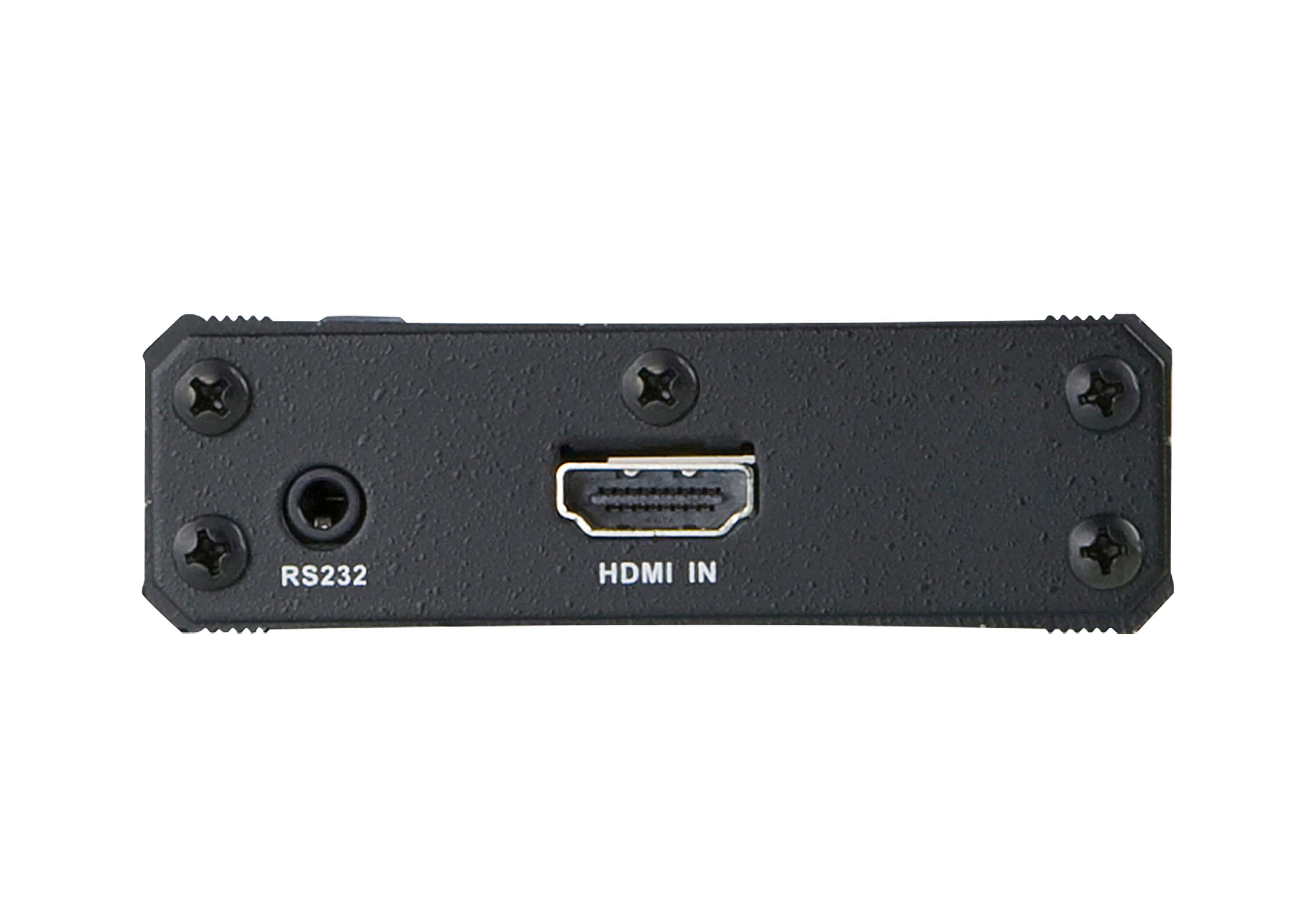

- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

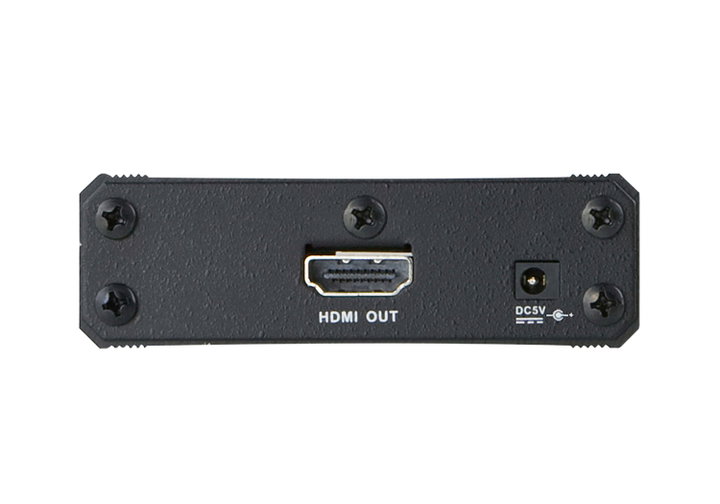

• Video output

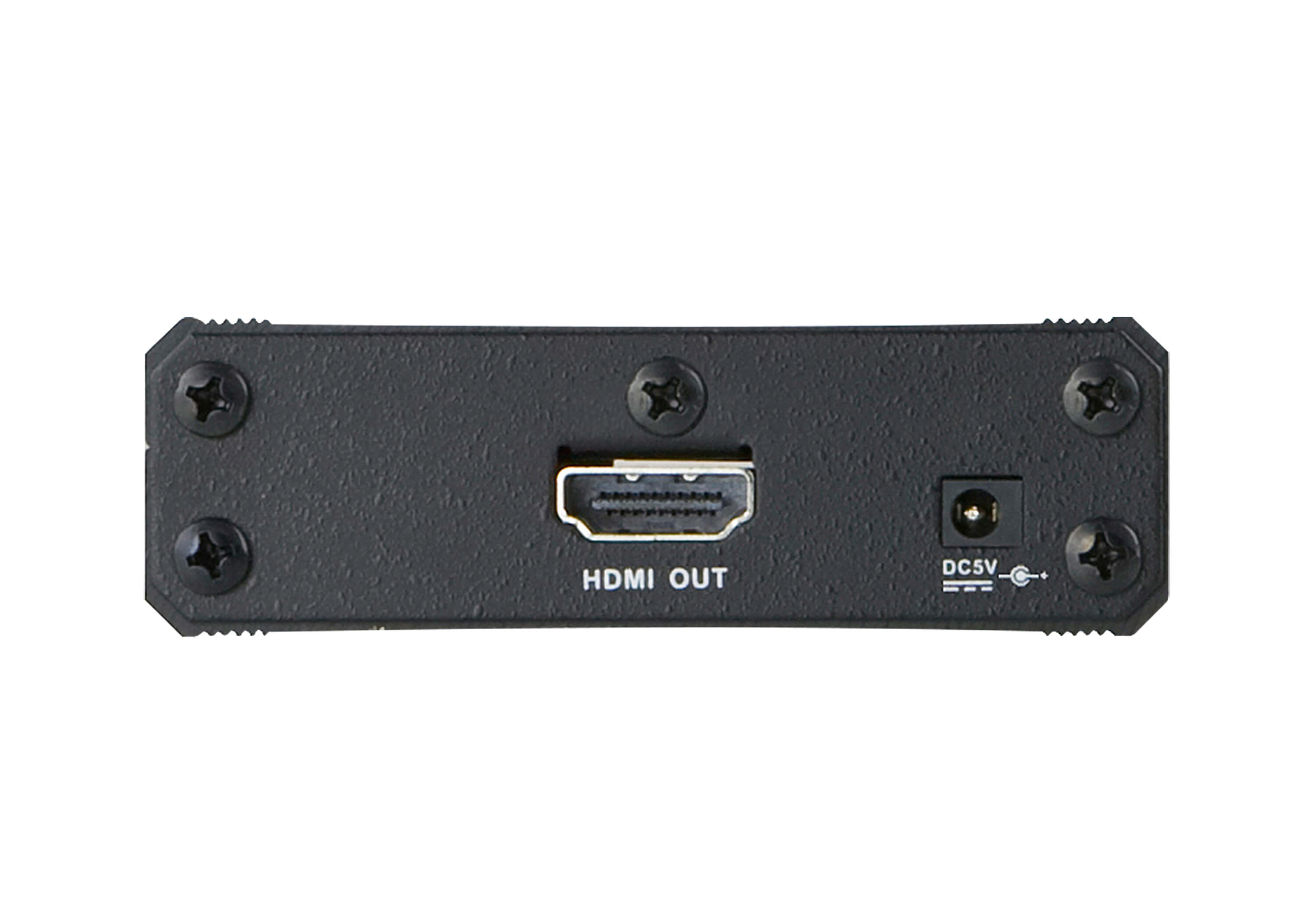

- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

• Video



- Conformityà: HDMI (3 D, Deep Color). HDCP compatible. CEC (Consumer Electronic Control)

• Audio



- Output: 1 x HDMI type A female (black)

• EDID settings: Modelità EDID: Default / Learning / Customized (Supported EDID wizard procedure)


• Feeding



- Connectors: 1 x DC connector

- Consumption: 5 V CC, 0,15 W

• Environment



- Operating temperature: 0 - 50 oC

- Storage temperature: - 20 - 60 oC

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 0.15 kg (0.33 lb)

- Dimensions (L x P x A): 7.90 x 7.76 x 2.45 cm



Package contents

• 1 x HDMI emulator Aten VC 080


• 1 x RS- 232 configuration cable


• 1 x USB to DC power cable


• 1 x user guide
