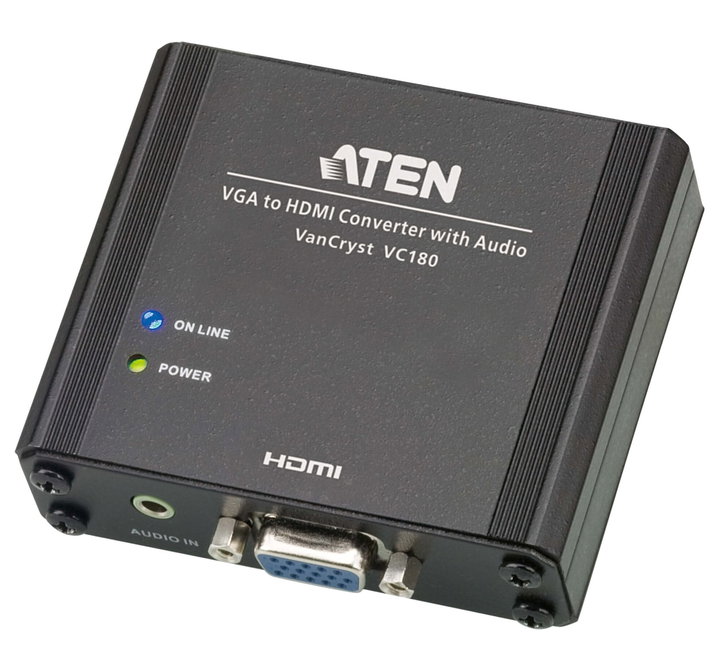

VGA/Audio Converter to HDMI - ATEN IDATA VC- 180

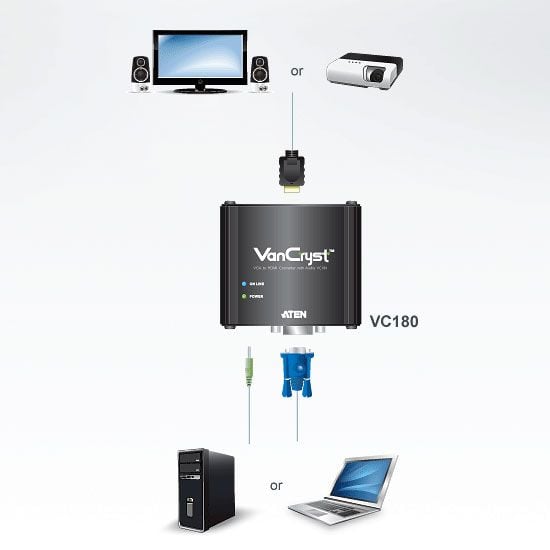

Aten VC 180 è a VGA to HDMI converter that displays data from the VGA source on an HDMI screen with quality audio à stereo.

It uses two power sources: the VGA port or a power supply. The VC 180 feeds through the VGA port. However, if the source device is not è able to supply power, use the power supply.

IDATA VC- 180 è a compact, flexible and easy to install device that does not require any software. Simply make hardware connections and è ready immediately.



Features

• Converts VGA signals to HDMI output


• Supports analog stereo audio input


• Qualityà higher video up to 1080 p, WUXGA


• Image Location Button: è can store the image position on the screen for each output resolution


• Multiplatform support (Windows and Mac)


• Supports two power sources: the VGA port and the power supply (if the VGA port does not provide sufficient power)


• Automatic detection of video input signals


• LED indicator


• HDMI compatible


• Compact and light


• Does not require software: eliminates problems of incompatibilityà and installation



Technical specifications

• Video Input

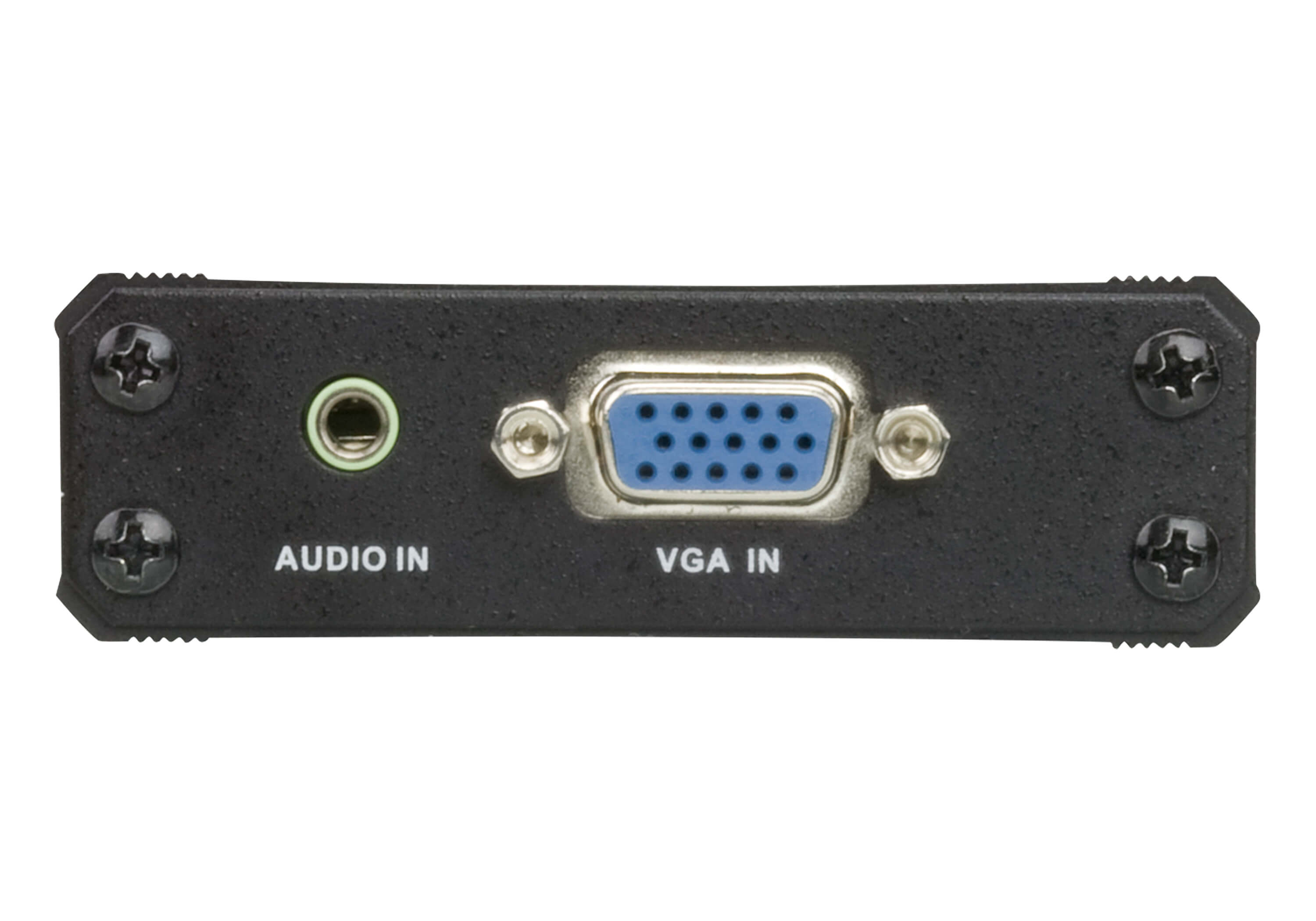

- Interfaces: 1 x HDB- 15 female (blue)

- Impedance: 75

• Video output

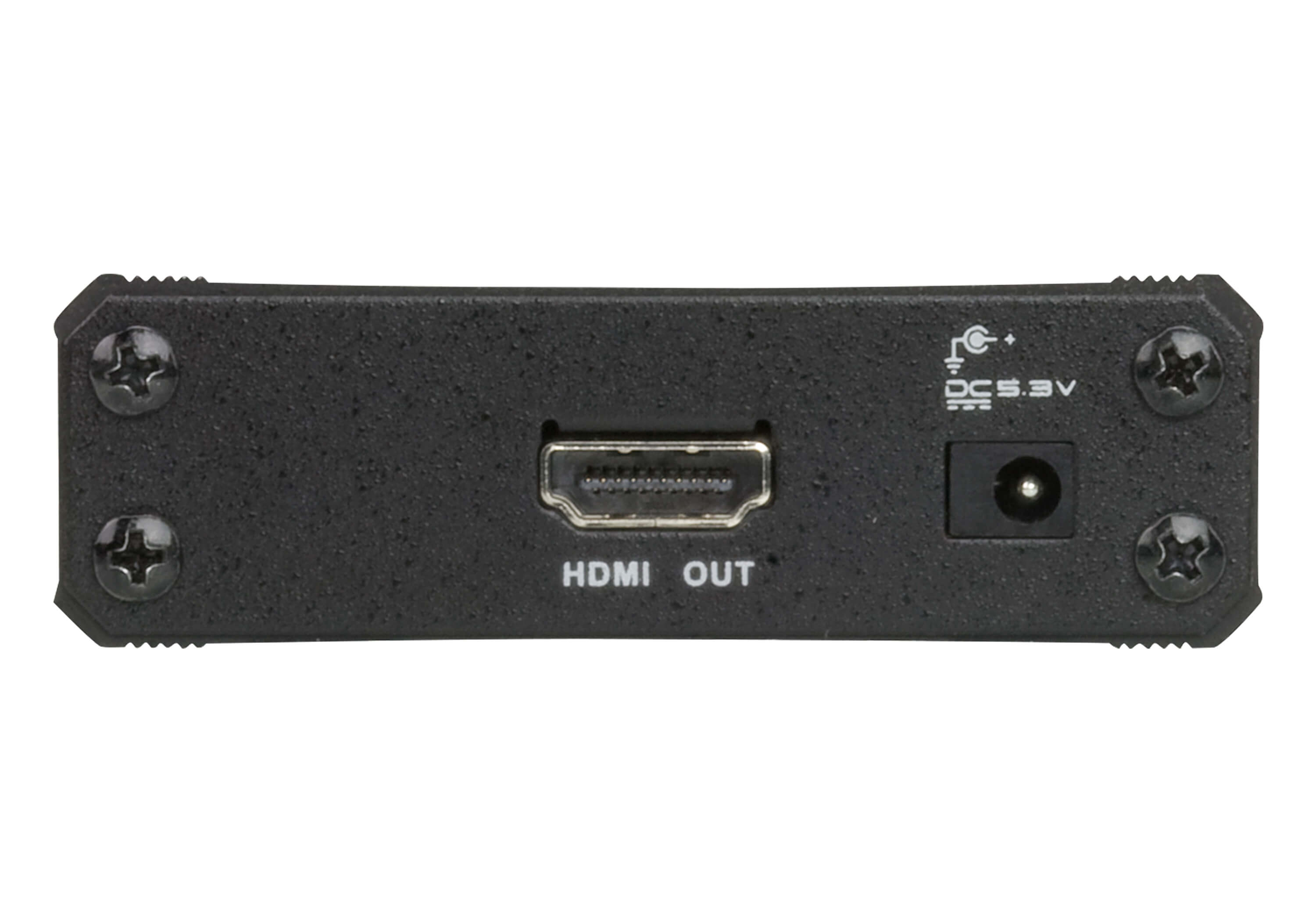

- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

• Video



- Pixel clock max.: 165 MHz

- Maximum resolution: up to 1080 p

• Audio



- Input: 1 x Mini stereo jack female (green)

• Feeding



- Connectors: 1 x DC connector

- Consumption: 5,3 V CC, 3,2 W

• Environment



- Operating temperature: 0 - 50 oC

- Storage temperature: - 20 - 60 oC

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 0.15 kg (0.33 lb)

- Dimensions (L x P x A): 7.90 x 7.81 x 2.44 cm



Package contents

• 1 VGA to HDMI VC 180 converter with audio


• 1 power supply 0 AD 6 - 1605 - 09 EG


• 1 user guide
