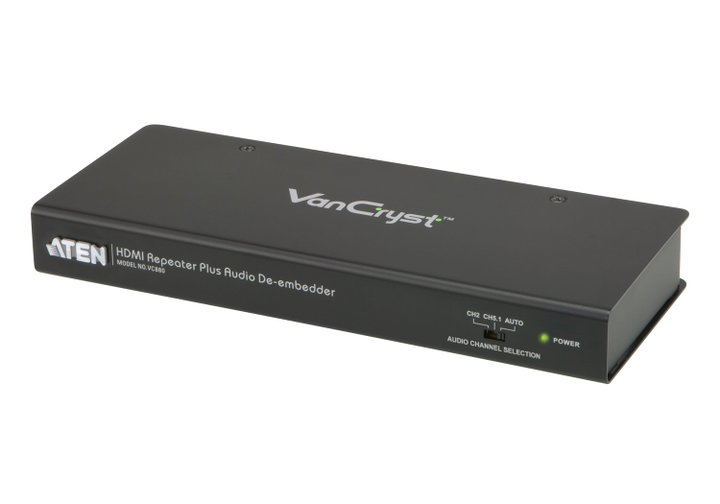

HDMI repeater with Audio Extractor - ATEN IDATA VC- 880

The VC 880 è an HDMI repeater equipped with additional audio scutterer to extract and convert the audio signal from the HDMI input.

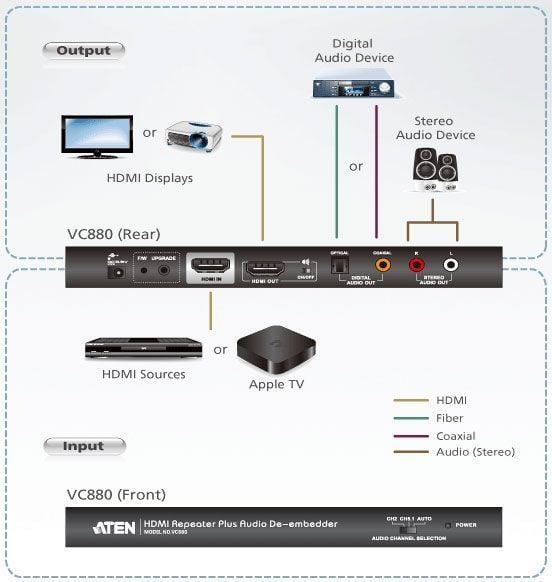

Ciò means that, in addition to the repetition of the output HDMI audio and video signal, è can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors for an additional di alta qualità audio output.

Thanks to the support for 3 D TV formats, IDATA VC- 880 è ideal for those who want to enjoy high-definition videos but also be able to choose the high-definition audio output for televisions, projectors, A/V receivers or speakers.



Features

• Repeat HDMI input signal up to 15 meters


• Extract the HDMI audio signal and transmit it as an additional audio source


• Supports optical/coaxial digital audio and analog stereo audio


• HDCP 1.1 compatible


• Qualityà higher video up to 1920 x 1200 (1080 p)


• Supports HDMI (3 D)


• Updated Firmware

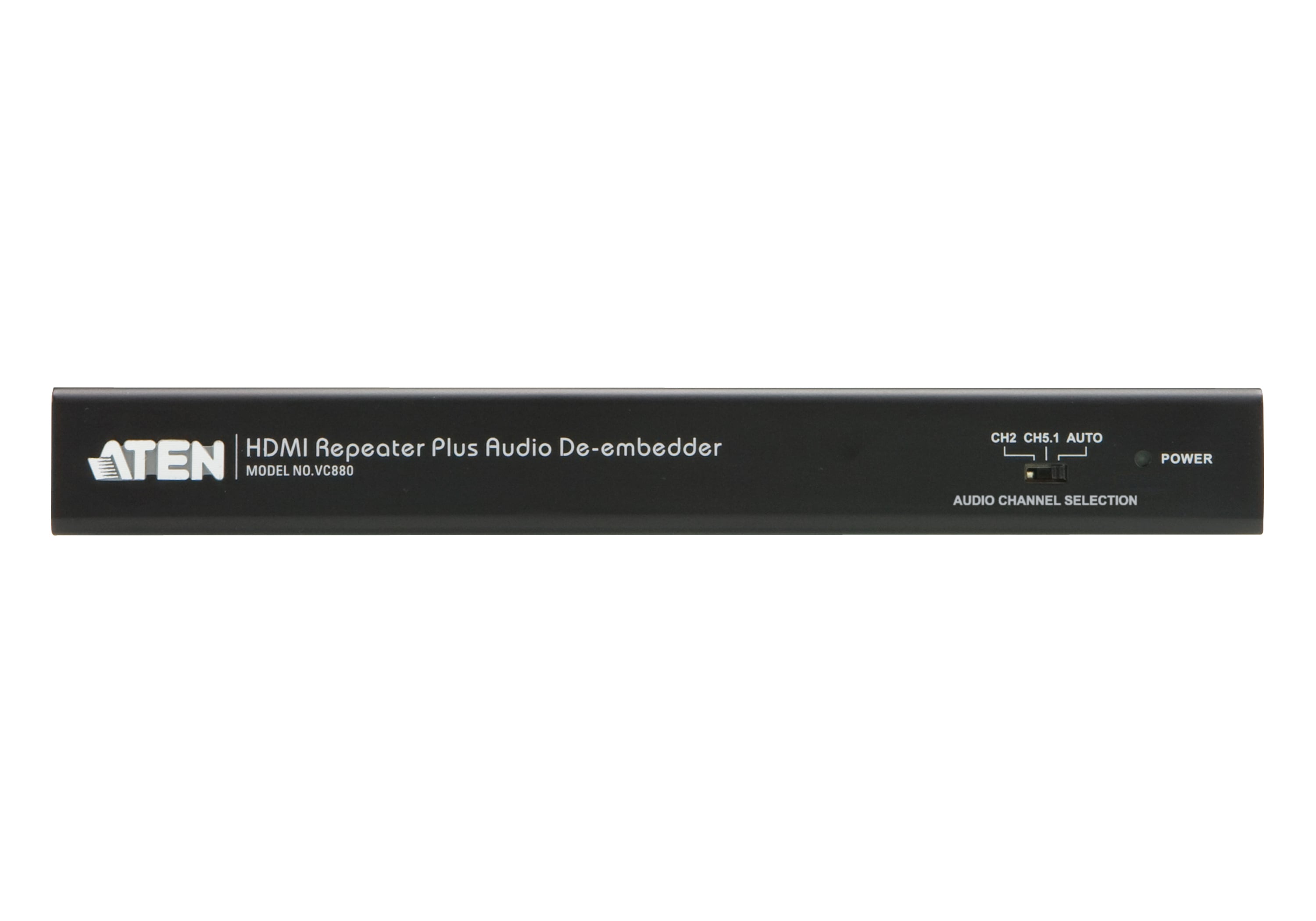

• Selection of the modeà audio channel: 2 channels, 5.1 channels, automatic


• Supports Dolby True HD and DTS HD Master Audio


• You can turn the audio on or off for the HDMI output


• Expandable to three levels: it offers three levels of audio output per HDMI channel up to the distance of 45 meters



Technical specifications

• Video Input



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

• Video output



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

• Video



- Max. frequency of data: 6,75 Gps (2,25 Gbps per lane)

- Pixel clock max.: 225 MHz

- Conformità:

HDMI (3 D, Deep Color)

HDCP compatible

- Maximum resolution: Up to 1920 x 1080

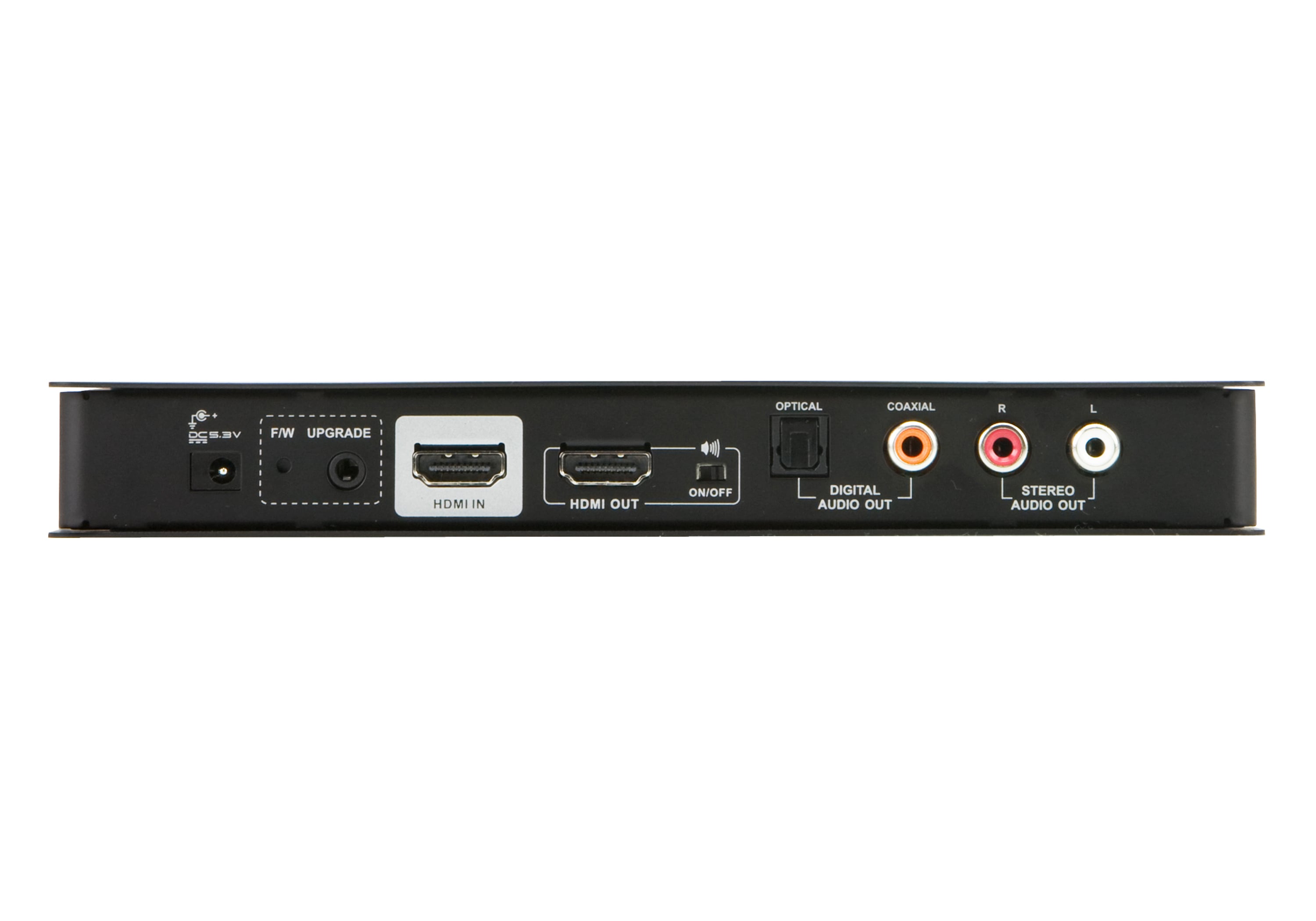

• Audio



- Get out!

1 x HDMI type A female (black);

1 x Toslink (black);

1 x RCA (orange);

2 x RCA (red/white);

• Feeding



- Connectors: 1 x DC connector

- Consumption: 5,3 V CC, 0,8 W

• Environment



- Operating temperature: 0 - 50 oC

- Storage temperature: - 20 - 60 oC

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 0.46 kg (1.01 lb)

- Dimensions (L x P x A): 20.00 x 8.20 x 2.50 cm



Package contents

• 1 HDMI VC 880 repeater with audio scutter


• 1 power supply 0 AD 6 - 1605 - 09 EG


• 1 user guide
