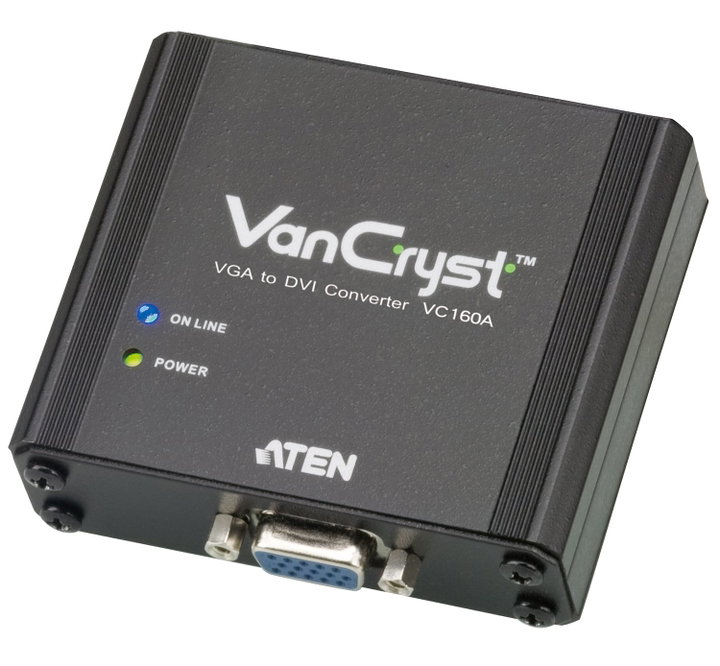

VGA to DVI converter - ATEN IDATA VC- 160 A

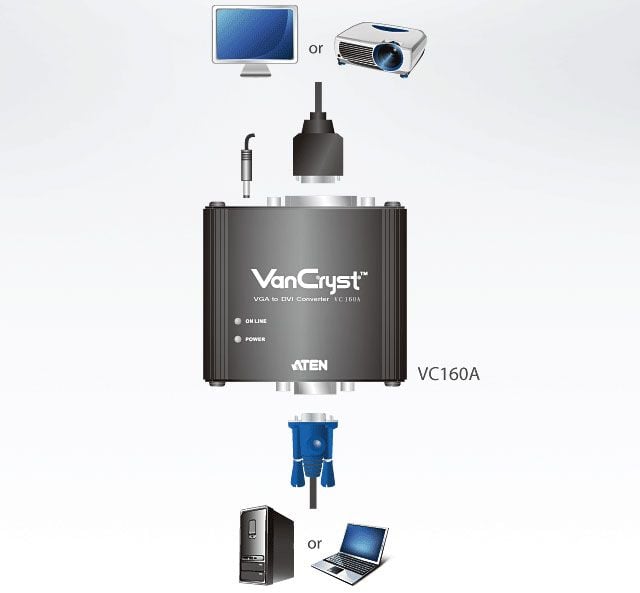

Aten VC 160 A è a VGA to DVI converter that displays data from the VGA source on a DVI screen.

It uses two power sources: the VGA port and the power supply.

The VC 160 A è a compact, flexible and easy to install device that does not require any software.

Supports a wide range of resolutions for a quality video experience.



Features

• Converts VGA signals to DVI output


• Multiplatform support (Windows and Mac)


• Does not require software: eliminates problems of incompatibilityà and installation


• Compact and light


• Supports two power sources: the VGA port and the power supply (if the VGA port does not provide sufficient power)


• Qualityà higher video up to 1080 p (HDTV) or 1920 x 1200 (PC)


• Automatic detection of video input signals (indicated by LEDs)


• Smart video: image quality is optimized based on output device resolution


• Image Position Button: è can adjust and restore the image position on the screen for each output resolution



Technical specifications

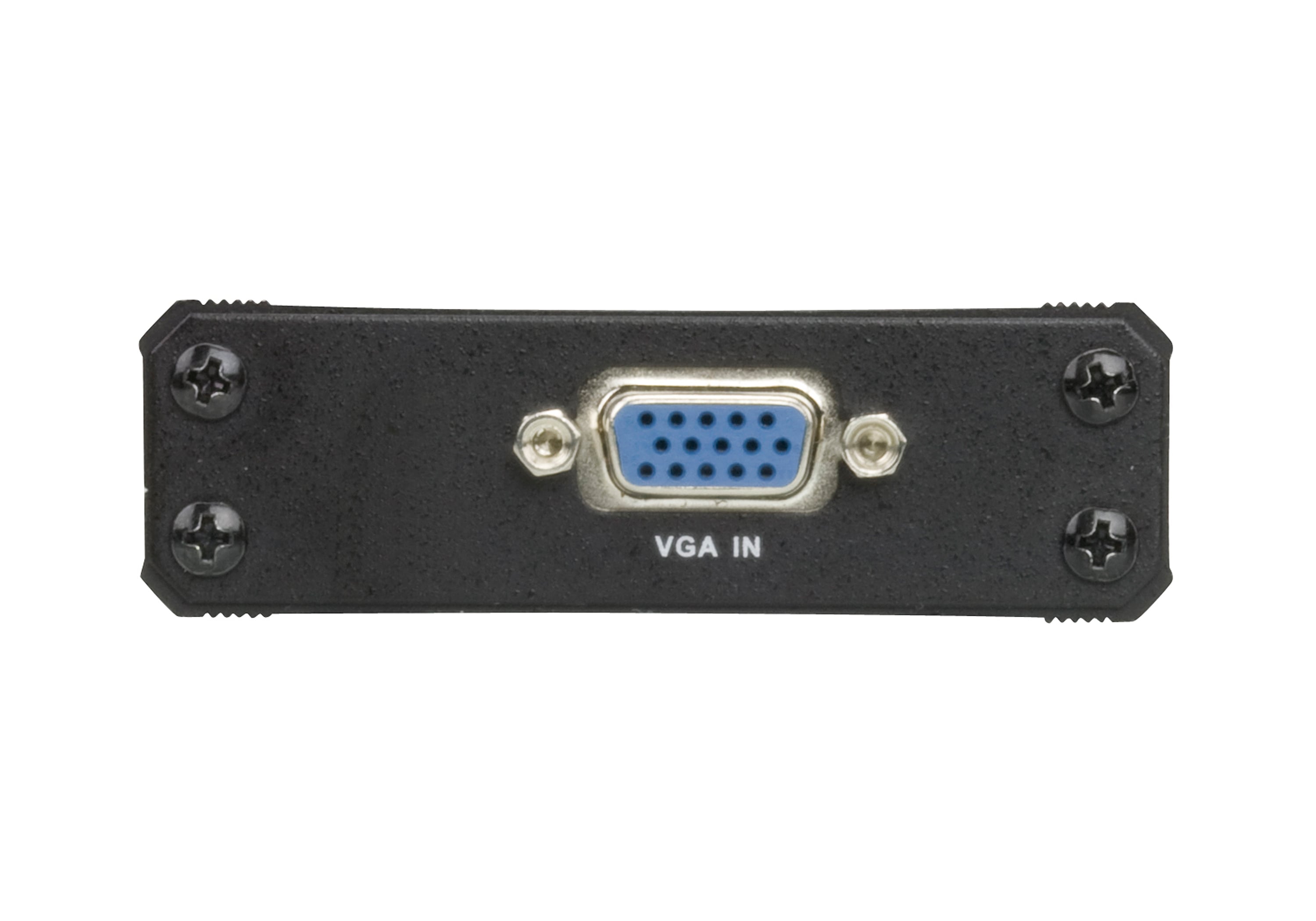

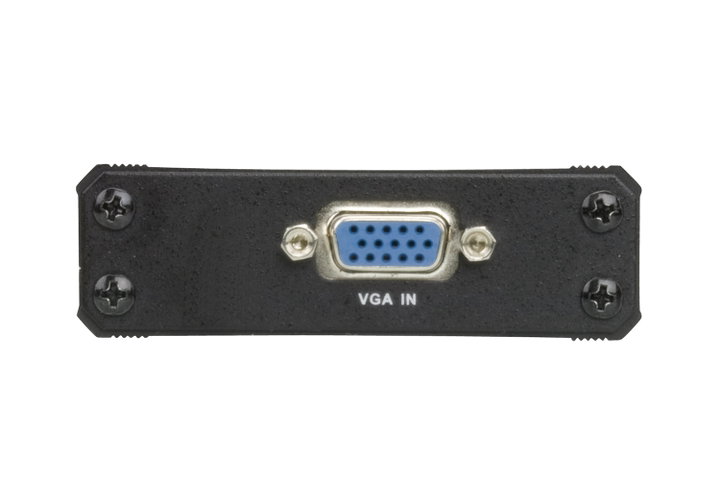

• Video Input



- Interfaces  1 x HDB- 15 female (blue)

- Impedance  75

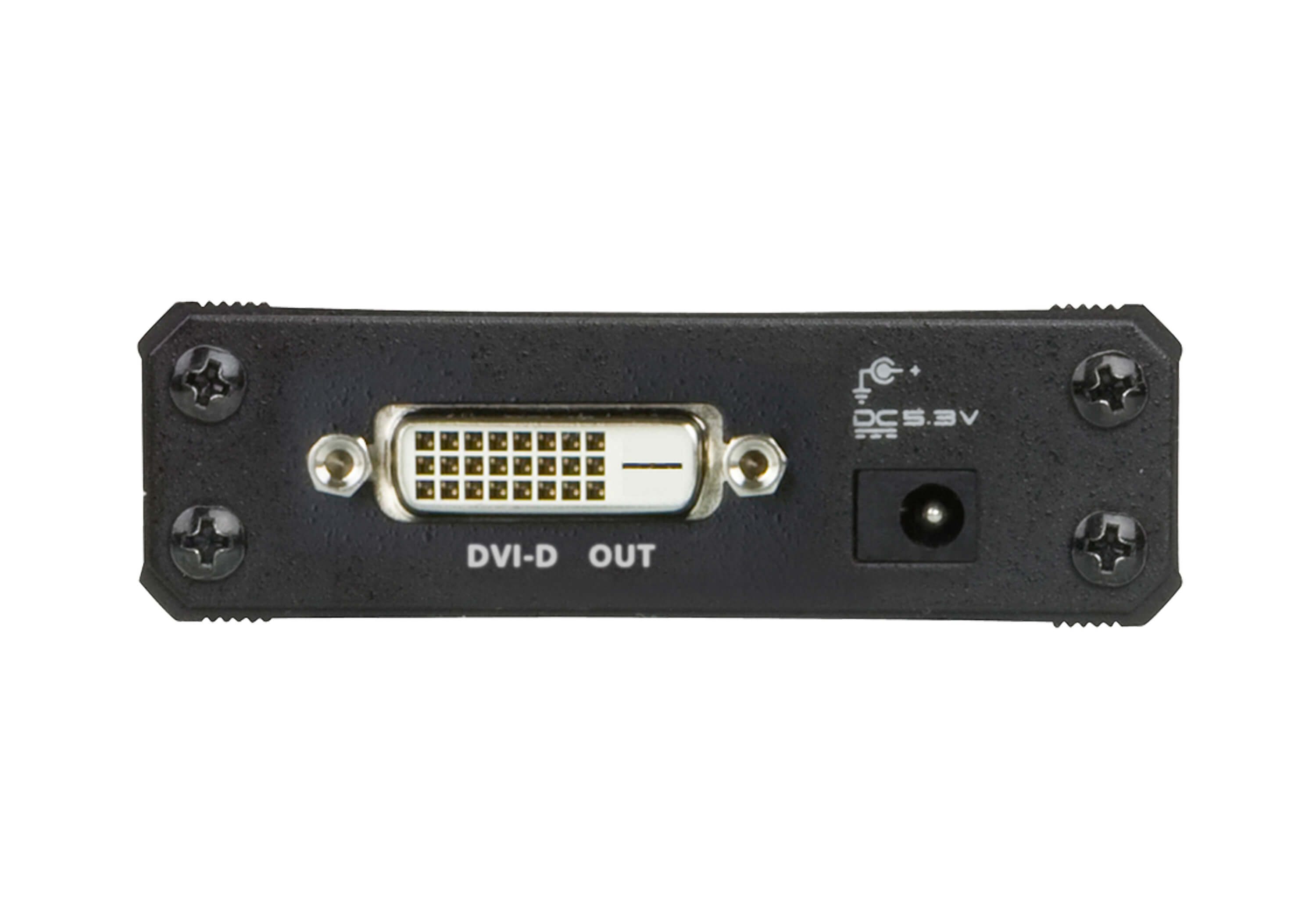

• Video output



- Interfaces  1 x female DVI-D (white)

- Impedance  100

• Video



- Pixel clock max.  165 MHz

- Max resolution & up to 1920 x 1200

• Feeding



- Connectors & 1 x CC Connector

- Consumption & 5,3 V CC, 2,8 W

• Environment



- Operating temperature & 0 - 50 oC

- Storage temperature & - 20 - 60 oC

- Humidità  0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure &Metal

- Weight & 0.15 kg (0.33 lb)

- Dimensions (L x P x A)  7.90 x 7.81 x 2.44 cm



Package contents

• 1 x converter from VGA to DVI VC 160 A


• 1 x power supply


• 1 x user guide
