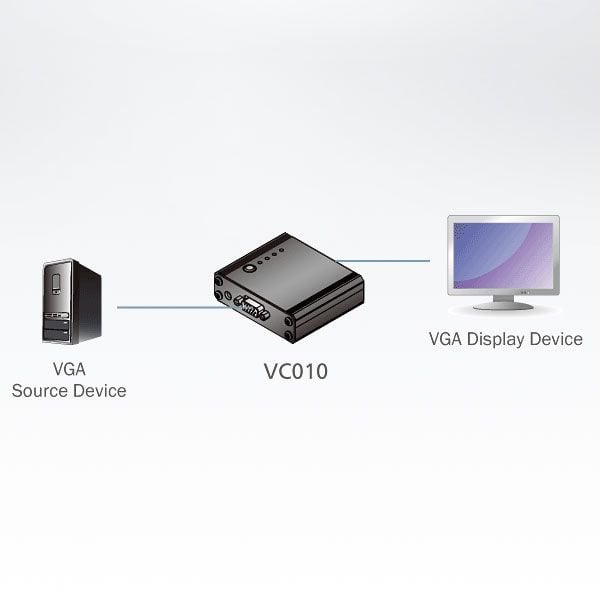

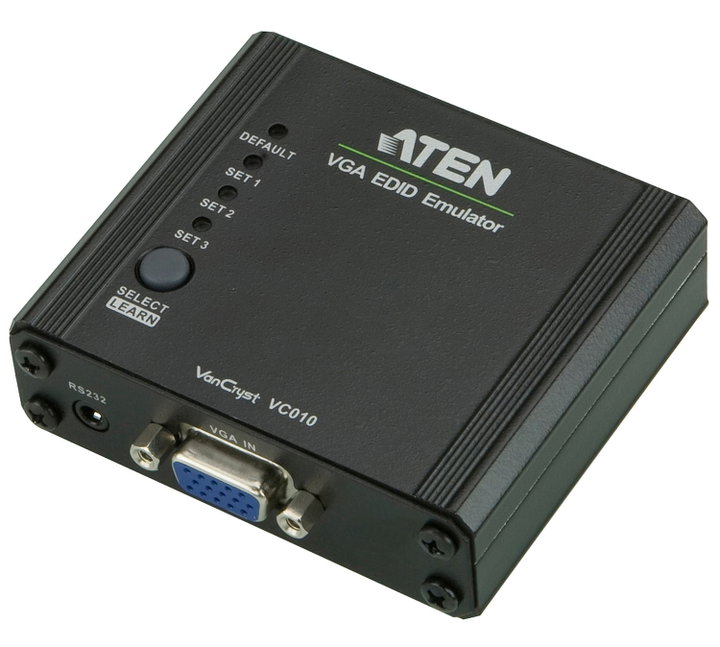

L'ATEN VC 010 è a VGA EDID emulator designed to emulate and store the EDID of a screen and provide constant and reliable EDID data for a source VGA device in order to efficiently optimize video resolution.
ATEN è VGA EDID emulator provides a convenient tool that ensures a smooth visual experience in any video installation. EDID emulator offers three flexible methods to select and switch from one mode à EDID to the other: default modeà default mode, modeà programming, modeà learning. The è device equipped with an easy-to-use Wizard EDID that allows you to view, store and manage EDID settings quicklyà.
Features- Superior video: 480 i HDTV resolutions, 480 p, 720 i, 720 p, 1080 i, and 1080 p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- EDID Wizard: allows easy management of EDID settings
- Selection of modeà EDID: default, learning, programming
- Automatic management of EDID communication between connected devices
- Velocità signal up to 2,25 Gbit for display support to 1080 p
- LED indicators of video source devices
- Supports wide screen formats
- Supports hot connection to the system
- No external power supply required*

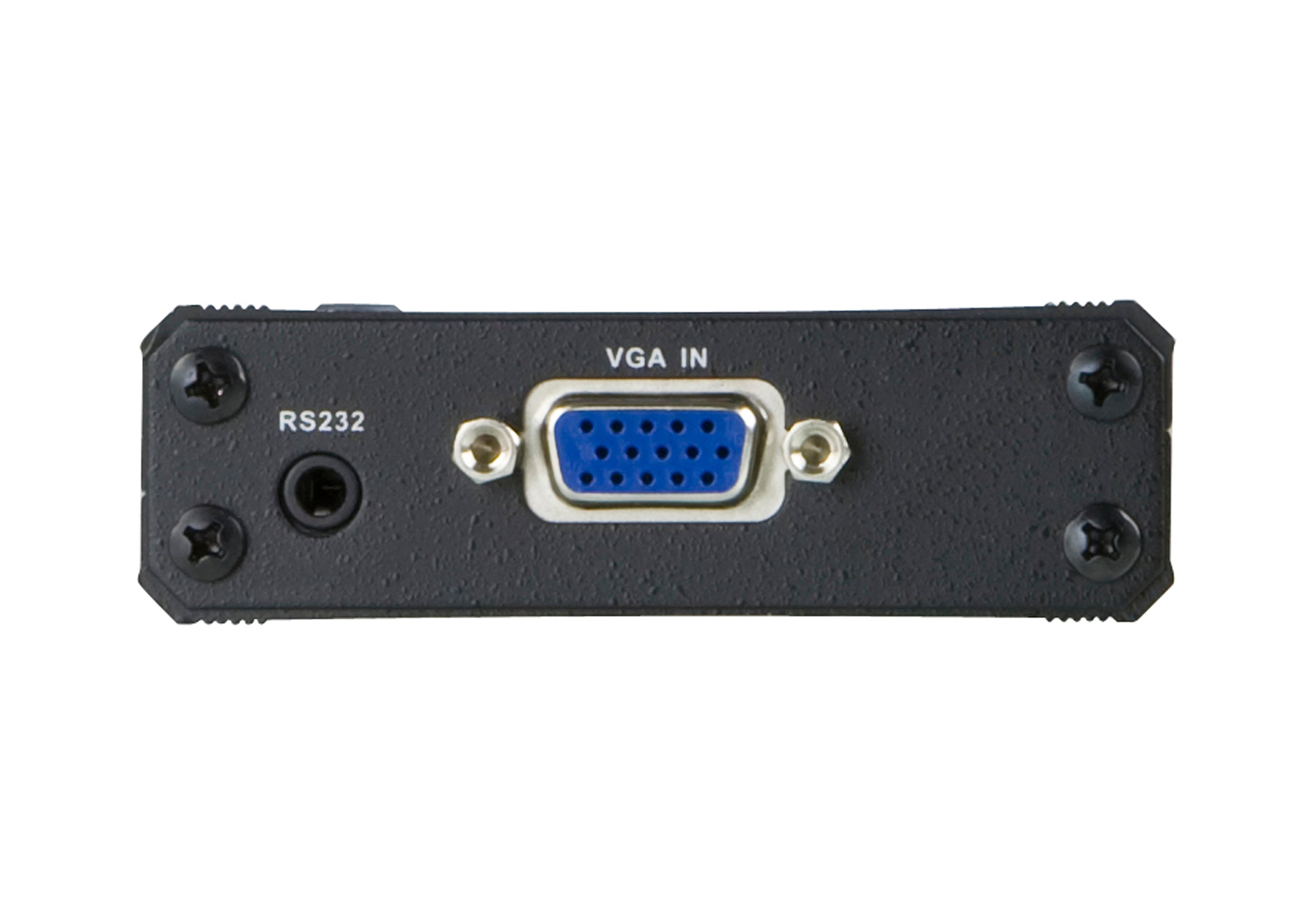

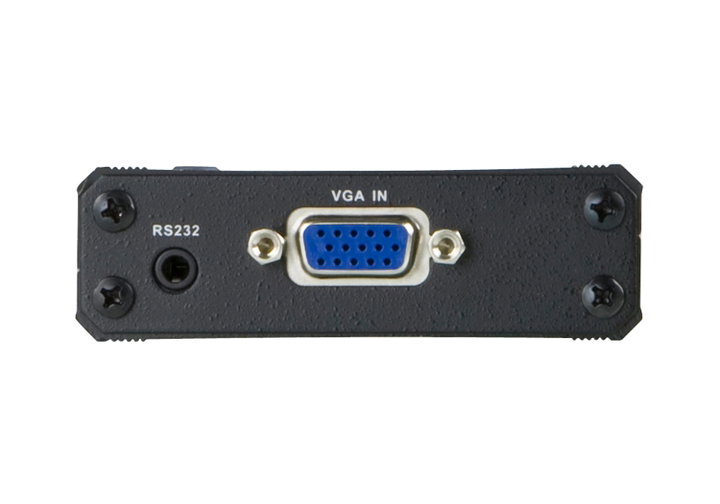

* If the video source does not provide sufficient power, connect a power cable.Technical specifications- Interfaces: 1 x HDB- 15 female (blue)
- Impedance: 75
- Interfaces: 1 x HDB- 15 female (blue)
- Impedance: 75
- EDID settings: Modelità EDID: Default / Learning / Customized (Supported EDID wizard procedure)
- Feeding

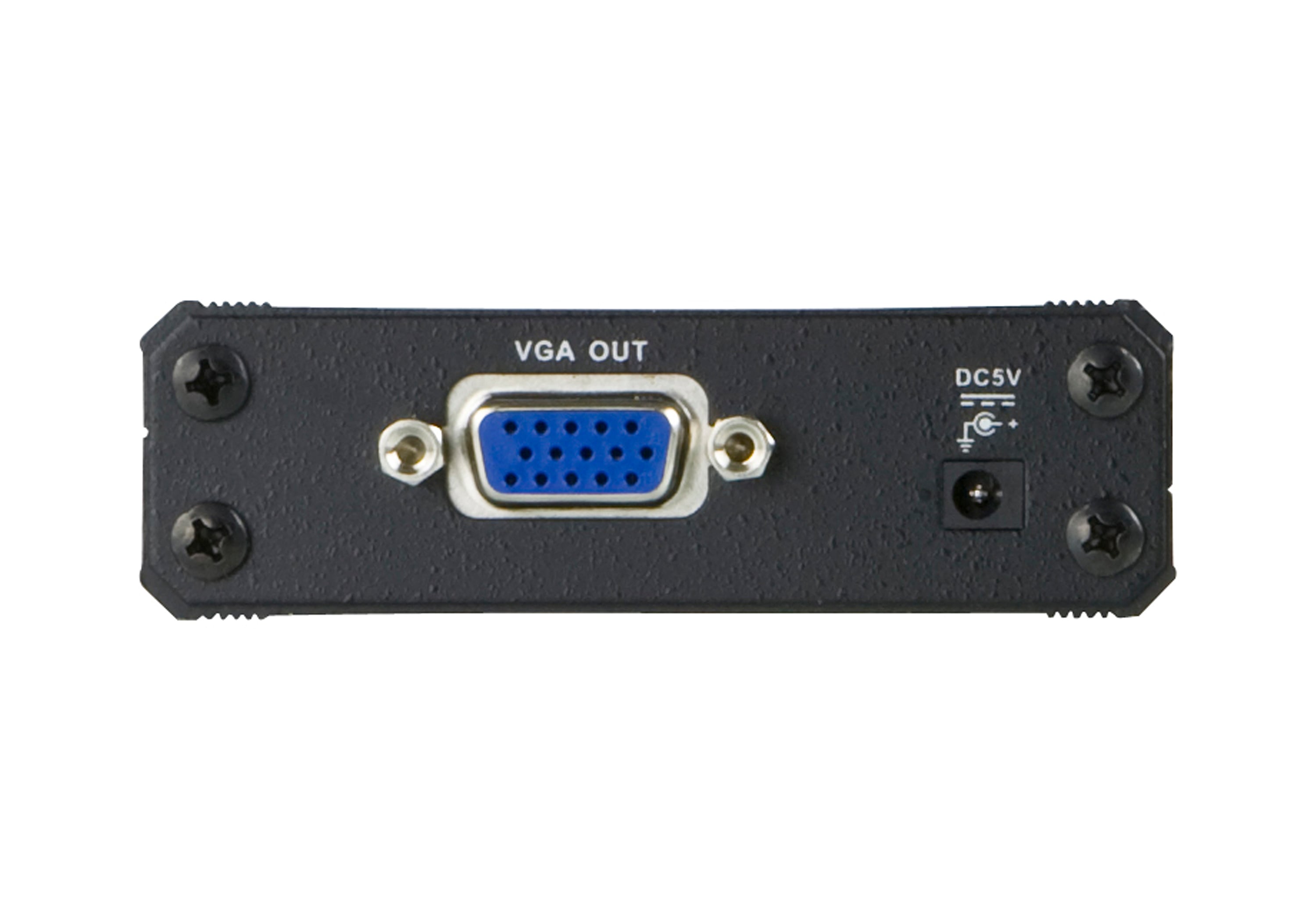

Connectors: 1 x CC connector
- Consumption: 5 V CC, 0,15 W
- Operating temperature: 0 - 50 oC
- Storage temperature: - 20 - 60 oC
- Humidità: 0 - 80 % relative humidity, without condensation
- Structure: Metal
- Weight: 0.15 kg (0.33 lb)
- Dimensions (L x P x A): 7.90 x 7.76 x 2.45 cm
Package contents- 1 x VGA emulator IDATA VC- 010
- 1 x RS- 232 configuration cable
- 1 x USB to DC power cable
- 1 x user guide
