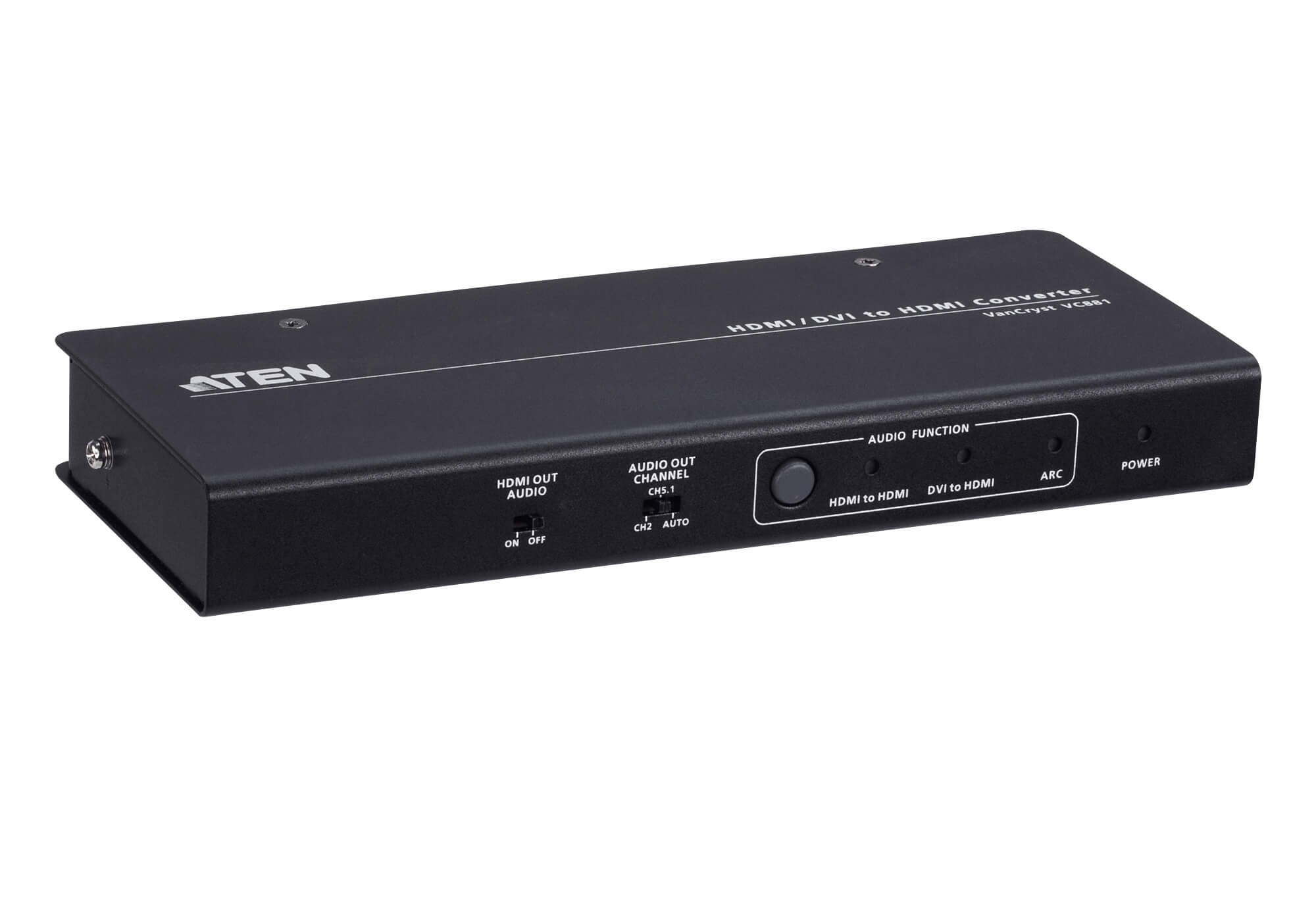

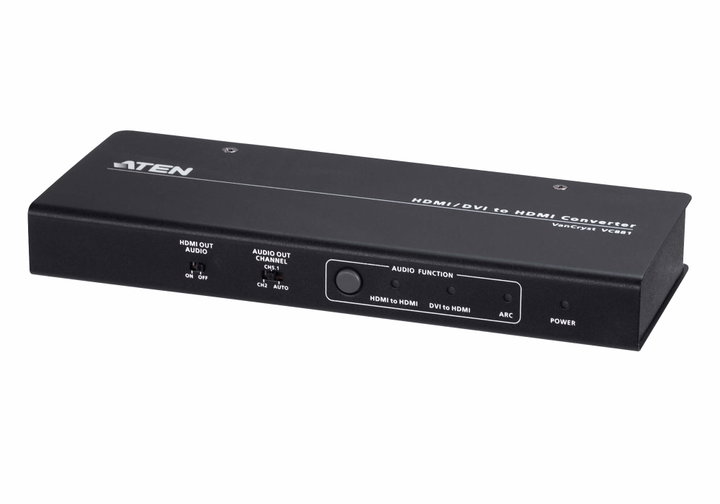

Converter from 4 K HDMI/DVI to HDMI with Audio Disassembler - Aten IDATA VC- 881

ATEN VC 881 è a high quality HDMI/DVI to HDMI converter with audio disassembling function. It receives a DVI signal and converts it to HDMI signal or receives an HDMI signal and extracts it into an HDMI audio signal. Advanced video support offers a well-defined connection with video resolutions up to 4 K and è compliant with HDCP 1.4.

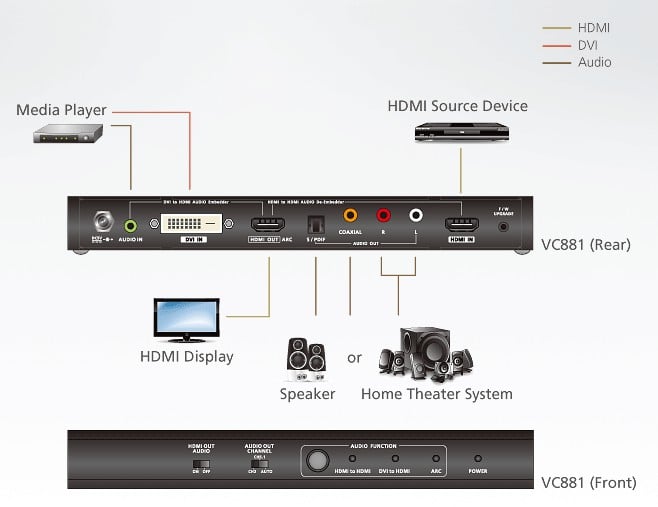

The VC 881 offers flexible support for converting the signal interface (from DVI to HDMI) and HDMI audio disassemblator. For the HDMI audio disassemblator function, the VC 881 divides the audio from the HDMI video and converts it to S/PDIF, coaxial, or RCA stereo audio to support an audio system separated from the display. Ciò allows the HDMI video to continue the viewing while providing audio to an audio system next to the HDMI source. In addition, the VC 881 supports ARC to make it more ù simple setting by eliminating the needà of a separate S/PDIF audio connection.



The compact housing design and the audio disassembler functionality makes the VC 881 ideal for bars, public transport stations, and home theatres.



Features

• Simplified mode selection; push button



- From HDMI to HDMI

- From DVI to HDMI

- Audio return channel (ARC)

• HDMI 1.4 (3 D, Deep Color, 4 K); HDCP 1.4 compatible


• Superior video qualityà



- HDMI: up to 4 K (3840 x 2160 at 30 Hz)

- DVI: up to 1920 x 1200

• Extraction and conversion of HDMI audio transmission to S/PDIF, coaxial or RCA stereo audio signal


• LED indicator for power supply status


• Updated Firmware


• Metal housing



Technical specifications

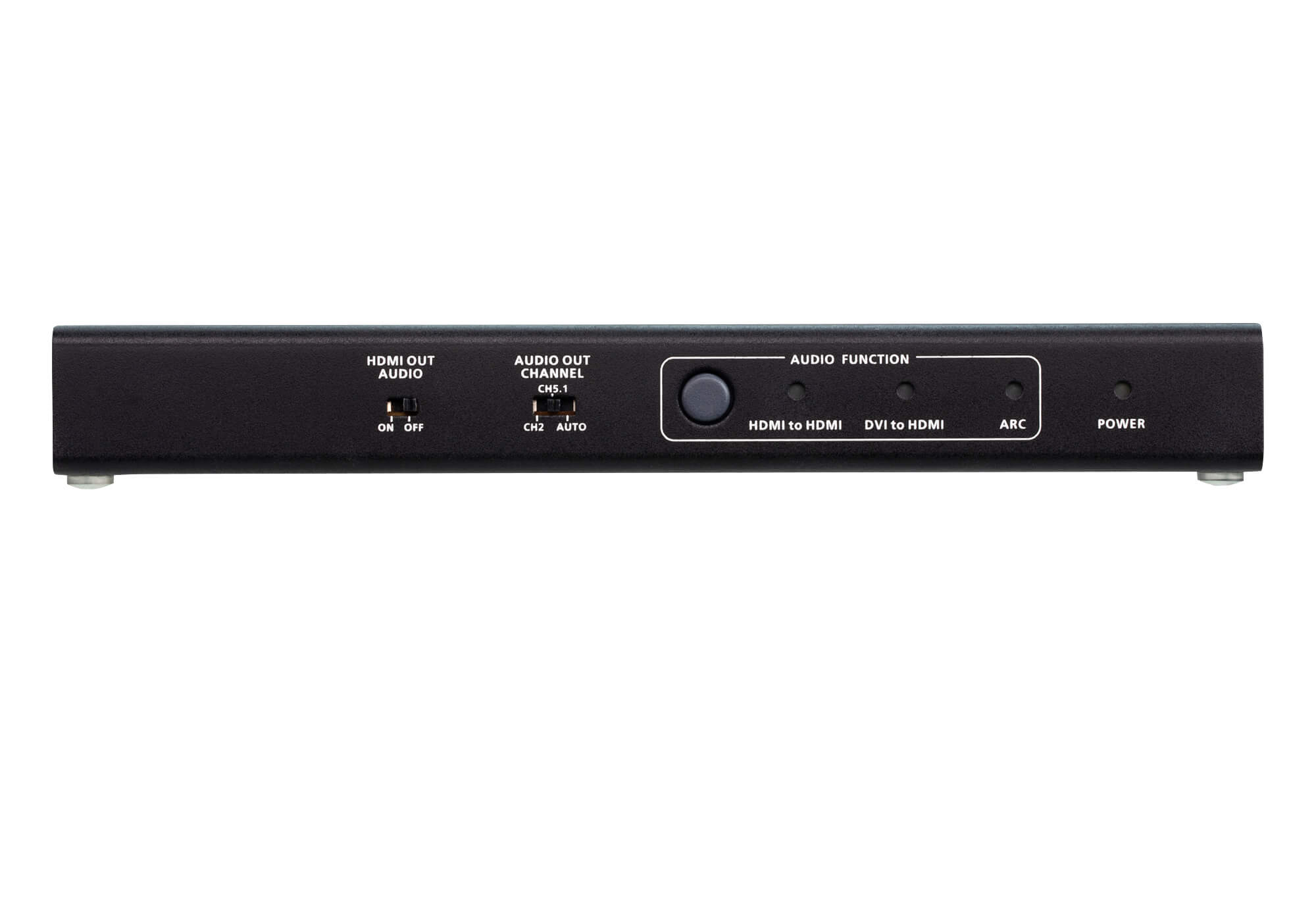

• Switches



Mode selection Side switch x 1 (HDMI audio output - ON/OFF)

Side switch x 1 (Audio output channel - AUTO/CH 5.1 /CH 2)

Push button x 1 (select audio function)

1 . HDMI to HDMI

2. DVI to HDMI

3 . ARC (Audio Return Channel)

• Video output:



Interfaces   1 x HDMI type A female (black) with ARC

Impedance   100

Max. distance & 3

• Video input:



Interfaces  1 x HDMI type A female (black)

Impedance   100

Max. distance & HDMI: 3

DVI: 1,8

• Video:



Maximum frequency of data: 6,75 Gbps (2,25 Gbps per lane)

Pixel clock max. 225 MHz

Conformità: HDMI 1.4 (3 D, Deep Color)

HDCP 1.4 compatible

Max resolution  HDMI 3840 X 2160 to 30 HZ

DVI 1920 x 1200

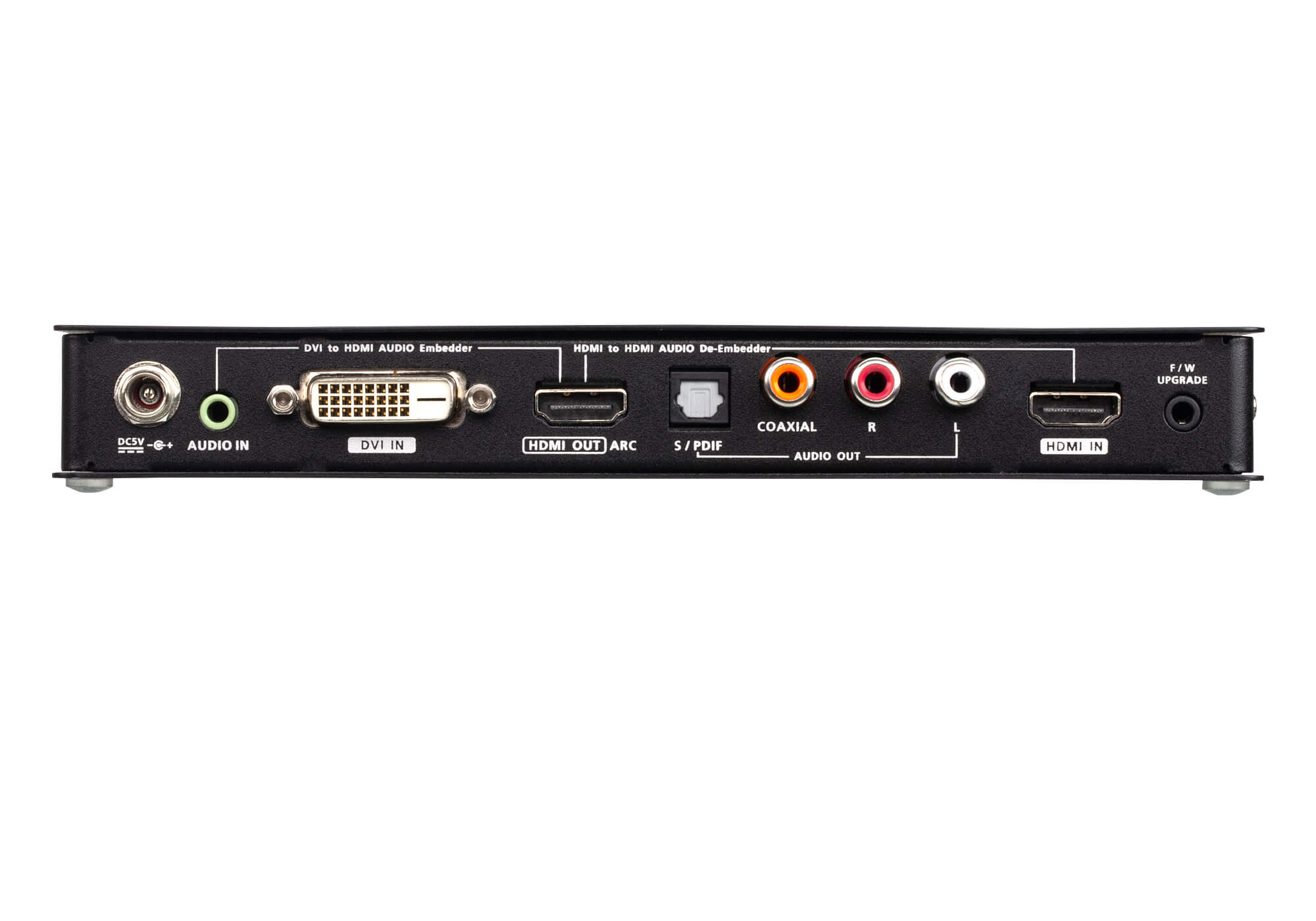

• Audio:



Optical audio output: 1 x Toslink (black)

Coaxial audio: 1 x female RCA (orange)

Stereo audio: 2 x RCA female (white / red)

Input   Stereo audio: 1 x 3,5 connector mm (green)

• Connectors:



Power supply   1 x DC connector, 5 V, lockable

Firmware update & 1 x 3,5 mm connector (firmware update)

• Consumption: 5 V CC, 1,767 W, 8 BTU



Environmental features

• Operating temperature: 0 - 40 oC


• Storage temperature: - 20 - 60 oC


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 20,20 cm


• Depthà: 8,49 cm


• Height: 2,50 cm



Package contents

• 1 x VC 881 converter from 4 K HDMI/DVI to HDMI with audio disassembler


• 1 x 0 AD 6 - 1 F 05 - 26 EG power supply


• 1 x user instructions
