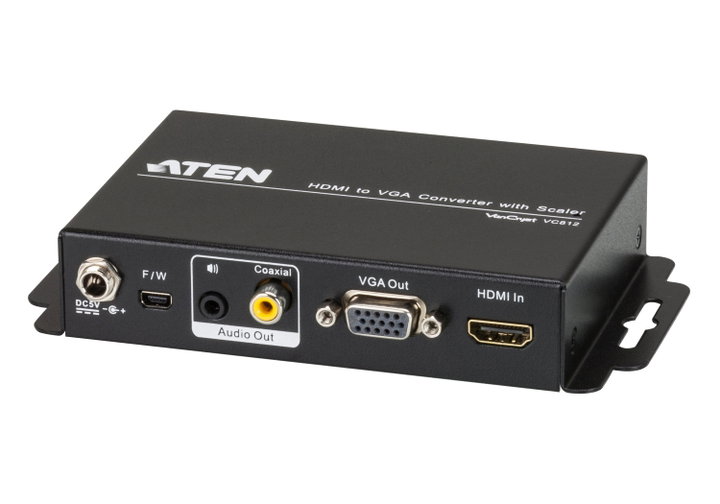

VGA/Audio HDMI Converter with Scaler - ATEN IDATA VC- 812

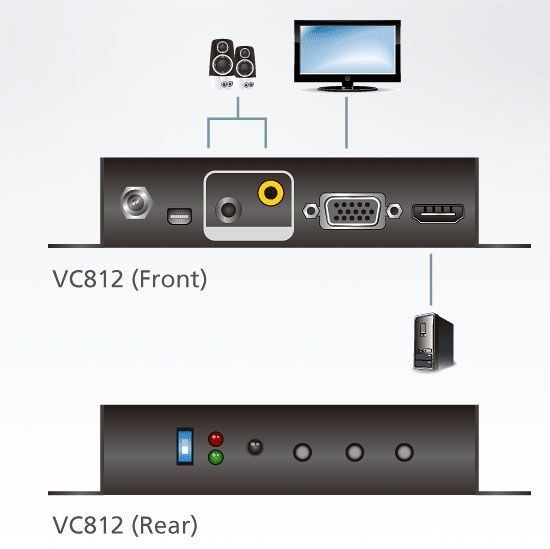

The HDMI to VGA converter, VC 812 with scaler, offers a simple and convenient way to convert HDMI input signals into analog video (VGA). The VC 812 è equipped with a high-performance resizing engine that targets video resolution to produce the best quality images.

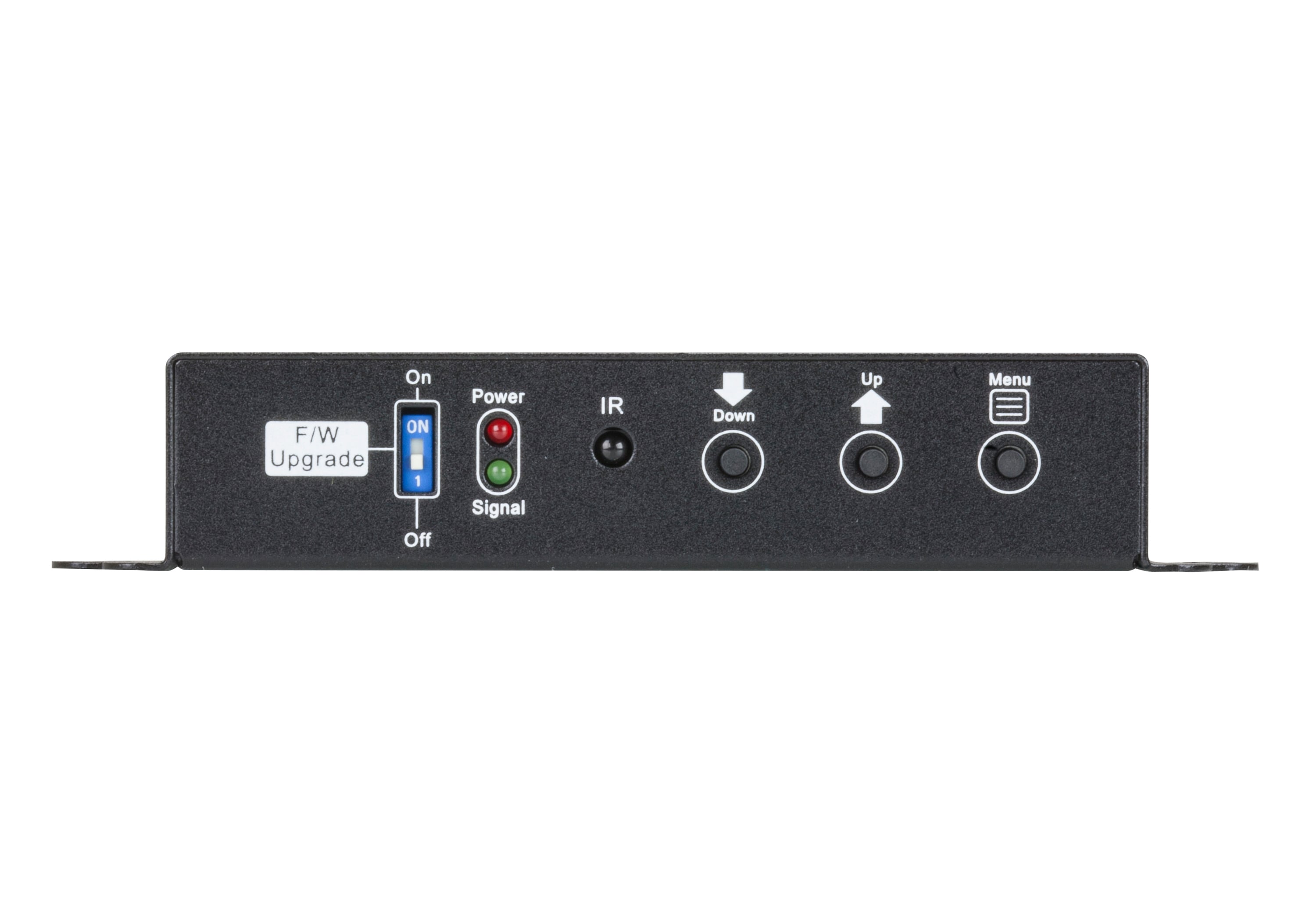

IDATA VC- 812 can be used via built-in on-screen display (OSD) using the front panel buttons, which are easily accessible.



Features

• Convert HDMI signals to VGA output


• Supports analog/digital audio


• Superior video quality: up to 1080 p; 1920 x 1200


• Embed high performance scaler function for maximum image quality


• Scaler: an exceptional scaling engine to convert various video resolutions into the native resolution of the screen and at the same time automatically adjust the image ratio for a view with maximum comfort


• Deinterlacing 3 D: increases image clarity for maximum quality; visual processing and analyzing digital video signals


• Built-in OSD function for system video settings configuration.


• Exceptional integrated video noise reduction


• New generation integrated color motor: automatic color and quality à image adjustment and improvement


• Automatic detection of video input signals


• LED to indicate the state of power supply and source devices


• Does not require software: eliminates incompatible à and installation problems


• Note: VC 812 does not support HDCP



Technical specifications

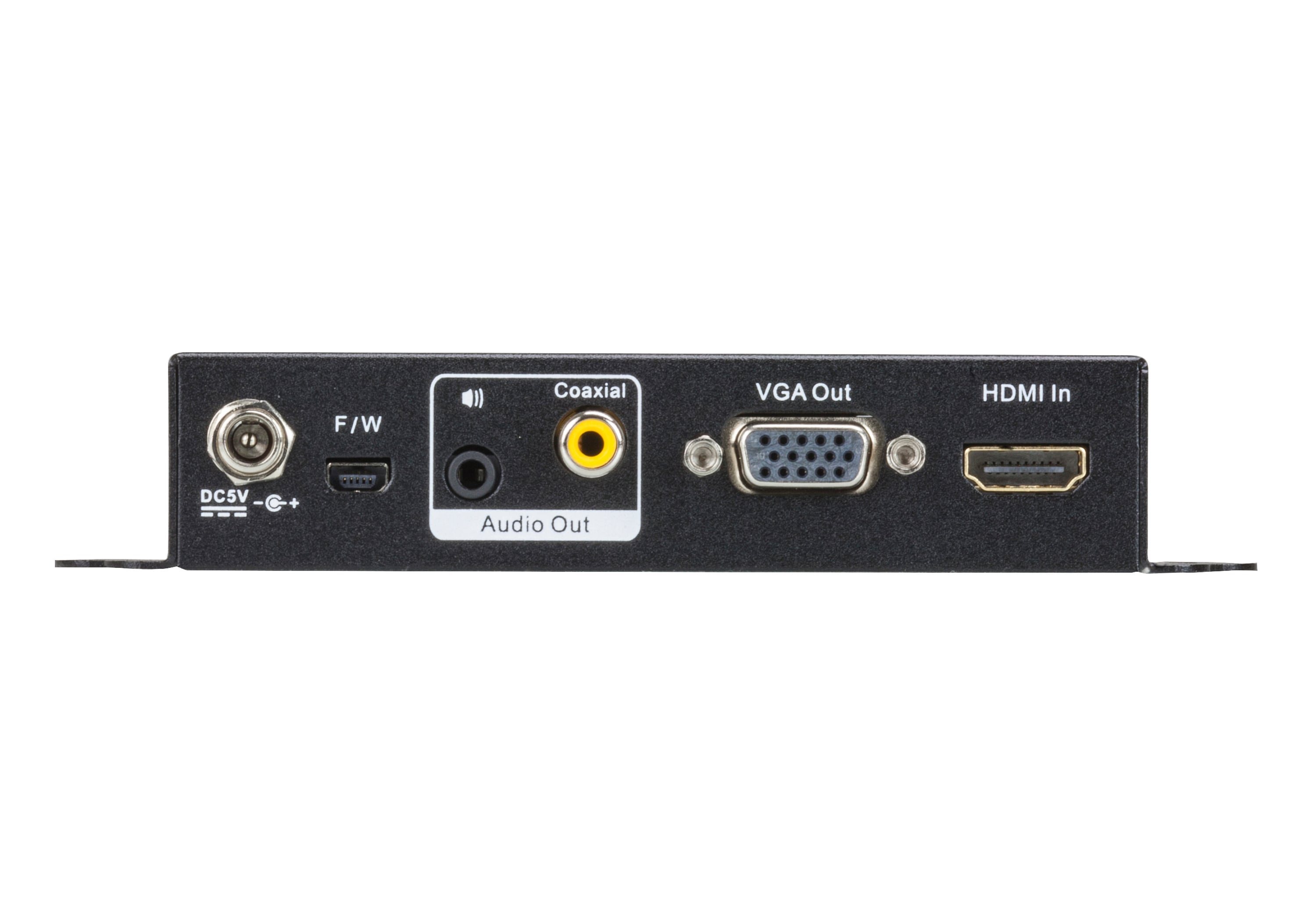

• Video Input



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

• Video output



- Interfaces: 1 x HDB- 15 female (black)

- Impedance: 75

• Video



- Pixel clock max.: 165 MHz

- Max resolution: Up to 1920 x 1200

- Gradualization resolution: 480 p; 480 i; 576 p; 576 i; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1080 i; 1080 p; 1920 x 1200

• Audio



- Get out!

Analog: 1 x Mini female stereo connector (black)

Digital: 1 x RCA (yellow)

• Feeding



- Connectors: 1 x DC connector

- Consumption: 5 V CC, 10 W

• Environment



- Operating temperature: 0 - 40 oC

- Storage temperature: - 20 - 60 oC

- Humidità: 20 - 90 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 0.29 kg (0.64 lb)

- Dimensions (L x P x A): 11.00 x 8.30 x 2.80 cm



Package contents

• 1 x VC 812 converter from HDMI to VGA with scaler


• 1 x 0 AD 6 - 1 F 05 - 26 EG power supply


• 1 x software CD


• 1 x user guide
