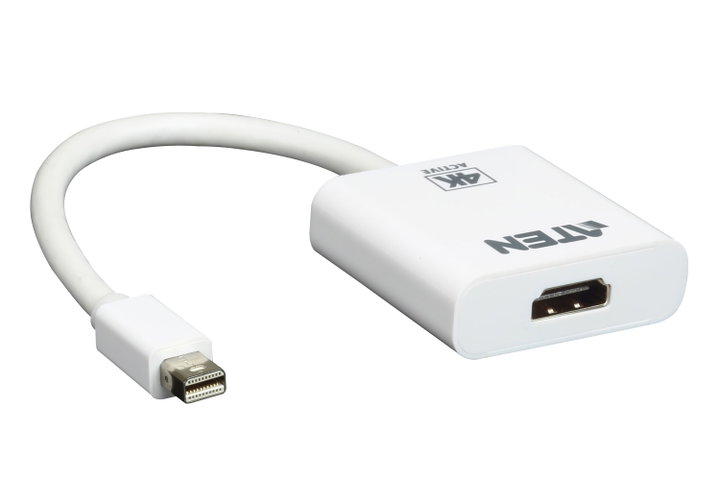

Active Adapter Mini DisplayPort to 4 K HDMI - Aten IDATA VC- 981

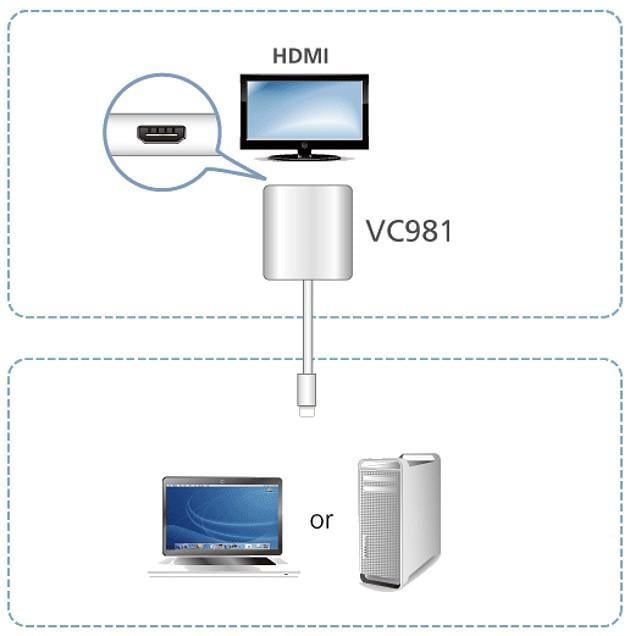

IDATA VC- 981 è an active adapter from Mini DisplayPort to HDMI that allows you to connect the Mini DisplayPort/DisplayPort output device to the HDMI input of a 4 K TV or other screen.

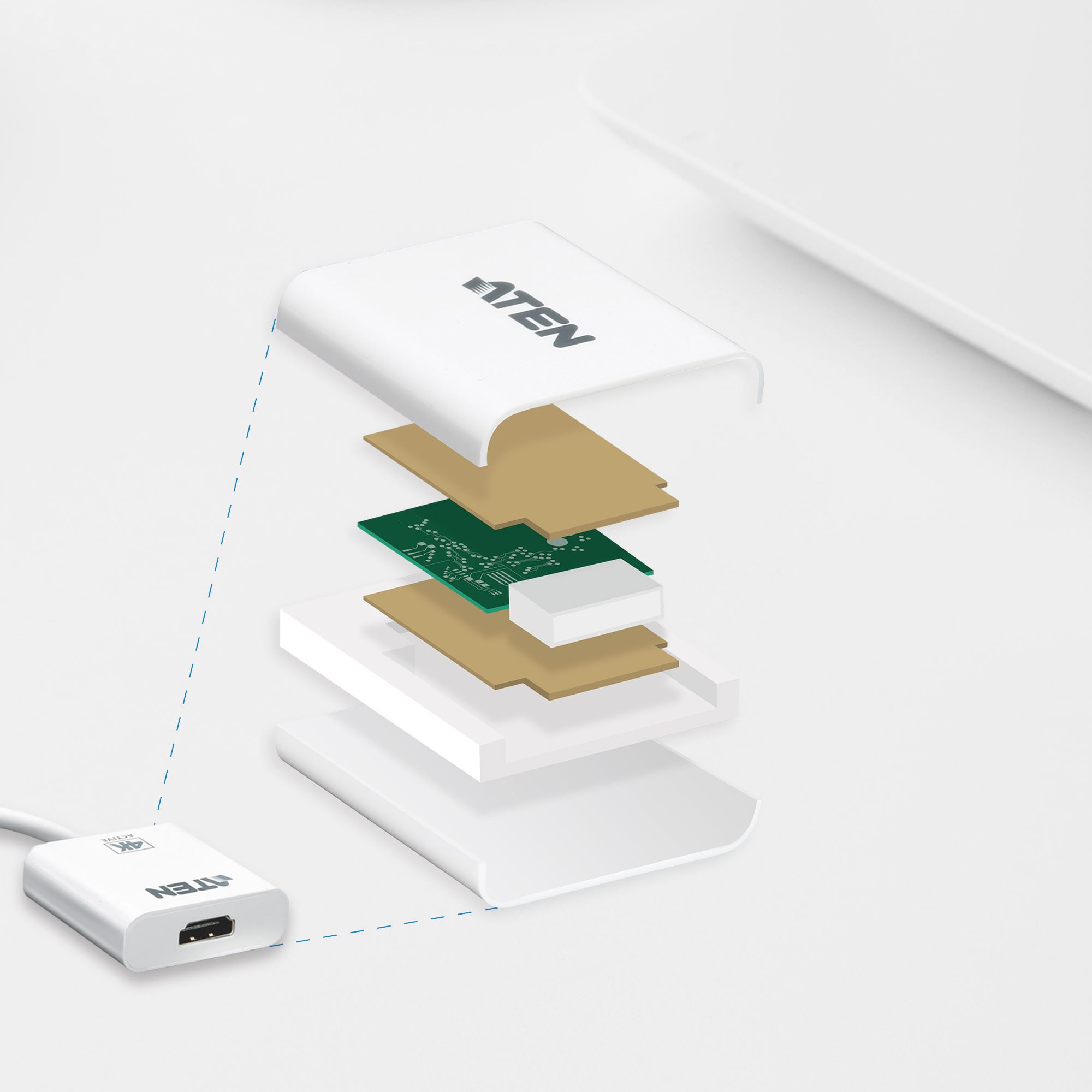

The ATEN VC 981 è an active adapter that has an advanced chip that ensures stable conversion of the video signal even when the video source does not support the dual DisplayPort mode (DP++).* However, support for resolutions up to 4 K makes this adapter the ideal choice for users who require a high-performance signal conversion solution.



* The dual DisplayPort mode (DP++) can be processed directly from DisplayPort signals to HDMI or DVI.



Features

• Supports VGA, SVGA, XGA, SXGA, UXGA, 1080 p and resolutions up to 4 K UHD


• Active adapter – has advanced chip that ensures stable video signal conversion even when the video source does not support dual DisplayPort mode (DP++)*


• Supports AMD Eyefinity ™ technology (multi-screen settings)


• Supported audio


• No software or driver installation required



Technical specifications

• Video input: 1 x Mini DisplayPort male interface (white)


• Video output: interface 1 x HDMI type A female (black)


• Video



- Pixel clock max. 297 MHz

- conformità DP 1.2 a, HDMI (3 D, Deep Color, 4 K), HDCP 1.3

- Maximum resolution 3840 x 2160 at 30 Hz, 1920 x 1200 at 60 Hz

• Audio: output 1 x HDMI type A female (black)



Environmental features

• Operating temperature: 0 - 50 oC


• Storage temperature: - 20 – 60 oC


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 17,50 cm


• Depthà: 4,50 cm


• Height: 1,50 cm



Certifications

• CE


• RAEE



Package contents

• 1 x DisplayPort adapter to 4 K HDMI VC 981
