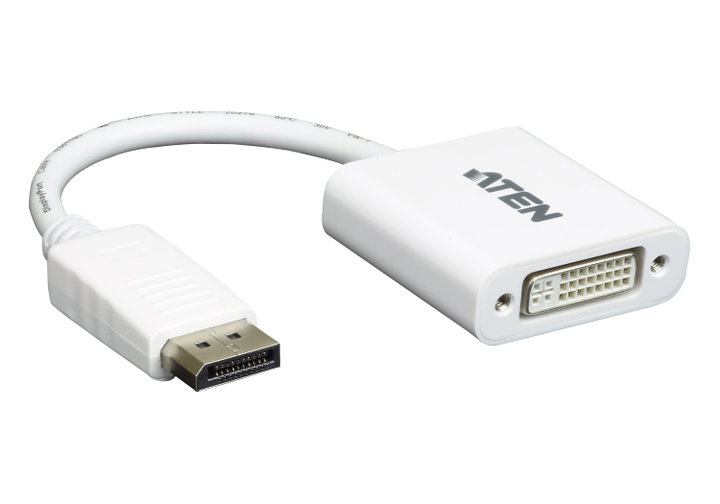

DisplayPort adapter to DVI - Aten IDATA VC- 965

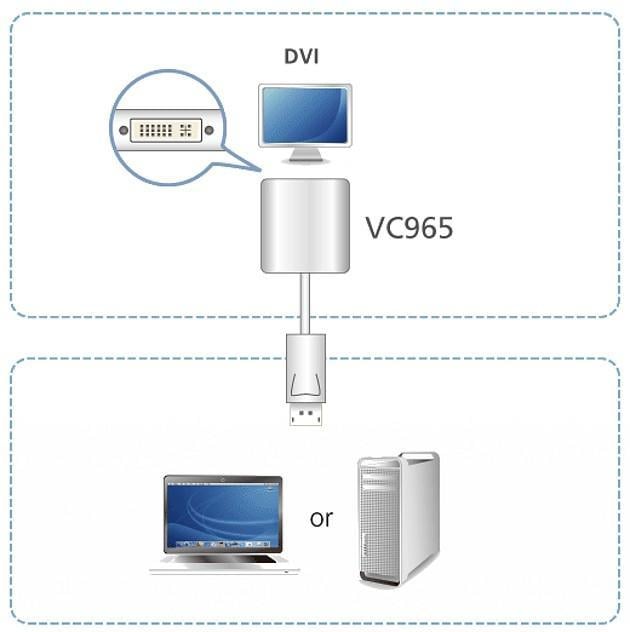

IDATA VC- 965 è an adapter from DisplayPort to DVI that allows you to connect the DisplayPort output of the device to the DVI input of a TV or other screen.

The VC 965 offers a cost-effective solution and at the same time a high-performance signal conversion. Therefore, this è adapter is perfect for computers and notebooks that support display resolutions up to 1080 p (1920 x 1080 to 60 Hz).



Features

• Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1080 p (HDTV)


• No software or driver installation required



Technical specifications

• Video input: 1 x DisplayPort male interface (white)


• Video output: interface 1 x DVI-I* female (white)



* Supports digital signal transmission only

• Video



- Pixel clock max. 165 MHz

- conformità DP 1.1 a, DVI 1.1

- Resolution max. 1920 x 1080 to 60 HZ



Environmental features

• Operating temperature: 0 - 50 oC


• Storage temperature: - 20 – 60 oC


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 18,00 cm


• Depthà: 4,50 cm


• Height: 1,50 cm



Certifications

• CE


• RAEE



Package contents

• 1 x VC 965 adapter from DisplayPort to DVI
