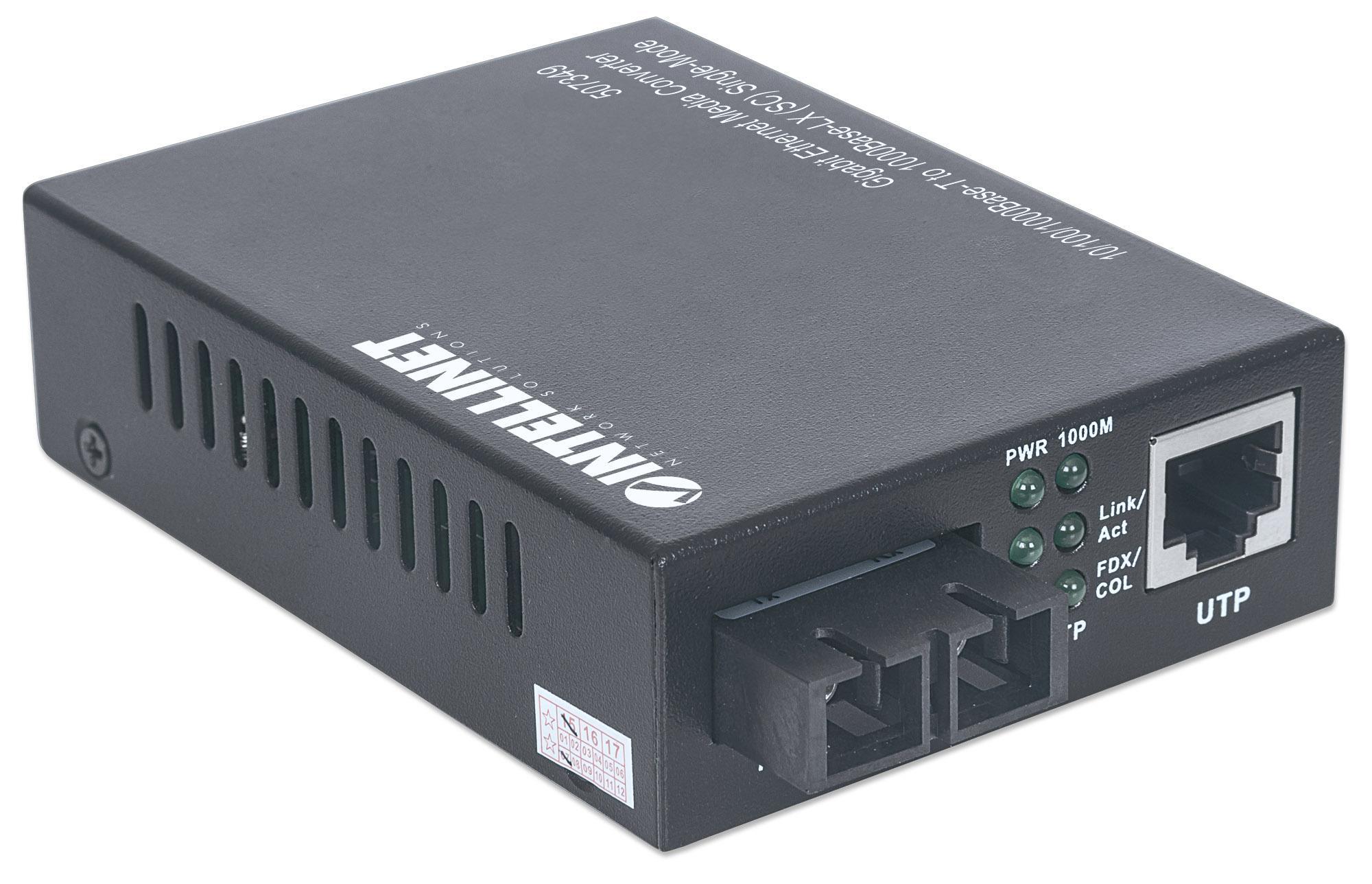

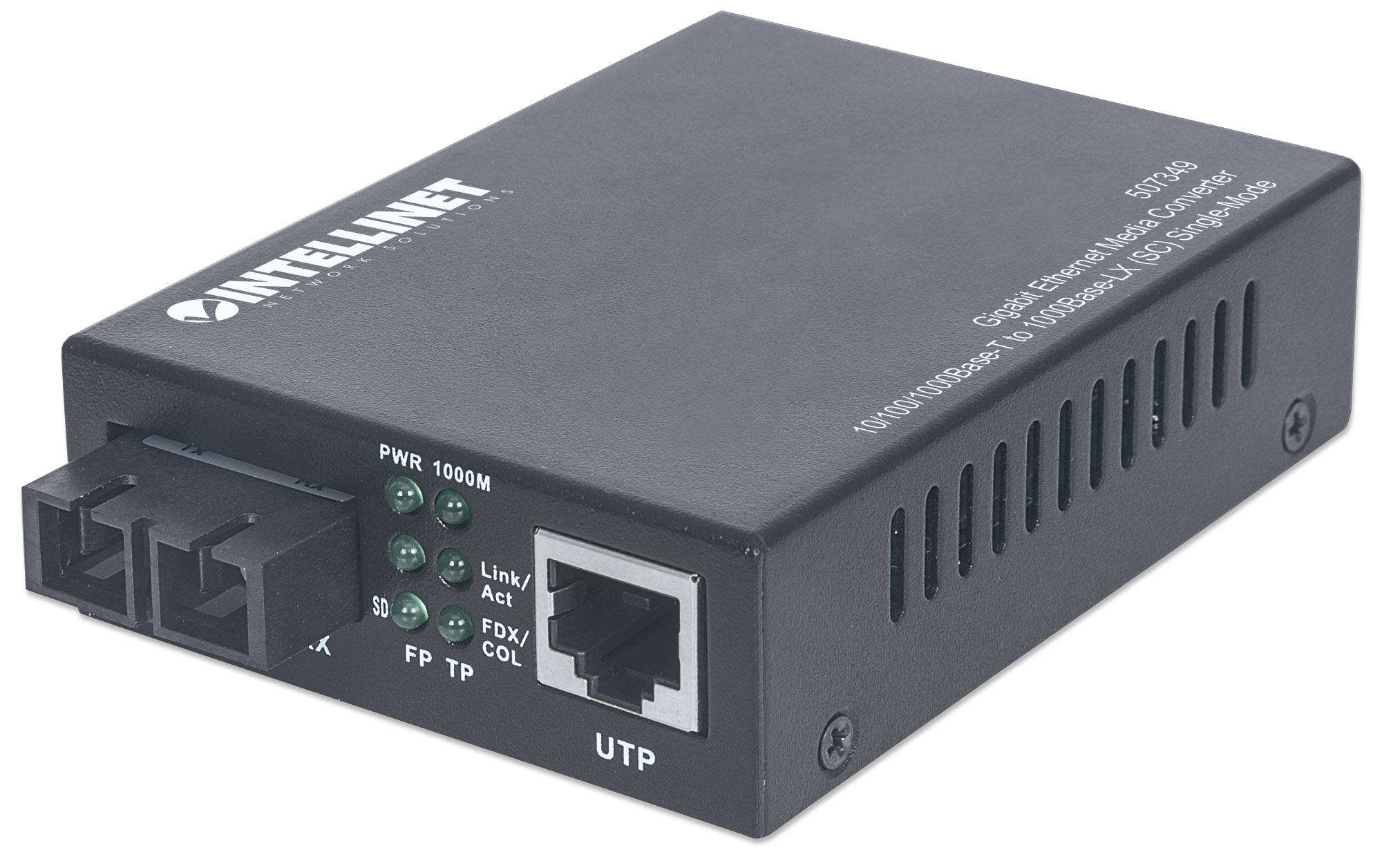

- SC single-mode fiber port connects distances greater than 20 km
- Data transfer rate: 10/100/1000 Mbps
- Gigabit Ethernet RJ45 port 10/100/1000 Mbps auto-sensing with Auto MDI/MDI-X support
- RJ45 port with Auto MDI/MDI-X and auto-negotiation support
- One SC duplex single-mode fiber port 1000Base-LX
- Wavelength: 1310 nm
- Status LEDs for power and connection/TX for both ports

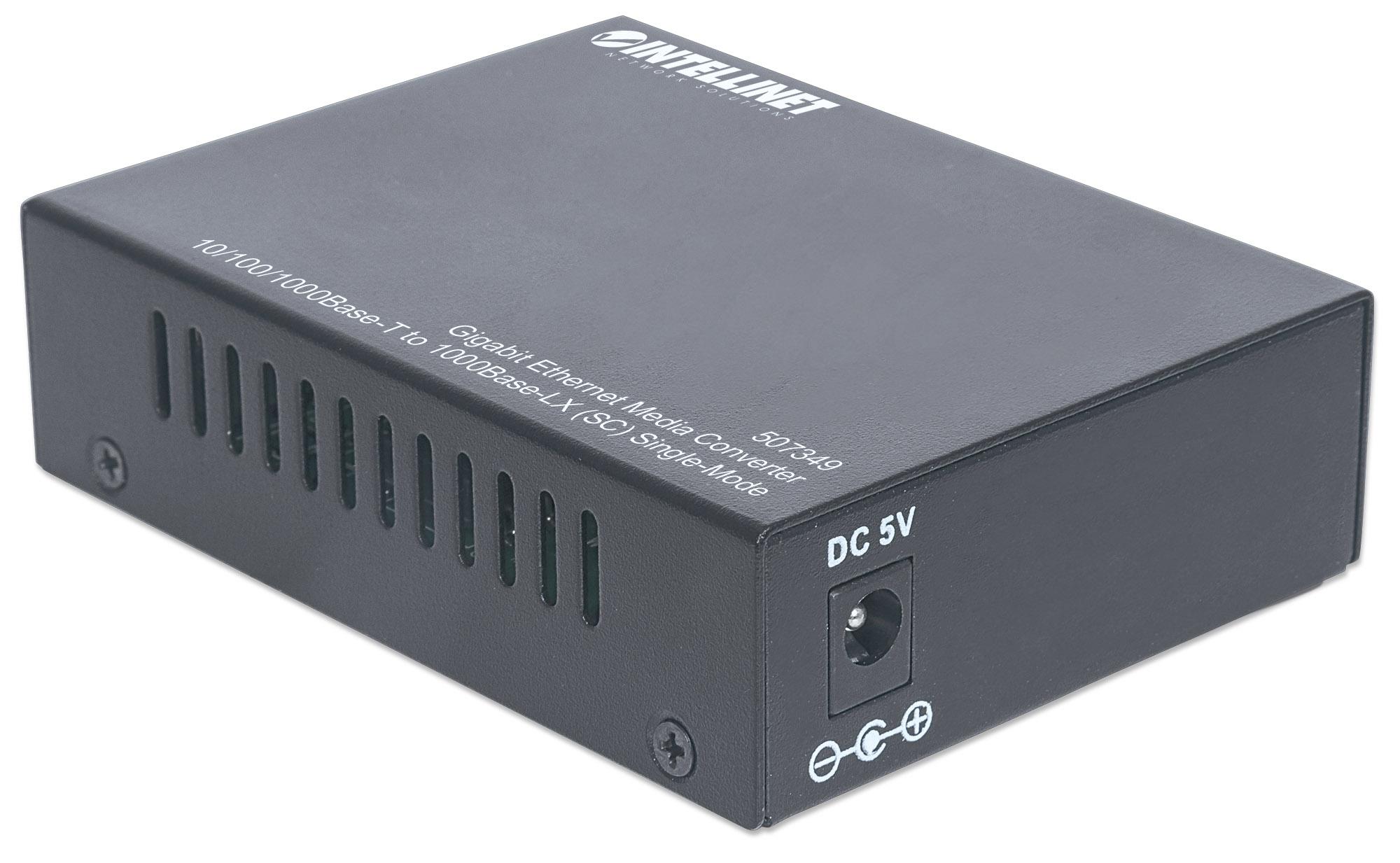

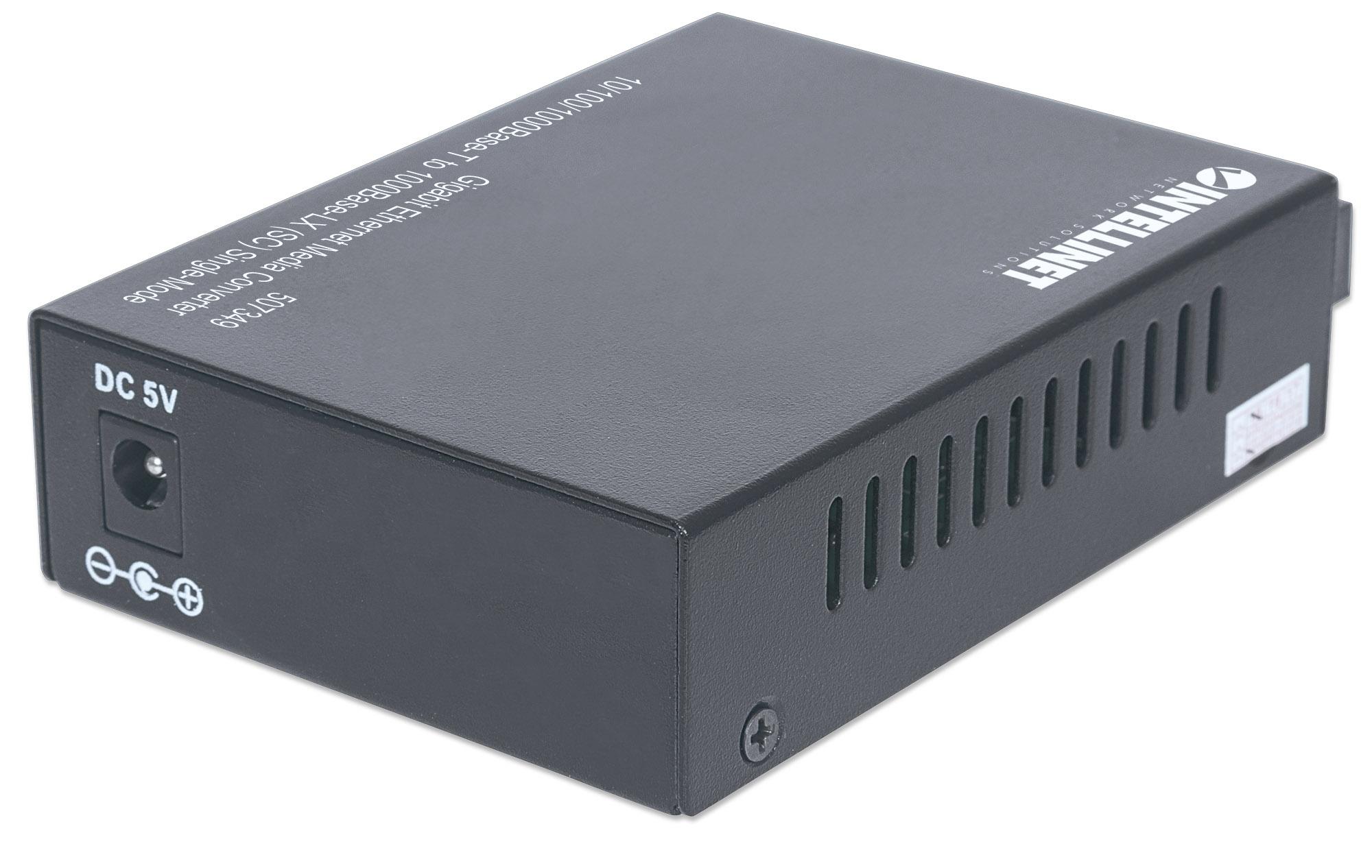

- External power supply, 5V DC
- Operates individually as a converter or can be used with 14-slot converter chassis
Standard- IEEE 802.3 (Twisted pair Ethernet)
- IEEE 802.3ab (Gigabit twisted-pair network cable)
- IEEE 802.3u (twisted pair cable / fiber optic network)
- IEEE 802.3z (Gigabit Ethernet optical fiber)
General information- 1000Base-T Cat5 or higher UTP/STP RJ45, EIA/TIA 568
- 1000Base-LX single-mode 8.3/125 µm or 8.7/125 µm or 8/125 µm or 10/125 µm
- RJ45 port, 1000Base-T
- SC duplex optical fiber port, 1000Base-LX
- 20 km (fiber optic cable)
- 100 m (RJ-45 cable)
- Wavelength: 1310 nm
- Output power: -8 to -3 dBm
- Receiver sensitivity: ≤-22 dBm
- Signal loss: 0.3 dB/km
- MTBF > 100,000 hours

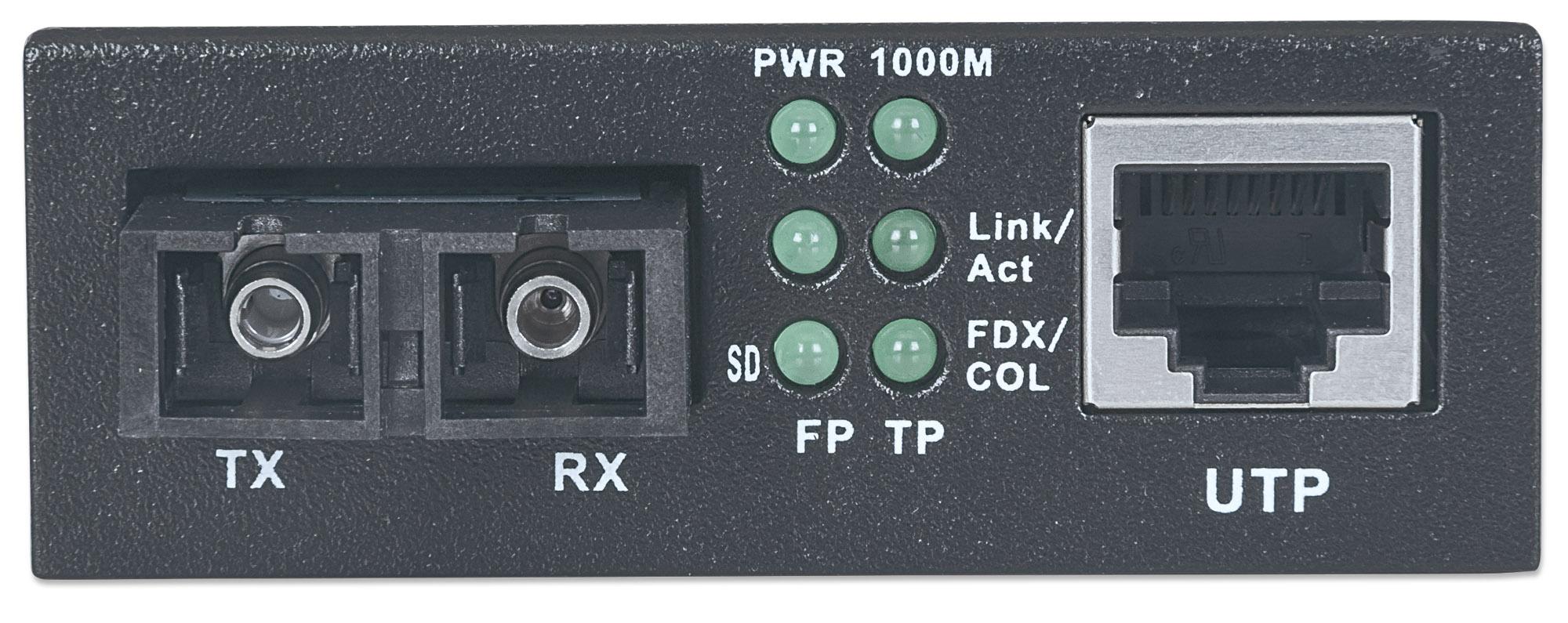

LED- Power
- Link/Activity
- Full-Duplex/Collision
- Link speed indicator 1000 Mbps for RJ45 port
- Fiber optic port link indicator

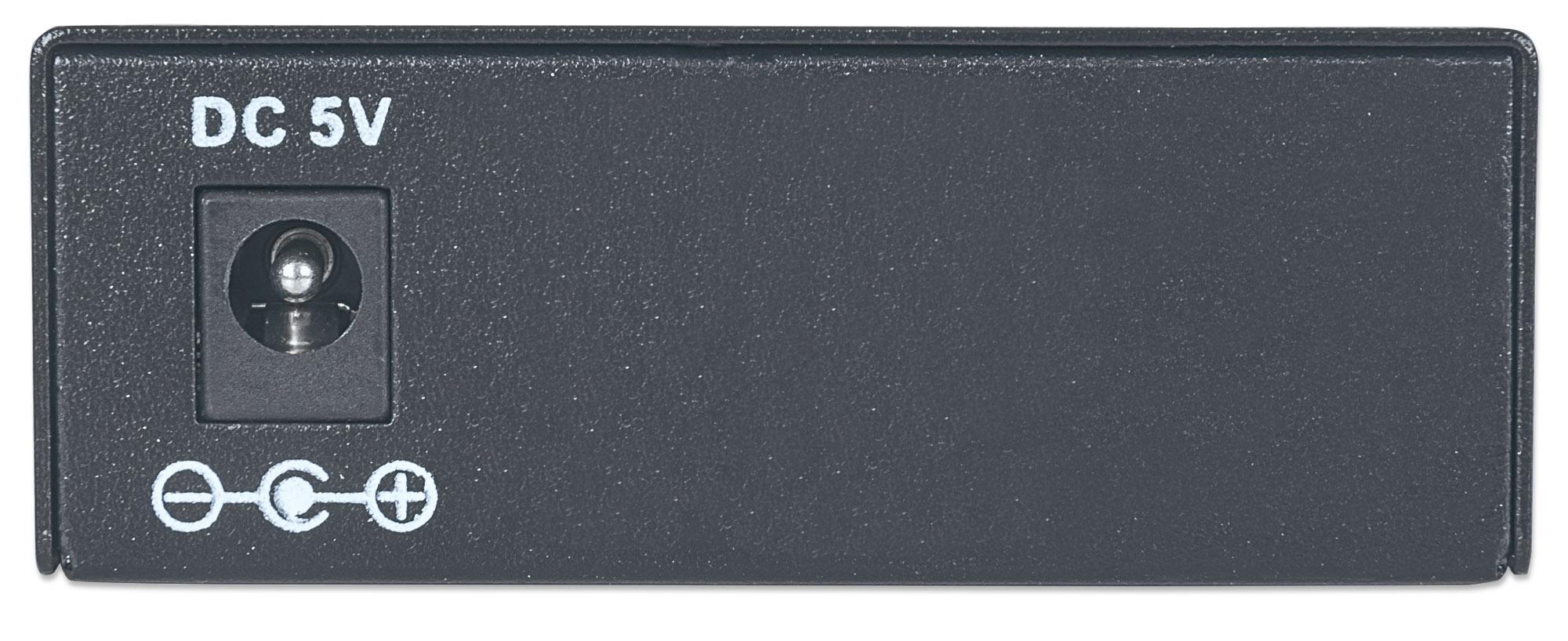

Power- External power supply 5V DC, 1.2A
- Power consumption: 5 Watts (maximum)
Environmental features- Metal structure
- Dimensions: 105 (L) x 70 (D) x 26 (H) mm
- Weight: 0.18 kg
- Operating temperature: 0 – 50°C
- Operating humidity: 10 – 90% RH, non-condensing
- Storage temperature: -45 – 70°C
CertificationsPackage contents- Gigabit Ethernet single-mode media converter
- External power supply
- User manual
