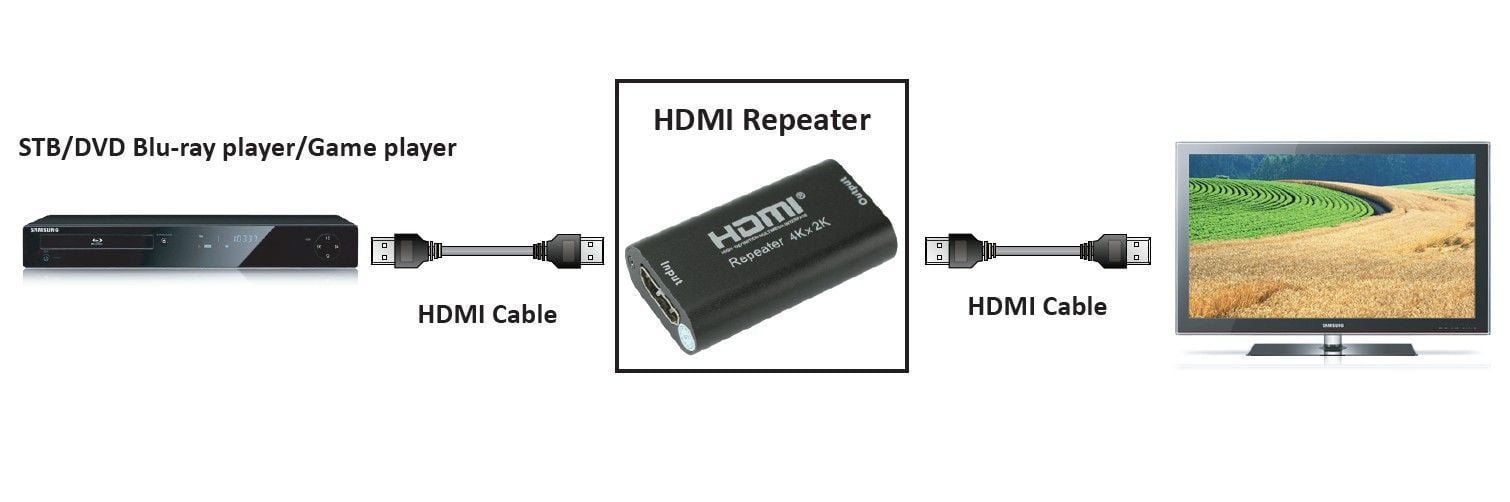

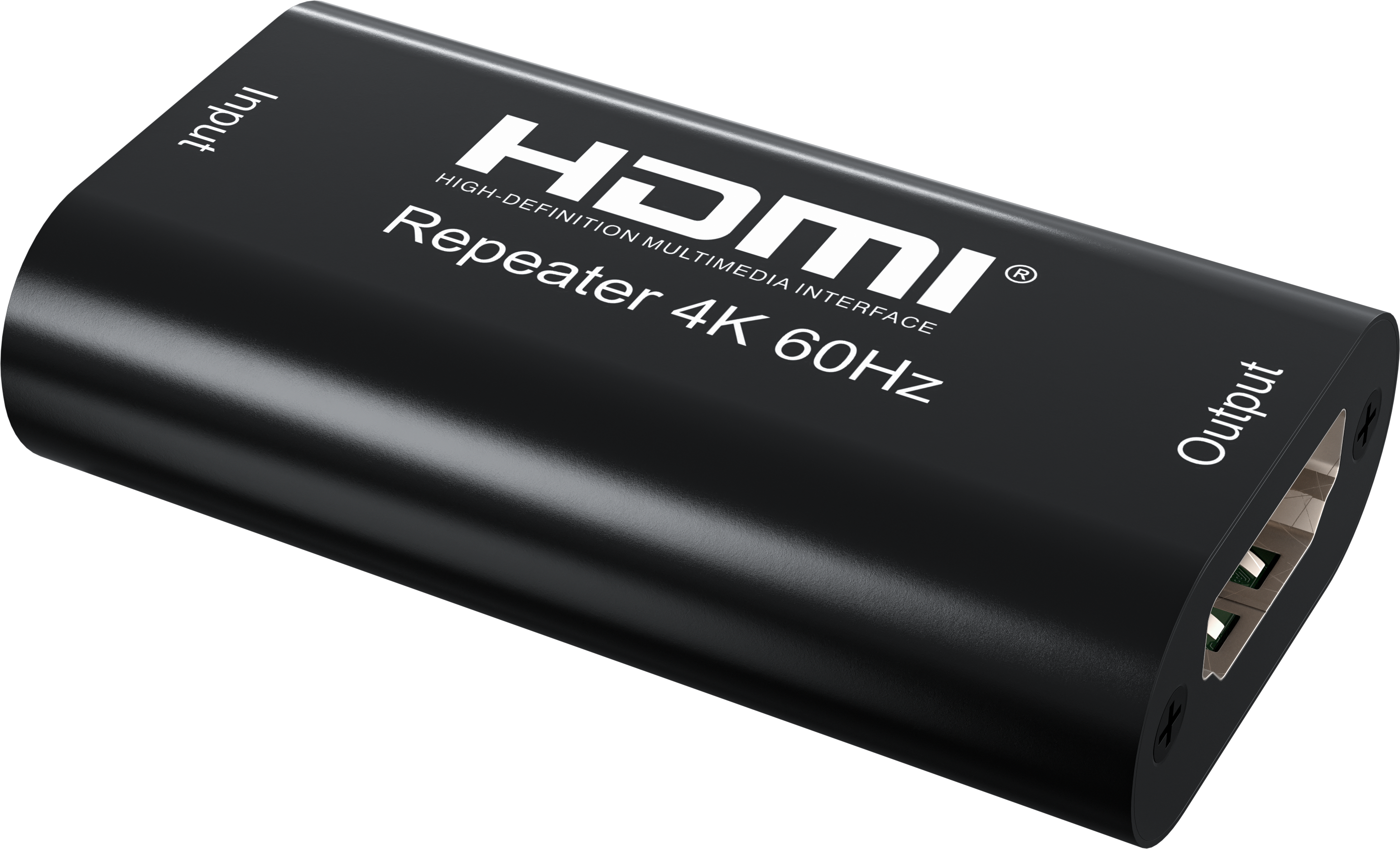

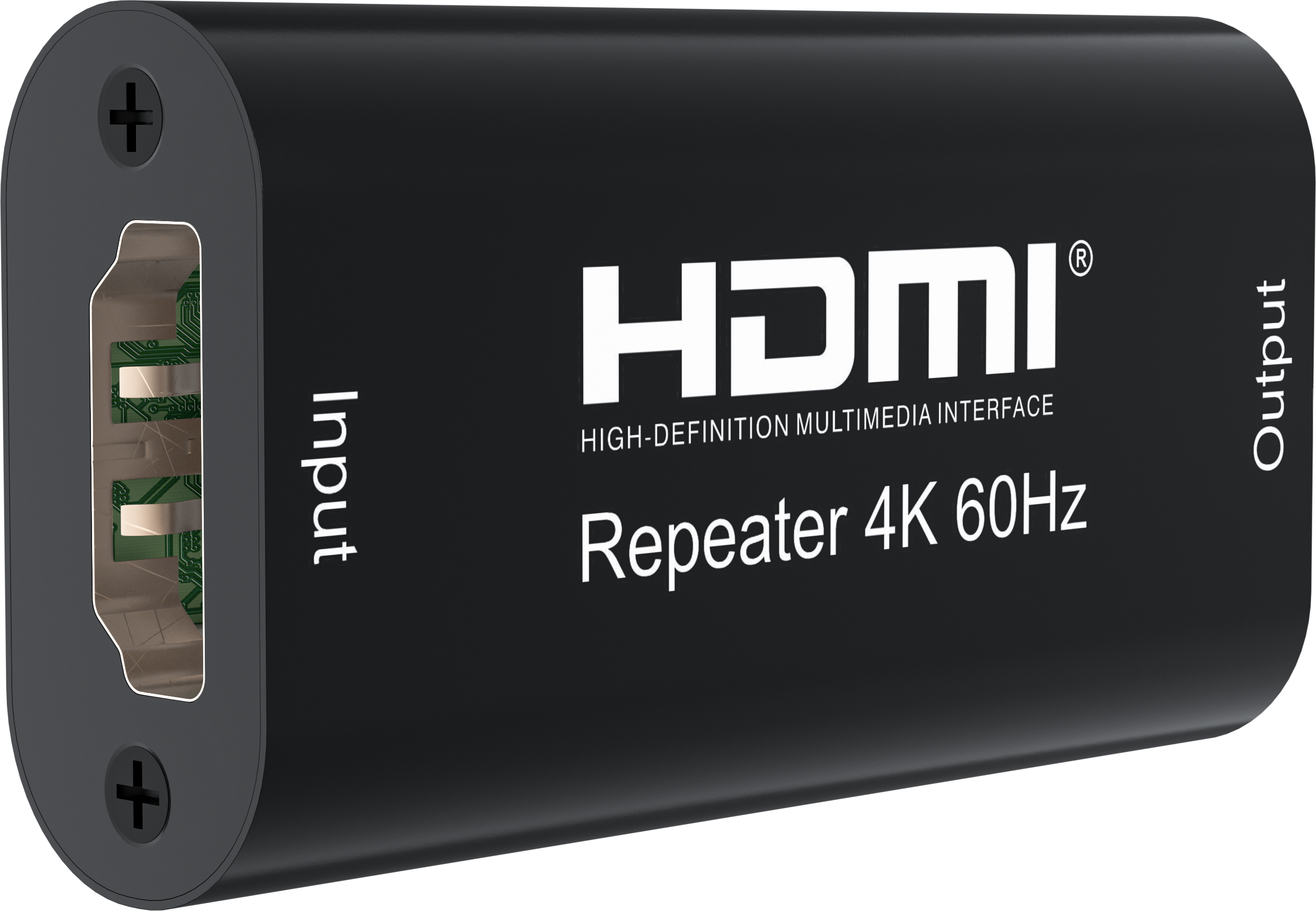

The IDATA HDMI 2 -RIP 4 KT repeater regenerates the input HDMI signal by decoding and recoding it to a new HDMI signal. This allows you to extend the transmission distance of the signal without degradation. It can extend up to 40 meters of transmission distance.
Features- Compatible standard HDMI 2.0
- Supports video 3 D and resolution 4 K 2 K@ 60 Hz/ 30 Hz
- Improved quality à output signal
- Extends signal up to a maximum distance of 40 meters
Technical specifications- Supports HDMI 2.0
- Supports 3 D, 4 Kx 2 K@ 30 Hz\ 60 Hz
- Supports HDCP 2.2
- Frequency up to 340 MHz
- Velocità HDMI transfer: 3.4 Gbps (Single link)
- Input/output resolution: HD: 480 i@ 60 Hz, 576 i@ 50 Hz, 480 p@ 60 Hz, 1080 p@ 50 Hz, 1080 p@ 60 Hz, 1080 i@ 50 Hz, 1080 p@ 30 Hz, 1080 p@ 25 Hz, 1080 p@ 24 Hz, 2160 p@ 30 Hz
- Transmission up to 20 m with resolution 4 Kx 2 K@ 60 Hz, 40 m to 1080 P@ 60 Hz
- Chipset: AG 7220
Connections - Female HDMI AWG 24 cable (input)
- Length of cable: 1 - 15 m
- Female HDMI AWG 24 Cable (Exit)
- Length of cable: 5 - 25 m
Dimensions- Width: 28 mm
- Depthà: 51 mm
- Height: 13 mm

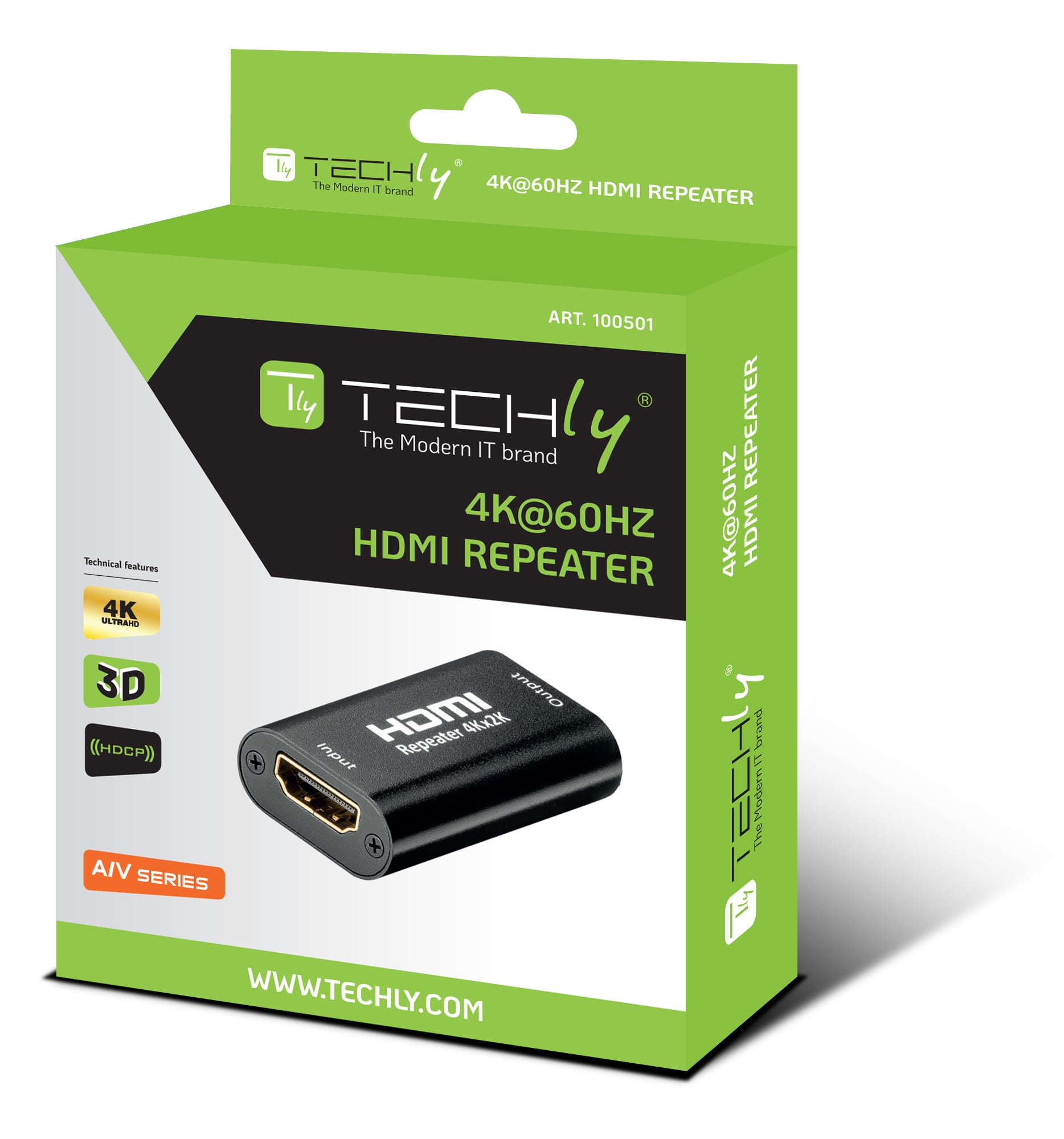

CertificationsPackage contents- 1 x HDMI 4 K YUV 4 Repeater: 4 : 4
