Extender HDMI Full HD 3 D PoE amplifier on Cat 6 / 6 A/ 7 40 m with EDID and IR - Techly IDATA EXT-E 70 POED

This HDMI Extender allows you to transmit HDTV over long distances using a Cat network cable. 6 / 6 A/ 7 .

Thanks to the use of network cable you can reach up to 40 m of transmission length with a video resolution of 1080 p.

Thanks to the Extended Display Identification Data (EDID) function, the signal can be adjusted to the correct resolution and frequency and the optimal and maximum quality of the HDMI signal.

IDATA EXT-E 70 POED can be used canonically via the supplied power supplies or you can use the function POE to power the receiver.

The product also features IR infrared synchronization technology, supports 3 D and è HDCP 1.2 a signal.

Thanks to its versatility, it can be used in any environment of work or leisure such as public spaces, studios, offices and conference rooms or simply for domestic use.



Features

• Allows you to easily extend HDTV signal to 40 m using a Cat network cable. 6 / 6 A/ 7


• With EDID adjustment for optimal signal/frequency adjustment and support of IR technology


• With LENGHT key for manual adjustment of distance/signal ratio


• Supported resolution: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 3 D: 1080 p@ 60 Hz


• Maximum supported video resolution: 1080 p


• Supports audio PCM、AC3、DTS


• HDCP 1.2 to


• HDMI 1.4 to


• Supports 3 D


• IR remote control: supports 20 - 60 kHz


• Consumption: TX: < 3W; RX: < 3W


• Ambient temperature of use: 0 °C 60 °C


• Power supply via 5 V/ 2 A power supply, also fed via POE.


• Color: black

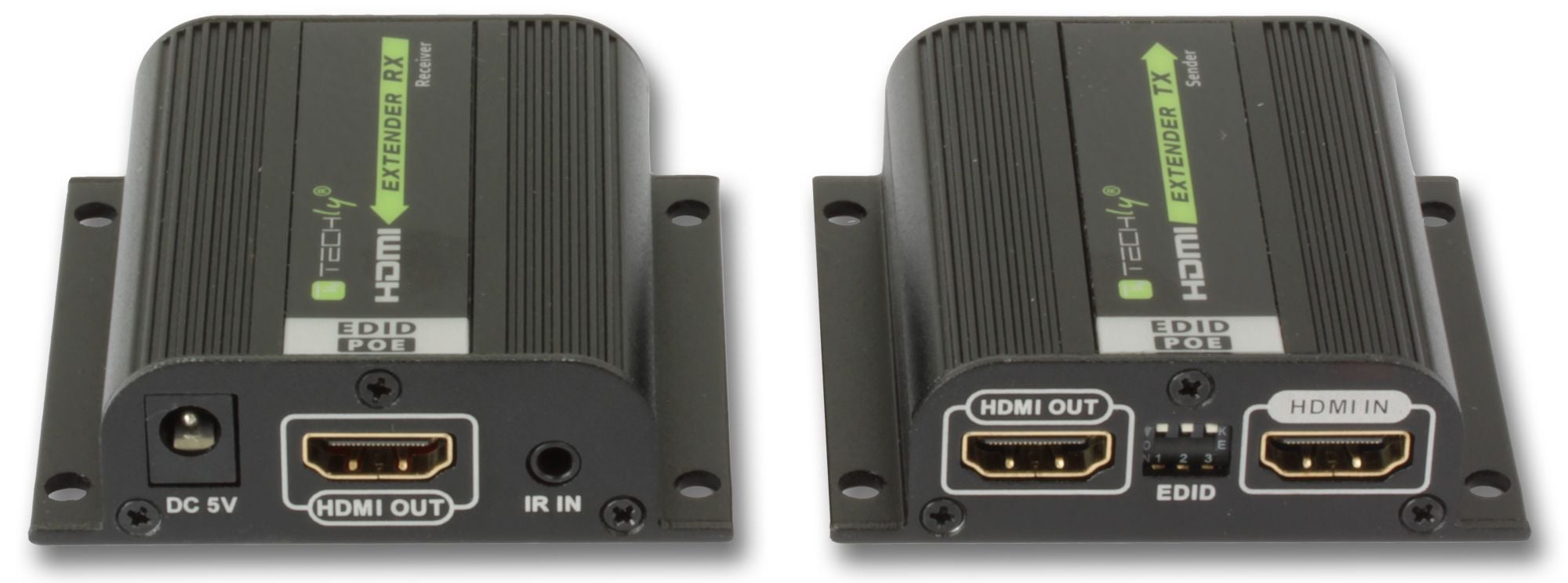

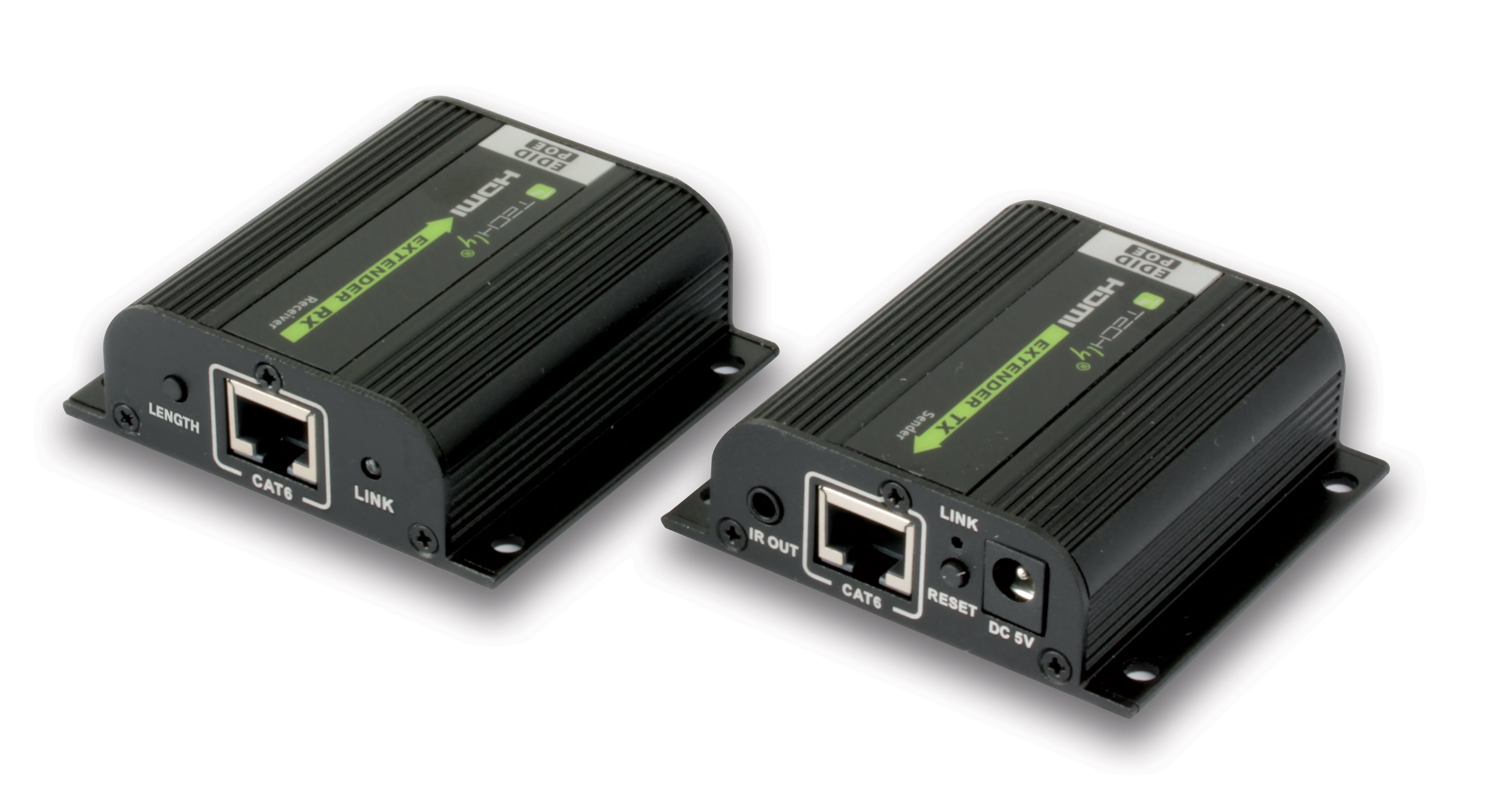

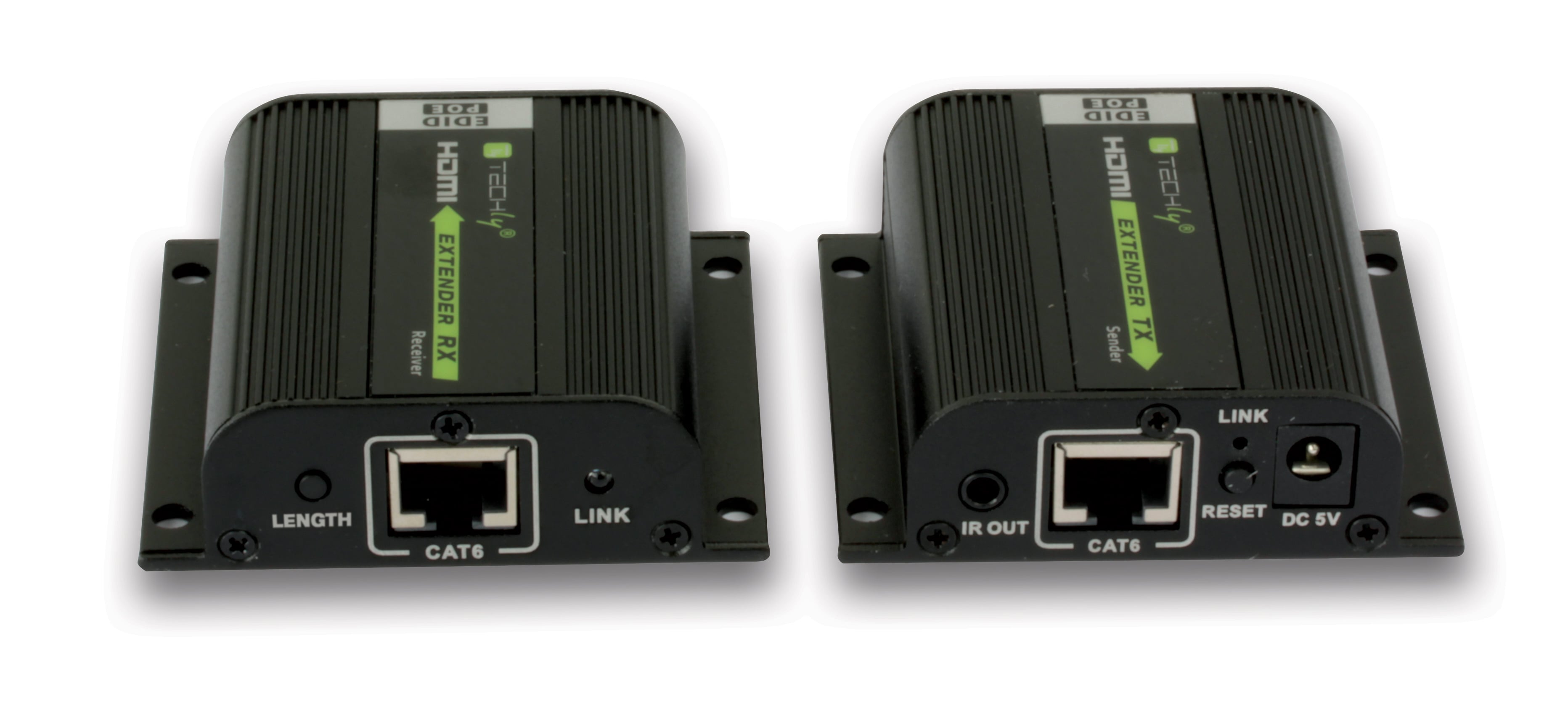

Connections Transmitter

• DC input 5 V


• HDMI signal input


• Passing HDMI output


• IR signal output for connection with IR blaster extension cable


• Reset


• RJ 45 signal output


• LED HDMI signal indicator



Connections Receiver

• Reset


• Signal input RJ 45


• LED indicator for connection status


• DC input 5 V


• HDMI signal output


• IR signal input


• LENGHT key for manual adjustment of distance/signal ratio



Dimensions

• Width: 71.6 mm


• Depthà: 66.9 mm


• Height: 22.6 mm



Certifications

• CE


• FCC


• RoHS


• RAEE

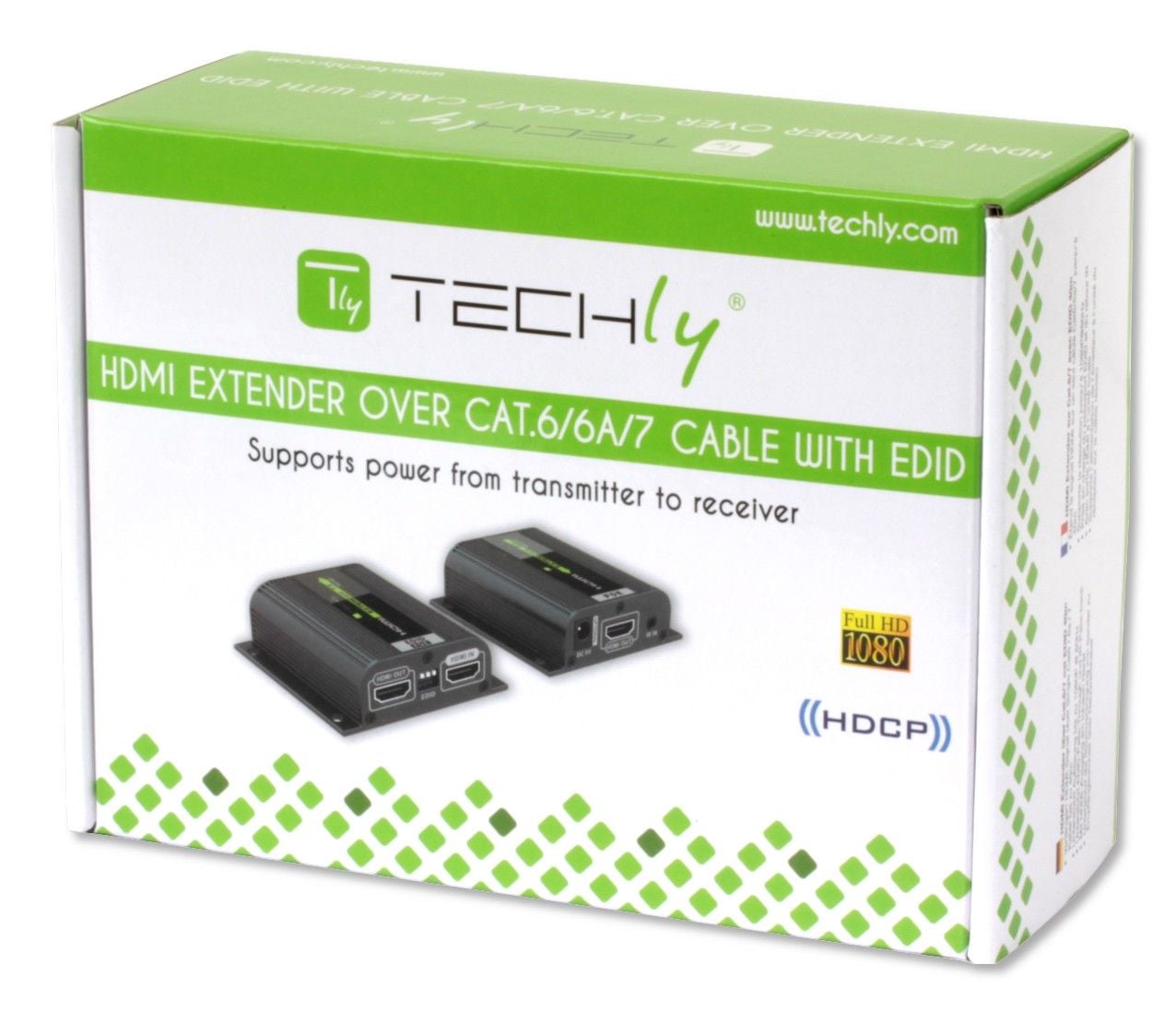

Package contents

• 1 x HDMI to LAN transmitter


• 1 x Receiver from LAN to HDMI


• 1 x DC power supply 5 V 2 A


• 1x User manual


• 1 x Extension for IR blaster


• 1 x Extension for IR receiver
