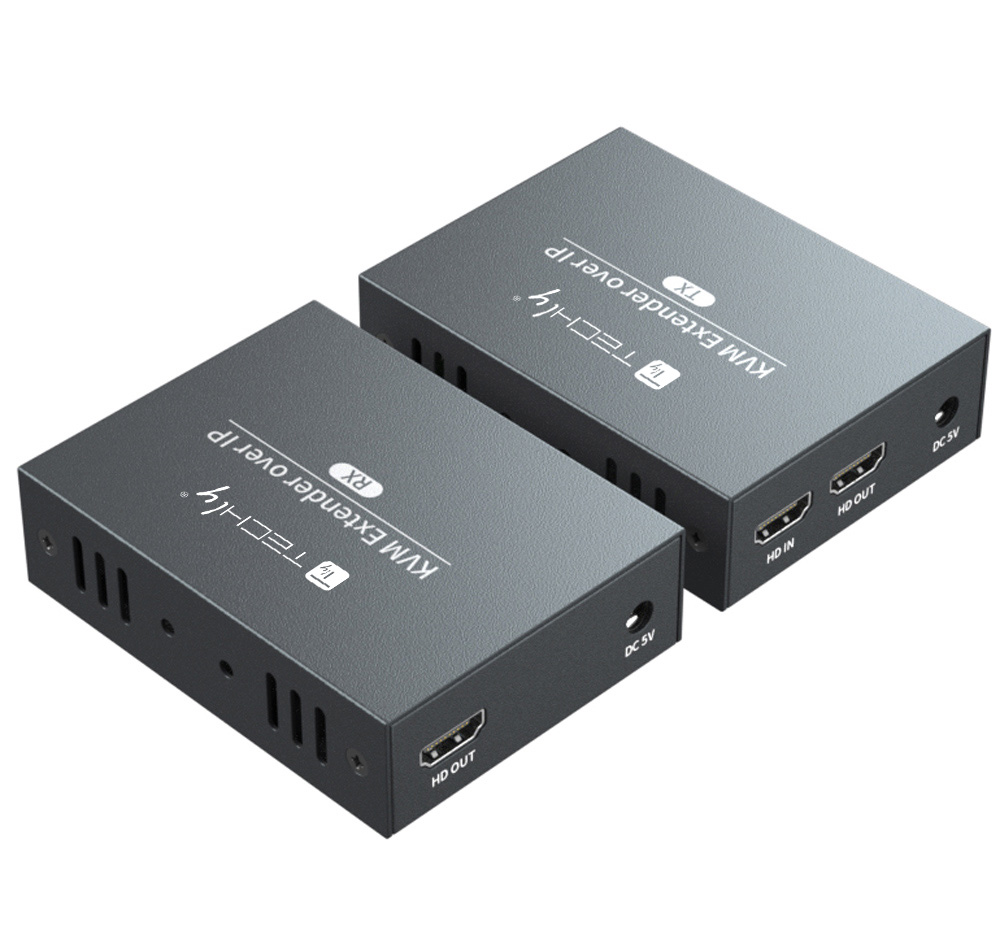

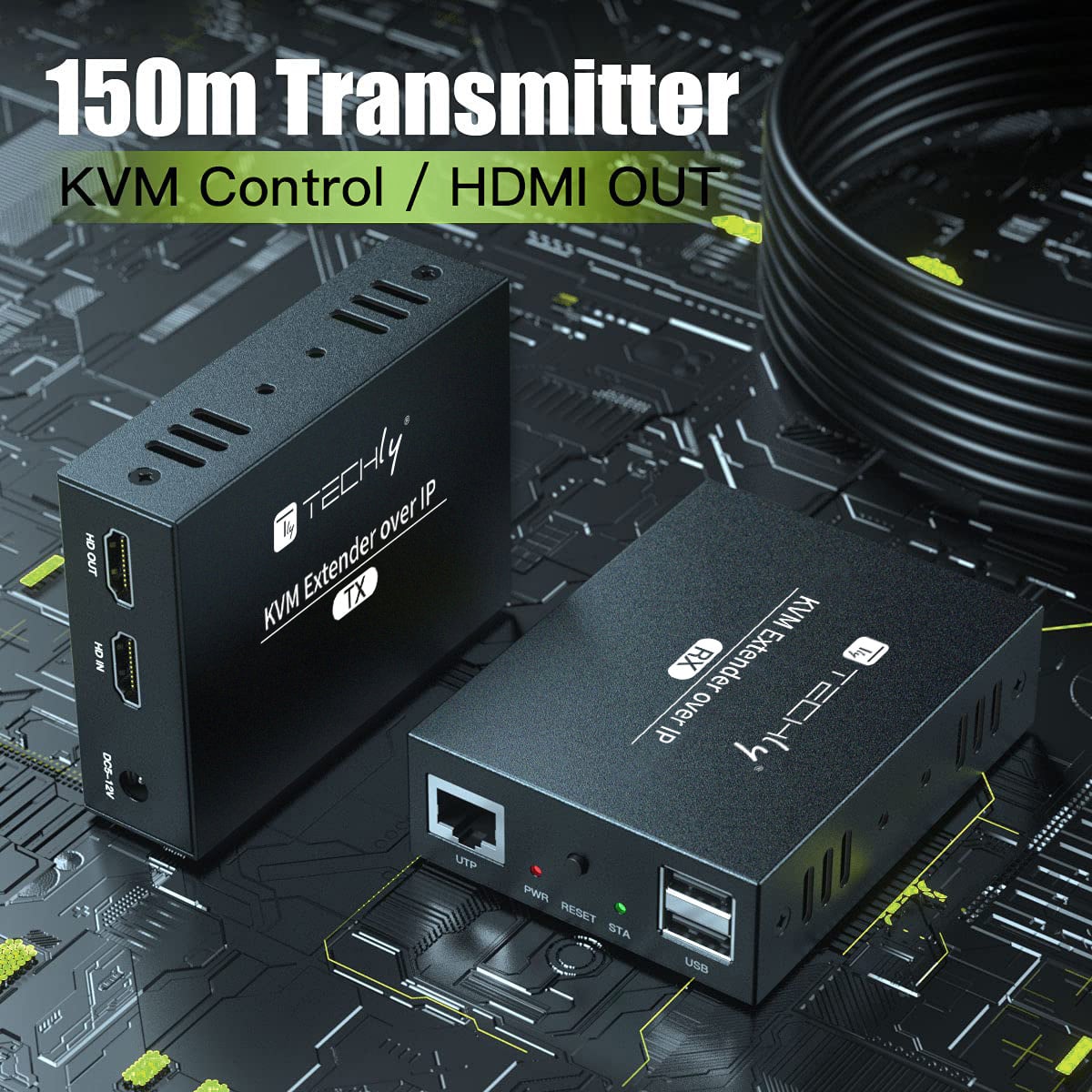

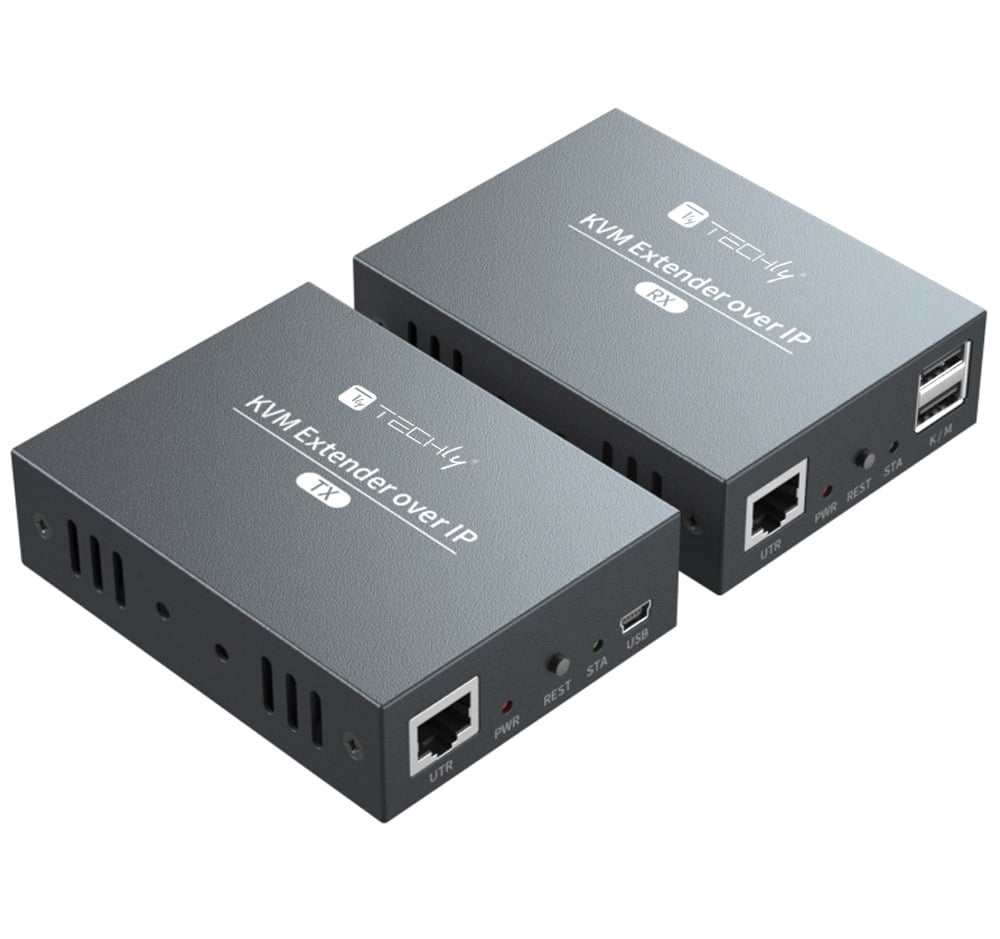

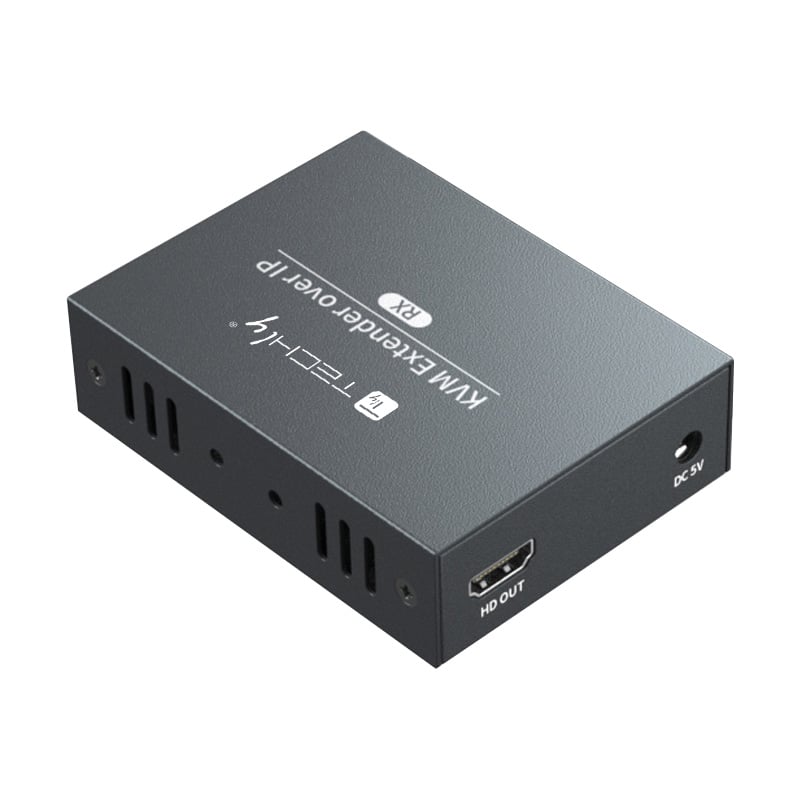

Receiver for HDMI extender IDATAHDMI-KVM 3: allows HDMI signal transmission up to 150 meters with a resolution of 1080 p using a Cat 6 network cable. The KVM Extender kit supports point-to-point or point-to-multipoint connection: supports up to 253 receivers connected to a switch to make multiple connections. It's perfect for advertisingà external, monitoring system, home entertainment, conferences, etc.

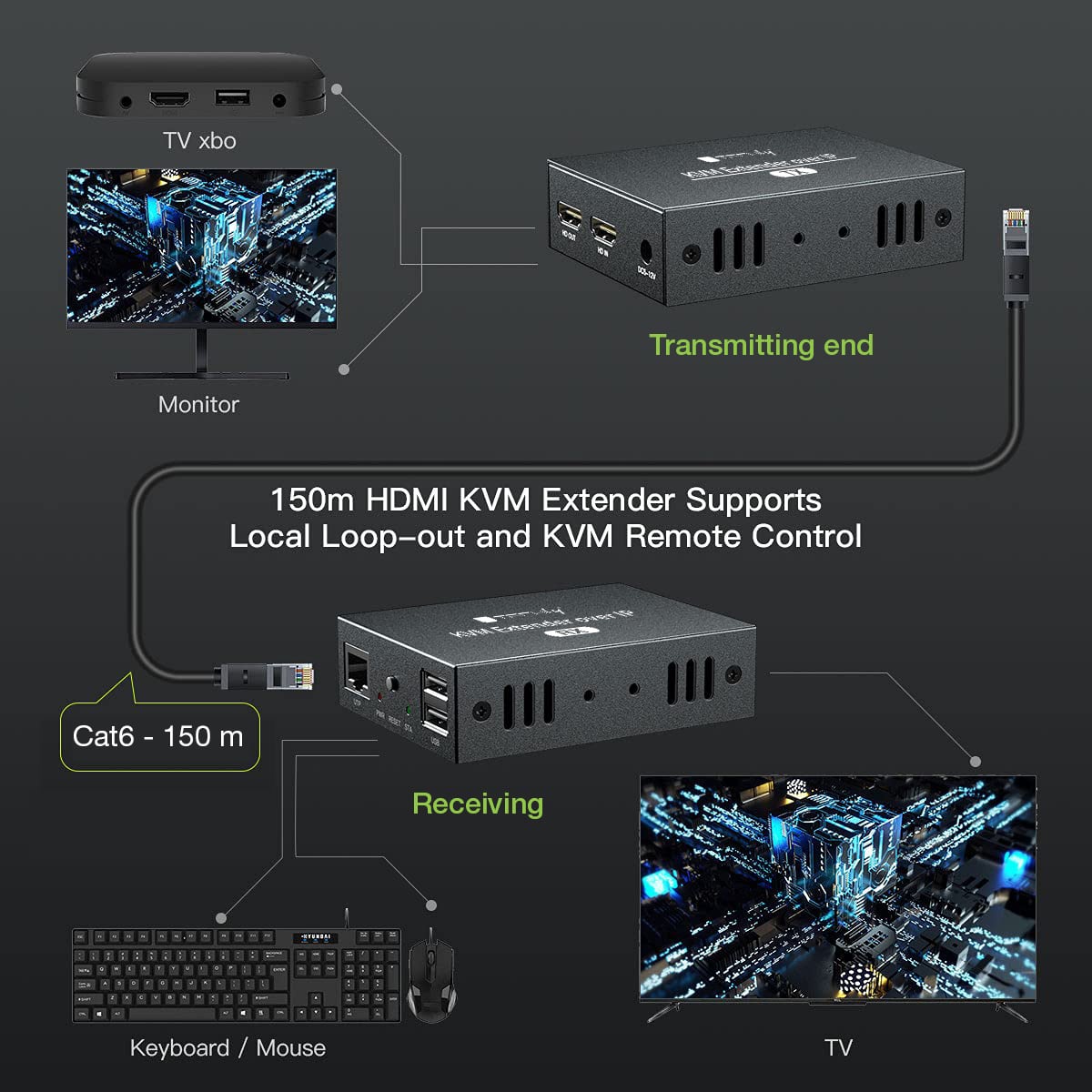

Features- It transmits video and audio HDMI signal up to 100 m on network cable Cat. 6 ; up to 150 m with the help of a network switch

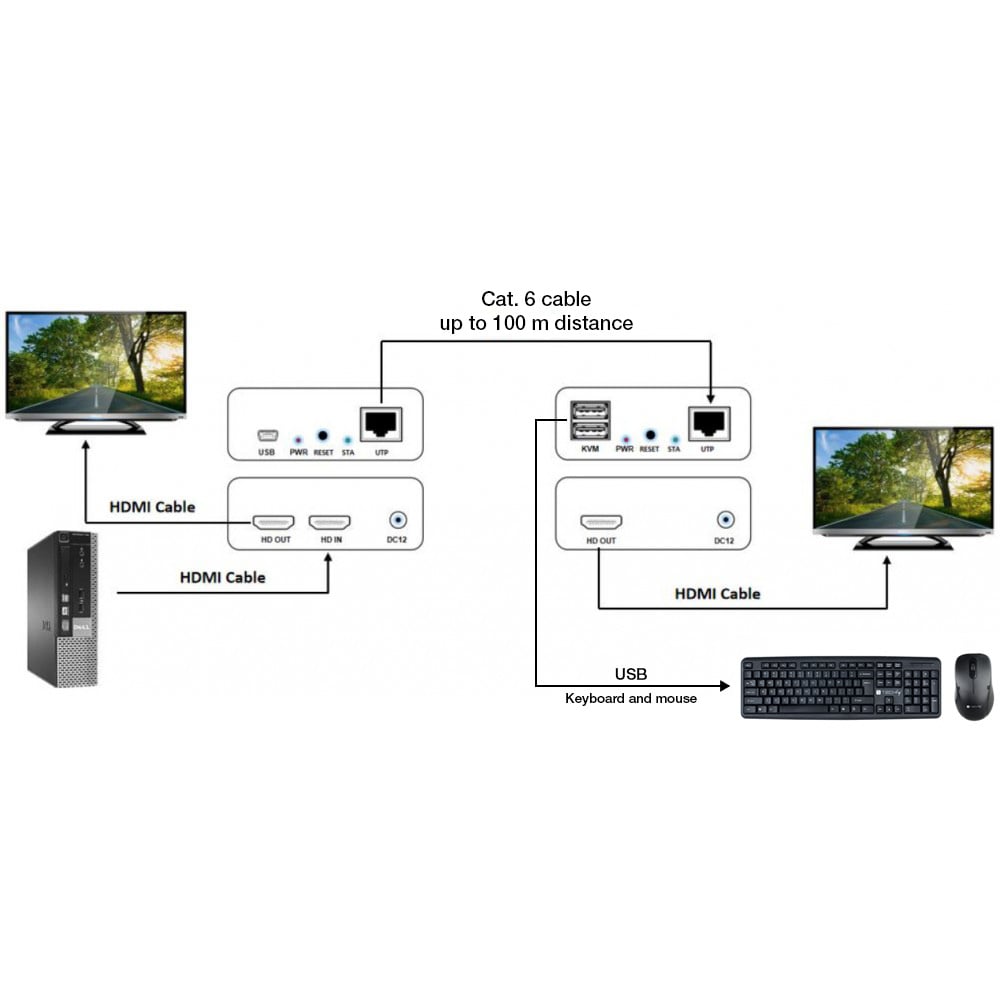

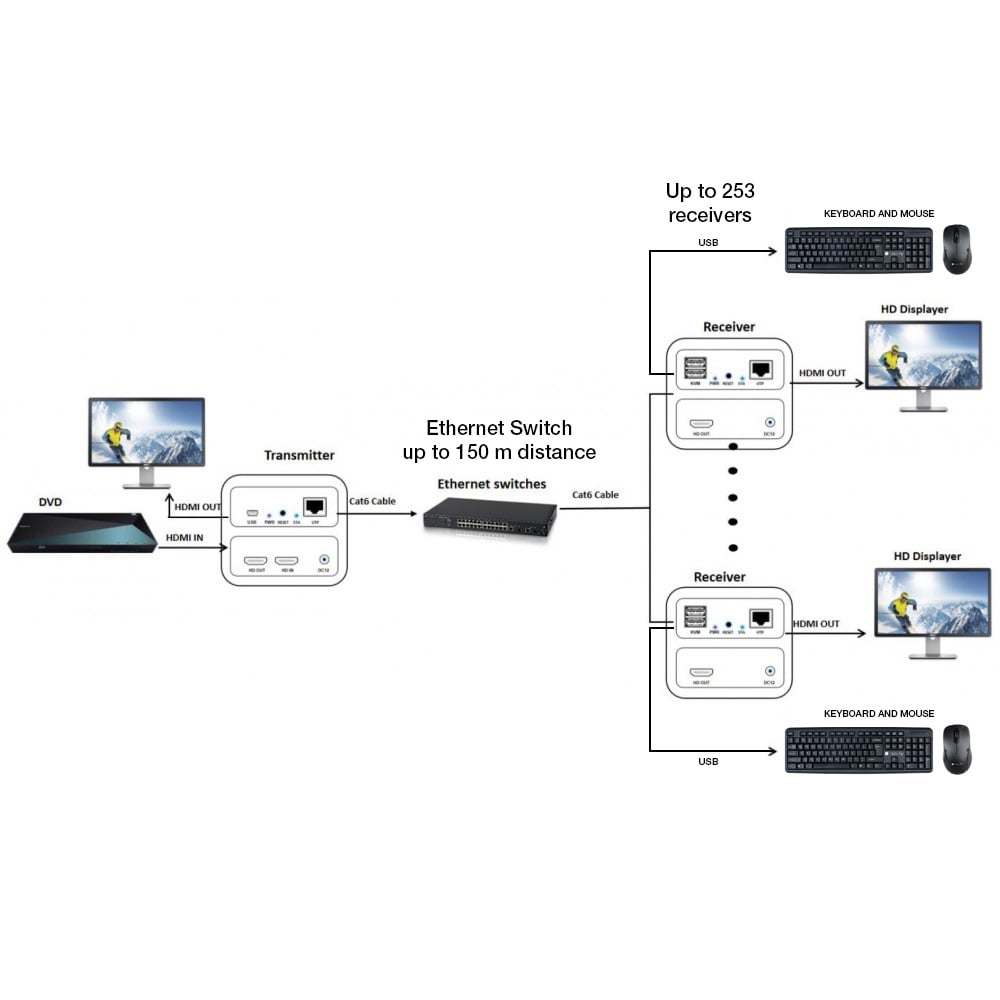

- Supports point-to-point connection or multi-point connection; a transmitter can & grave; be connected up to 253 receivers via a switch to make multiple connections
- Supports 1920 video resolution * 1080 P@ 60 Hz
- Supports keyboard and mouse
- With HDMI port on local monitor transmitter
- Supports TCP/IP
- HDMI 1.3 and HDCP 1.2 compatible
- You can automatically match the source and display device
- Integrated automatic adjustment system, makes the image clear and stable
- Plug and play
Technical specifications- Supported standards: HDMI 1.3 and HDCP 1.2
- Velocità data transmission: 6.75 Gbps
- Maximum resolution 1920 * 1080 P@ 60 Hz
- Impedance 100 Ω
- Transmission distance: Cat. 6 150 m
- Power supply 5 - 12 V DC
Dimensions- Width: 121 mm
- Depthà: 94 mm
- Height: 25 mm
Environmental features- Operating temperature: - 5 / 70 °C
- Umidità operational: 5 - 90 %
Package contents- 1 x Receiver
- 1 x USB mini cable
- 1 x DC power supply 5 V 2 A
- 1x User manual
