Additional Receiver Extender HDMI IR on Cable Cat 6 120 m - Techly IDATA EXTIP- 383 RV 4

The HDMI extender allows you to extend the HDMI audio/video signal with a resolution of 1080 p 60 Hz up to 120 m using a single network cable. It supports IR signal transmission, to control the media playback of the source device from the position where the screen is located.

Due to the high bandwidth consumption it is advisable to use these devices with IGMP routers, or alternatively on dedicated networks or on separate VLAN port based.

Not compatible with previous product versions.



Technical specifications

• HDMI Receiver with IR


• Supported resolutions: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz


• Network cable: UTP/STP Cat 5 E/ 6


• Transmission distance up to 120 m transmission distance for 1080 p 60 Hz Full HD on single CAT cable 6


• IR signal: supports IR 20 devices - 60 KHz


• Operating temperature: 0 °C – 60 °C


• DC power supply 5 V/ 1 A


• RX consumption: 3 W



Installation requirements

• Periferica HDMI source (computer graphics card, DVD, PS 3, HD monitoring equipment, etc.)


• HDMI screens like SDTV, projector with HDMI port.


• Network cables: UTP/STP Cat 5 and/ 6 network cables, meeting the EIA 568 B standard


• Transmission length: CAT 5 80 m/CAT 5 AND 100 m/CAT 6 120 m



Connection

• Point-to-point connection: up to 120 meters transmission distance via single CAT 6 cable (with a high quality cable à can be reached up to 150 meters)


• Router connection: Using a router/repeater, unlimited extensions can be reached.


• Point-multipoint connection: Using a router/switch, a moreù receivers transmitter, you can ò realize the function of extender and splitter.



Note: It is recommended to use a Gigabit switch (1000 Mbps) for LAN network transmission.

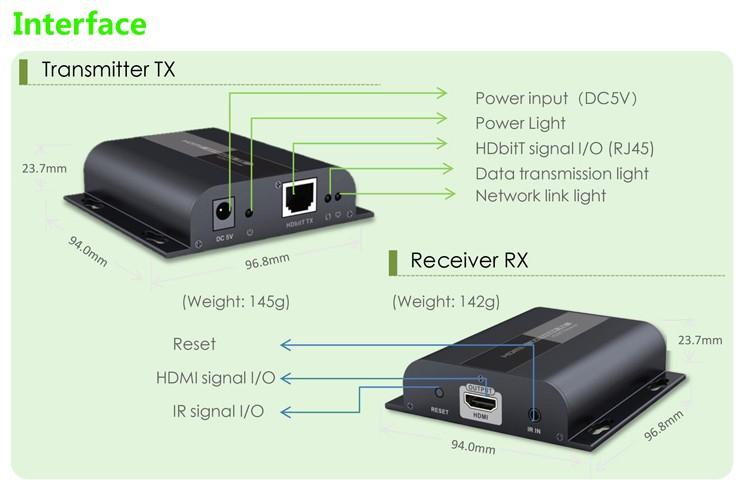

Dimensions 

• Width: 96.8 mm


• Depthà: 94 mm


• Height: 23.7 mm



Certifications

• CE


• FCC


• RoHS


• RAEE

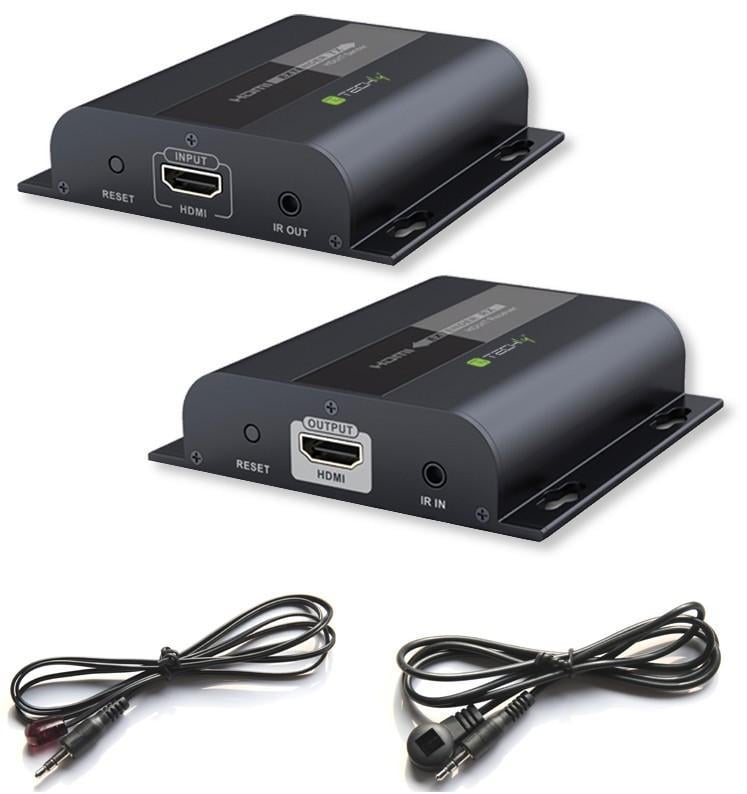

Package contents

• 1 x HDMI EXTENDER RX Receiver


• 1 x DC power supply 5 V/ 1 A


• 1 x IR receiver extension cable


• 1 x Education manual
