Receiver Extender HDMI 4 K up to 70 m on Cable Cat 6 / 6 A/ 7 - Techly IDATA EXT- 676 R

€96.01
Tax included €78.70 excl. VAT

Additional receiver for HDMI extender. HDMI signal transmission on network cable Cat. 5 E/ 6 / 6 A/ 7 up to 70 m with 4 K resolution. Supports bidirectional and HDR passback IR.



Return policy



Delivery policy



Direct contact for info



Secure Payment

Additional receiver for HDMI extender.

It allows to transmit the HDMI signal over long distances using a Cat network cable. 5 E/ 6 / 6 A/ 7 .

Thanks to the use of network cable you can reach up to 70 m of transmission length with a 4 K video resolution.

Supports bidirectional IR passback with frequency 20 - 60 KHz.



Technical specifications

  • Uncompressed signal, zero latency, transmission without signal loss

  • The HDMI signal can be transmitted up to 70 m on Cat cable. 6 / 6 A/ 7 ; up to 40 m on Cat cable. 5 E

  • Supports up to 10 receivers in cascade

  • Input: DC 2.1 x 1 ; RJ 45 x 1 ; 3.5 mm F x 1 (IR)

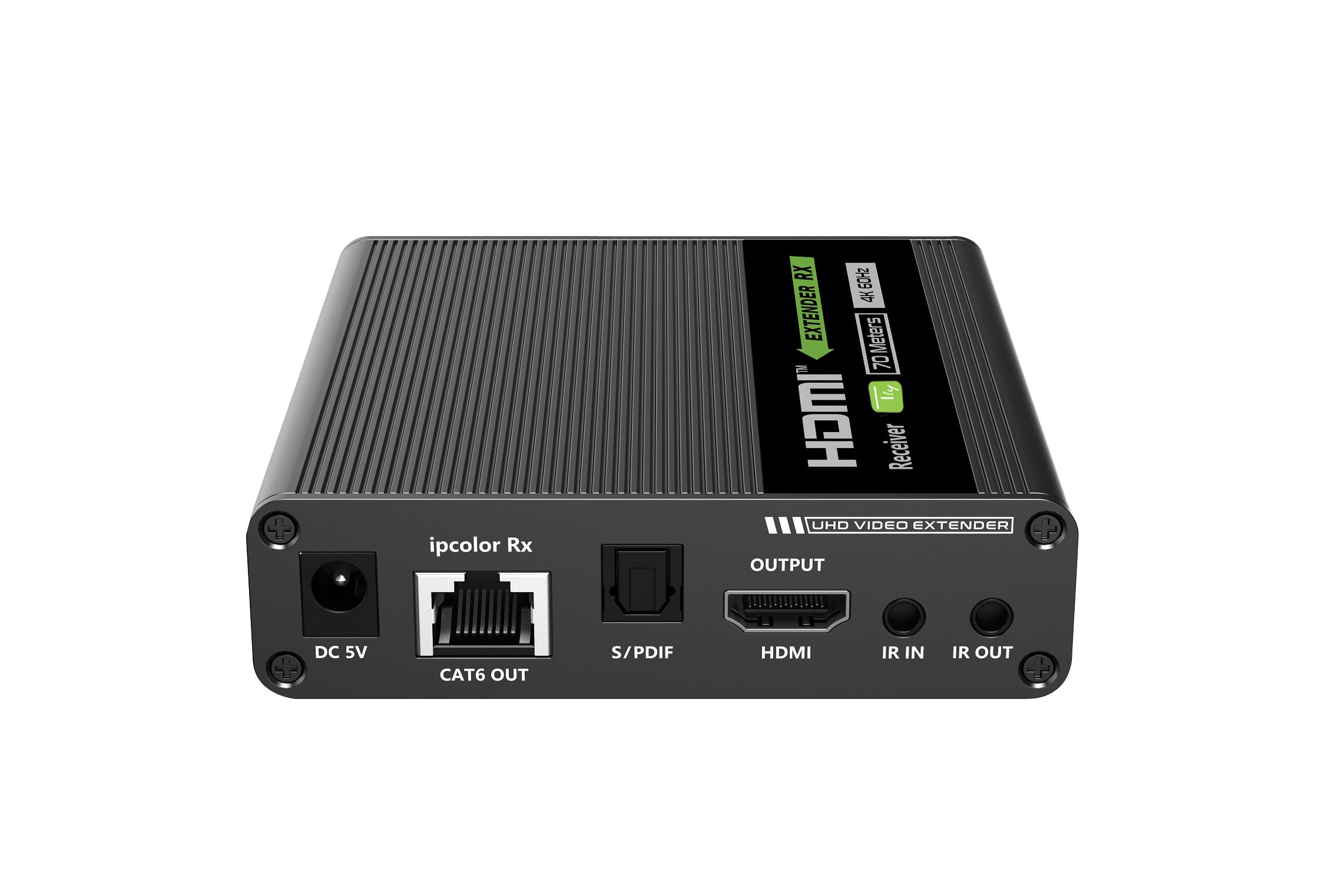

  • Output: HDMix 1 ; RJ 45 x 1; Opticox 1; 3.5 mm F x 1 (IR)

  • HDMI source control: controllable via IR passback from RX to TX

  • Receiver supports S/PDIF output

  • Supports Dolby Audio (Dolby Digital Plus; Dolby True-HD; Dolby Digital; Dolby atmos)

  • Supports HDR (YUV 4: 4: 4), speed & agrave; maximum transmission 18 Gbps

  • The transmitter supports an HDMI loop-out

  • Supports bidirectional IR passback function (20 - 60 KHz)

  • Protection against lightning, overvoltage and antistatic

  • Metal housing, stable and durable

  • Supports HDMI 2.0

  • Supports HDCP 2.2

  • Video resolutions: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 4 K× 2 K@ 24 / 25 / 30 / 60 Hz



Dimensions

  • Width: 106.36 mm

  • Depthà: 98.73 mm

  • Height: 26.19 mm



Environmental features

  • Operating temperature: 0 ~ 50 °C

  • Storage temperature: - 10 - 70 °C

  • Humidità relative: 0 90 %(without condensation)



Package contents

  • 1 x Receiver

  • 1 x Power supply 5 V/ 2 A

  • 1x User manual

  • Brand
  • Reference
    IDATA EXT-676R
  • In stock
    25 Items
  • EAN13
    8051128109849
