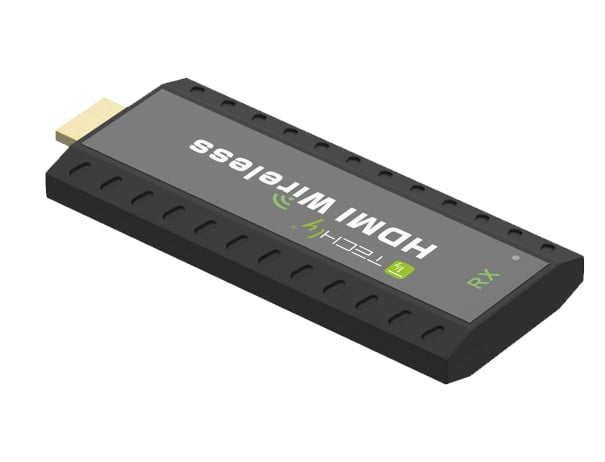

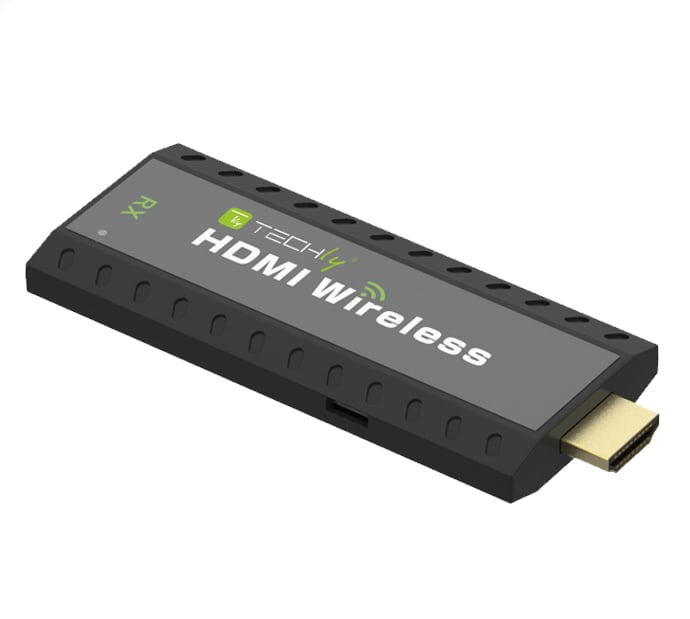

Additional Receiver for Extender Wireless Kit HDMI 50 m 1080 p - Techly IDATA HDMI-WL 53 R

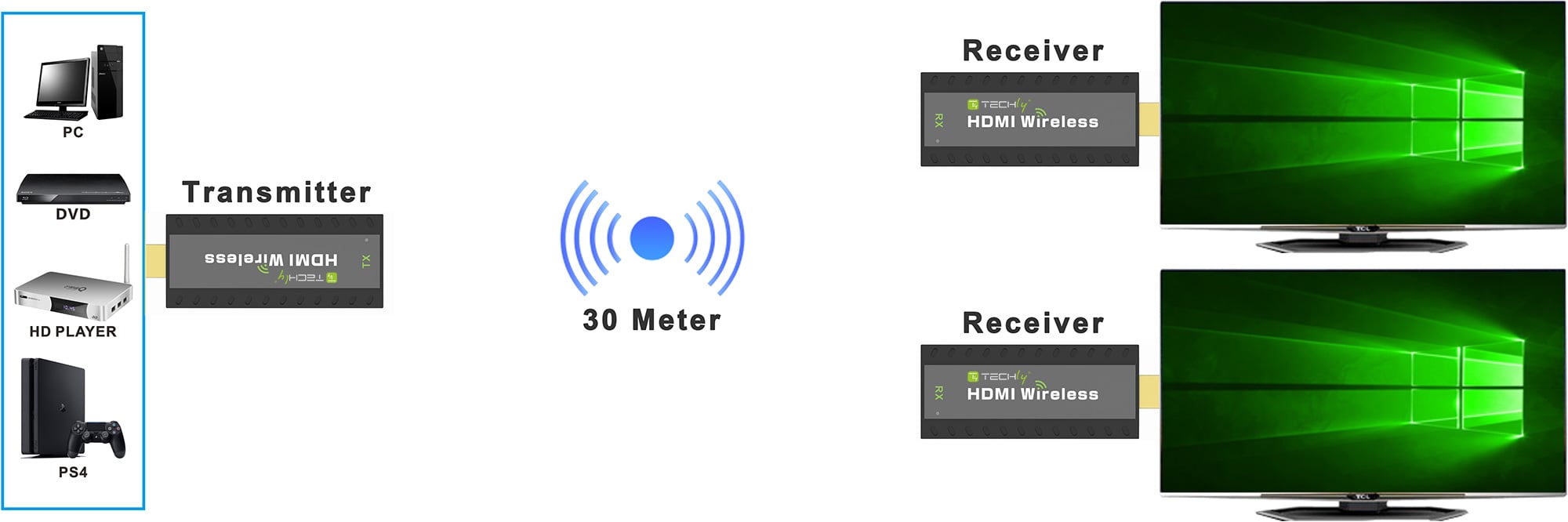

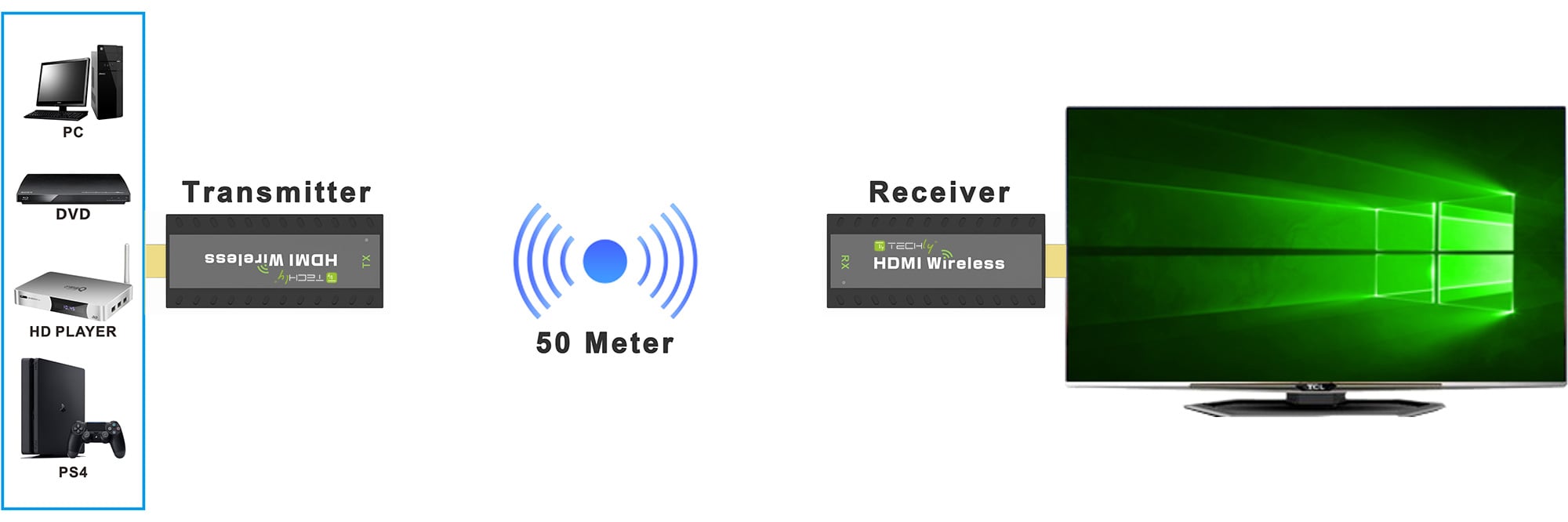

This additional receiver is part of the Wireless Extender IDATA HDMI-WL 53 kit, consisting of a unit à transmitter and a receiver which allow to extend the HDMI signal without the use of cables from the source to the screen up to 50 meters.

It works by exploiting the operating frequency of 5 GHz, which is particularly resistant to interference.

Supports point-to-point connection.

It is the ideal solution for conferences, meetings, training and educational environments, entertainment and much more.



Note: The transmission distance may vary depending on the variety; connected to the environment in which the installation is carried out.

The presence of walls, brick walls or glass could interfere with signal transmission by reducing the coverage distance or causing signal losses.



Features

• Practical compact design, high performance


• Video and audio transmission via wireless connection up to 50 meters


• HDMI 1.3 and HDCP 1.2 compatible


• Supports HD video resolution up to 1920 x 1080 p@ 60 Hz


• Supports H. 265 video compression standard for better transfer efficiency and greater fluidità playback


• Supports point-to-point configuration


• It can automatically identify and configure numerous visualization modes


• Automatic balancing system for a smooth, clear and stable image


• Integrated ESD electrostatic protection


• Quick and easy plug-in, no configuration required



Technical specifications

• Standard: HDMI 1.3 ; HDCP 1.2


• Compression format H. 265


• Maximum pixel clock 165 MHz


• Maximum 6.75 Gbps data rate


• Resolution 1920 x 1080 p@ 60 Hz


• male HDMI-A connector


• Impedience 100 Ohm


• Maximum recommended range in input/output: less than 5 meters, for 1920 x 1080 resolutions p@ 60 Hz


• Radio frequency power 13 dbm


• 802.11 ac standard wireless


• Signal direction: unidirectional


• Radio frequency 5.8 Ghz


• Transmission distance 50 m


• DC power supply 5 V


• Max 5 W power dissipation



Environmental features

• Operating temperature: - 5 °C – 70 °C


• Humidità (without condensation): 5 - 90 %



Dimensions (for unità)

• Width: 90 mm


• Depthà: 39 mm


• Height: 10 mm



Certifications

• CE


• FCC


• RAEE


• RoHS



Package contents

• 1 x HDMI Receiver


• 1 x HDMI cable


• 1 x USB power cable


• 1 x Education manual
