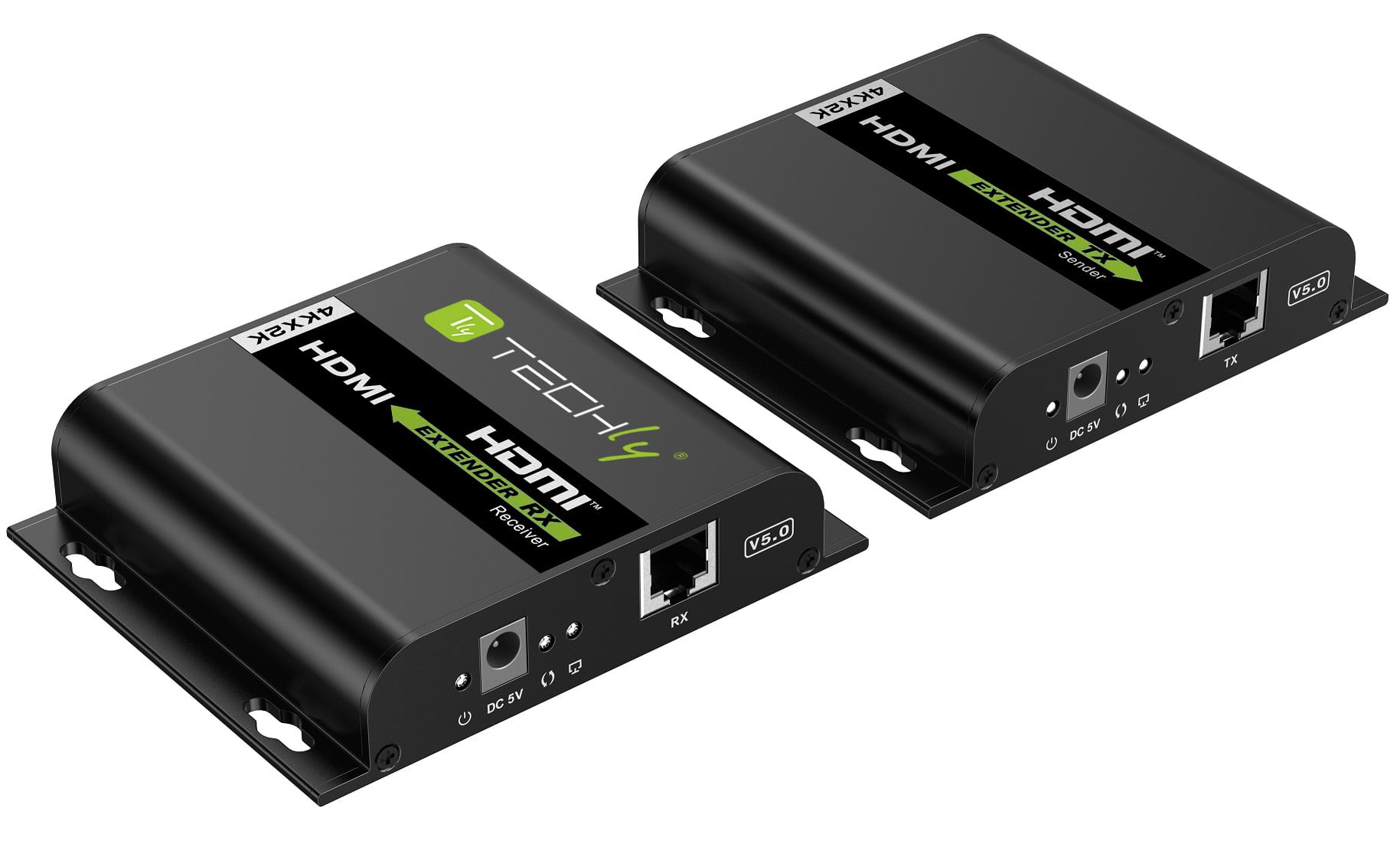

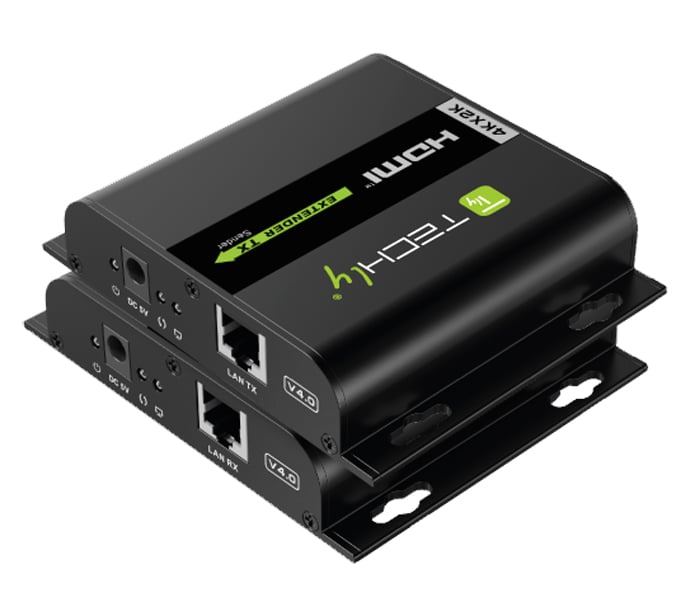

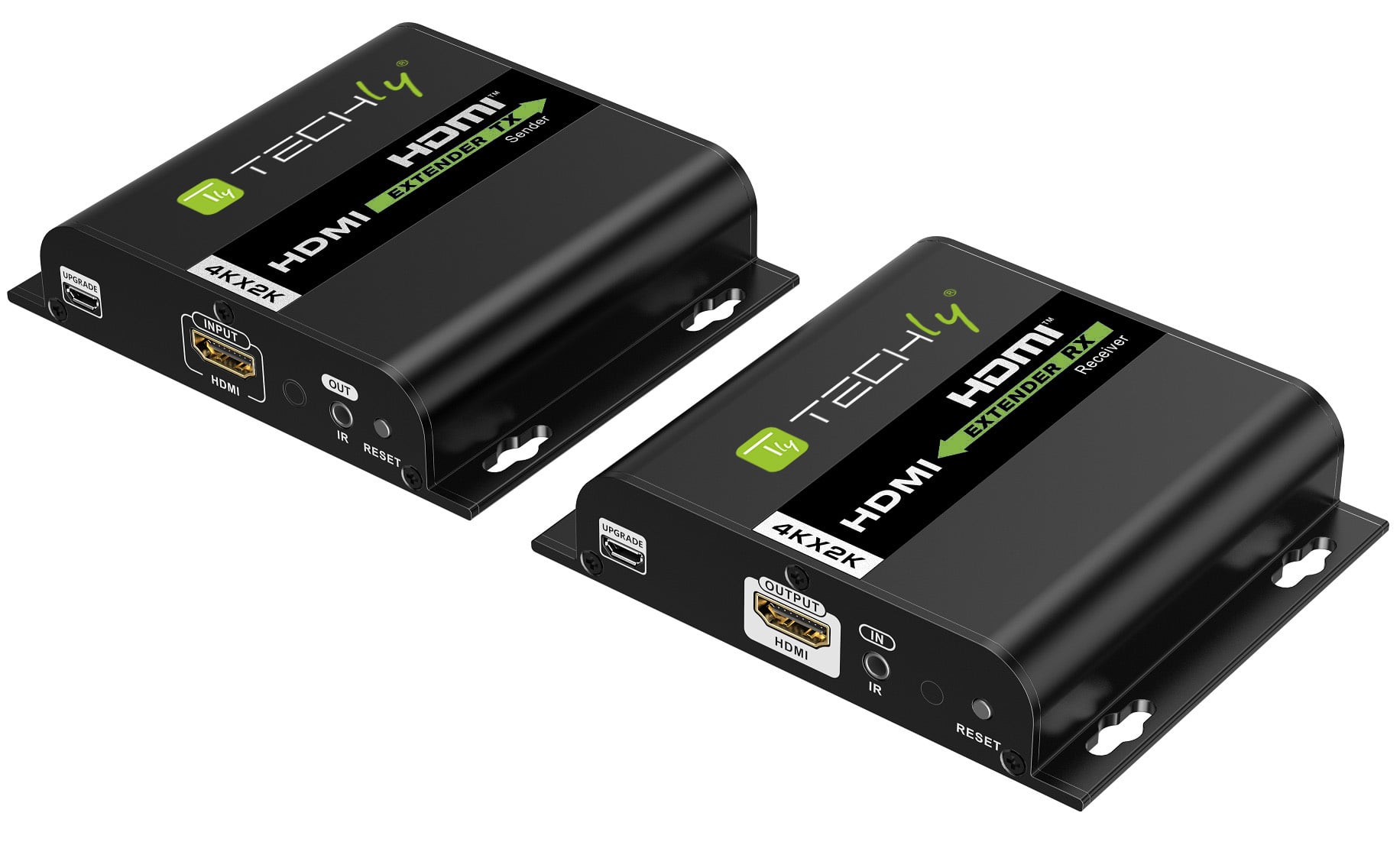

Additional Receiver for Extender HDMI over IP IR 4 K UHD on Cable Cat 6 up to 120 m - Techly IDATA EXTIP- 3834 KRV 5

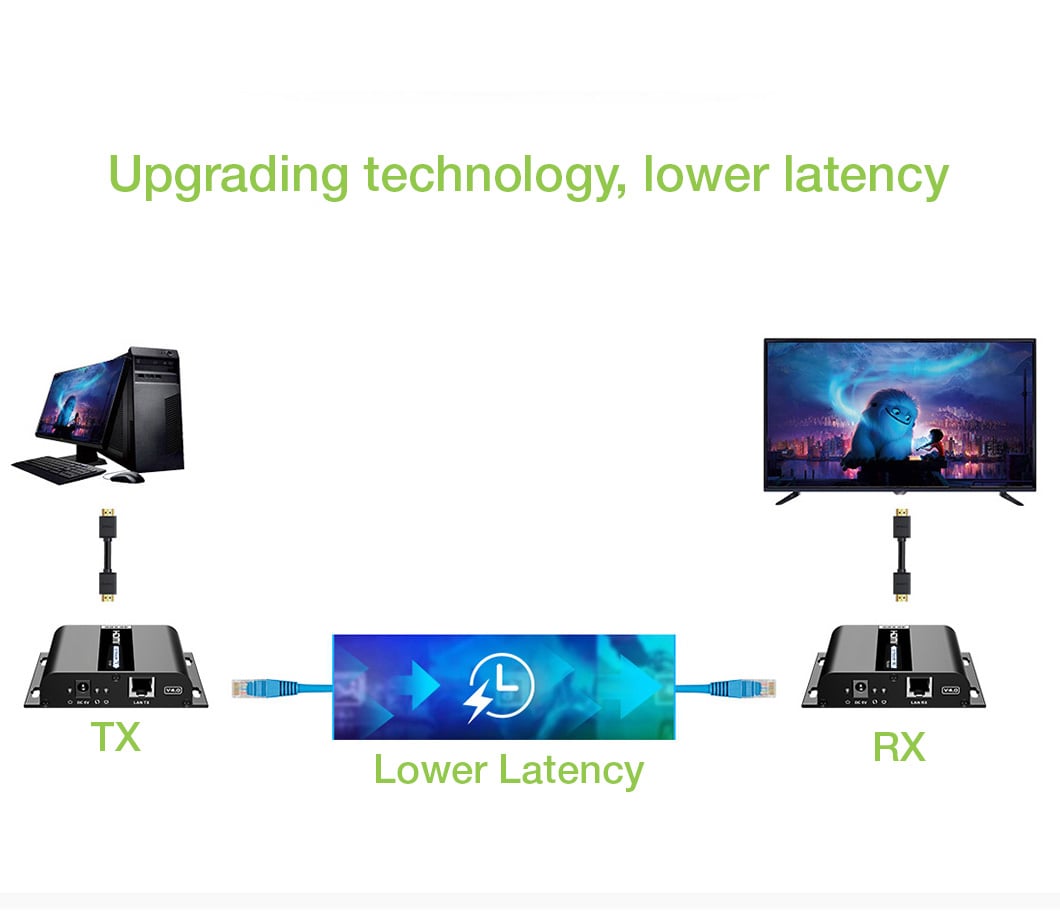

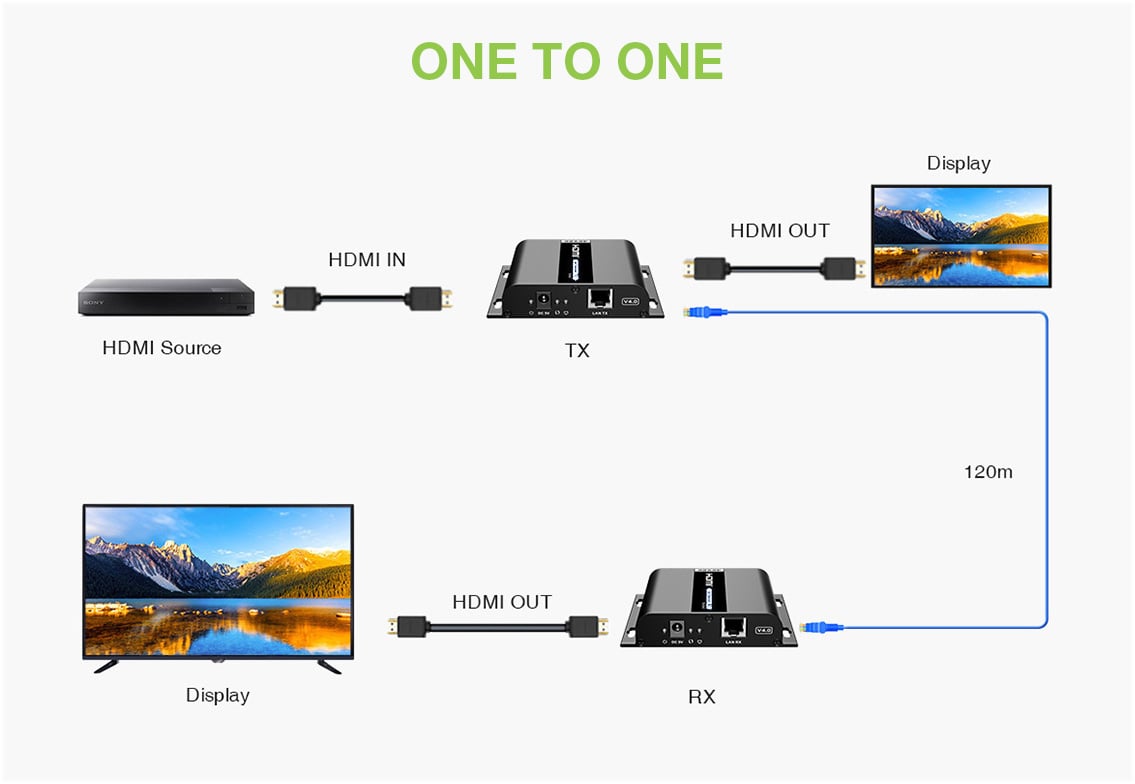

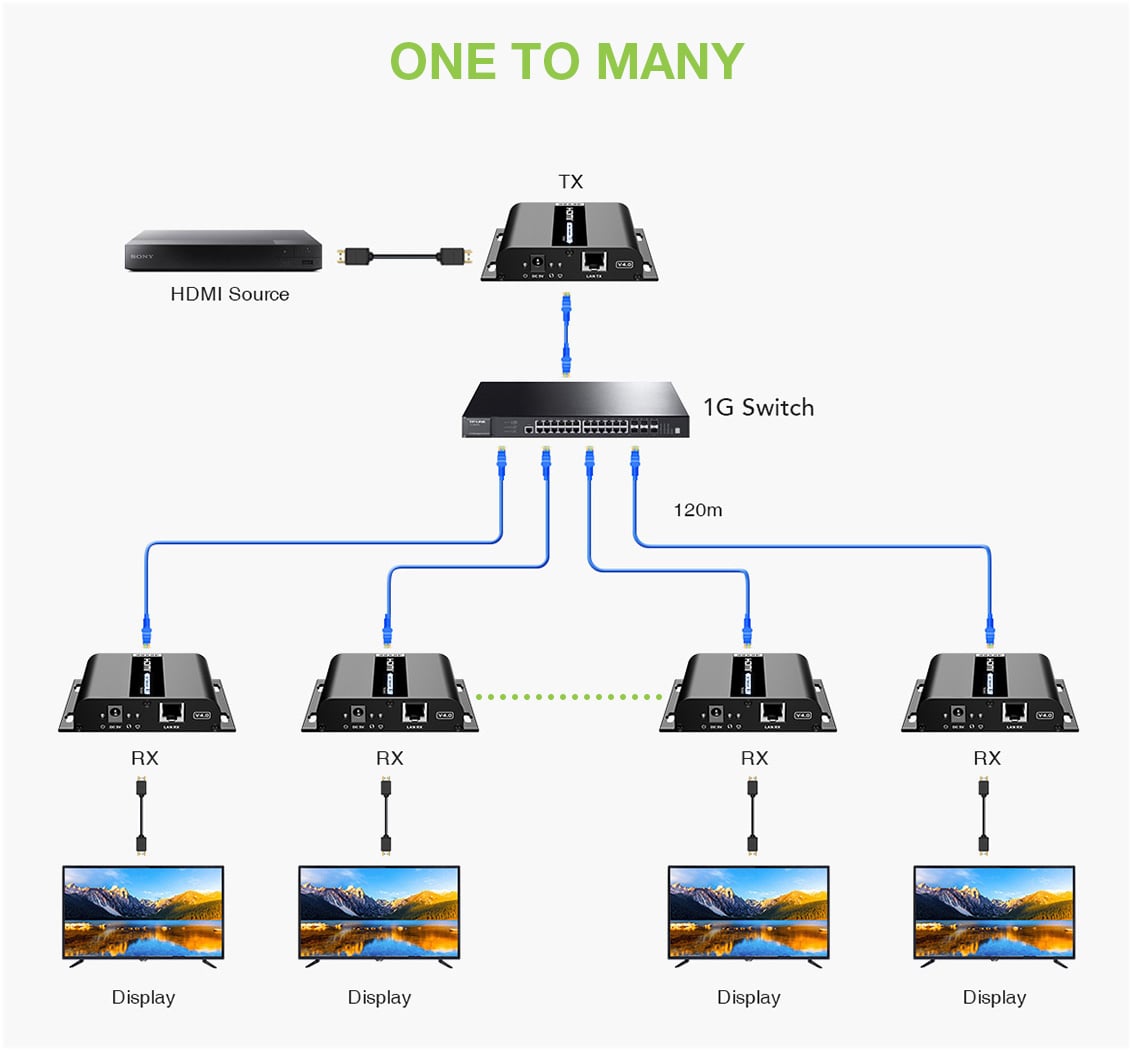

The HDMI extender over IP takes advantage of the latest transmission technology, extending your HDMI video/audio with resolution of 4 Kx 2 K to 30 Hz up to 120 meters via a single Cat network cable. 6 .
Supports IR signal transmission to control the media playback of the individual source device at the display location.

Features

• Additional Receiver

• Extends HDMI on a single network cable

• Supports cables Cat. 5 E/ 6

• It transmits signal 4 K Ultra HD (4 KX 2 K@ 25 / 30 Hz) up to 120 meters on Cat. 6

• Supports IR passback for easy control

• Compatible with the existing network, does not affect the internet
• HDMI and HDCP
• The design allows wall installation

• Color: black


Technical specifications

• HDMI 1.4

• Compatible  HDCP 1.4

• Supported resolutions: 480 p@ 60 Hz, 576 p@ 60 Hz, 720 p@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 4 Kx 2 K@ 24 / 25 / 30 Hz
• UTP/STP Cat 5 / 5 and/ 6 network cable

• Transmission distance up to 120 meters to 4 Kx 2 K@ 30 Hz Full HD on single CAT 6

• Supports IR devices from 20 ~ 60 KHz
• Operating temperature: 0 °- 60 °C

• DC power supply 5 V/ 1 A

• Power consumption TX: 3,5 W; RX: 2,5 W

• Weight: 170 g
• Color: black


Protection

• Protection against lightning

• Overvoltage protection

• ESD protection


Size RX

• Length: 107,3 mm

• Width: 94,0 mm

• Height: 23,7 mm


Certifications

• CE

• FCC

• RoHS

• RAEE


Package contents

• 1 x HDMI Receiver

• 1 x IR receiver extension cable

• 1x User manual
