HDMI Over IP 4 transmitter K@ 60 Hz on Cat cable 6 / 6 A/ 7 Up to 120 m - Techly IDATA EXTIP- 473 - 5 T

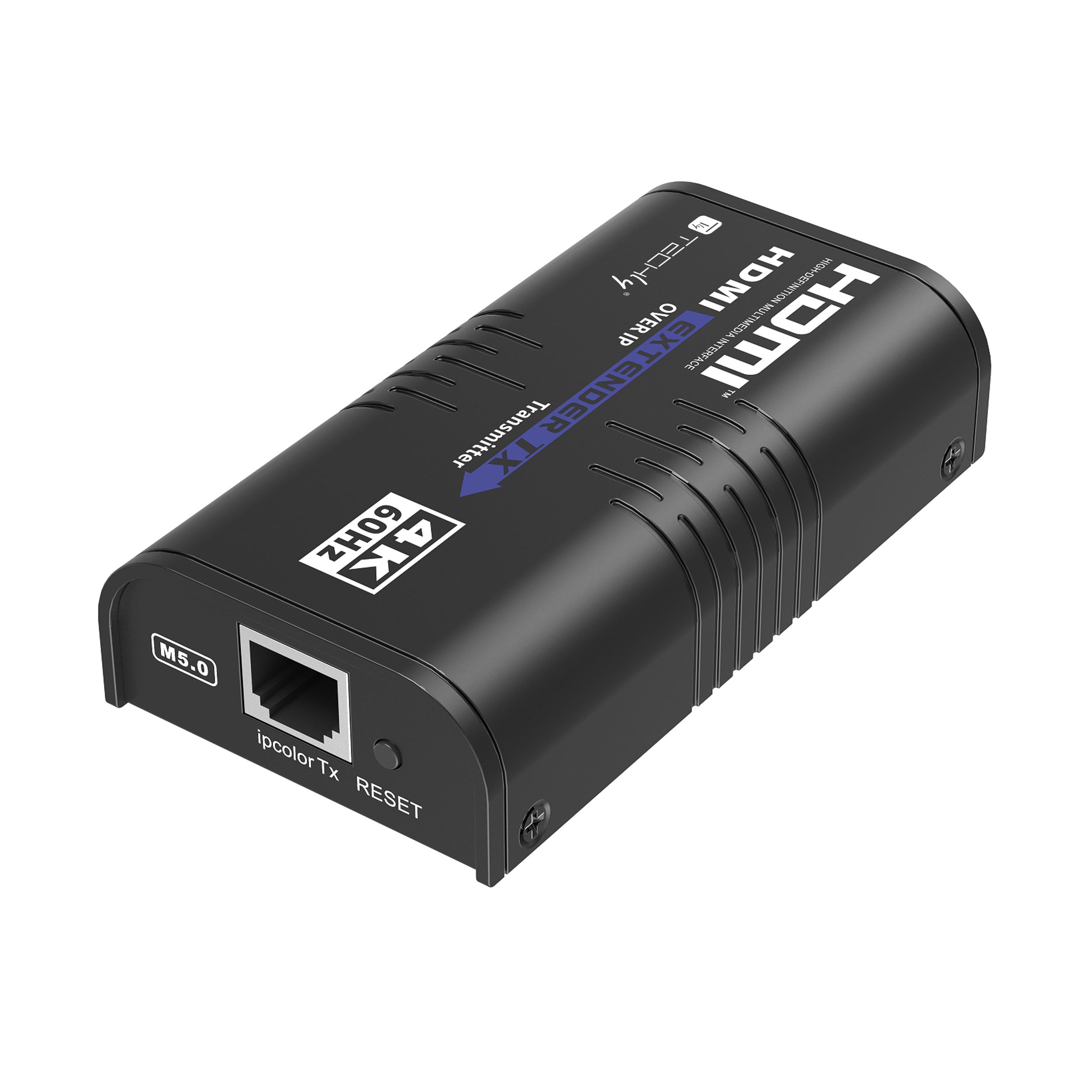

• Consists of a local unità (transmitter) to connect to an HDMI source

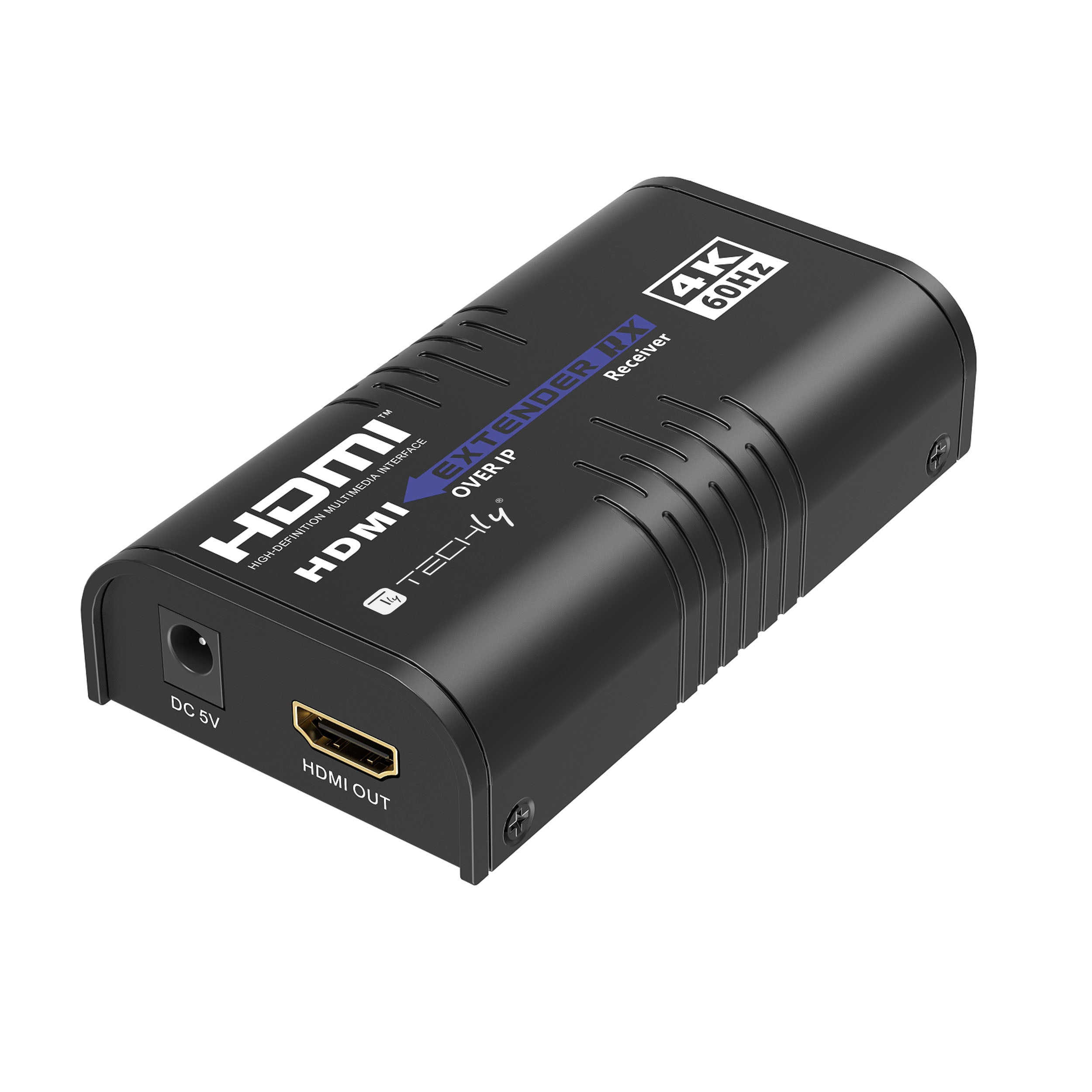

• To be combined with a remote unit à (receiver - to be purchased separately - not included in the package), which connects to an HDMI display
• The Extender HDMI kit over IP 4 K@ 60 Hz transmits digital video and audio signals to one or more receivers
• Supports switching,
  4 K@ 60 Hz audio signal extension and distribution
  via IGMP switch
• HDMI signal can be extended to 120 m
  via Cat cable. 6 or higher category network cable
• Support
  One-to-one connection, one-to-many, many-to-one and many-to-many and
  can be widely used in conferences, control centres,
  for radio and video, education and training and other sectors
• ipcolor technology STREAM & trade; built-in guarantees high
  low latency definition and transmission
• Supports resolution up to 4096 x 2160 @ 60 Hz, backcompatible
• Compatible with Cat 5 and/ 6 or higher network cables, the distance of
  Cat cable transmission 6 è 120 meters
• Supports one-to-one, one-to-many, many-to-one and many-to-many connections via gigabit switches
• Supports up to 256 input and 256 outputs
  signal
• Signal sources can be switched via APP for
  a multi-to-multi-flexible matrix configuration

Technical specifications

Video

• Input interface: 1 x HDMI
• Output interface: 1 x RJ 45
• Cable length:   HDMI ≤ 5 m
• Maximum rate
  Transfer: 18 Gbps


Compatibilityà

• HDMI 2.0

• HDCP 1.4 /HDCP 2.2


Resolutions

•   4096 x 2160 @ 24 / 30 / 50 / 60 Hz,
  3840 x 2160 @ 24 / 30 / 50 / 60 Hz,
  1080 p@ 24 / 25 / 30 / 50 / 60 Hz, 720 p@ 50 / 60 Hz,
  576 p@ 60 Hz, 480 p@ 60 Hz, 1920 x 1200 ,
  1680 x 1050 , 1600 x 900 , 1280 x 1024 ,
  1280 x 960 , 1280 x 720 , 1024 x 768 , 800 x 600

Connection Type

•
  One-to-one connection

• One-to-many connection

• Multi-to-one connection

• Multi-to-many connection

• Waterfall via switch

• Distance of
  Transmission: 120 m with Cat 6 cable; 100 m with Cat 5 cable; and
•
  Latency
  transmission
  1080P: 80 ~ 130ms
  4 K@ 60 Hz: 150 ~ 220 ms

Audio Signal

• 1 x HDMI input interface
• 1 x RJ 45 output interface
• HDMI output: LPCM 2.0


Feeding

• Power supply: DC 5 V/ 1 A
• TX consumption: ≤ 3.5 W

Environmental features

• Temperature
  - 20 °C ~ 60 °C

• Temperature of
  storage - 30 °C ~ 70 °C

• Humidità 0 - 90 % RH (without condensation)

• Housing: aluminium (top cover); iron
  (lower cover)


Protection

•
  ESD protection

• 1 a Contact disaster level 2 (+/- 4 KV)

• 1 b Air disaster level 3 (+/- 8 KV)

• Implementation of the standard: IEC 61000 - 4 - 2

• Protection against lightning

• Overvoltage protection

Dimensions

• Length: 110,0 mm

• Width: 58,0 mm

• Height: 26,0 mm
• Weight 160 g

Package contents

• 1 x HDMI transmitter  IDATA EXTIP- 473 - 5 T
• 1 x DC power supply 5 V 1 A

• 1 x Instructions manual
