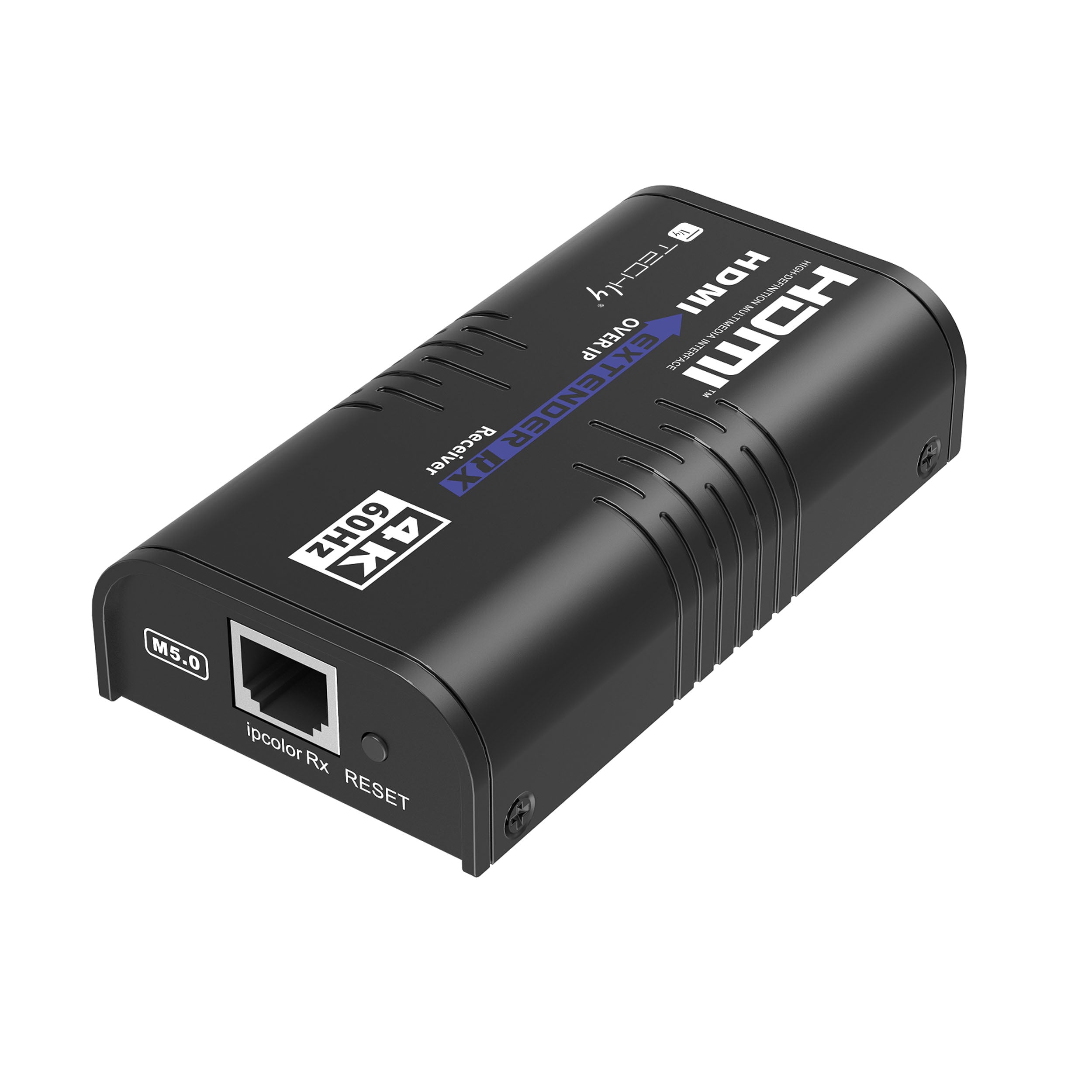

HDMI receiver Over IP 4 K@ 60 Hz on Cat cable 6 / 6 A/ 7 Up to 120 m - Techly IDATA EXTIP- 473 - 5 R

• It consists of remote unit à (receiver) to connect to an HDMI display

• Combined with a local unit à (transmitter - to be purchased separately - not included in the package), which connects to an HDMI source, the Extender HDMI kit over IP 4 K@ 60 Hz transmits digital video and audio signals to one or more receivers

• Supports switching, extension and distribution of video audio signal 4 K@ 60 Hz via IGMP switch

• The HDMI signal can be extended to 120 m via Cat cable. 6 or higher category network cable

• Supports one-to-one, one-to-many, many-to-one and many-to-many and can-grave; be widely used in conferences, control centres, radio and video, education and training and other sectors

• ipcolor STREAM™ built-in technology ensures high definition and low latency transmission

• Supports resolution up to 4096 x 2160 @ 60 Hz, backcompatible

• Compatible with Cat 5 and/ 6 or higher network cables, the transmission distance of the Cat 6 è cable of 120 meters

• Supports one-to-one, one-to-many, many-to-one and many-to-many connections via gigabit switches

• Supports up to 256 input and 256 signal outputs

• Signal sources can be switched via APP for a multi-a-many flexible matrix configuration


Technical specifications

Video

• Input interface: 1 x RJ 45

• Output interface: 1 x HDMI
• Cable length: HDMI ≤ 5 m

• Maximum transfer rate: 18 Gbps


Compatibilityà

• HDMI 2.0
• HDCP 1.4 /HDCP 2.2


Resolutions

• 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080p@24/25/30/50/60Hz, 720p@50/60Hz, 576p@60Hz, 480p@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600


Connection Type

• One-to-one connection

• One-to-many connection

• Multi-to-one connection

• Multi-to-many connection

• Waterfall via switch

• Transmission distance: 120 m with Cat 6 cable; 100 m with Cat 5 cable; and

• Transmission latency 1080 P: 80 ~ 130 ms 4 K@ 60 Hz: 150 ~ 220 ms

Audio Signal

• Input interface: 1 x RJ 45
• Output interface: 1 x HDMI
• HDMI output: LPCM 2.0

Feeding

• Power supply: DC 5 V/ 1 A

• RX consumption: ≤ 3 W

Environmental features

•
  Operating temperature: - 20 °C ~ 60 °C

• Storage temperature - 30 °C ~ 70 °C

• Humidità 0 - 90 % RH (without condensation)

• Housing: aluminium (upper cover); iron (lower cover)


Protection

•
  ESD protection

• 1 a Contact disaster level 2 (+/- 4 KV)

• 1 b Air disaster level 3 (+/- 8 KV)

• Implementation of the standard: IEC 61000 - 4 - 2

• Protection against lightning

• Overvoltage protection


Dimensions

•
  Length: 110,0 mm

• Width: 58,0 mm

• Height: 26,0 mm

• Weight 160 g


Package contents

•
  1 x HDMI receiver IDATA EXTIP- 473 - 5 R
• 1 x DC power supply 5 V 1 A

• 1 x Instructions manual
