USB 5Gbps Extender over MPO Fiber Optic Cable 100m - Techly IADAP USB32-MPO

• The USB fiber extender over MPO optical cable is an ideal installation solution for residential and commercial use, as well as for EMC medical projects.
• It can be replaced at any time without having to replace the entire cable
• There is no signal loss over long distances nor EMI interference, making it the best choice for point-to-point and distributed ultra-high definition video connections

Technical Specifications

• Extender USB Type A male / USB Type A female
• 20 cm length per side
• USB standard 3.2/3.1/3.0 (does not support USB 2.0/1.1)
• Supports 5 Gbps
• External power cable on the USB female side
• Compatible with multimode optical fibers OM3, OM4 and OM5 (does not support single-mode fibers)
• Maximum length up to 100 m
• Plug and Play
• O/E converter each: 1 channel 850nm VCSEL array and 1 channel GaAs PD array

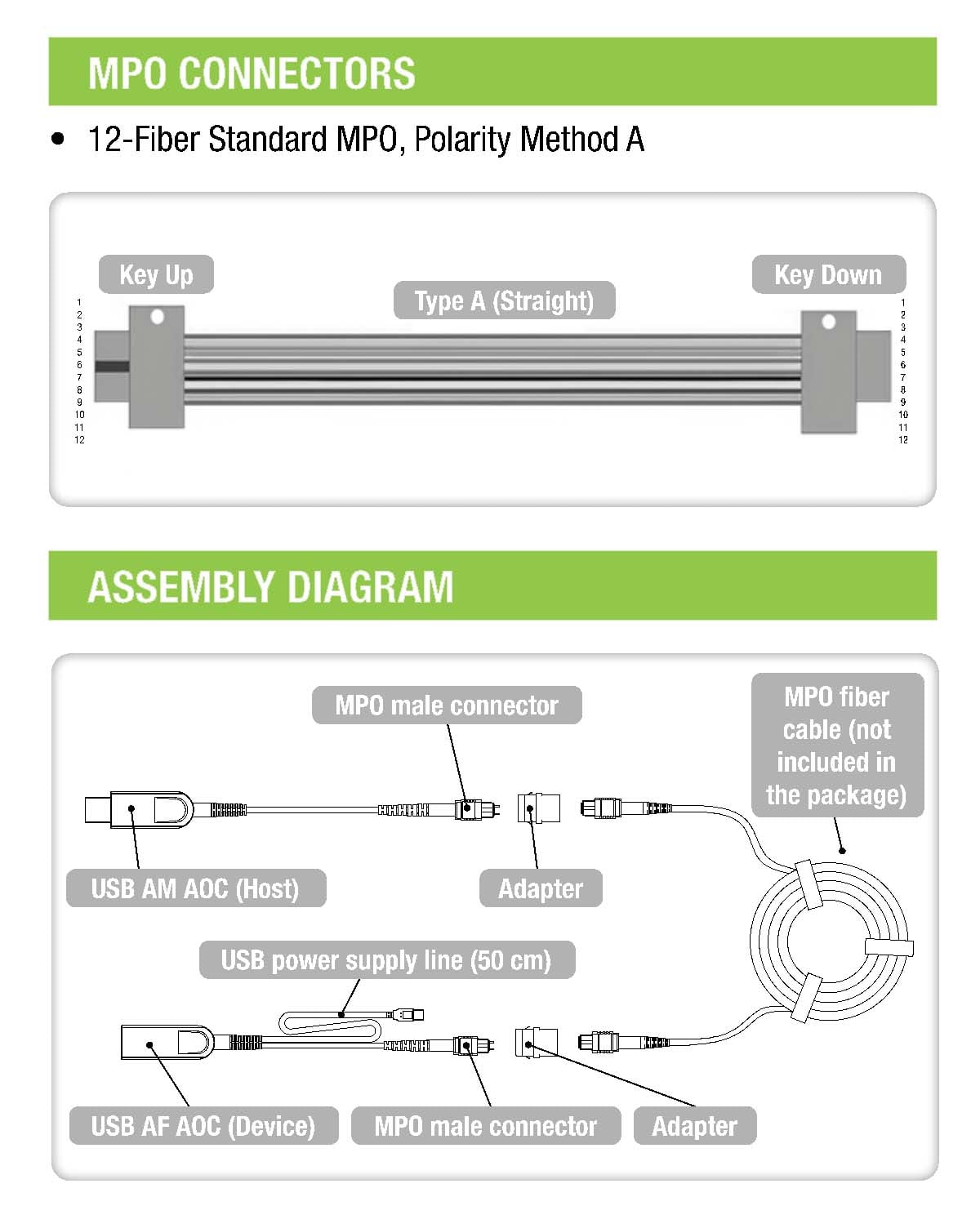

• Connector type: USB-A male/female and MPO
• Cable type: multimode 50/125 OM3-150
• Outer diameter of cable: 3,0 mm
• Outer sheath material: LSZH
• Cable color: aqua green and black
• MPO insertion loss: ≤ 0.35dB
• MPO return loss: ≥ 30dB
• Differential input: 90 ohm
• Power consumption: 0.4W (Host) 0.4W (Device)

Package contents

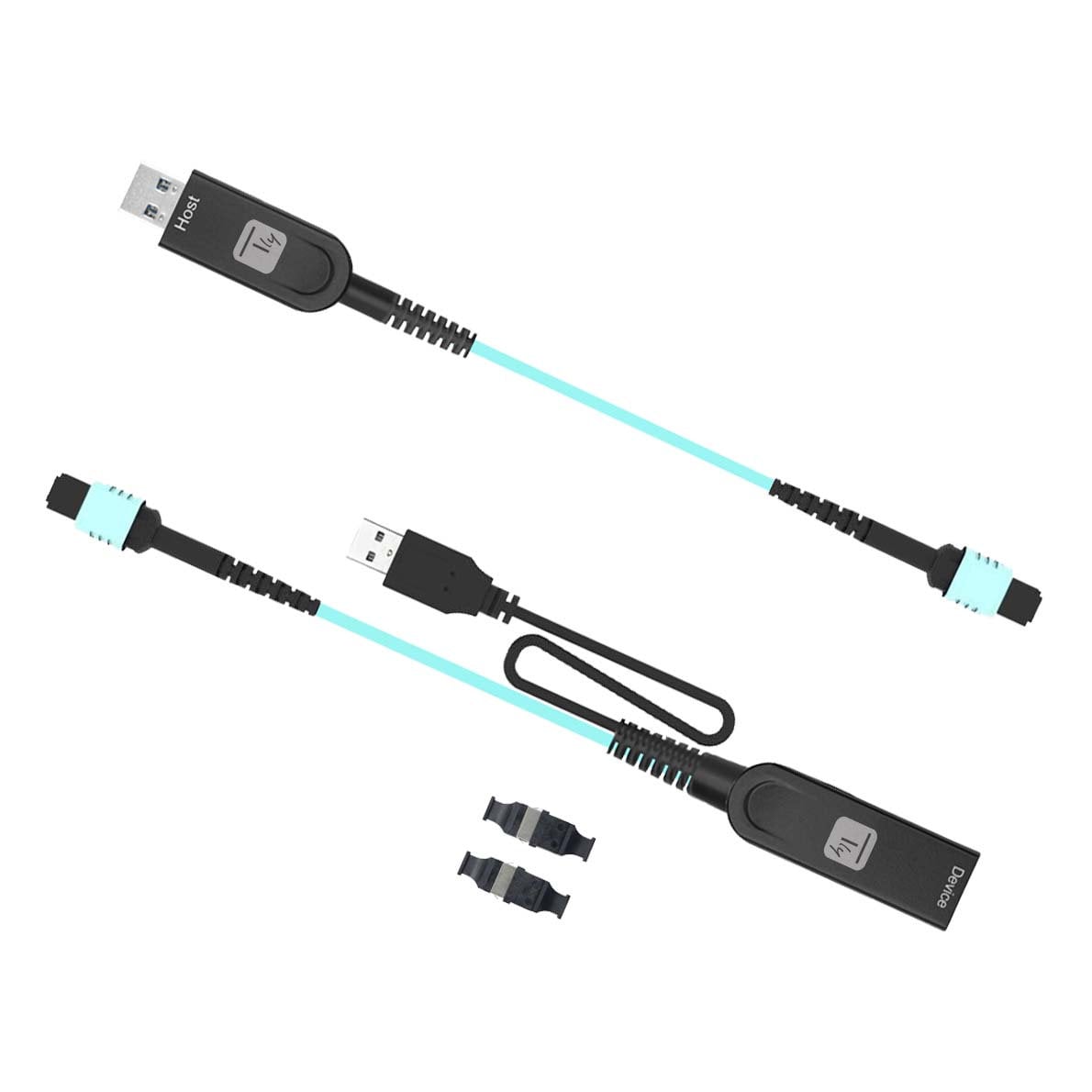

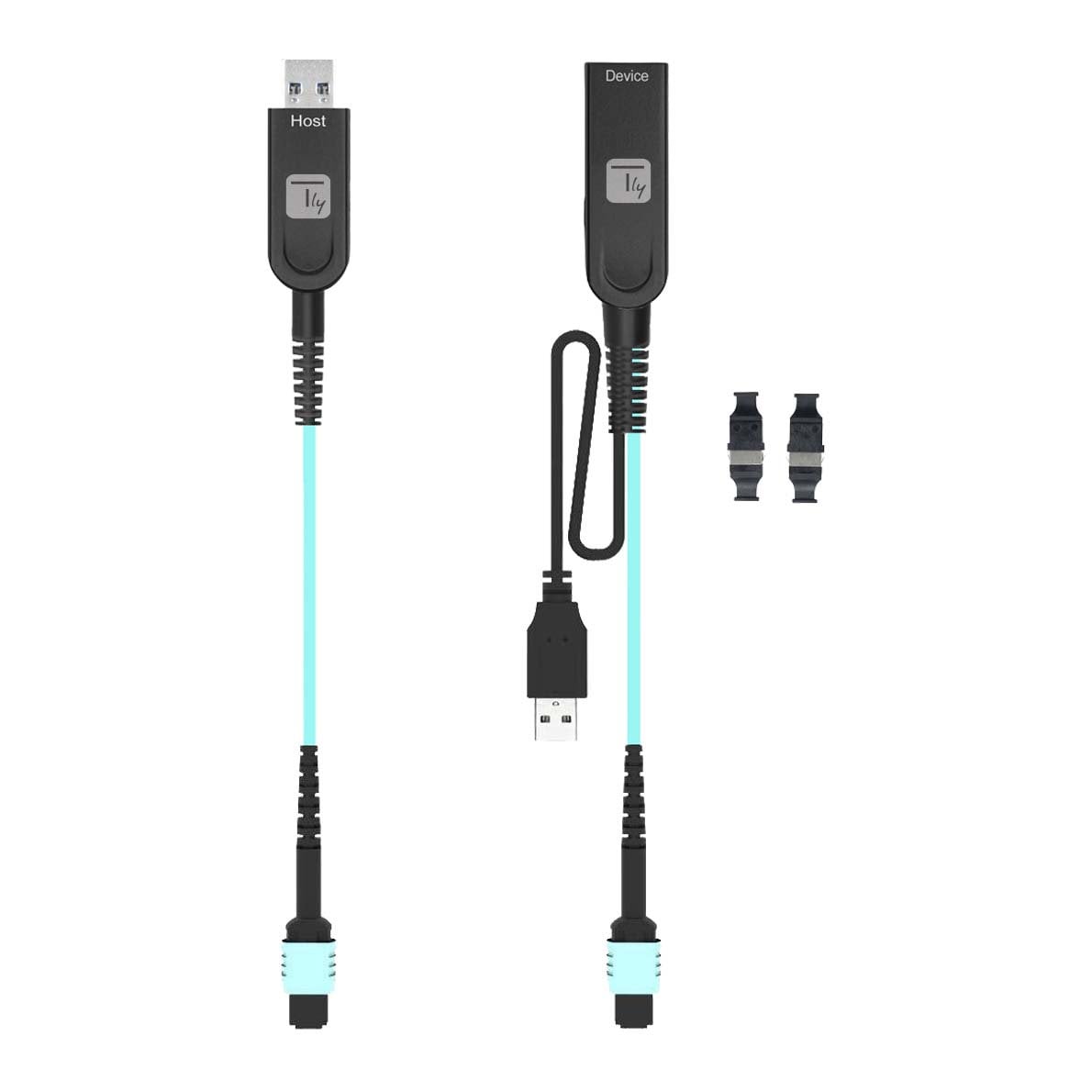

• 2 USB AM-AF fiber extender (20 cm length per side)
• MPO adapter x 2 pieces (MPO fiber cable not included in the package)
