Receiver Extender HDMI HDbitT 4 K UHD IR, Cat 6 120 m - Techly IDATA EXTIP- 3834 KR

HDMI extender receiver that applies HDbitT technology to transmit HDMI signal on single CAT 5 / 5 and / 6 cable to reach a transmission distance up to 120 meters. The maximum supported resolution è 4 Kx 2 K (3840 x 2160 @ 30 Hz) and extends the HDMI signal without limits with cascade connection.

Due to the high bandwidth consumption it is advisable to use these devices with IGMP routers, or alternatively on dedicated networks or on separate VLAN port based.



Technical specifications

• Supports resolution up to 4 Kx 2 K @ 30 Hz


• Supported resolutions: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 4 Kx 2 K@ 24 / 25 / 30 Hz


• Transmits the HDMI signal on single CAT 5/5 and / 6 cable


• Extends signal to 120 meters to 4 Kx 2 K @ 30 Hz


• Connects with routers to split and extend unlimitedly


• Compatible with existing network, does not affect the Internet


• Supports IR 20 kHz- 60 kHz signals


• Compatible with HDMI V 1.4 and HDCP 1.4



Installation requirements

• Periferica HDMI source (computer graphics card, DVD, PS 3, HD monitoring equipment, etc.)


• HDMI screens like SDTV, projector with HDMI port


• Network cables: UTP/STP Cat 5 and/ 6 network cables, meeting the EIA 568 B standard


• Transmission length: CAT 5 80 m/CAT 5 AND 100 m/CAT 6 120 m



Connection

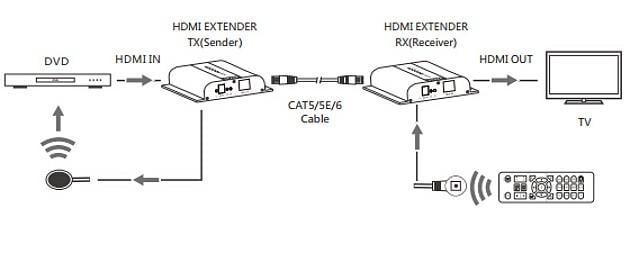

• Point-to-point connection: up to 120 meters transmission distance via single CAT cable 6

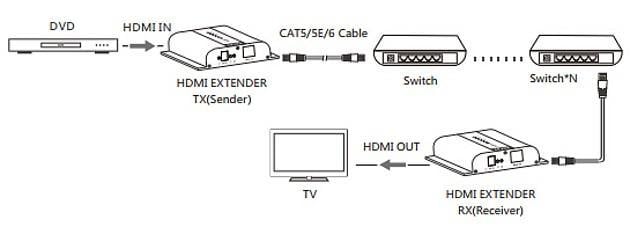

• Router connection: using a router/repeater, unlimited extensions can be reached

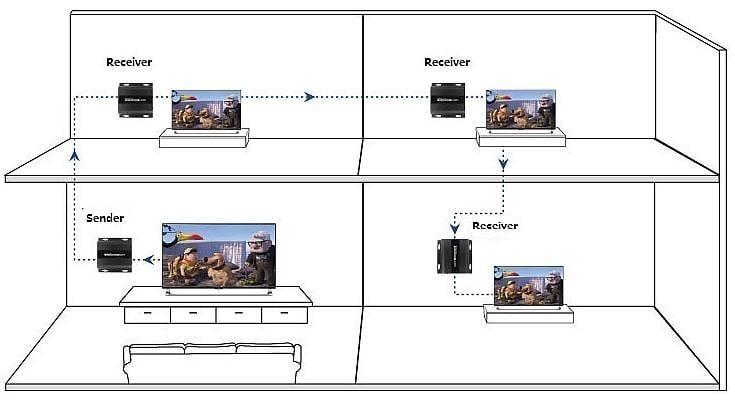

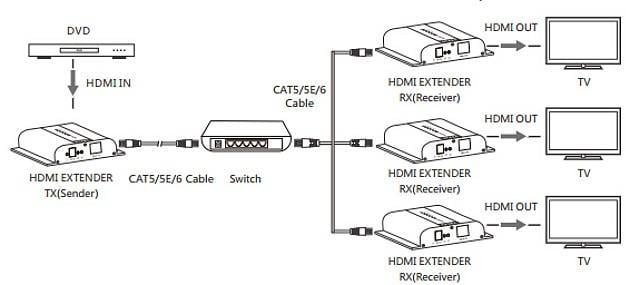

• Point-multipoint connection: using a router/switch, a moreù receiver transmitter, you can ò realize the extender and splitter function



Note: We recommend using a Gigabit (1000 Mbps) switch for LAN network transmission



Dimensions 

• Width: 96.8 mm


• Depthà: 94 mm


• Height: 23.7 mm



Certifications

• CE


• RAEE



Package contents

• 1 x HDMI EXTENDER RX Receiver


• 1 x DC power supply 5 V/ 2 A


• 1 x IR receiver extension cable


• 1 x Education manual
