Extender HDMI 4 K@ 60 Hz 18 Gbps HDR 10 on Cat 6 / 6 A/ 7 70 m - Techly IDATA EXT- 565

HDMI point-point extender that allows to obtain a signal transmission with zero latency.

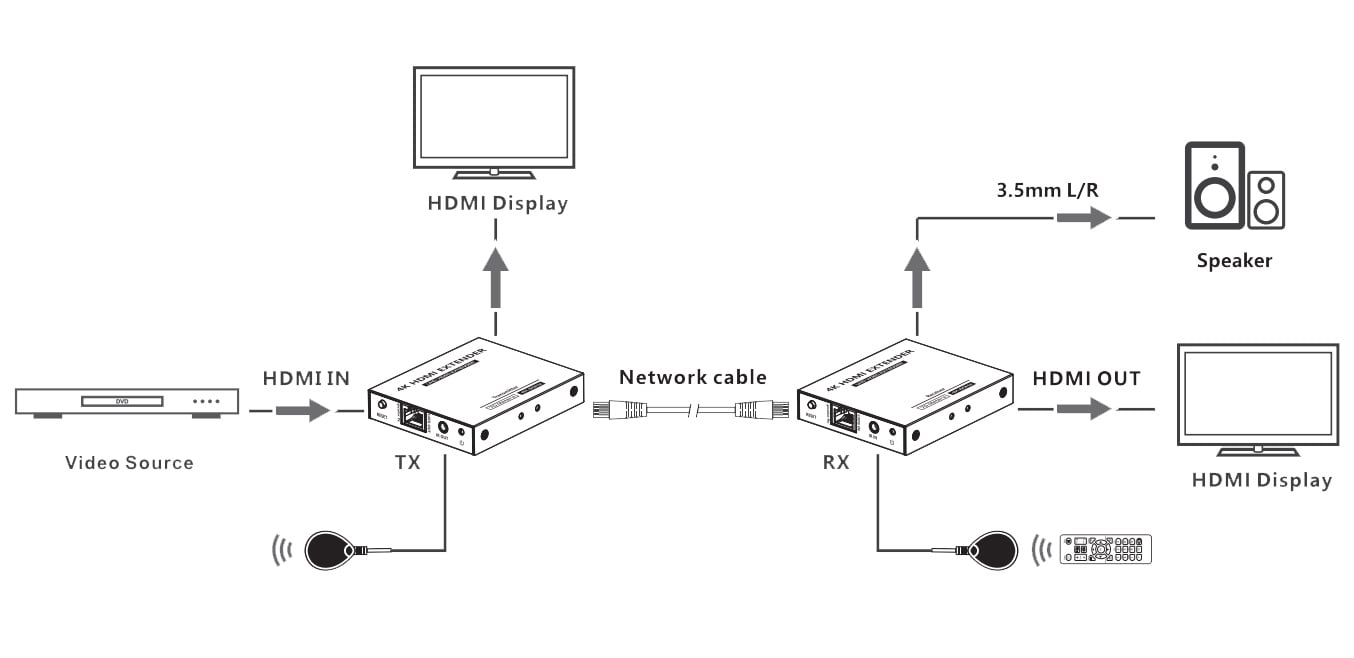

The HDMI signal 4 K@ 60 Hz can be extended using a Cat network cable. 6 / 6 A/ 7 . It is equipped with an HDMI port on the transmitter for a local video output, supports IR passthrough, with audio output on 3.5 connection on receiver.

It represents a reliable and high-resolution video transmission solution, ideal for outdoor advertising, video clips, monitoring system, home entertainment, conferences, etc.



Features

• Transmission with zero latency


• Extends signal 4 K@ 60 Hz to 70 meters through network cable Cat. 6 / 6 A/ 7

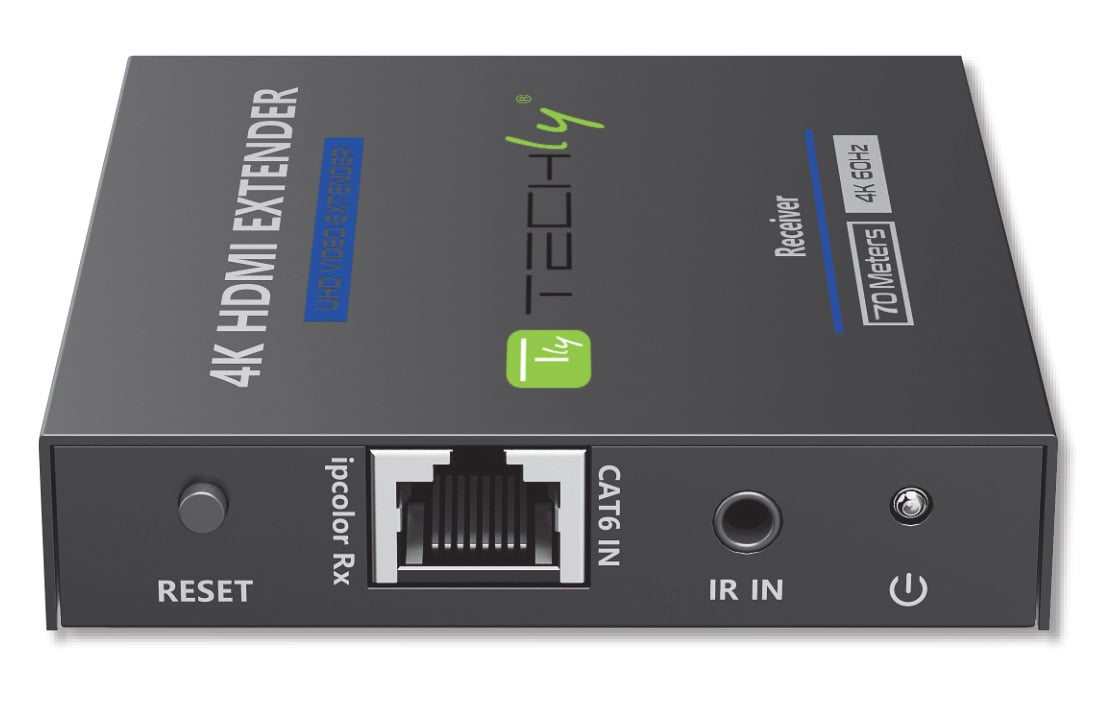

• The receiver supports stereo output on connection from 3.5 mm


• Supports HDR 10


• Supports EDID Passthrough and Downscale Audio

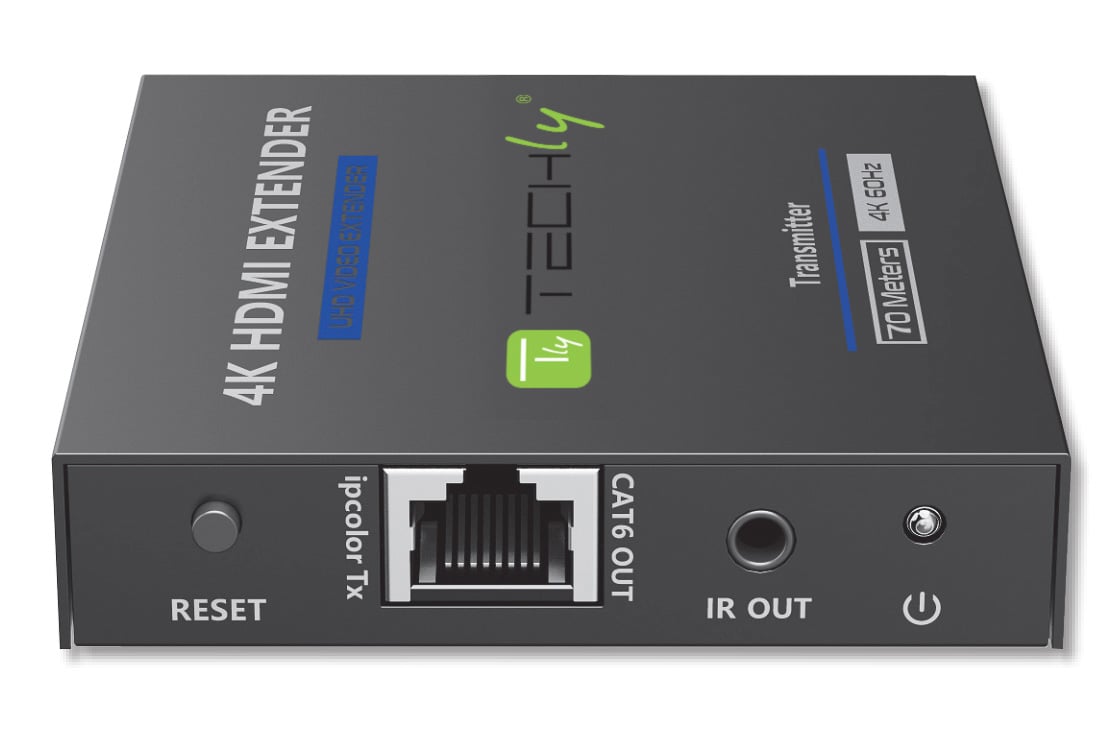

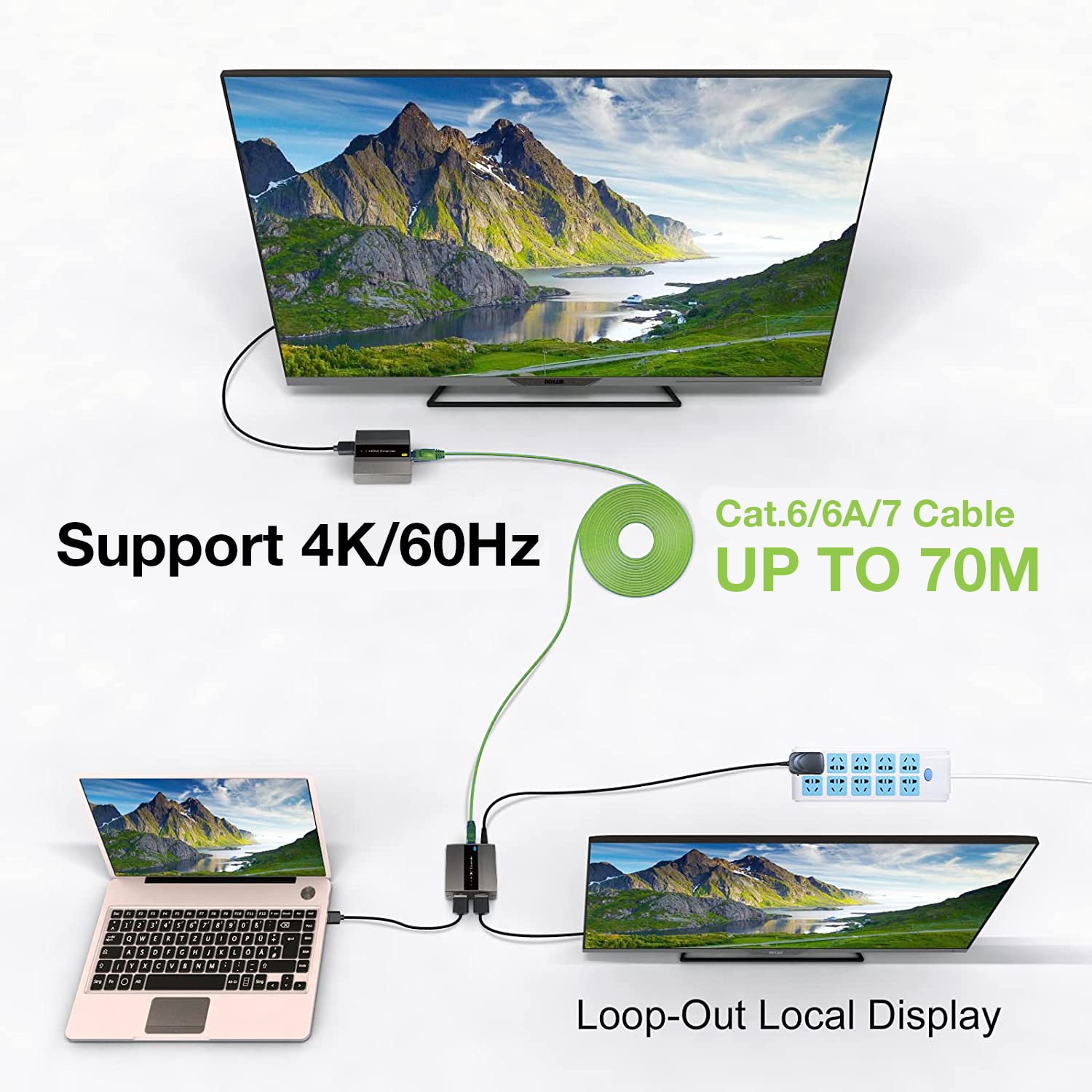

• The transmitter supports local HDMI output


• Supports IR Passthrough


• Lightning protection, overvoltage protection and antistatic protection



Technical specifications

• Inputs: 1 xHDMI Type A female transmitter; 1 xRJ 45 female receiver


• Outputs: 1 xHDMI transmitter type A female, 1 xRJ 45 female; 1 xHDMI receiver type A female, 1 x 3.5 mm L/R female


• Maximum data transfer 18 Gbps


• Maximum transmission bandwidth 600 MHz


• Passing EDID


• HDMI 2.0 compatible (Deep Color, 4 K, HDR, YUV 4 : 4 : 4 )


• HDCP 2.2 compatible


• Supported video resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60z, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600


• Maximum transmission distance 70 meters with copper cable of cat. 6 / 6 A/ 7


• Audio formats: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1 CH/Dolby Atmos


• IR 3.5 mm interface with reception range less than 5 m


• Infrared frequency: 20 KHz- 60 KHz



Environmental features

• Operating temperature: - 20 / 60 °C


• Storage temperature: - 30 / 70 °C


• Humidità 0 - 90 % RH (without condensation)

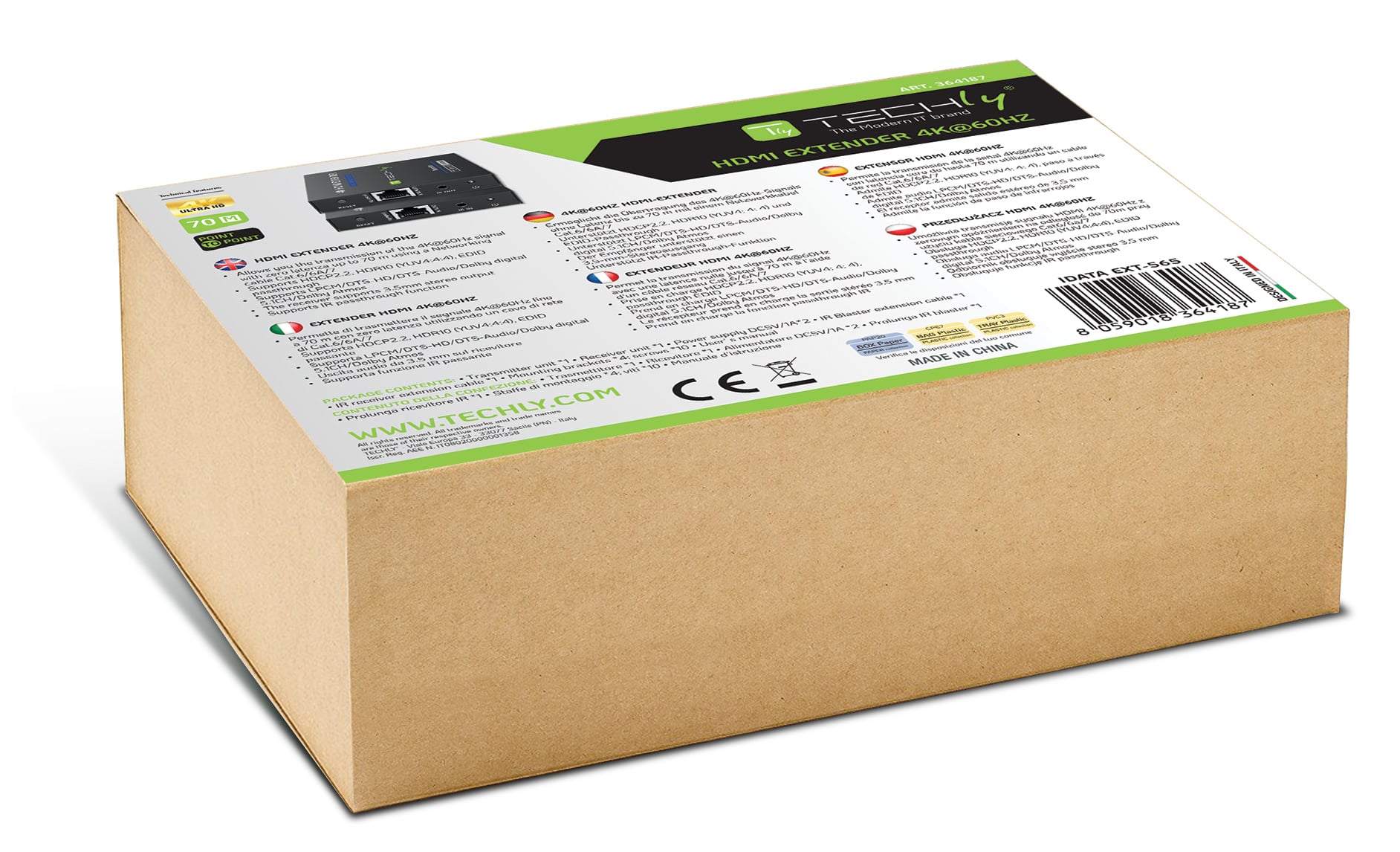

Package contents

• 1 x Transmitter


• 1 x Receiver


• 2 x DC power supplies 5 V/ 1 A


• 1 x Extension IR blaster


• 1 x Extension IR receiver


• 4 x Mounting bracket; 10 screws


• User manual
