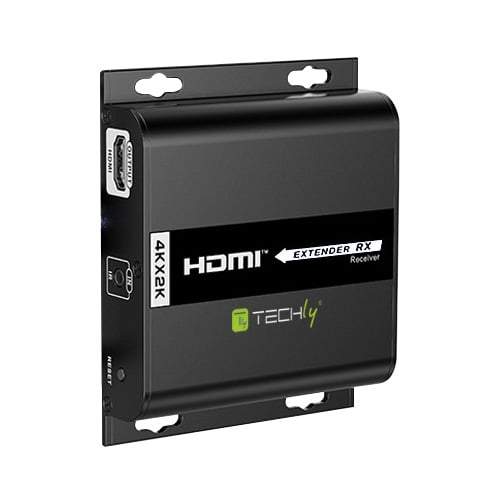

IDATA EXTIP- 383 POER è an additional receiver for HDMI extender that applies HDbitT technology to transmit HDMI signal from source up to 120 m to your HD display on single CAT 5 / 5 and / 6 cable. Supports resolutions up to 1080 p at 60 Hz and PoE power supply.
Due to the high bandwidth consumption it is advisable to use these devices with IGMP routers, or alternatively on dedicated networks or on separate VLAN port based.
Features- Extend HDMI signal on single CAT 5 / 5 and / 6
- Transmission distance up to 120 meters
- PoE provides power to drives ` sender and receiver over the connection cable
- Supported resolution up to 1080 P @ 60 Hz
- With IR support
- Compatible with the existing network, does not affect the internet
- Support connected with the PoE router to divide and extend the HDMI signal without limits
- HDMI and HDCP
- Color: black

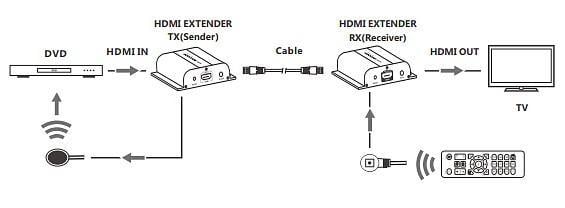

Connection- Point-to-point connection: up to 120 meters transmission distance via single CAT cable 6 (powered by 5 V DC 1 A)

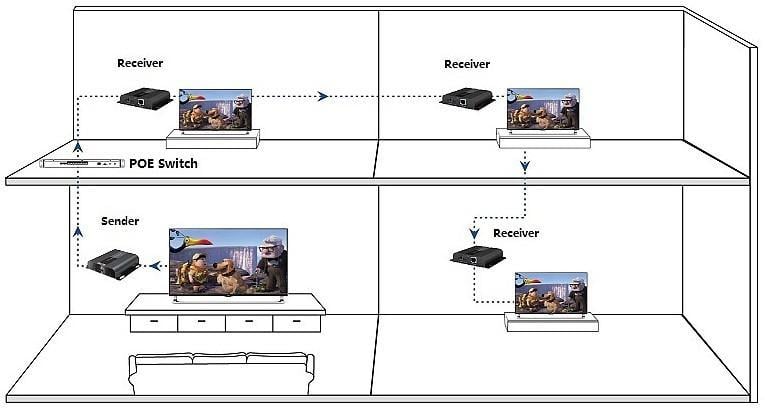

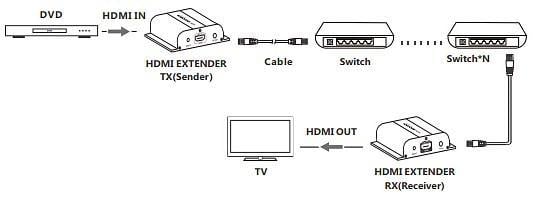

- Router connection: using a router/repeater, unlimited extensions can be reached (powered by PoE switch)

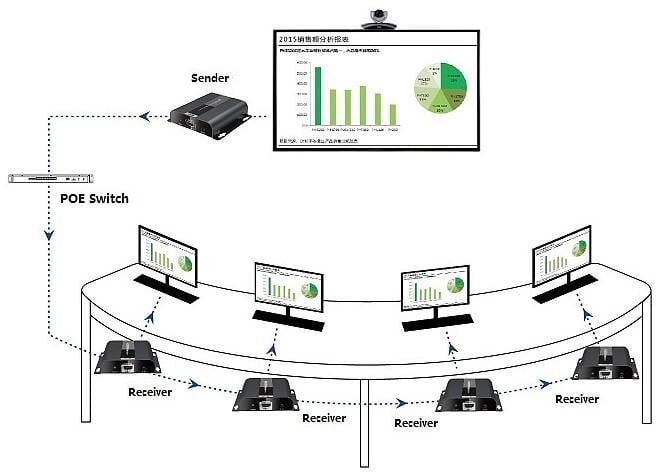

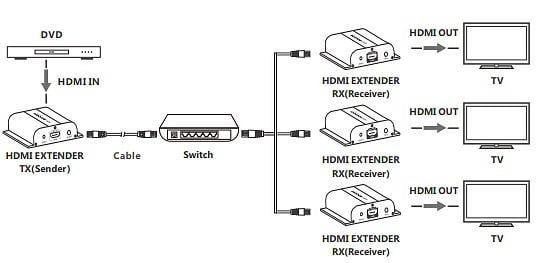

- Point-multipoint connection: using a router/switch, a moreù receivers transmitter, you can ò realize the function of extender and splitter (powered by PoE switch)
Technical specifications- HDMI signal: HDCP compatible
- Technology: HDBitT
- Supported resolutions: 480 i@ 60 Hz; 480 p@ 60 Hz; 576 i@ 50 Hz; 576 p@ 50 Hz; 720 p@ 50 / 60 Hz; 1080 i@ 50 / 60 Hz; 1080 p@ 50 / 60 Hz
- Network cable: UTP/STP Cat. 5 / 5 and/ 6
- Transmission distance: 120 m to 1080 p@ 60 Hz Full HD on Cat cable. 6
- Supports PoE IEEE 802.3 af (input 10 W)
- Power supply: 5 V 1 A (power supply not included)
Dimensions- Width: 105 mm
- Depthà: 94.5 mm
- Height: 23.8 mm
Package contents- 1 x Receiver HDMI EXTENDER POE RX
- 1 x IR extension cable receiver
- 1x User manual
