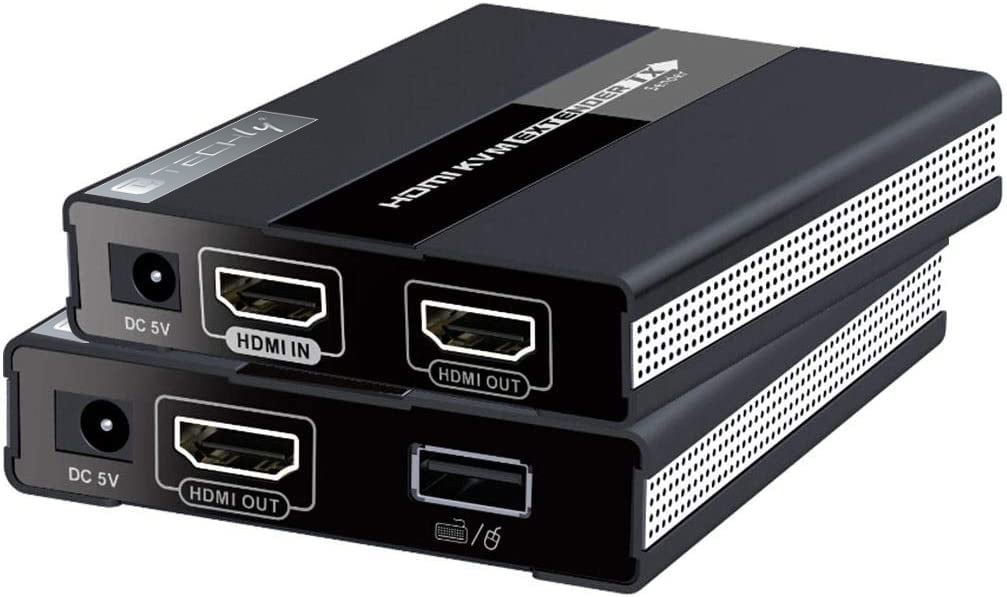

HDMI KVM Extender on Network Cable up to 60 m - Techly IDATA HDMI-KVM 60

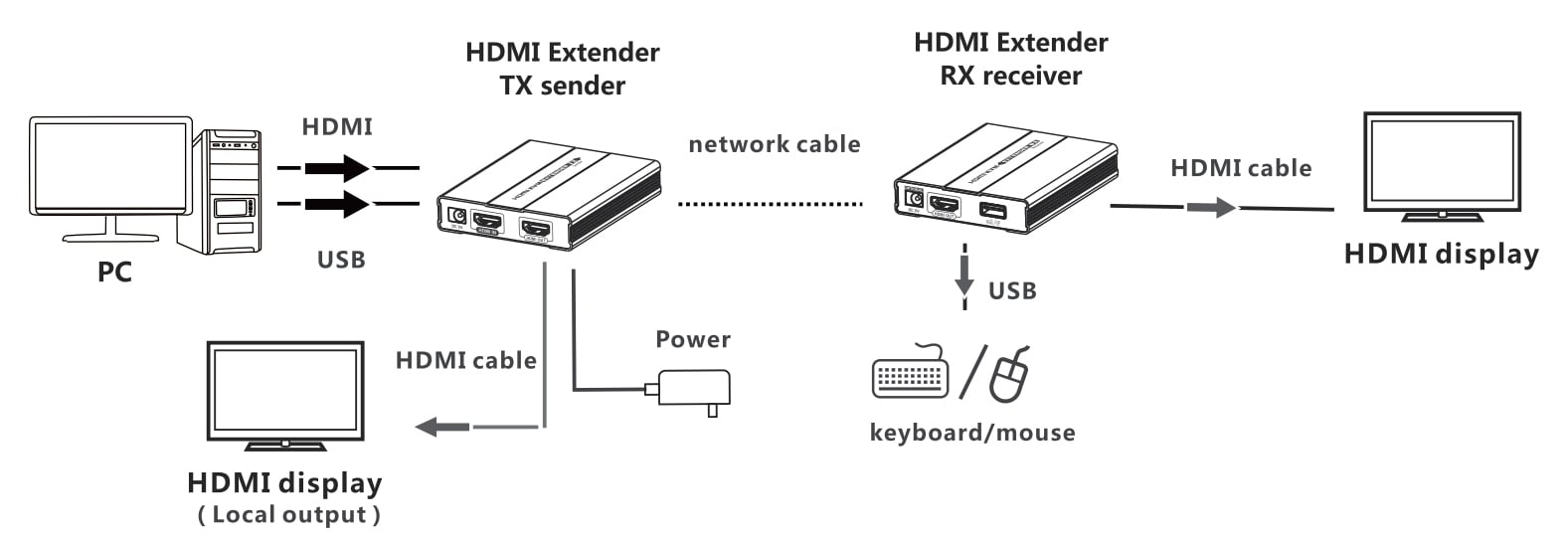

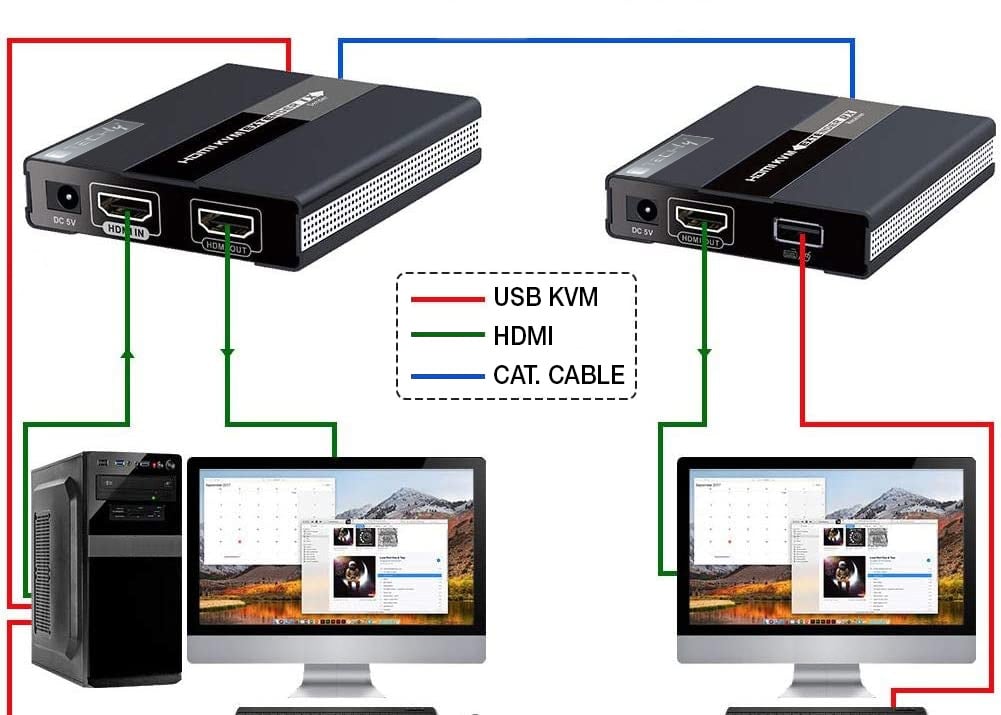

This HDMI Extender è solution for HDMI signal transmission to 1080 p@ 60 Hz not compressed on a single network cable Cat 5 / 5 and/ 6 . Includes a transmitter and a receiver that work in pairs. The transmission distance reaches up to 60 meters with almost zero latency. This KVM extender can ` control the source remotely from the receiver through keyboard and mouse. It is perfect for Audio Video transmissions during HD conferences, HD video shooting, HD educational systems, advertisingà and HD signage.

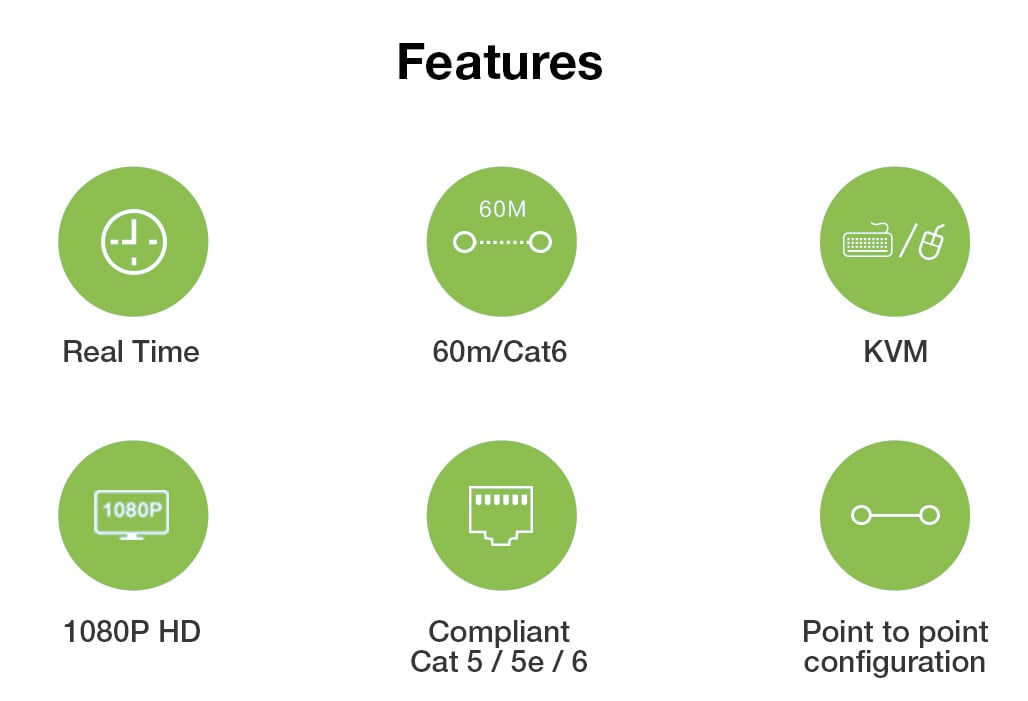

Features

• HDMI KVM extender on Low Latency network cable


• Extends HDMI signal up to 60 m and supports KVM function for point-to-point configuration


• With microphone door and audio port 3.5 m integrated

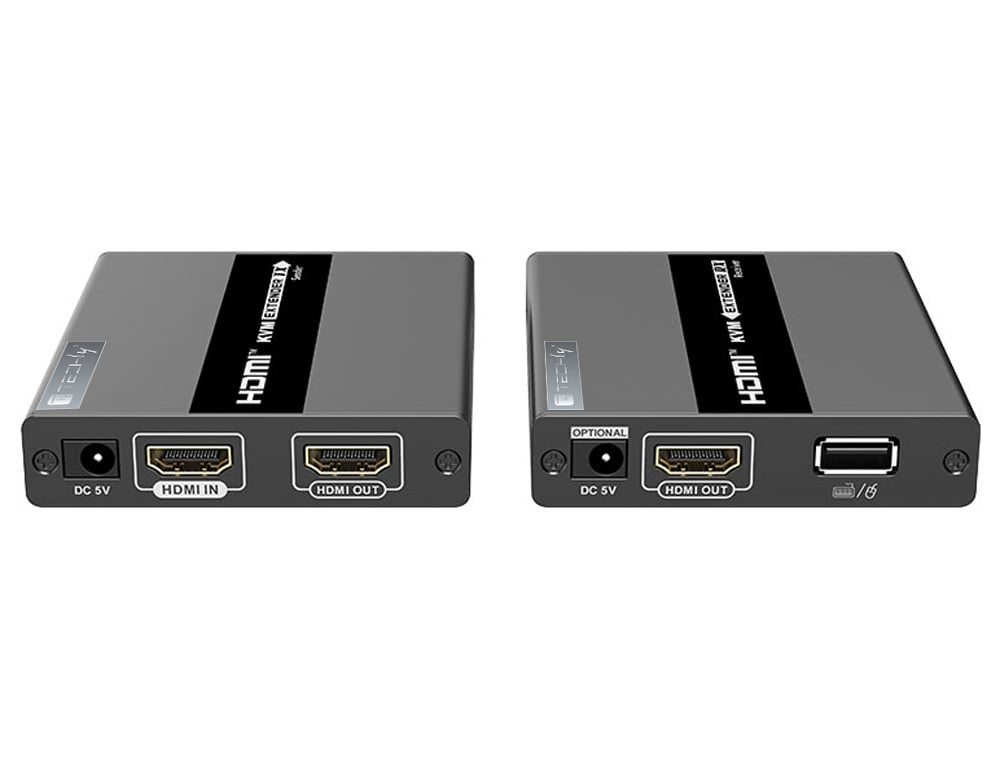

• HDMI port transmitter


• Supports 1080 resolution p@ 60 Hz

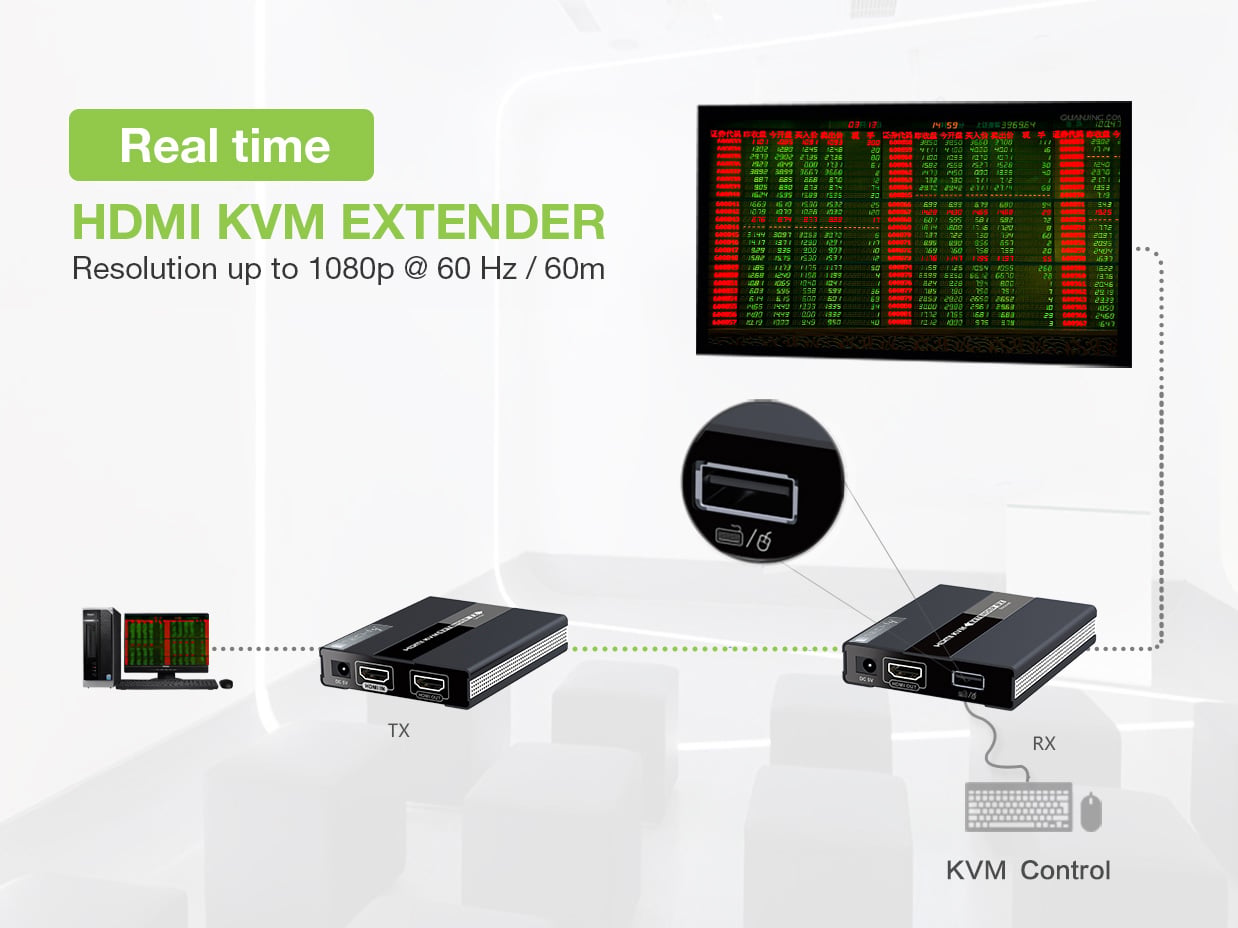

• Real-time transmission, low latency


• Supports KVM function conveniently from remote control


• The transmission distance can be up to 60 m via Cat 6 cable, up to 50 m via Cat 5 E and Cat 5 cable


• It can be powered by the mains cable, only the transmitter needs power supply

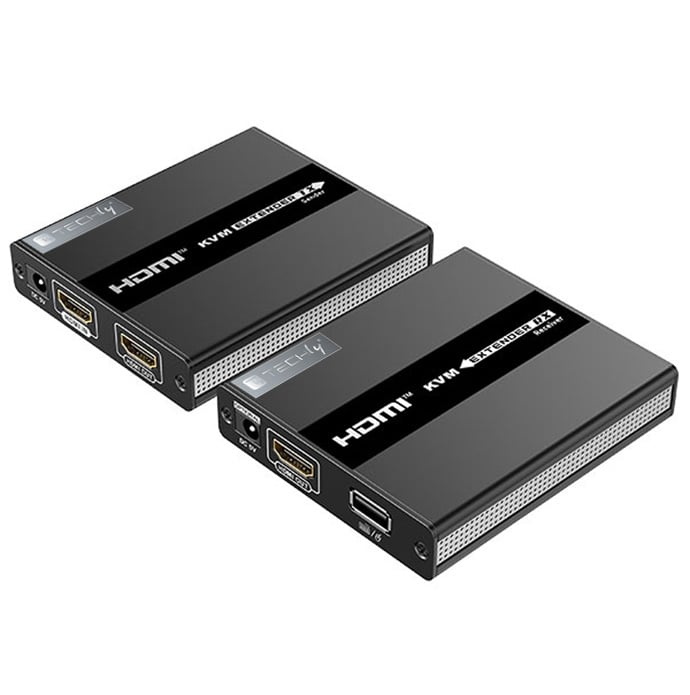

• Material: aluminium alloy and crystal panel


• Finish: sandblasted


• Color: black



Dimensions

• Width: 95 mm


• Depthà: 78 mm


• Height: 18.6 mm



Technical specifications

• Power supply: DC 5 V/ 2 A only for the transmitter


• Power consumption: 2 W transmitter; receiver < 2W


• Supports HDMI 1.3 and HDCP 1.4


• HDSupported resolutions: 720 x 576 p@ 50 Hz, 720 x 480 p@ 60 Hz, 1280 x 720 p@ 60 Hz, 1920 x 1080 p@ 60 Hz, 1024 x 768 p@ 60 Hz, 1280 x 800 p@ 60 Hz, 1280 x 1024 p@ 60 Hz, 1440 x 900 p@ 60 Hz, 1680 x 10850 p@ 60 Hz


• Velocità maximum transmission: 10.2 Gbps


• TMDS input/output signal: from 0.5 to 1.5 Vp-p


• DDC input/output signal: 5 Vp-p(TTL)


• Transmission distance: up to 60 m via Cat 6 cable; up to 50 m via Cat 5 E and Cat 5 cable



Environmental information

• Operating temperature: from 0 to 60 °C


• Storage temperature: - 10 to 70 °C


• Humidità: 0 to 90 % without condensation



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

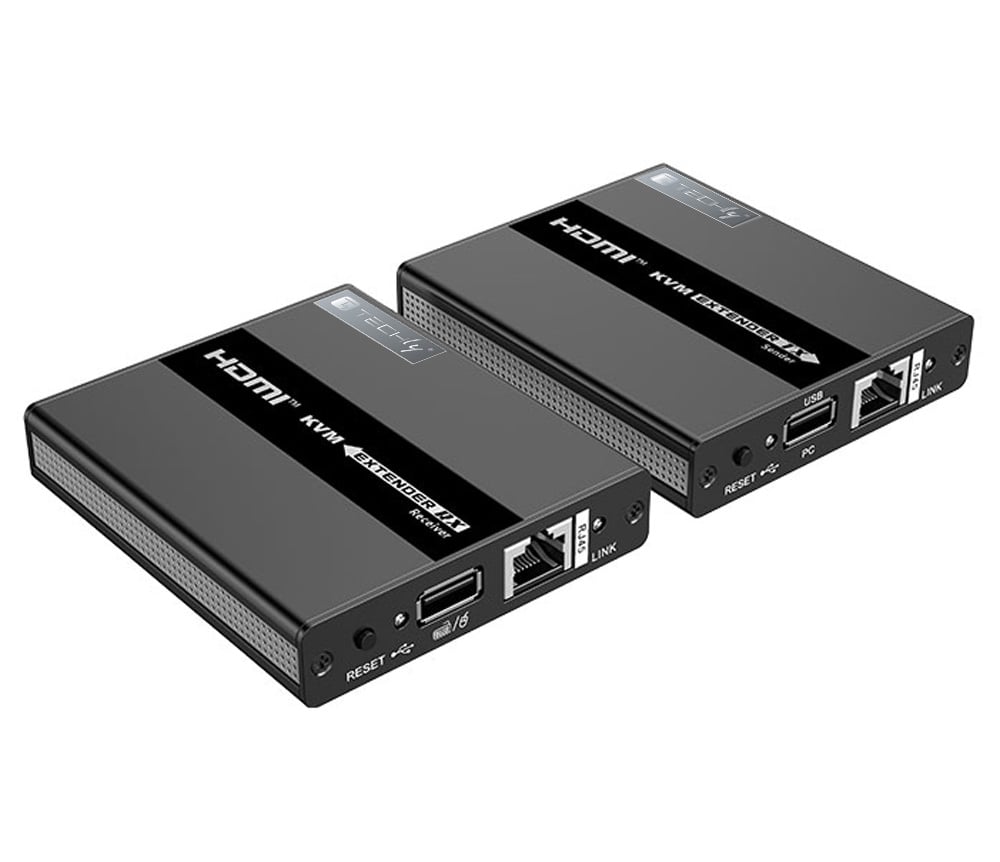

• 1 Transmitter


• 1 Receiver

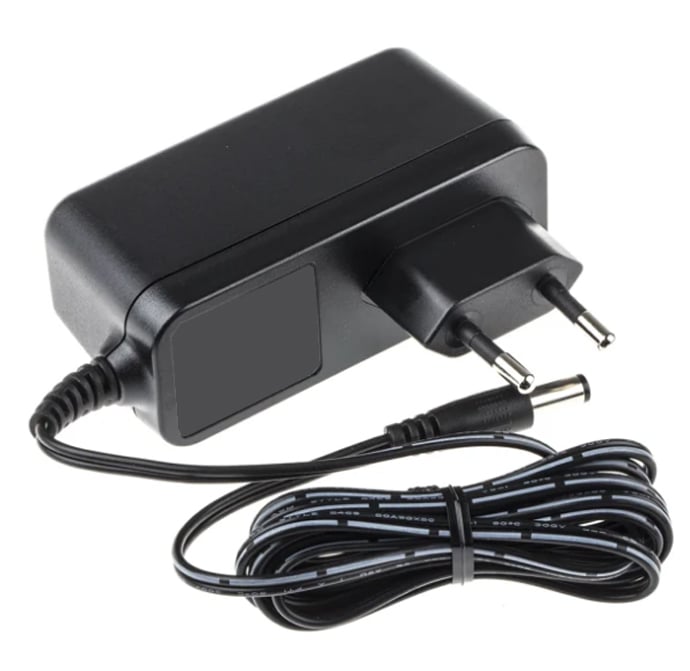

• 1 DC power supply 5 V/ 2 A


• 1 Instructions manual
