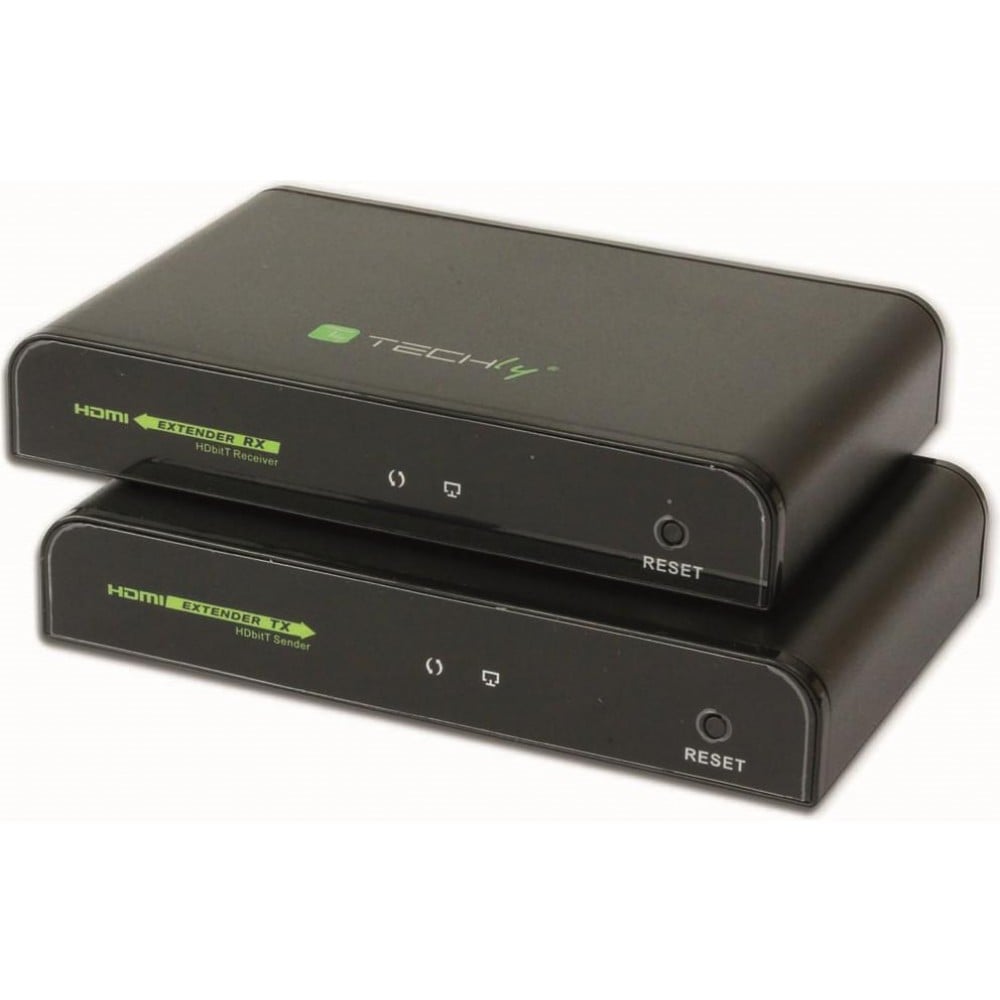

HDMI extender with IR on Cat 5 E/ 6 up to 120 m - Techly IDATA EXTIP- 383 IR 4

The HDMI extender kit converts the HDMI signal into network signal and transmits data on Cat. 5 E and Cat. 6 with 1080 p FullHD resolution up to 120 m.

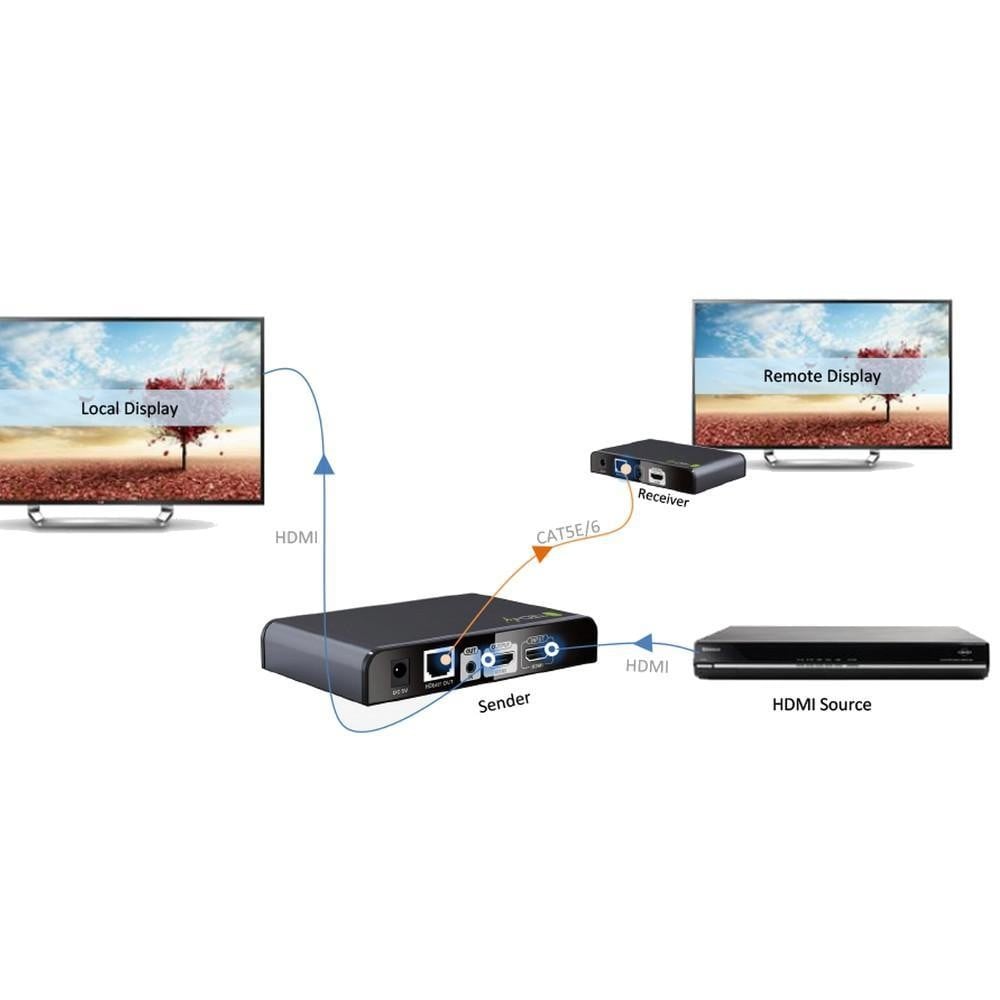

It allows to connect two displays with HDMI output (one in local and one remote), ensuring a perfect signal transmission at different stations over long distance.

IDATA EXTIP- 383 IR 4 transmits HDMI signal remotely and distributes it on router or network switch for cascade connection: this ensures use both as splitter and extender.

Supports the Plug and Play function, does not need any driver installation. In addition, automatically adjusts the specifications for different cable lengths (1 - 120 m) to achieve the best possible video view without any configuration.

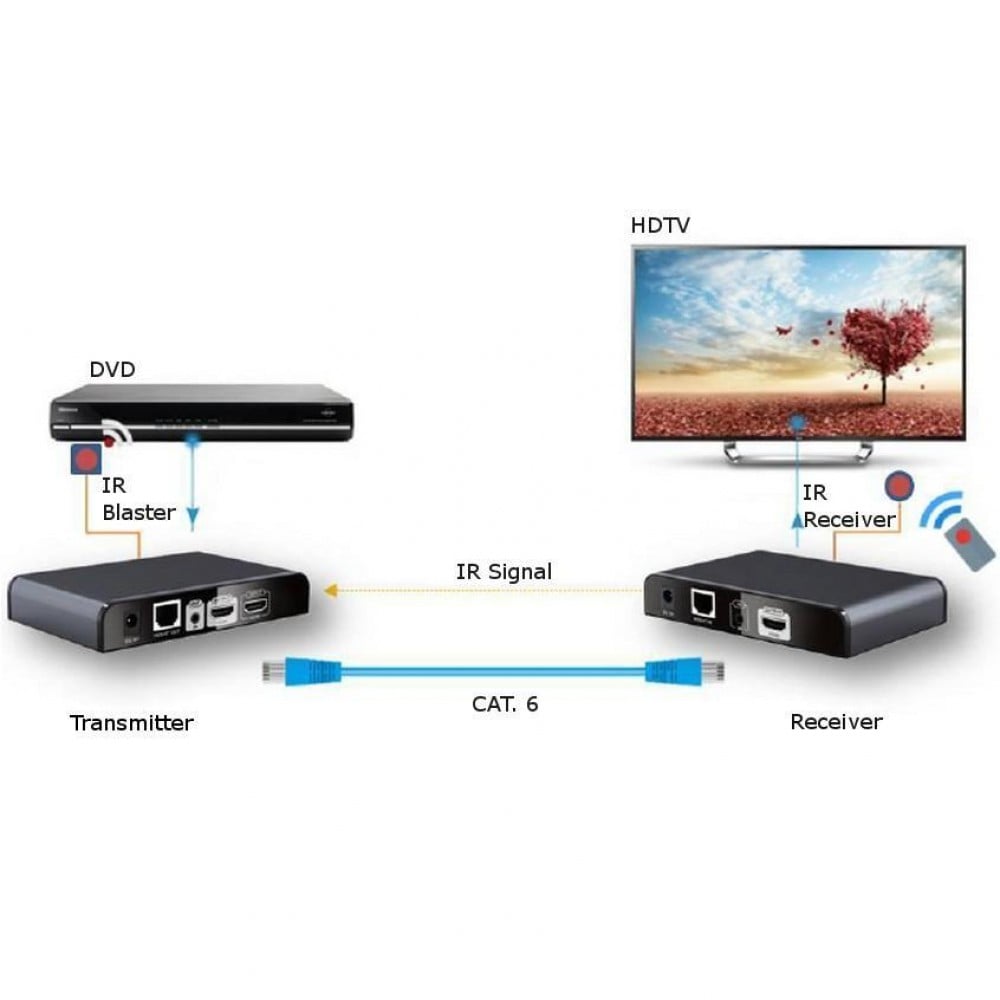

The HDMI è extender can also support the IR transmission function that allows the use of the remote control of the source device even from the long distance. It supports standard IR 20 / 60 KHz.

Designed and manufactured for the HDMI standard and network transmission protocol, it is compatible with all existing or new system types and flexible è for installation and integration.

Due to the high bandwidth consumption it is advisable to use these devices with IGMP routers, or alternatively on dedicated networks or on separate VLAN port based.

Not compatible with previous product versions



Technical specifications

• HDMI signal: HDCP compatible


• Solutions: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz


• Video encoding: H. 264


• Supported audio format: PCM stereo


• Bandwidth: 18 Mbps


• Supported network cables: UTP/STP Cat 5 / 5 and/ 6


• Transmission distance: transmission up to 120 meters away in FullHD 1080 p on CAT cable 6


• Supports up to 253 receivers


• IR signal: supports IR devices 20 ~ 60 KHz


• Operating temperature: 0 °C 60 °C



Feeding

• External power supply 5 V DC 1 A


• Consumption (Max) Transmitter: 3.5 W - Receiver: 3 W

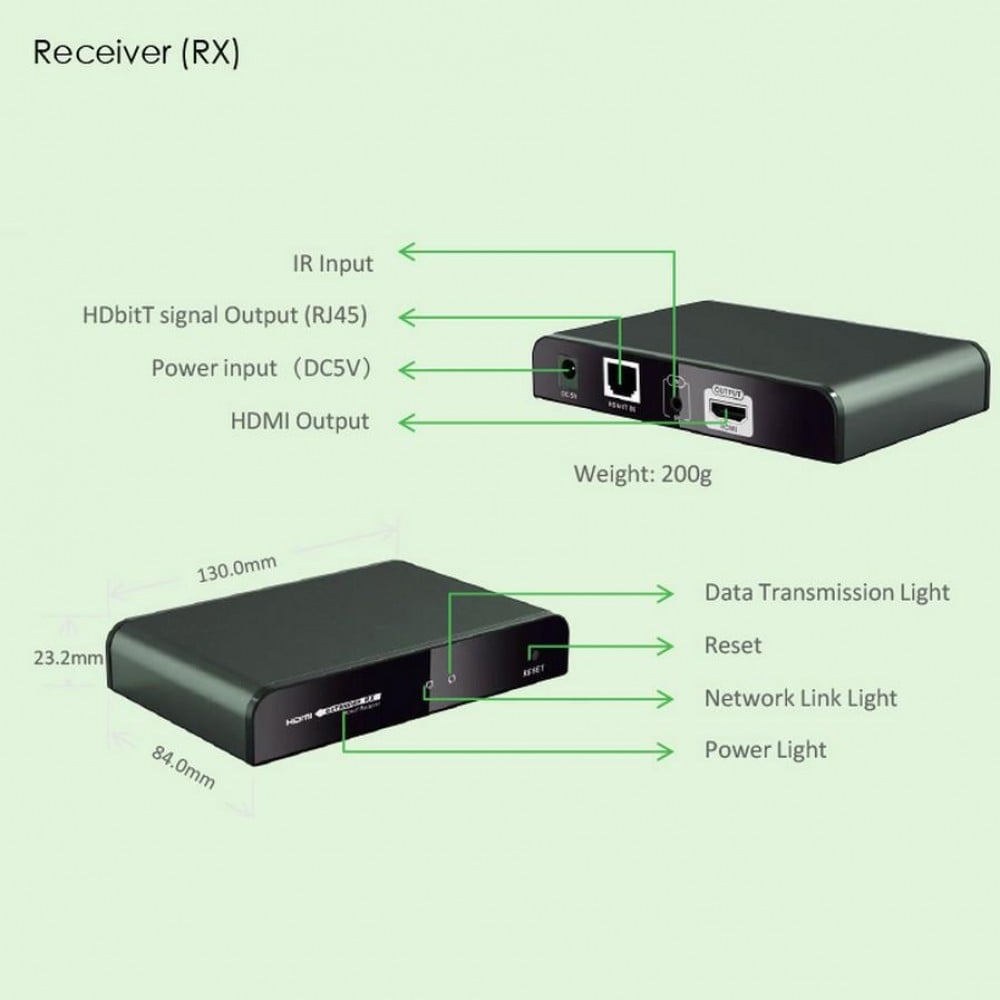

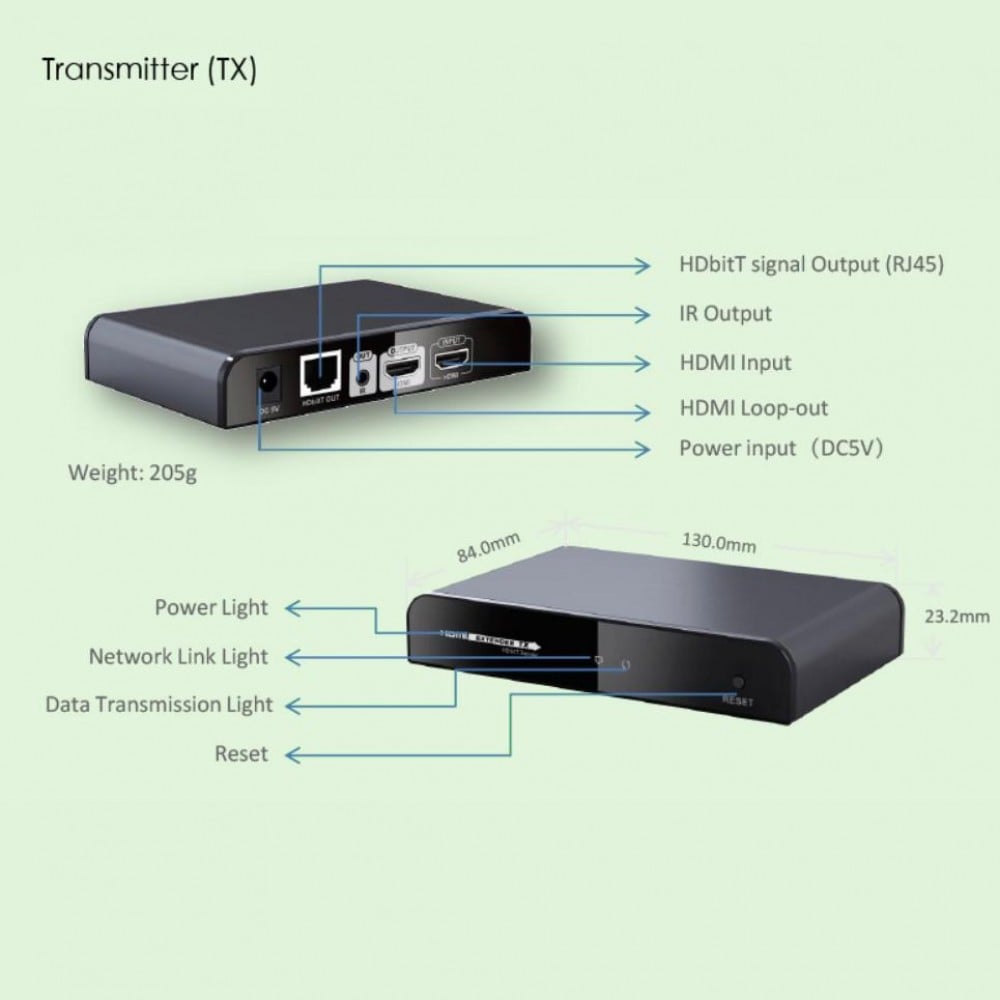

Dimensions

(x 2 pcs):

• Width: 130 mm


• Depthà: 84 mm


• Height: 23.2 mm



Certifications

• CE


• FCC


• RAEE



Package contents

• 1 x Extrender Transmitter


• 1 x Extrender Receiver


• 1 x IR transmitter cable


• 1 x IR receiver cable


• 2 x Power supply 5 V 1 A


• 1 x Installation guide
