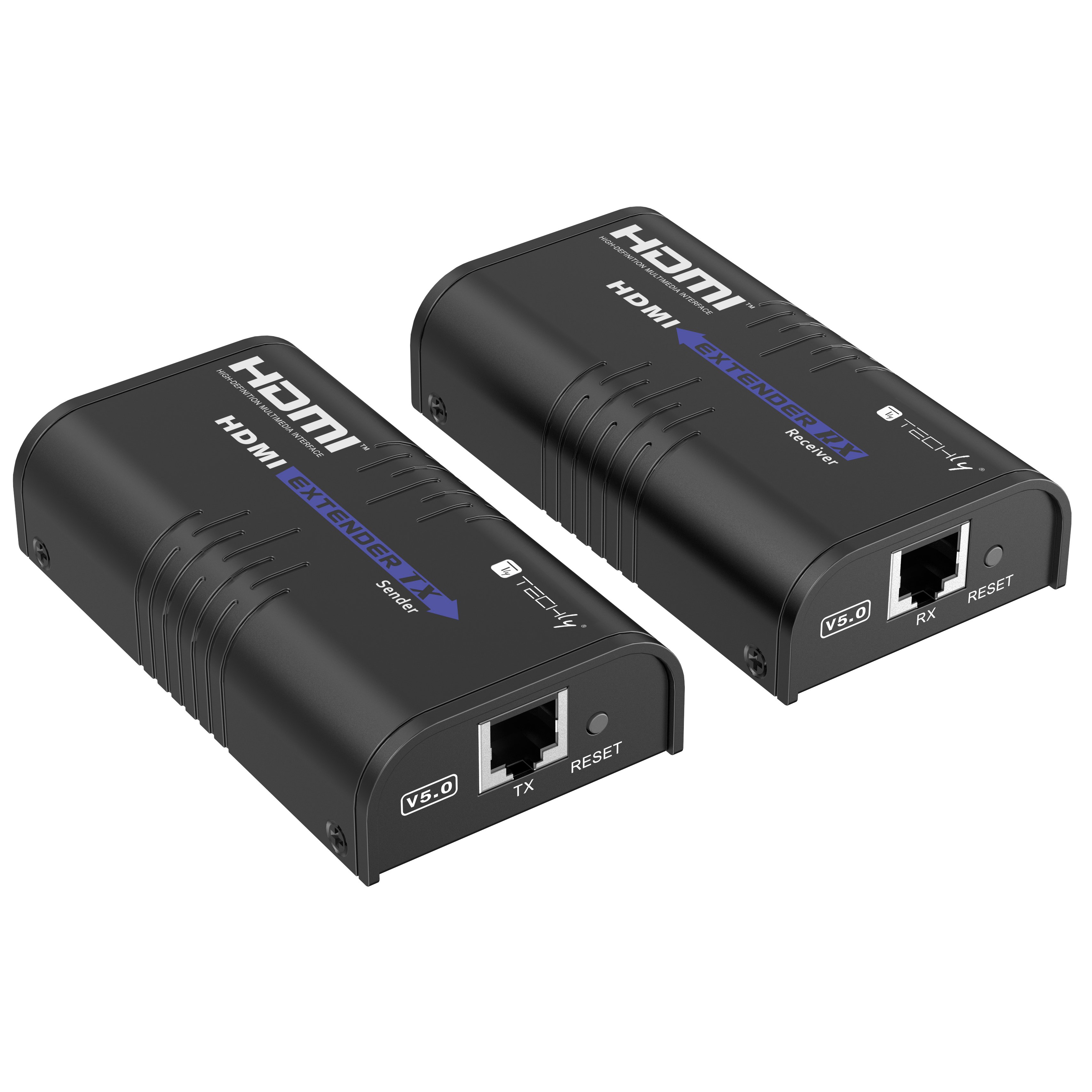

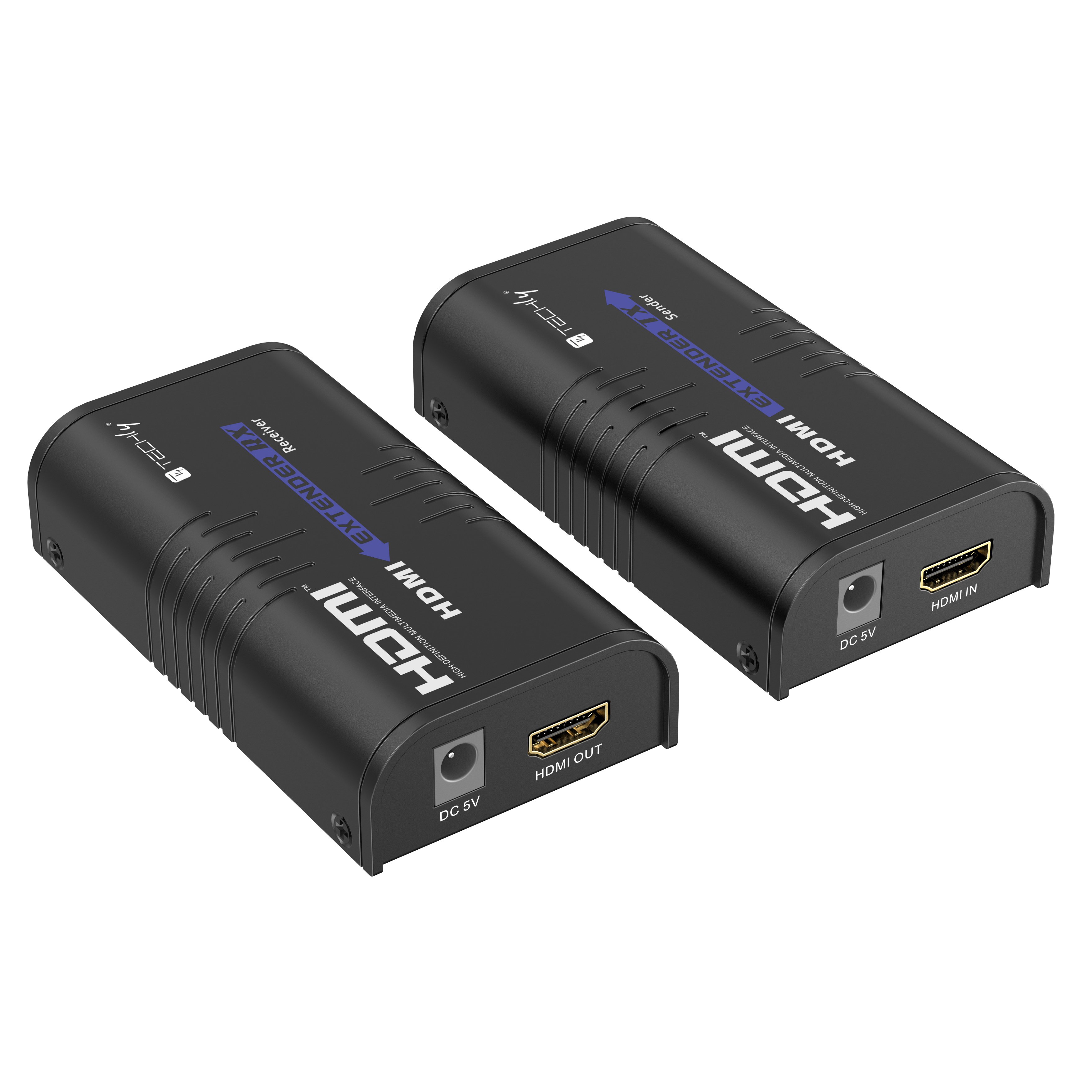

Extender/Splitter HDMI Over IP on Cat 6 1080 p@ 60 Hz 120 m v 5.0 - Techly IDATA EXTIP- 373 A 5

•

• HDMI Over IP Extender transmits digital audio and video signals to one or more receivers, up to 120 meters away using a CAT 6 cable

• Plug and Play

• Easily expandable: additional units can be added; remote if you add more screens

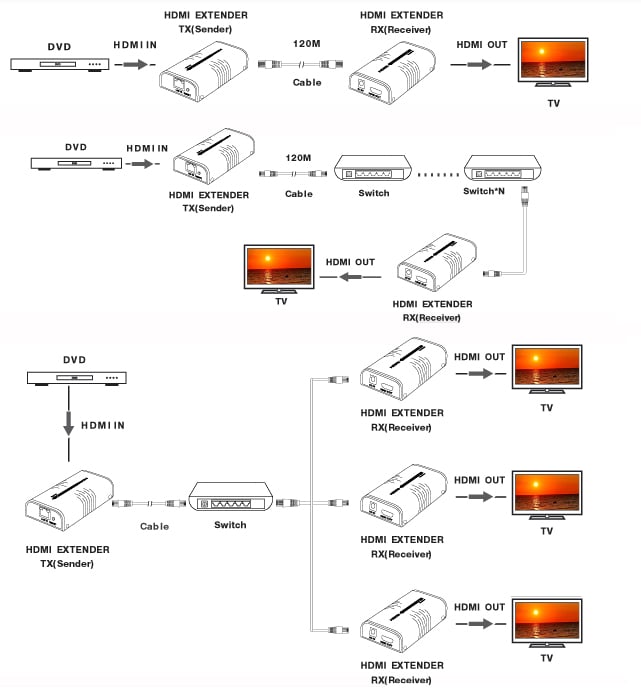

• Point-to-point connection: up to 120 meters transmission distance via single CAT cable 6

• Router connection: using a router/repeater, unlimited extensions can be reached

• Point-multipoint connection: using a router/switch, a moreù receiver transmitter, you can ò realize the extender and splitter function

• Possibility to purchase a second additional receiver separately

• We recommend using a Gigabit (1000 Mbps) switch for LAN network transmission. Fast Ethernet (100 Mbps) switch and Gigabit Ethernet (1000 Mbps) switch must not be mixed in cascade use


Technical specifications

•

• HDMI 1.3 compatible HDCP 1.4 signal

• Supported resolutions: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz

• Network cable: UTP/STP Cat 5 E/ 6

• Transmission distance: up to 120 m transmission distance for 1080 p 60 Hz Full HD on single CAT cable 6 ; Cat 5 80 m; Cat 5 AND 100 m; Cat 6 120 m

• Velocità transmission: 18 Mbps

• Operating temperature: 0 °C – 60 °C

• Power supply: DC 5 V/ 1 A

• Consumption TX: 3.5 W; RX: 3 W

• Lightning protection, overvoltage protection and ESD protection


Dimensions

•

• Width: 110 mm

• Depthà: 58 mm

• Height: 26 mm

• Weight TX= 125 g

• Weight RX= 120 g


Package contents

•

• HDMI EXTENDER TX x 1 pcs transmitter

• Receiver HDMI EXTENDER RX x 1 pcs

• DC power supply 5 V/ 1 A x 2 pcs

• Education manual x 1 pcs
