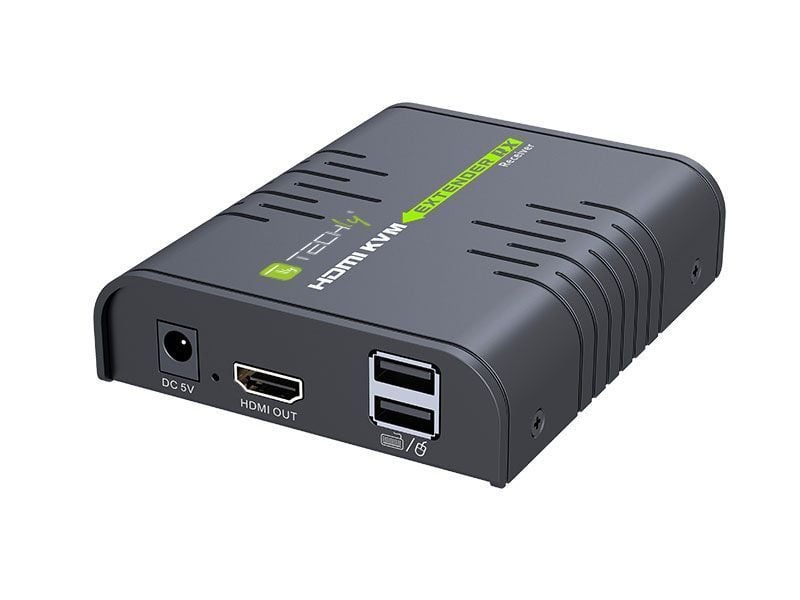

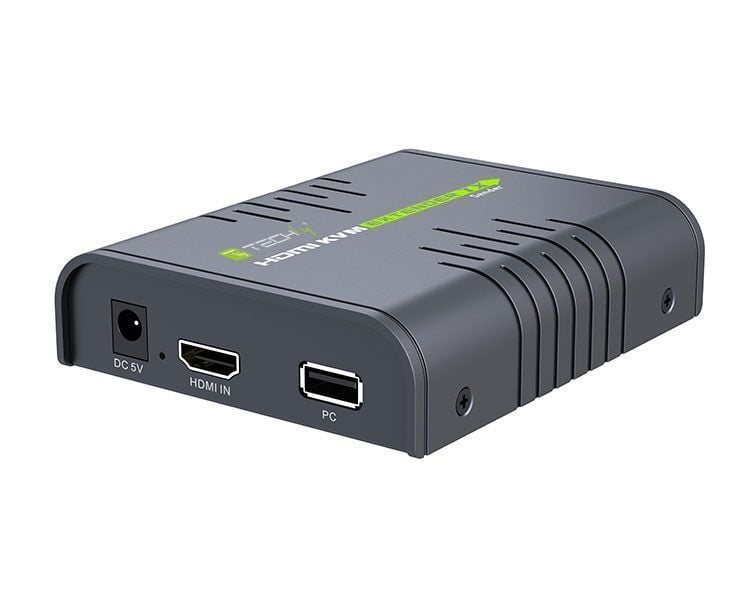

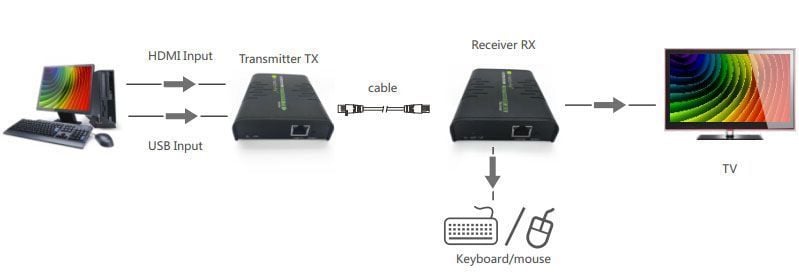

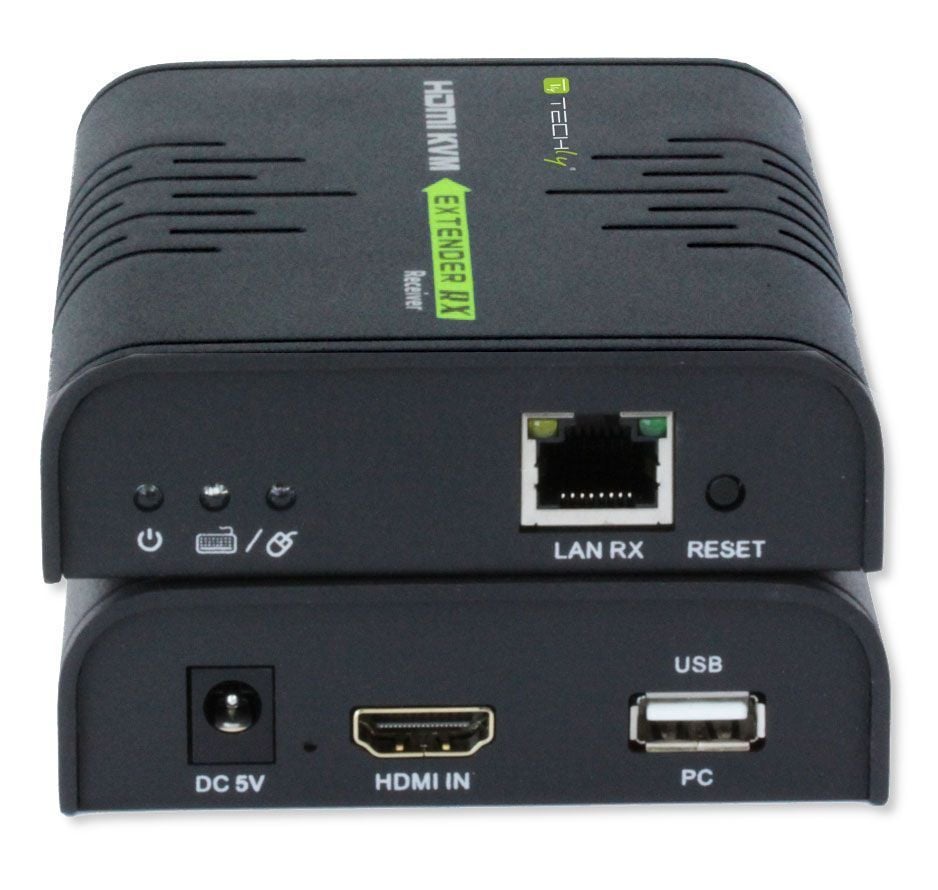

This HDMI KVM extender transmits the HDMI signal up to 120 meters using a network cable and supporting resolution up to 1080 p@ 60 Hz. It allows access to the computer from a remote console via USB connection (mouse and USB keyboard).
Features- Extends HDMI signal to 120 meters using a single network cable
- The maximum supported resolution è of 1080 p@ 60 Hz
- LED indicators provide immediate information on the state of power supply and USB connection
- Supports KVM function, allows you to manage a PC remotely via mouse and keyboard equipped with USB connection
- Supported network standard: 802.3 Ethernet 10 / 100 / 1000 Mbps
- Compatible with STP and UTP CAT 5 / 5 and/ 6
- Aluminum alloy housing, durable and durable
- Software requirements: Windows 10 , Windows 8 , Windows 7 , Windows 7 x 64 , Windows Server 2008 , Windows Server 2008 x 64 , Windows Vista , Windows Vista x 64 , Windows Server 2003 , Windows XP, Windows XP-x 64 , Windows 2000 , Windows ME, Windows 98 SE
Specifications- HDMI version: HDMI 1.3
- HDCP version: HDCP 1.2
- Video bandwidth: ≤ 70 Mbps
- Supported HDMI resolution: 640 * 480 @ 60 Hz; 800 * 600 @ 60 Hz; 1024 * 768 @ 60 Hz; 1280 * 720 @ 60 Hz; 1360 * 768 @ 60 Hz; 1440 * 900 @ 60 Hz;
1400 * 1050 @ 60 Hz; 1680 * 1050 @ 60 Hz; 1920 * 1080 @ 60 Hz;
- Supported audio format: PCM (44.1 KHz, 48 KHz)

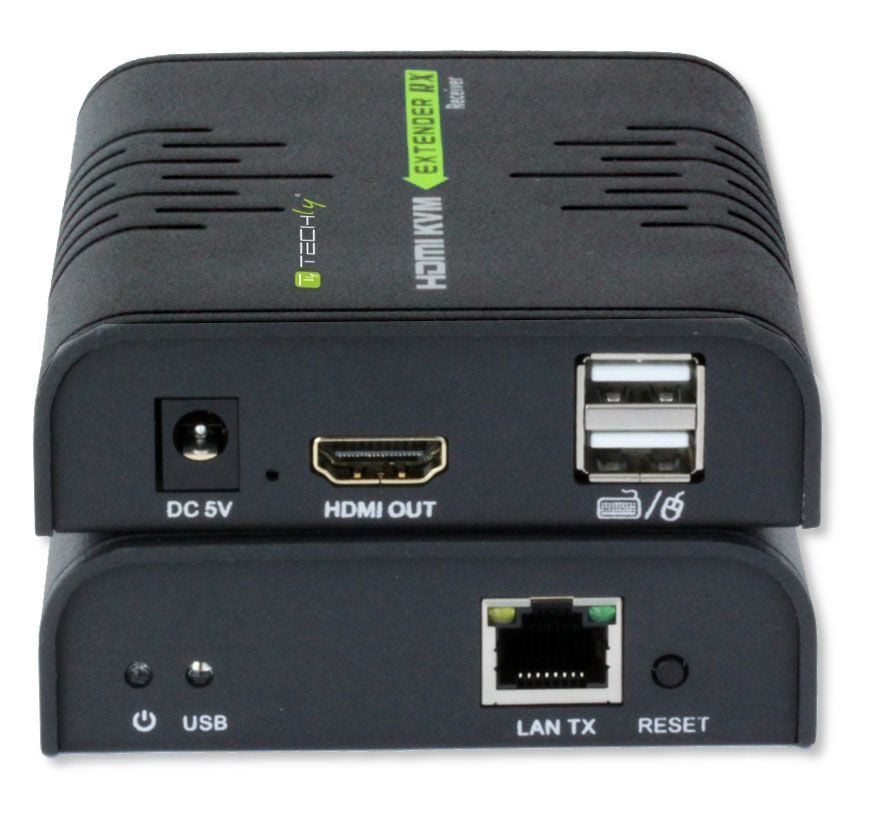

Connections- HDMI connector: type A , 19 pin, Female
- LAN connector: RJ - 45
- USB connector: USB 2.0
Physical information- Operating temperature: 0 °C 50 °C
- Humidità relative: 0 95 % (without condensation)
- Power supply: 5 V/ 1 A x 2 pc.
- Consumption: TX< 3.5w RX< 3.5w
- Weight: TX: 160 g RX: 170 g
- Dimensions(LxPxA): 109.6 x 89.5 x 26.3 mm x 2 pcs.
- Color: black

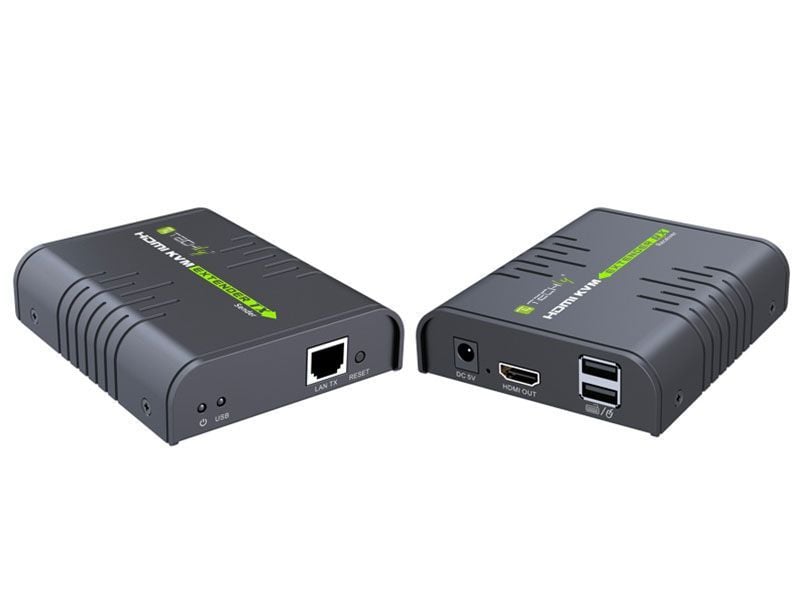

Package contents- HDMI KVM Extender on network cable x 2 pcs.
- Power supply x 2 pcs.
- M/M USB Cable 1 mt
- CD with driver
- Education manual
