Extender HDMI 4 K amplifier up to 70 m on Cat cable 6 / 6 A/ 7 - Techly IDATA EXT- 676

This HDMI Extender allows you to transmit the HDMI signal over long distances using a Cat network cable. 5 E/ 6 / 6 A/ 7 .

Thanks to the use of the network cable you can reach up to 70 m of transmission length with a 4 K video resolution.

Includes transmitter and receiver; supports bidirectional IR passback with frequency 20 - 60 KHz.



Technical specifications

• Uncompressed signal, zero latency, transmission without signal loss


• The HDMI signal can be transmitted up to 70 m on Cat cable. 6 / 6 A/ 7 ; up to 40 m on Cat cable. 5 E

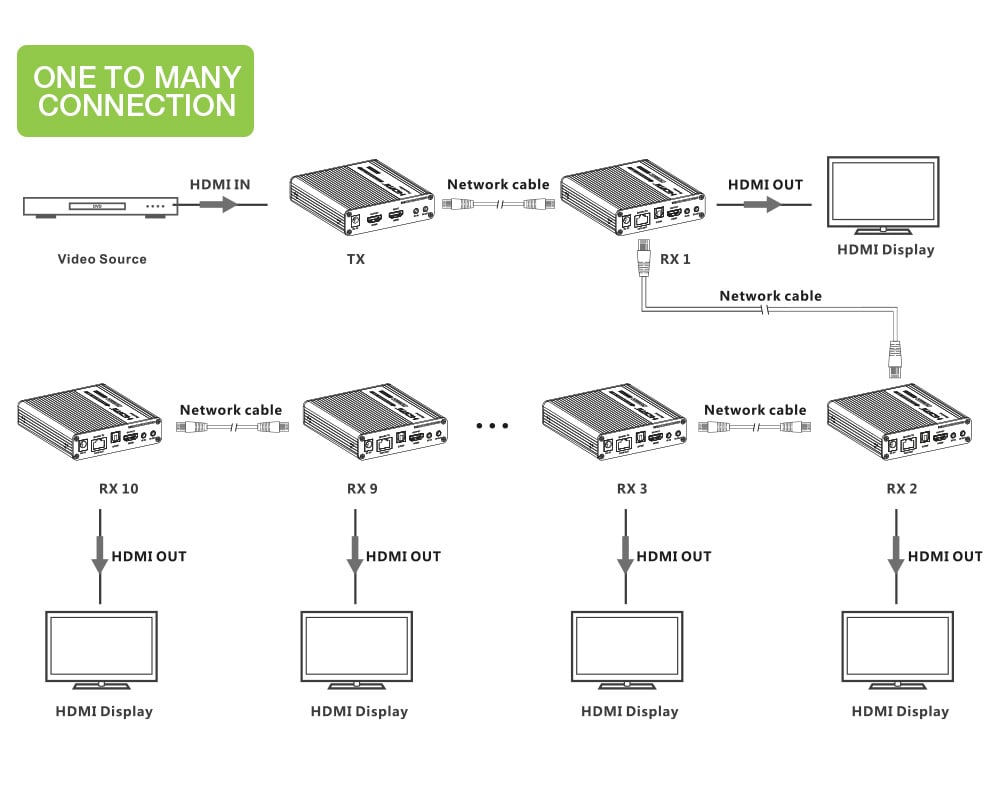

• Repeater able to support up to 10 receivers

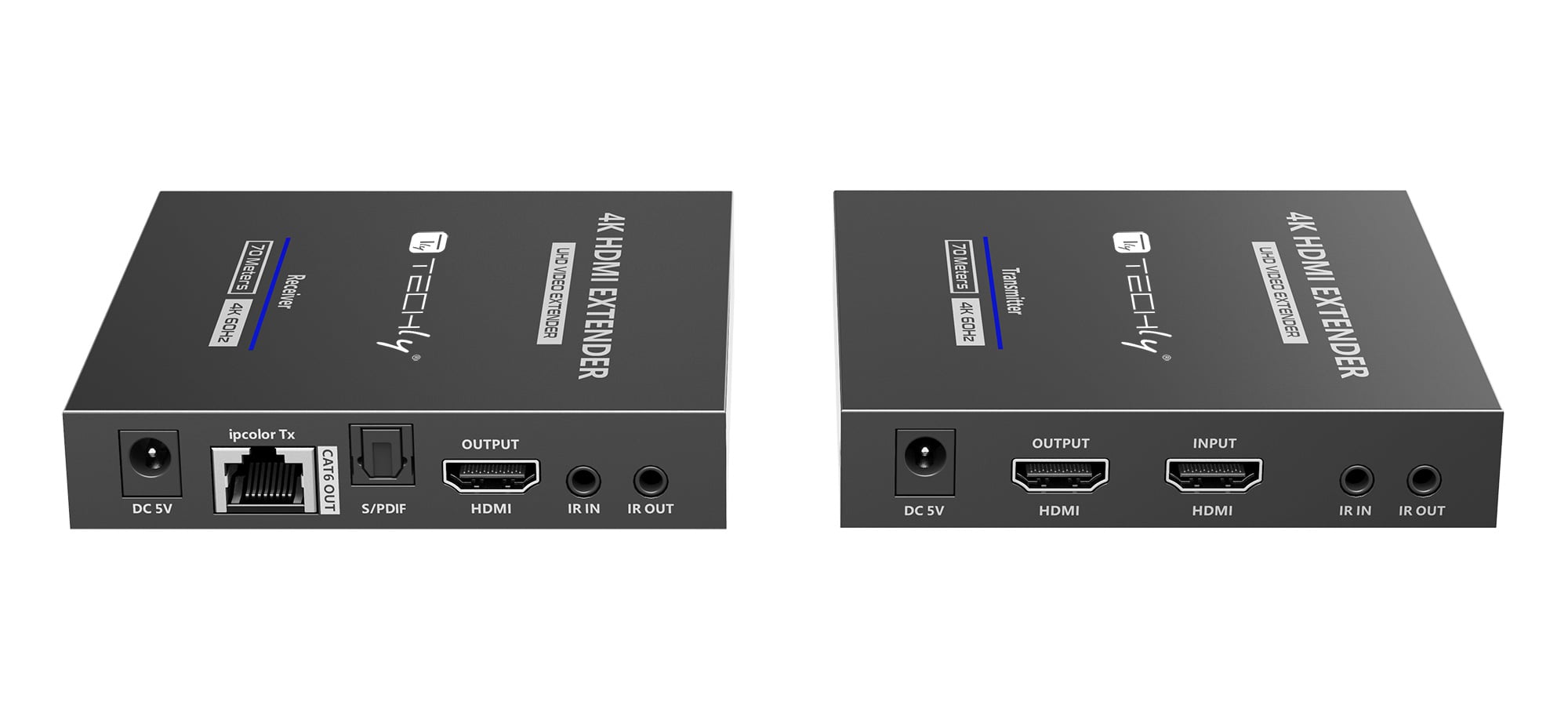

• Inputs:



- TX: HDMix 1 ; DC 2.1 x 1 ; 3.5 mm F x 1 (IR)

- RX: DC 2.1 x 1 ; RJ 45 x 1 ; 3.5 mm F x 1 (IR)

• Exit:



- TX: HDMix 1 ; RJ 45 x 1 ; 3.5 mm F x 1 (IR)

- RX: HDMix 1 ; RJ 45 x 1; Opticox 1; 3.5 mm F x 1 (IR)

• HDMI source control: controllable via IR passback from RX to TX


• Receiver supports S/PDIF output


• Supports Dolby Audio (Dolby Digital Plus; Dolby True-HD; Dolby Digital; Dolby atmos)


• Supports HDR (YUV 4: 4: 4), speed & agrave; maximum transmission 18 Gbps


• The transmitter supports an HDMI loop-out


• Supports bidirectional IR passback function (20 - 60 KHz)


• Protection against lightning, overvoltage and antistatic


• Metal housing, stable and durable


• Supports HDMI 2.0


• Supports HDCP 2.2


• Video resolutions: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 4 K× 2 K@ 24 / 25 / 30 / 60 Hz



Dimensions

• Width: 106.36 mm


• Depthà: 98.73 mm


• Height: 26.19 mm



Environmental features

• Operating temperature: 0 ~ 50 °C


• Storage temperature: - 10 - 70 °C


• Humidità relative: 0 90 %(without condensation)



Package contents

• 1 x Transmitter


• 1 x Receiver


• 2 x Power supply 5 V/ 2 A


• 1 x Extension blaster


• 1 x Receiver extension cable


• 1x User manual
