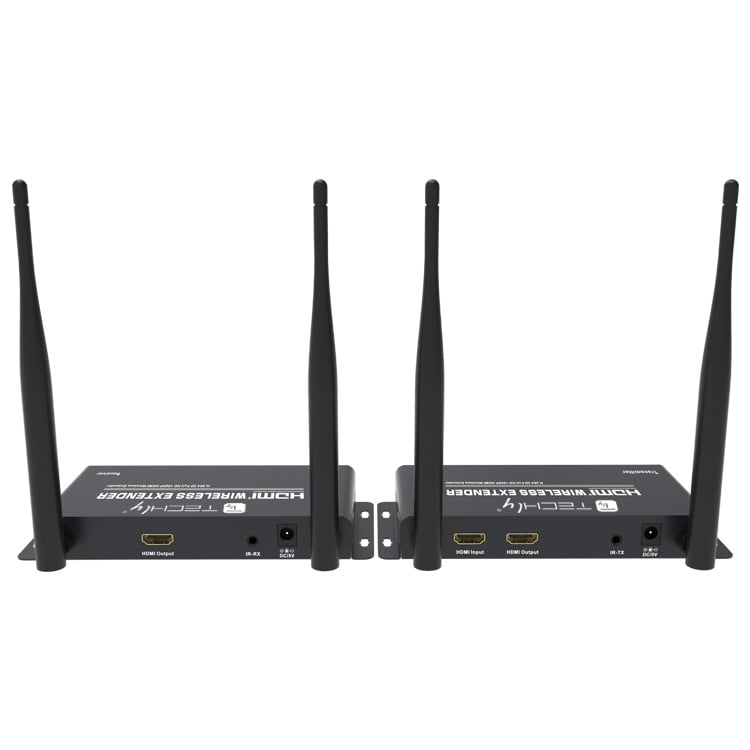

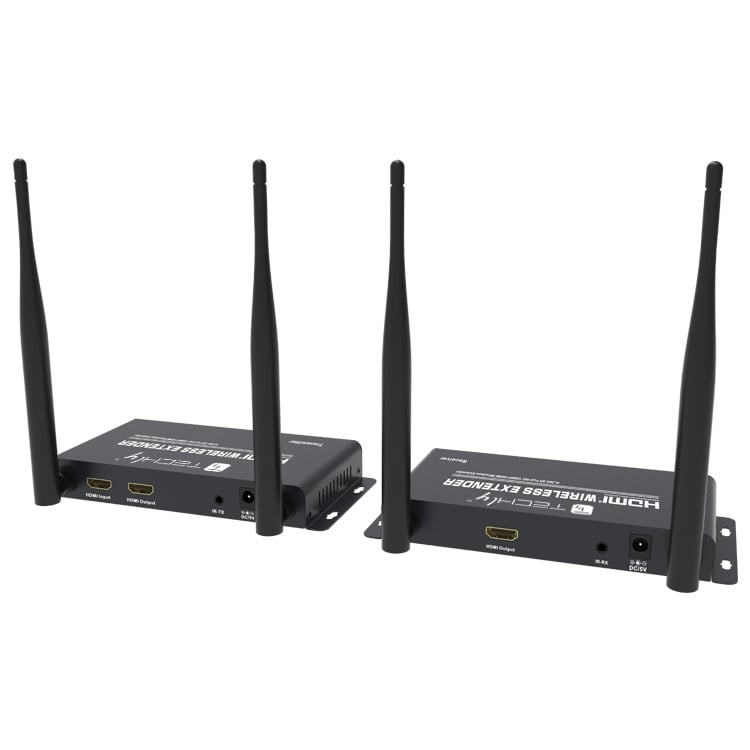

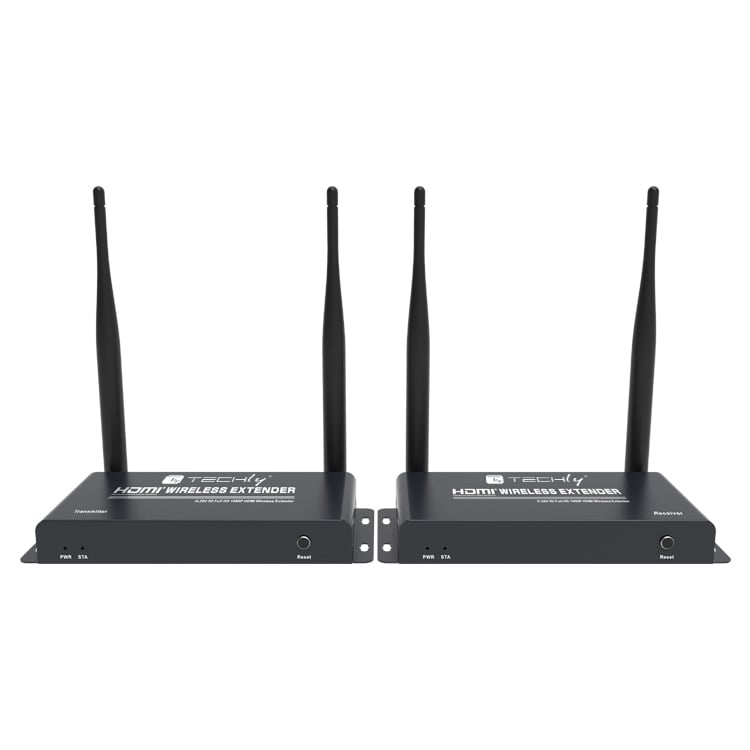

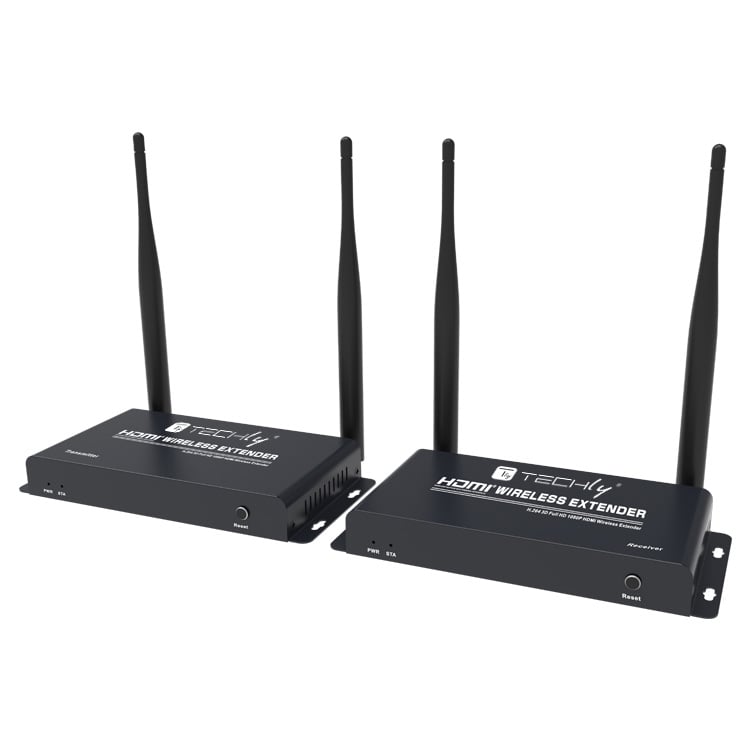

HDMI extender receiver, allows you to extend the HDMI signal without the use of cables from source to screen up to 200 meters. It works using the operating frequency of 5 GHz for which it is particularly resistant to interference. It supports one-to-one and one-to-two connection. It is the ideal solution for conferences, meetings, training and educational environments, entertainment and much more.
Features- Video and audio transmission via wireless connection up to 200 meters
- HDMI 1.3 and HDCP 1.2 compatible
- Supports HD video resolution up to 1920 x 1080 p@ 60 Hz
- Equipped with HDMI output on the transmitter for adding a local monitor
- Supports H. 265 video compression standard for better transfer efficiency and greater fluidità playback

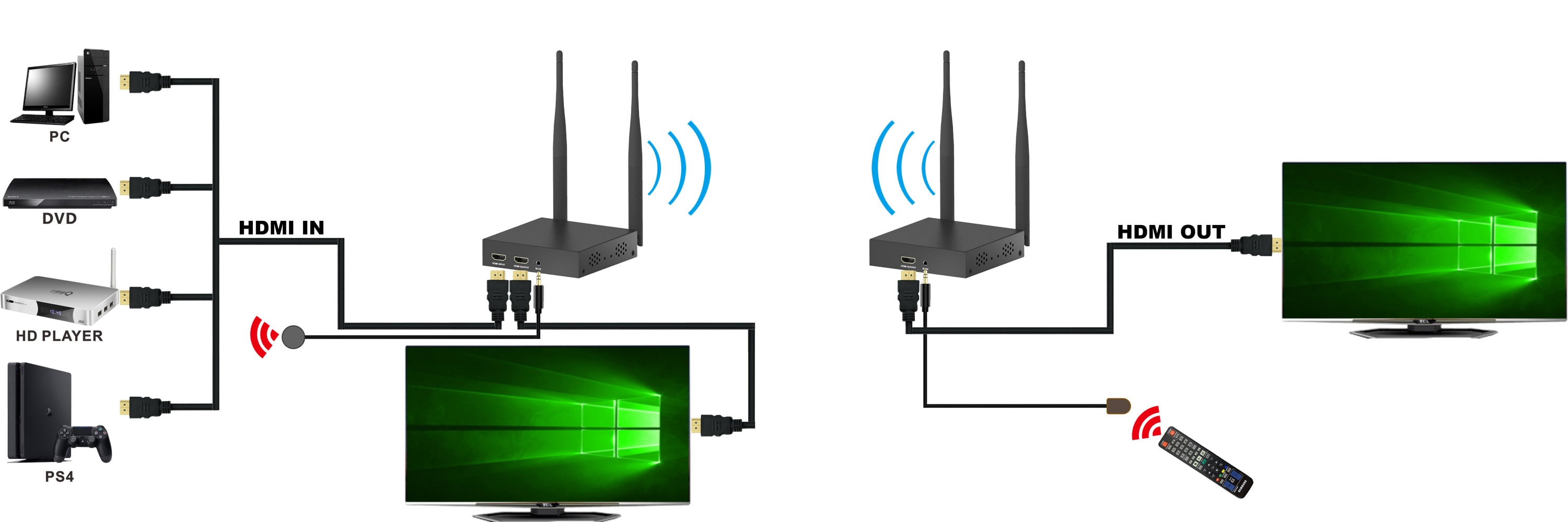

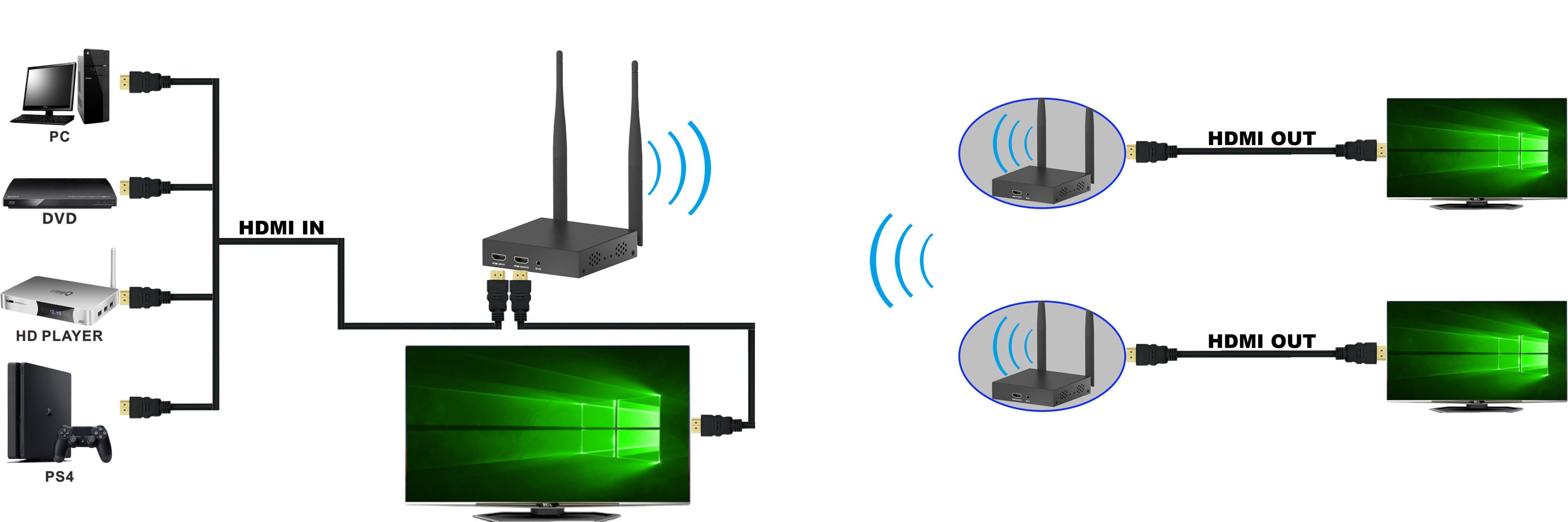

- Supports 1 -to- 1 and 1 -to- 2 configuration (one transmitter with two receivers connected simultaneously)
- Supports remote control via IR to manage devices more easily and conveniently
- It can automatically identify and configure numerous visualization modes
- Automatic balancing system for a smooth, clear and stable image
- Integrated ESD electrostatic protection
- Quick and easy plug-in, no configuration required
Video Specifications- Standard HDMI 1.3 ; HDCP 1.2
- Compression format H. 265
- Maximum 165 MHz pixel clock
- Maximum 6.75 Gbps data rate
- Resolution 1920 x 1080 p@ 60 Hz
- male HDMI-A connector
- Impedience 100 Ohm
- Maximum recommended range in input/output: less than 5 meters, for 1920 x 1080 resolutions p@ 60 Hz
IR specifications- Interface Stereo audio socket 3.5 mm
- Signal direction: unidirectional
- Signal Type: Digital
- Frequency IR 20 - 60 kHz
Wireless Specifications- Radio frequency power 13 dbm
- Standard wireless 802.11 ac
- Signal direction: unidirectional
- Radio frequency 5.8 GHz
- Transmission distance 200 m
Environmental features- Operating temperature - 5 °C to 70 °C
- Humidità (without condensation) 5 - 90 %
Dimensions- Width: 170 mm
- Depthà: 82 mm
- Height: 22 mm
CertificationsPackage contents- 1 x HDMI Receiver
- 1 x DC power supply 12 V
- 1 x IR RX cable
- 1 x Education manual
