Extender HDMI 4 K@ 60 Hz on Cat 6 / 6 A/ 7 50 m PoC - Techly IDATA EXT- 465 P

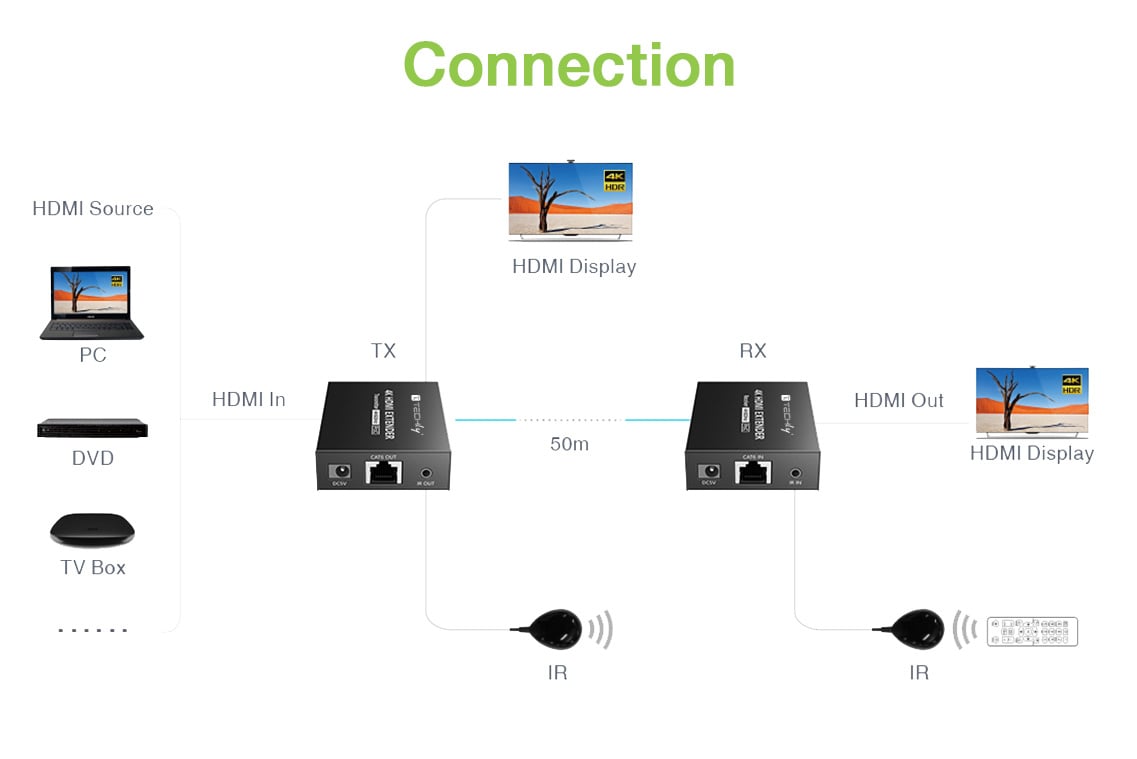

IDATA EXT- 465 P è an HDMI point-point extension kit, can make a zero latency transmission.

The HDMI signal 4 K@ 60 Hz can be extended by 50 meters via CAT network cable 6 / 6 A/ 7. Supports loop out HDMI, passthrough IR, etc.

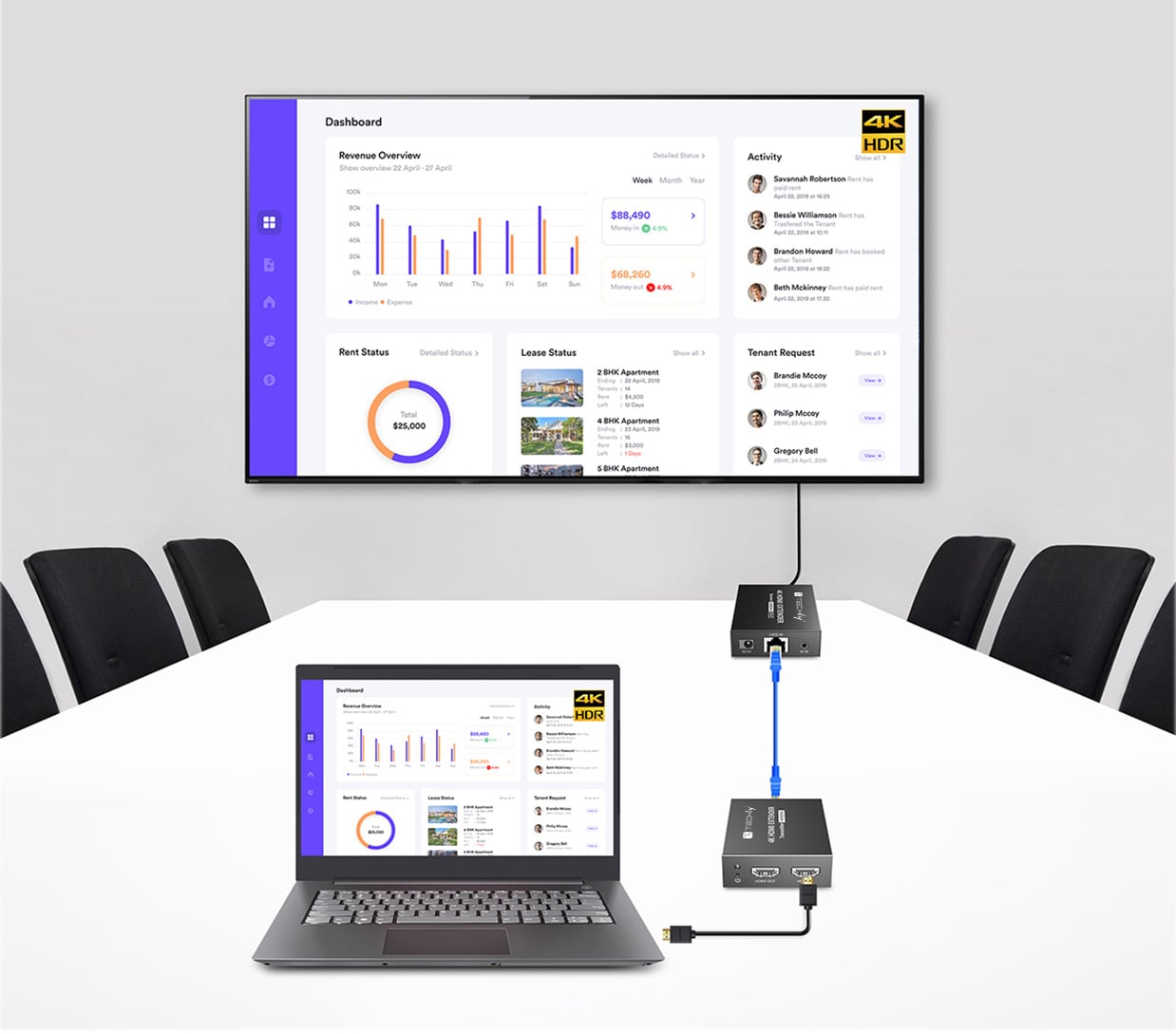

This è kit is a reliable and highly defined video transmission solution, widely used in security monitoring, home theater, transmission, training and other fields.



Features

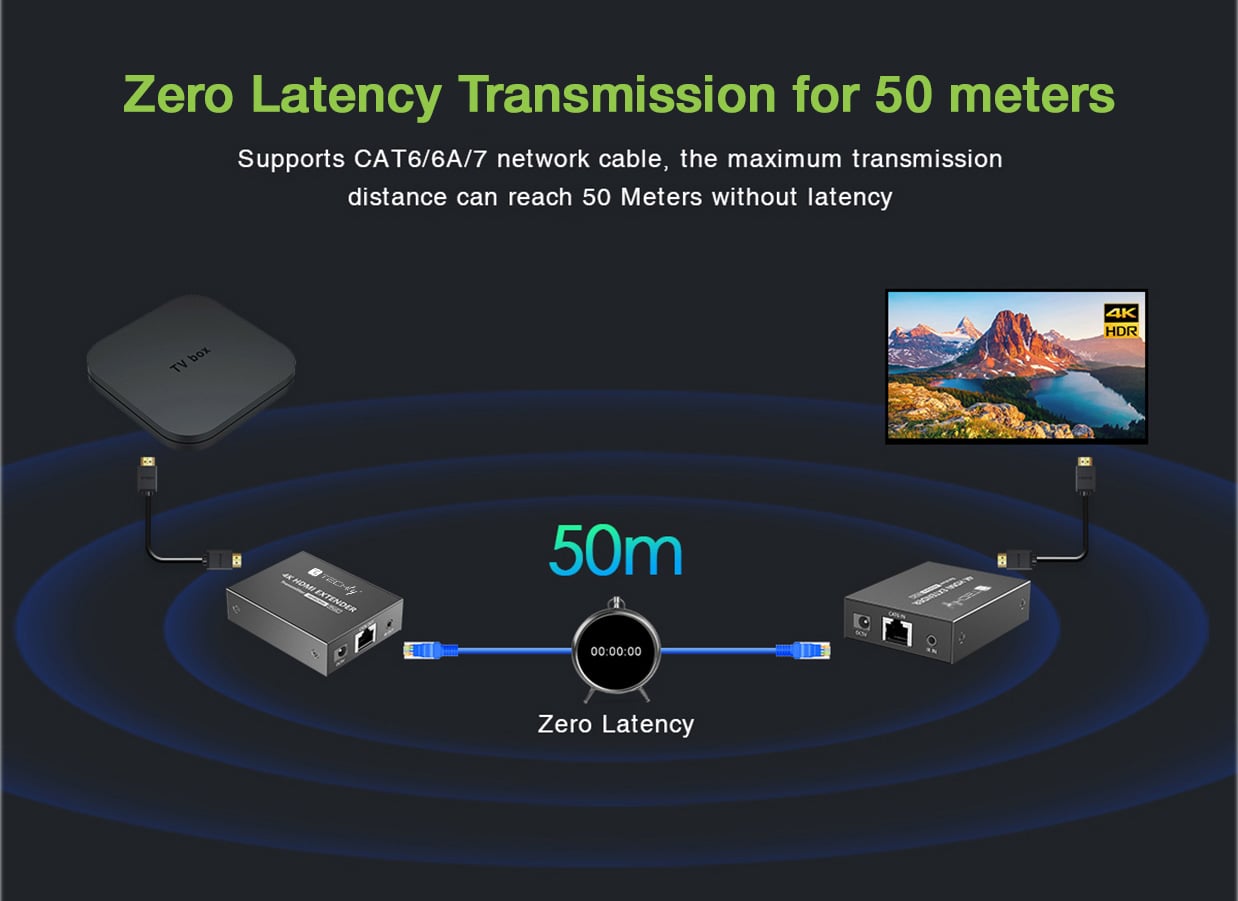

• Transmission at zero latency


• Extend HDMI signal 4 K@ 60 Hz to 50 m via 6 / 6 A/ 7


• Supports HDR 10

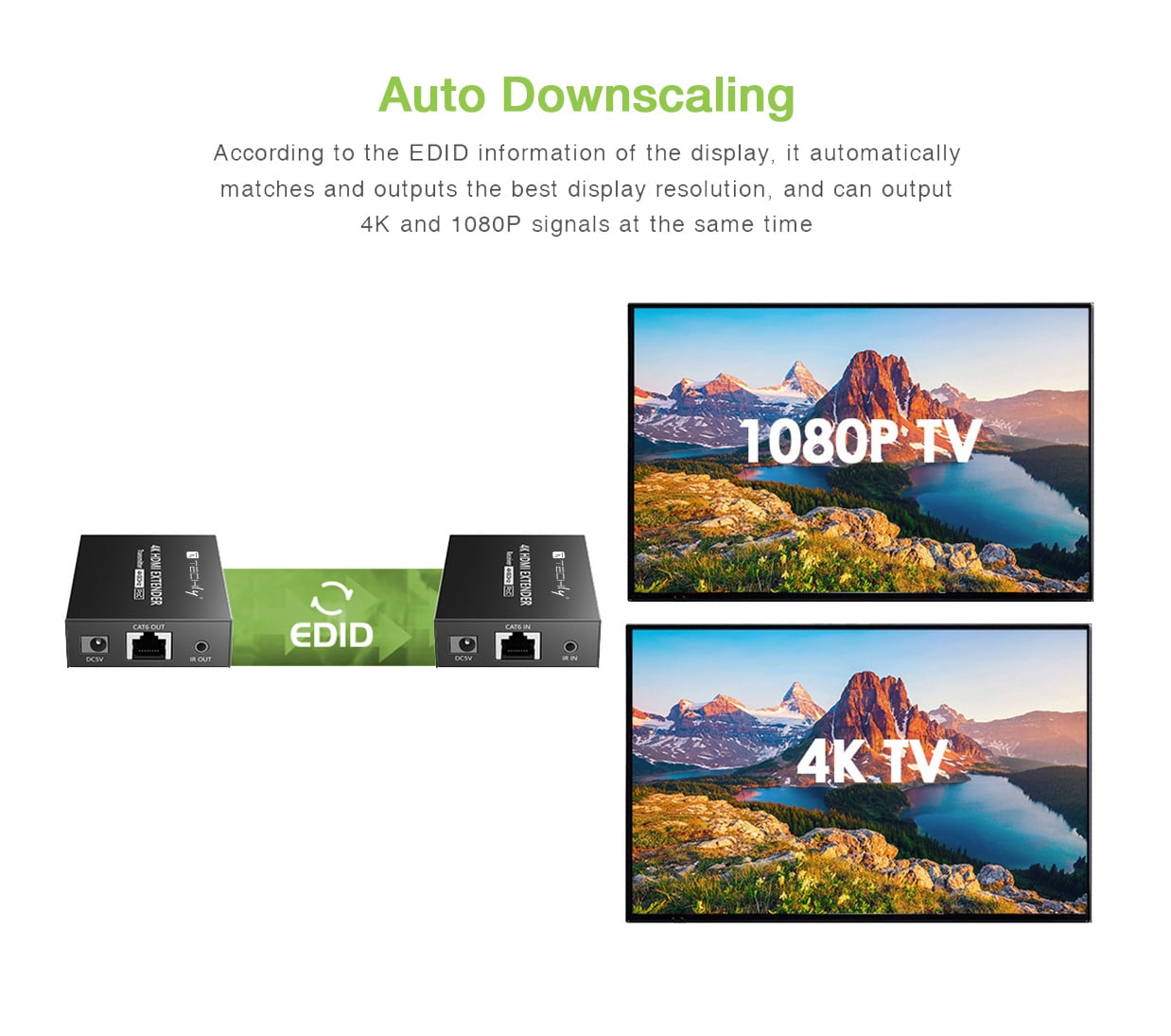

• Supports EDID passthrough and automatic downscale

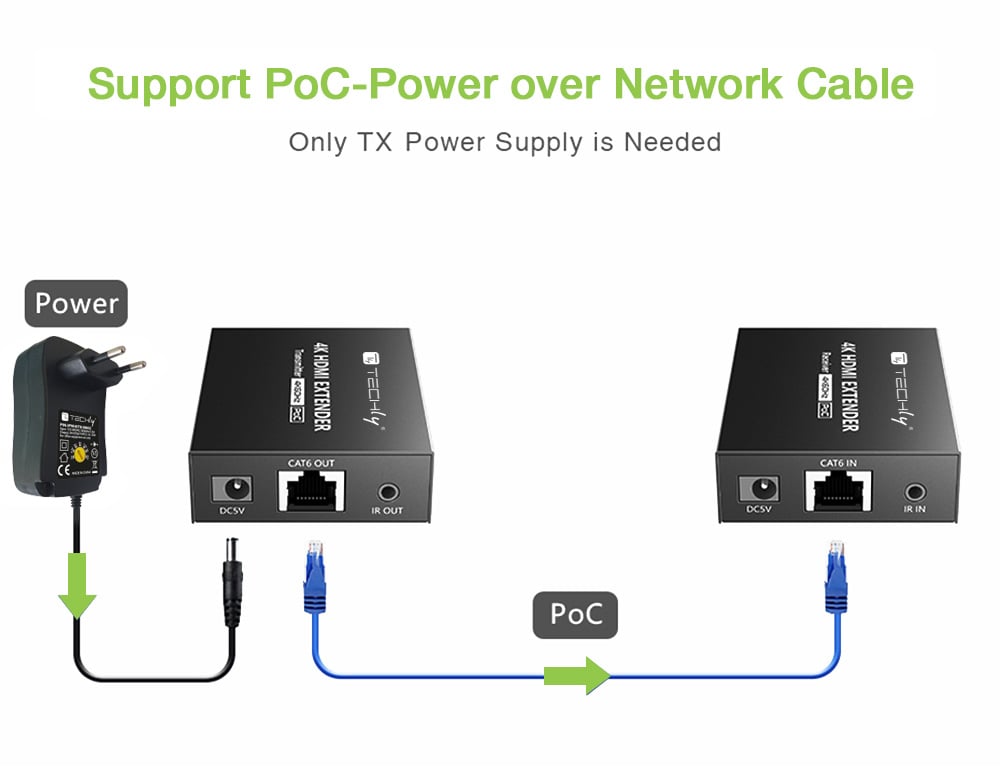

• Supports PoC mains cable power supply, è only required TX power supply


• The transmitter supports HDMI loop output


• Support IR Pass


• Lightning protection, overvoltage protection, ESD protection


• Plug and play



Technical specifications

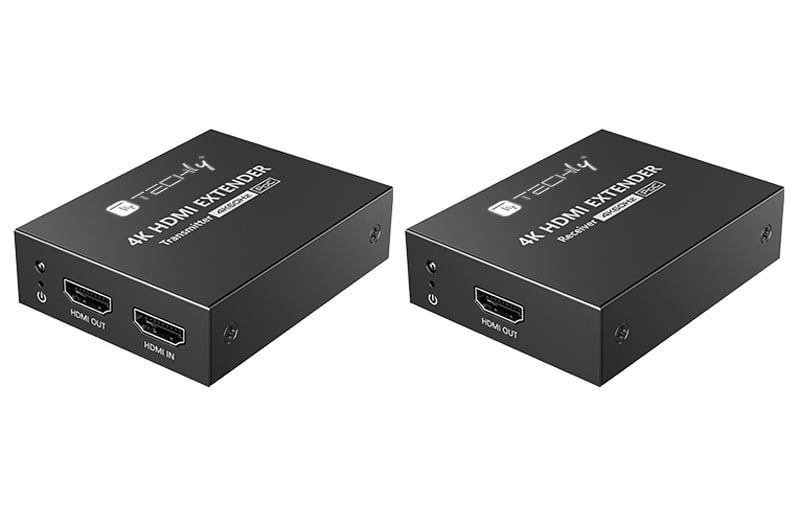

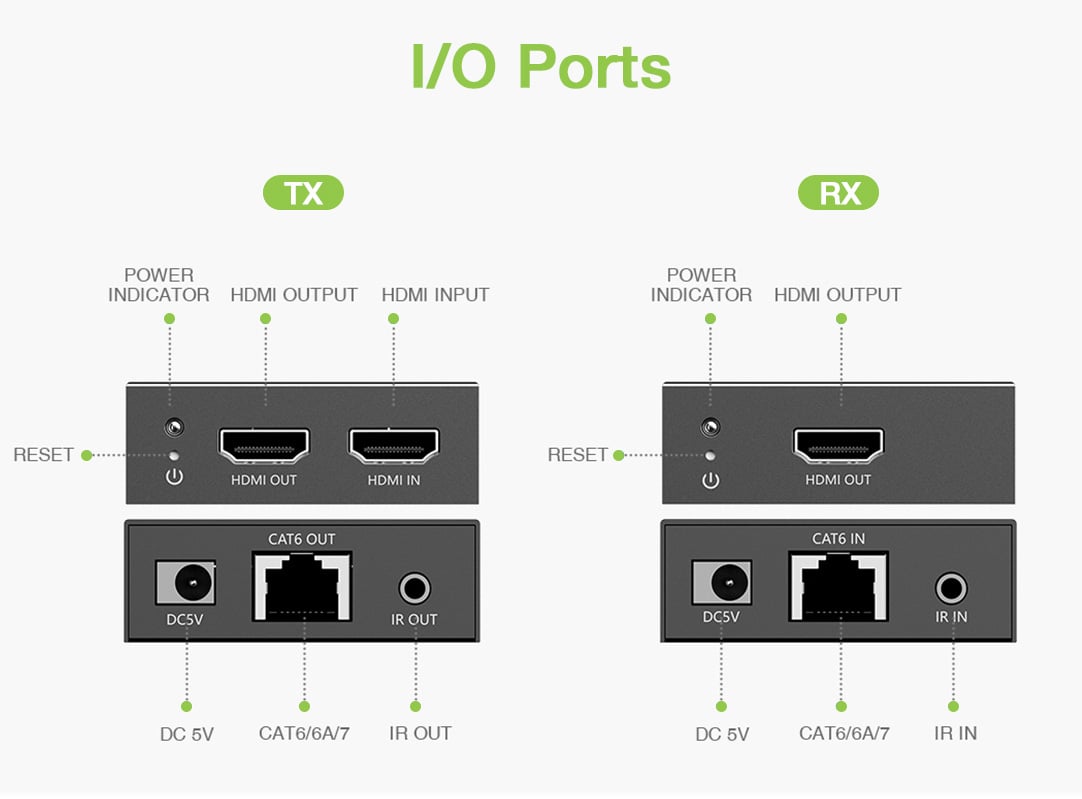

• Input Interface: 1 x HDMI Type A Female; 1 x RJ 45 Female


• Exit Interface: 1 x HDMI Type A Female; 1 x RJ 45 Female; 1 x HDMI Type A Female


• Maximum transfer speed: 18 Gbps


• Maximum transmission bandwidth: 600 MHz


• EDID step


• Compatibilityà:



HDMI 2.0 (Deep color, 4 K, HDR, YUV 4 : 4 : 4)

HDCP 2.2 , HDCP 1.4

• Supported resolutions:



480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 3440x1440, 2560x1440, 2560x1080, 2048x1080, 1920x1440, 1920x1080, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900,1024x768, 800x600



Audio

• TX input interface: 1 x HDMI Type A Female


• TX output interface: 1 x HDMI Type A Female


• RX output interface: 1 x HDMI Type A Female


• Audio formats: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1 CH/Dolby Atmos



Command signal

• 1 x 3.5 mm IR IN/OUT


• Reception radius: ≤ 5 m


• Infrared frequency: 20 KHz~ 60 KHz



Environmental features

• Working temperature: - 20 °C~ 60 °C


• Storage temperature: - 30 °C~ 70 °C


• Humidità: 0 ~ 90 % RH (without condensation)



Protection

• Protection against lightning


• Overvoltage protection


• ESD protection



Certifications

• CE


• RAEE



Dimensions

• Width: 75.0 mm


• Depthà: 60.0 mm


• Height: 21.0 mm



Package contents

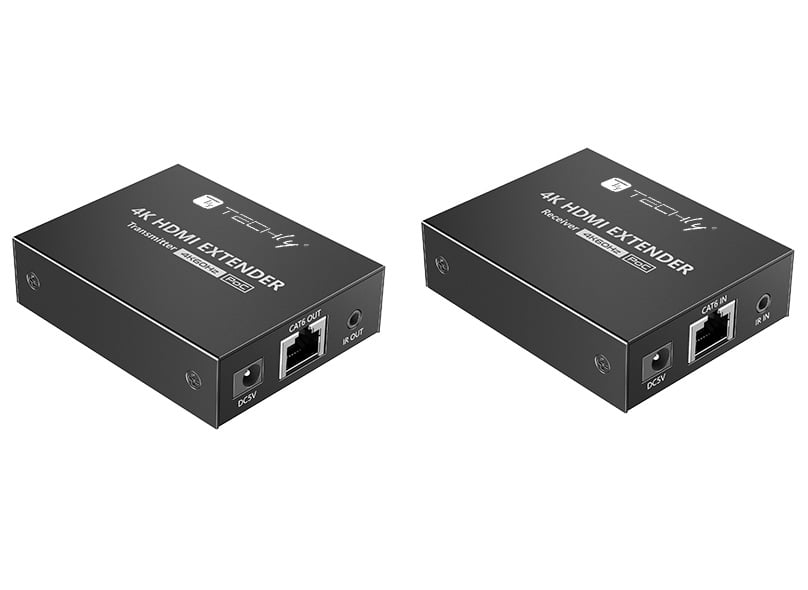

• 1 x Transmitter


• 1 x Receiver


• 1 x DC power supply 5 V 2 A


• 1x User manual


• 1 x Extension cable blaster IR


• 1 x IR receiver extension cable
