HDMI Extender Full HD on Cat 6 / 6 A/ 7 max 40 m - Techly IDATA EXT-E 70 S

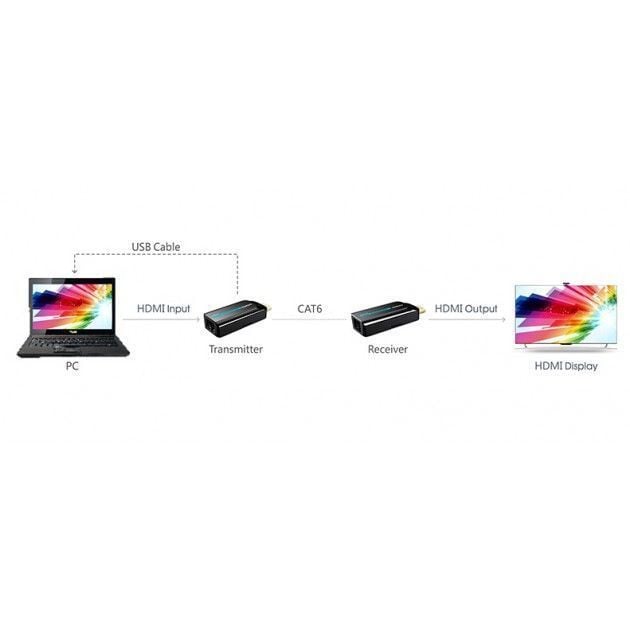

The HDMI extender IDATA EXT-E 70 S allows you to connect two devices up to 40 meters via cable rj 45 Cat. 6 / 6 A / 7 , in an easy and fast way.

Lightness and practicality, combined with small dimensions, allow you to easily and immediately connect video sources such as PC/decoder/console/ray blue players to projectors and remote screens. The 1080 p support combined with compatibilityà HDCP 1.2 make sì that the product is ideal for any environment of work as well as leisure such as public and commercial premises, studios, offices, conference rooms but also simply domestic.

• Allows you to easily extend the HDMI signal using Cat cables. 6 / 6 A / 7 to extend transmission distances


• Useful to reach remote devices such as projectors and screens located away from the video source


• Provides clear and clean signal from DVD and Blu-ray players, set-top boxes, satellite receivers and other sources


• Compliance with the HDCP 1.2 standard ensures protection in the transmission of high-definition content and ensures quality reception;


• Easy to install, no è required any configuration



Features

• Supported resolutions: 480i@60Hz、480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、1080p@50/60Hz


• Network cable: UTP/STP Cat. 6 / 6 A/ 7 UTP/STP


• Supported maximum distance: 40 m


• HDMI connection cable supported maximum length ≤ 5 m (AWG 26 HDMI 1.3 standard)


• Supports Stereo Audio


• Maximum supported video resolution: 1080 p @ 60 Hz


• Transfer Maximum rate 10.2 Gbps


• HDCP 1.2 Conforms


• HDMI 1.3 Conforms


• Consumption: TX: 2 W; RX: < 2W


• Weight: TX: 10 g RX: 10 g


• ABS plastic, black color


• Usage temperature: 0 (50 °C)


• Power supply 5 V DC via cable supplied only for the transmitter (optional for the receiver)



Dimensions

• Width: 71.35 mm


• Depthà: 25.9 mm


• Height: 11.05 mm



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

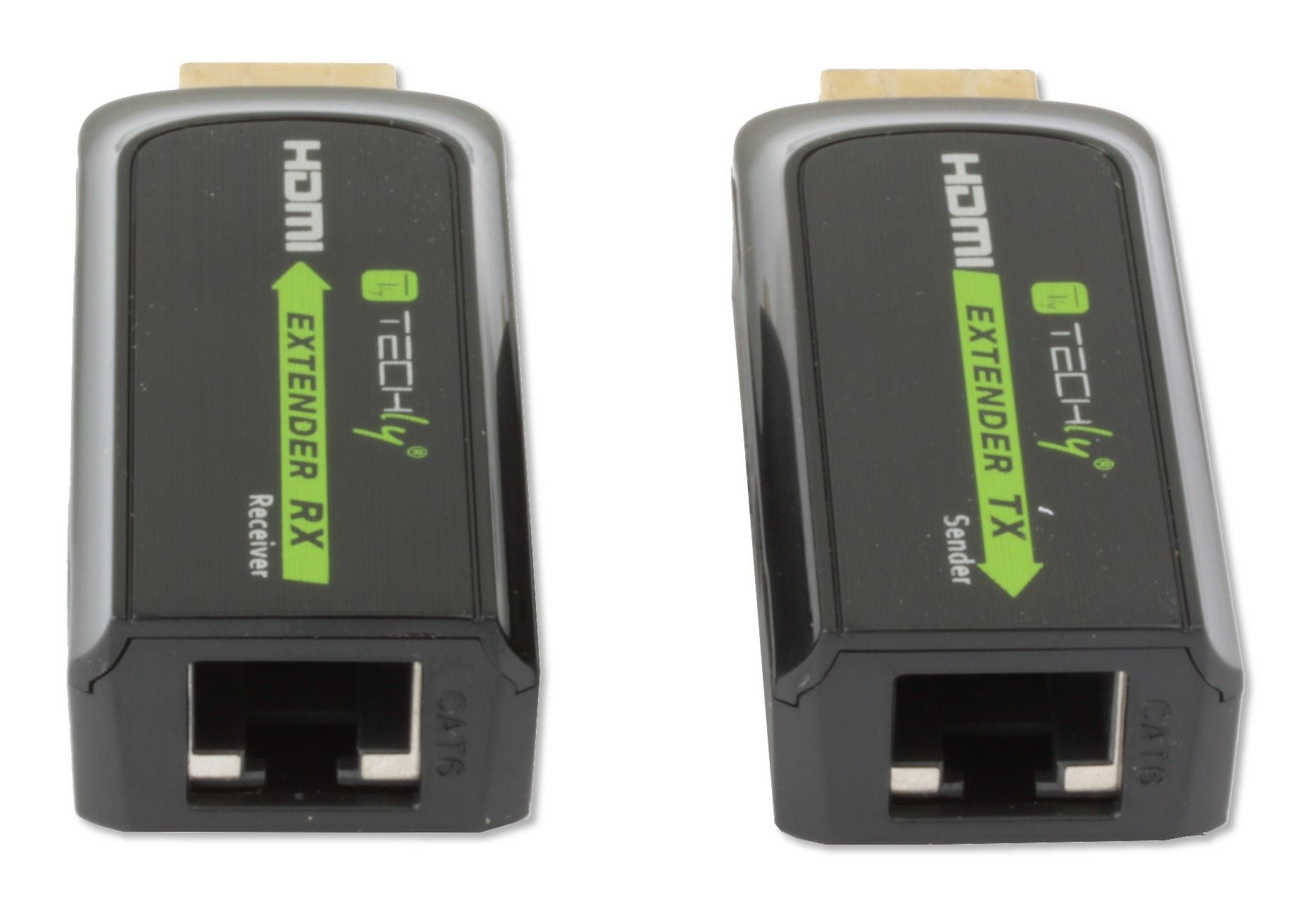

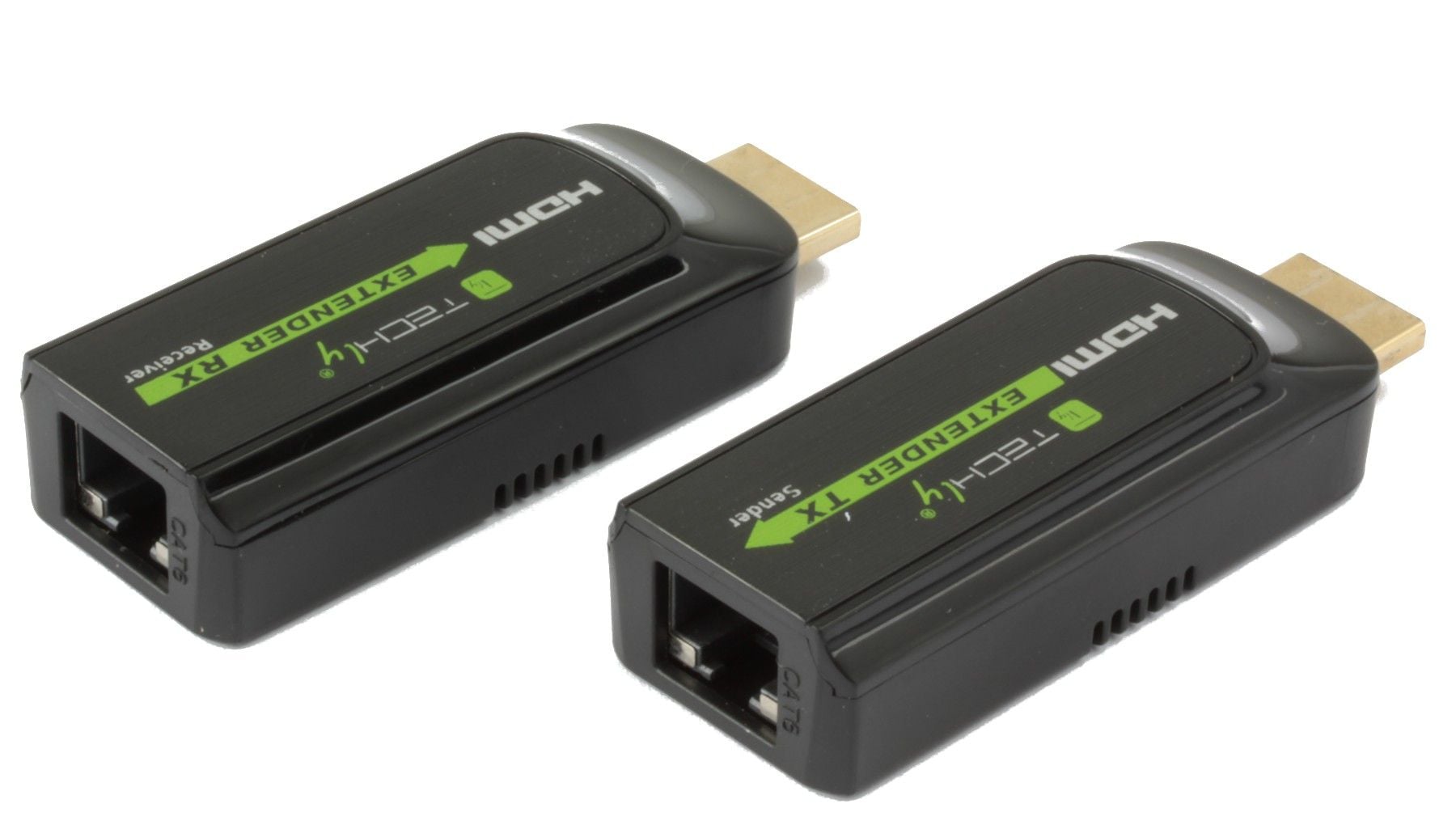

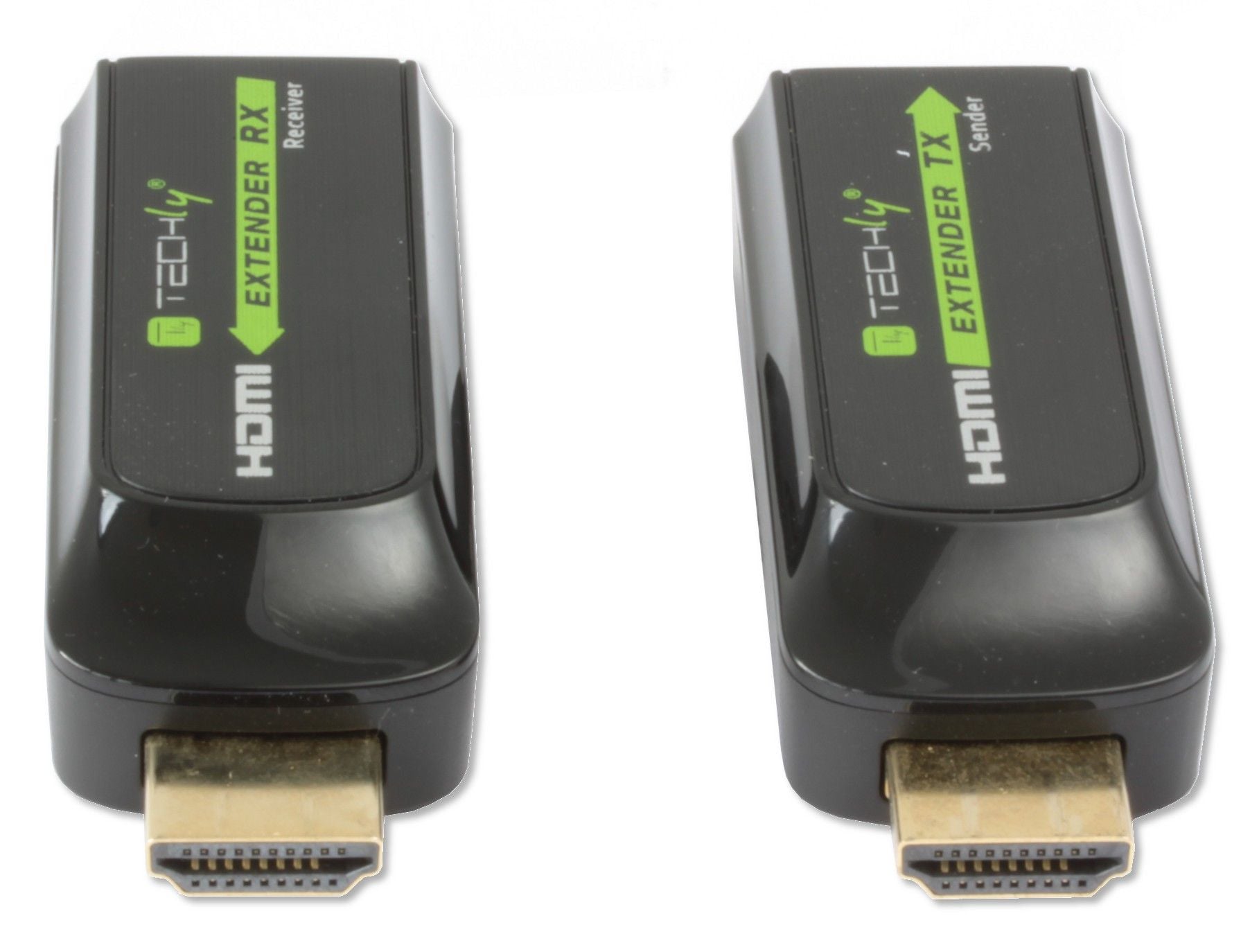

• 1 x HDMI to LAN transmitter


• 1 x Receiver from LAN to HDMI


• Micro USB connection cable


• 1x User manual
