Receiver for HDMI extender IDATAHDMI-KVM 4: allows HDMI signal transmission up to 150 meters with a resolution of 1080 p using a Cat 6 network cable. The KVM Extender kit supports point-to-point or point-to-multipoint connection: supports up to 253 receivers connected to a switch to make multiple connections. It is perfect for advertisingà external, monitoring system, luphome entertainment, conferences, etc.
Features- Receives video and audio HDMI signal up to 100 m on Cat network cable. 6 ; up to 150 m with the help of a network switch

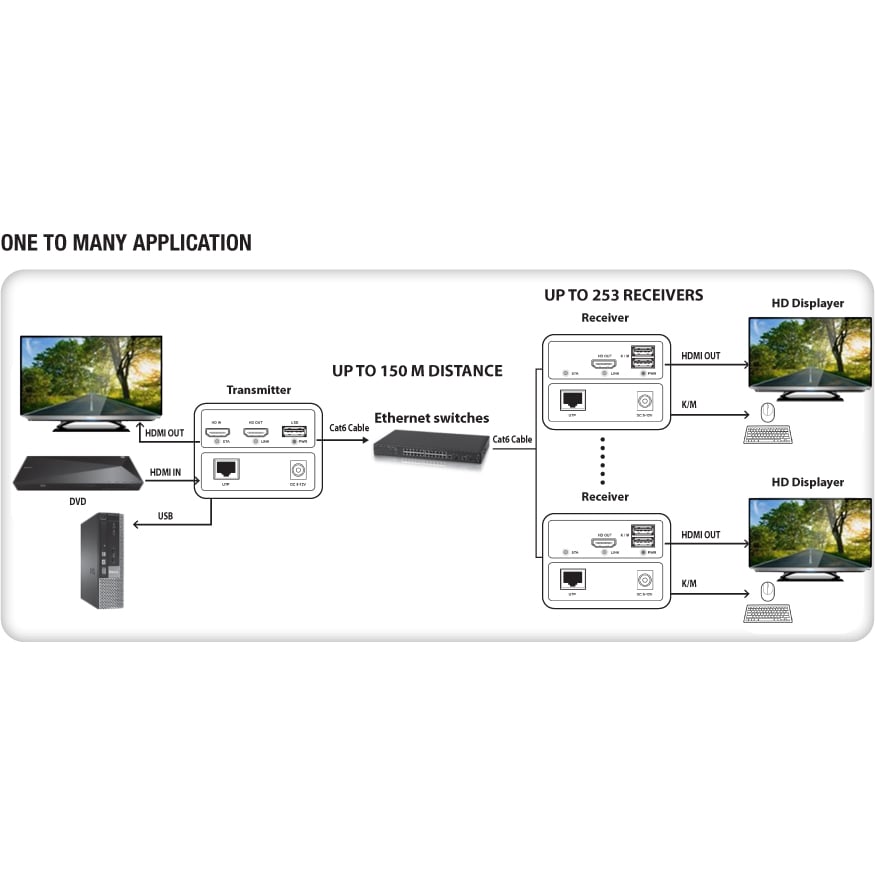

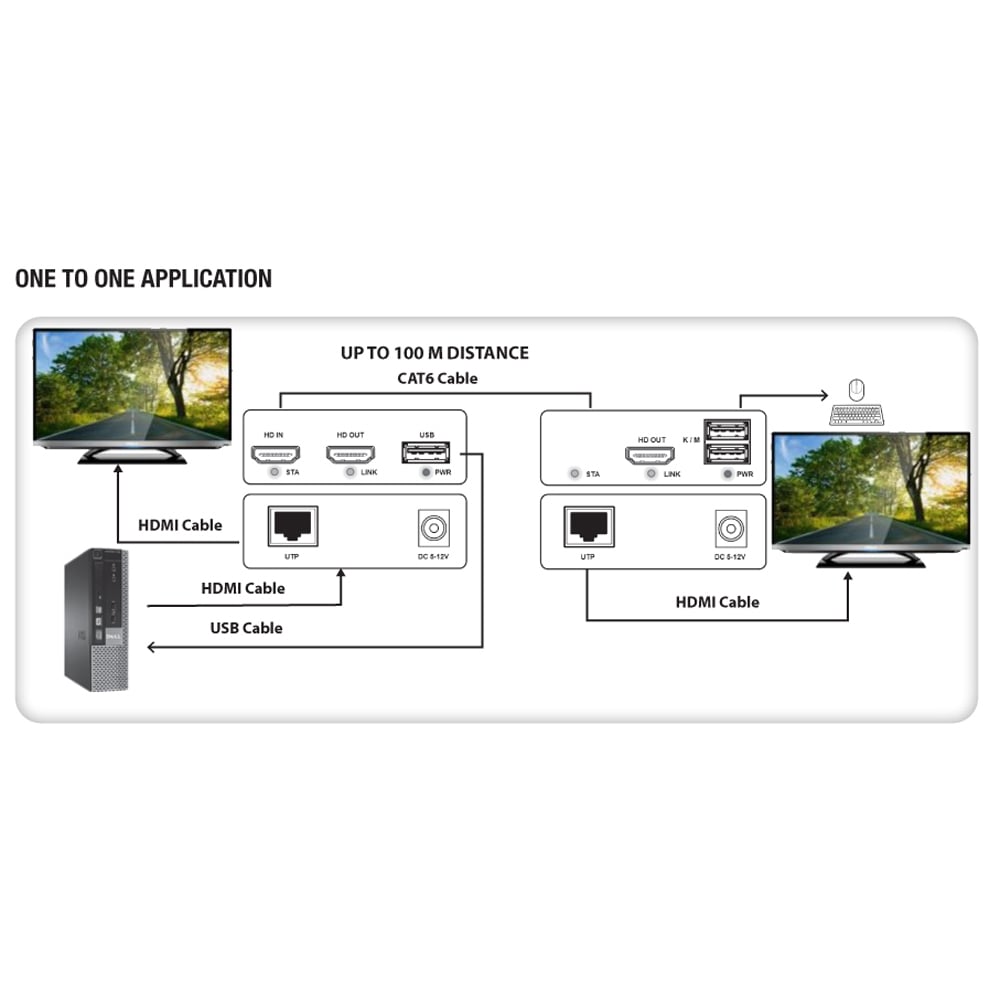

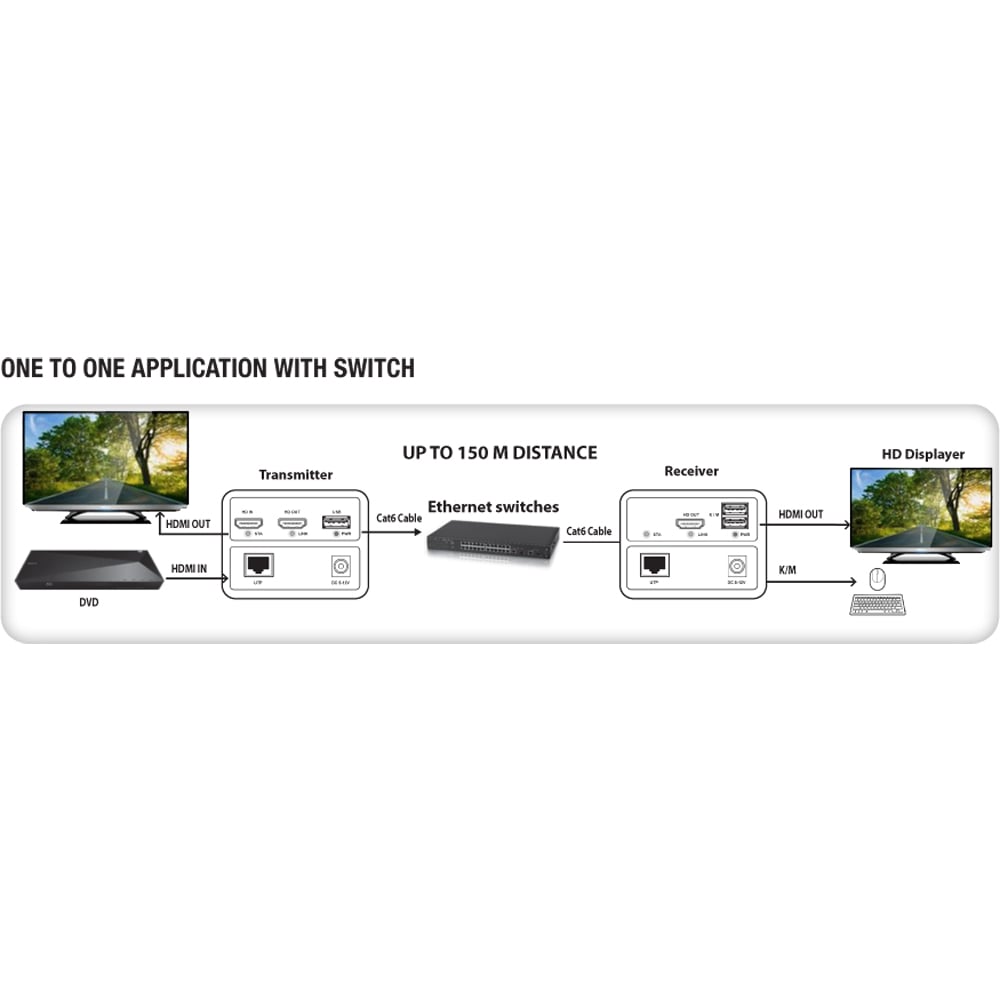

- Supports point-to-point connection or multi-point connection; a transmitter can & grave; be connected up to 253 receivers via a switch to make multiple connections
- Supports 1920 video resolution * 1080 P@ 60 Hz
- Supports the USB KVM function that can ` control keyboard and mouse long distance
- Supports loss-free compression and no delay, adopts the H. 264 encoding method, effectively guarantees the quality of the video transmission
- Conformityà HDMI 1.3 and HDCP 1.2 standards
- High compatibility, can ` automatically match the source and display device
- The integrated automatic adjustment system makes the image fluid, clear and stable
- Easy to install, plug and play
· Not compatible with previous version IDATA HDMI-KVM 3Technical specifications- Supported standards: HDMI 1.3 and HDCP 1.2
- Video included: H. 264
- Velocità data transmission: 4.95 Gbps
- Maximum resolution 1920 * 1080 P@ 60 Hz
- Impedance 100 Ω
- Transmission distance: Cat. 6 150 m
- 12 V 1 A power supply
Dimensions- Width: 94 mm
- Depthà: 71 mm
- Height: 26 mm
Environmental features- Operating temperature: - 5 / 70 °C
- Umidità operational: 5 - 90 %
Package contents- 1 x Receiver
- 1 x USB-A cable to USB-A
- 1 x DC power supply 12 V 1 A
- 1x User manual
