Loose Anti-Radiator Cable 24 fibers 50 / 125 OM 5 LSZH Black - OEM ICOC FOIRL- 24 FB/OM 5

€18.42
Tax included €15.10 excl. VAT

Dielectric anti-corrosion loose cable for indoors/outsides with 24 fibers 50 / 125 OM 5 . Black LSZH sheath, diameter 7.0 mm, radius of curvature 140 mm. CPR Dca conform.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • The optical fibers OM 5 , in addition to the applications supported già from OM 4 to 850 nm and 1300 nm, allow to support applications of future development thanks to the possibility to use WDM techniques (wavelength division multilpexing) in the range of wavelengths from 850 nm to 953 nm.

  • OM 5 fibres have 3.0 dB/Km attenuation

  • These solutions open huge possibilities for the Datacenter world

  • Internal and external installation, cable laying in pipes, conduits and canals

  • CPR conform (EU 305 / 2011) class DCA - s 2 , d 2 , a 1 - EN 50575 : 2014 +A 1 : 2016



Features

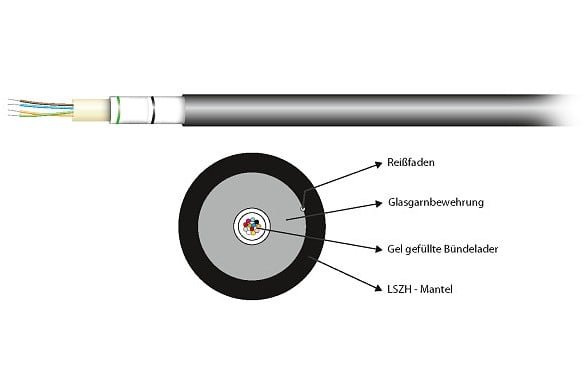

  • Loose Anti-Rhode Multifibre Dielectric Cable for Indoors and Outdoors

  • Transmission distance up to 550 m for speed; to 10 Gigabit

  • 24 Fibre with 50 / 125 core fiber

  • LSZH Halogen Free sheath, low smoke emission


Price per metre

On request any type and size of fiber optics, even già headed



Technical specifications

  • Number of fibres: 24

  • Cable diameter: 7.0 mm

  • Bending radius: 140 mm



Standard

  • Delaying flame: IEC 60332 - 2

  • Halogen free: EN 50267 - 2 - 2 ; EN 60754 - 1 / 2

  • Low smoke: EN 61034 - 2



Environmental features

  • Operating temperature: - 10 °C ~ 50 °C

  • Transport temperature / storage: - 30 °C ~ 70 °C

  • Installation temperature: - 5 °C ~ 50 °C



Certifications

  • CE

  • RoHS

  • RAEE

  • Brand
  • Reference
    ICOC FOIRL-24FB/OM5
  • EAN13
    4049759180232
