Matassa S/FTP Cat 7 Copper 1000 MHz Duplex Eca 100 m Hard Orange - ITP 5 -PIMF- 0100 DX

€225.35
Tax included €184.70 excl. VAT

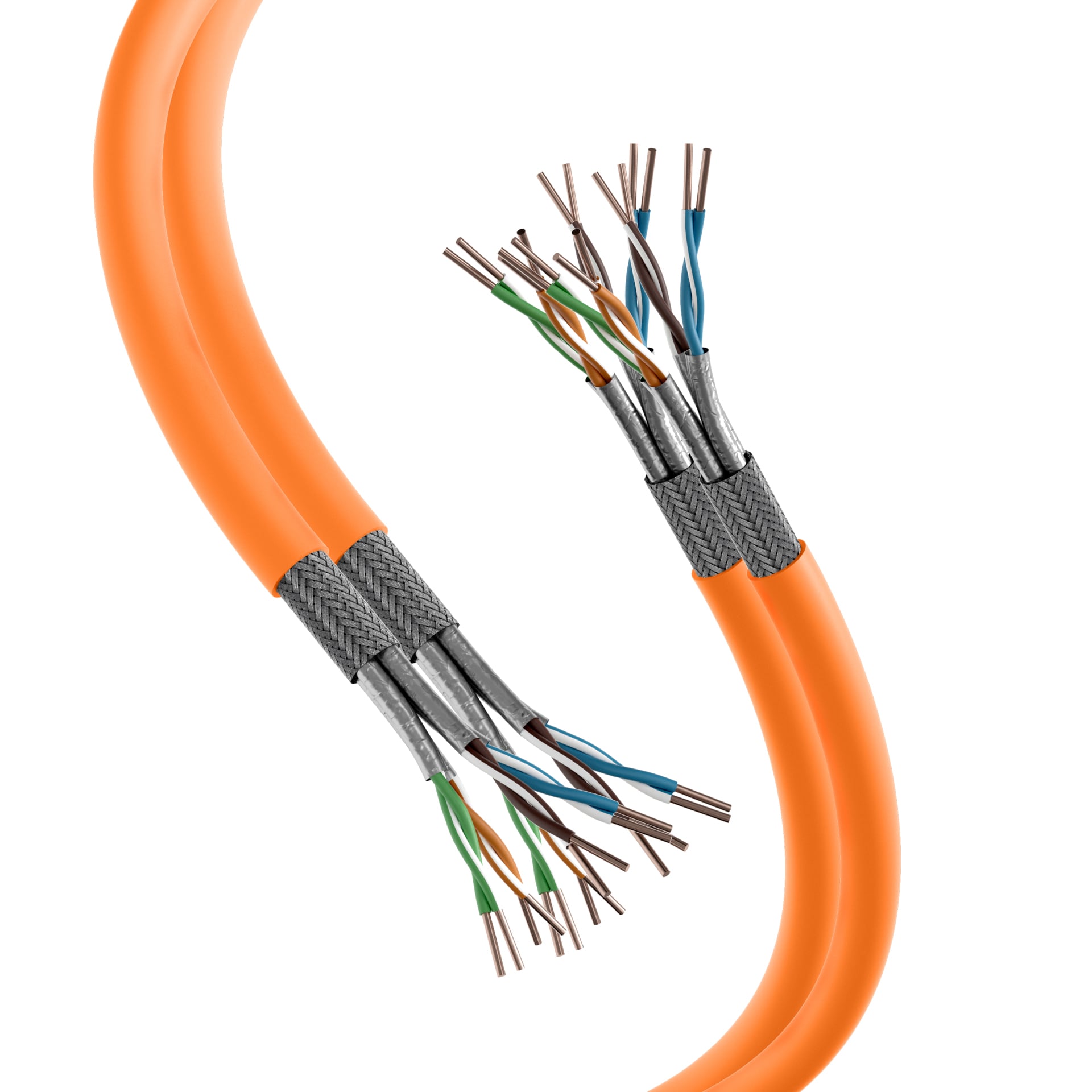

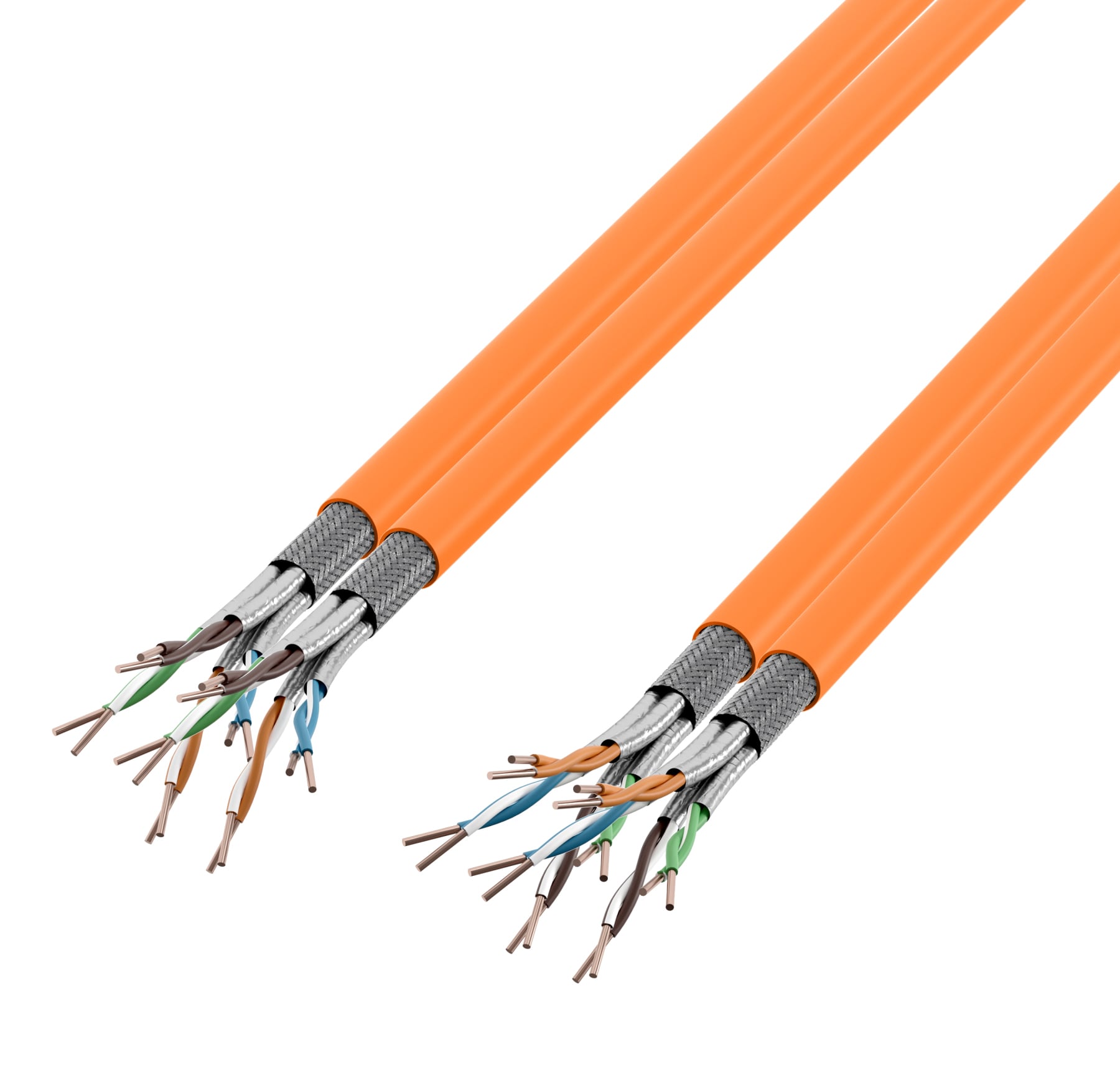

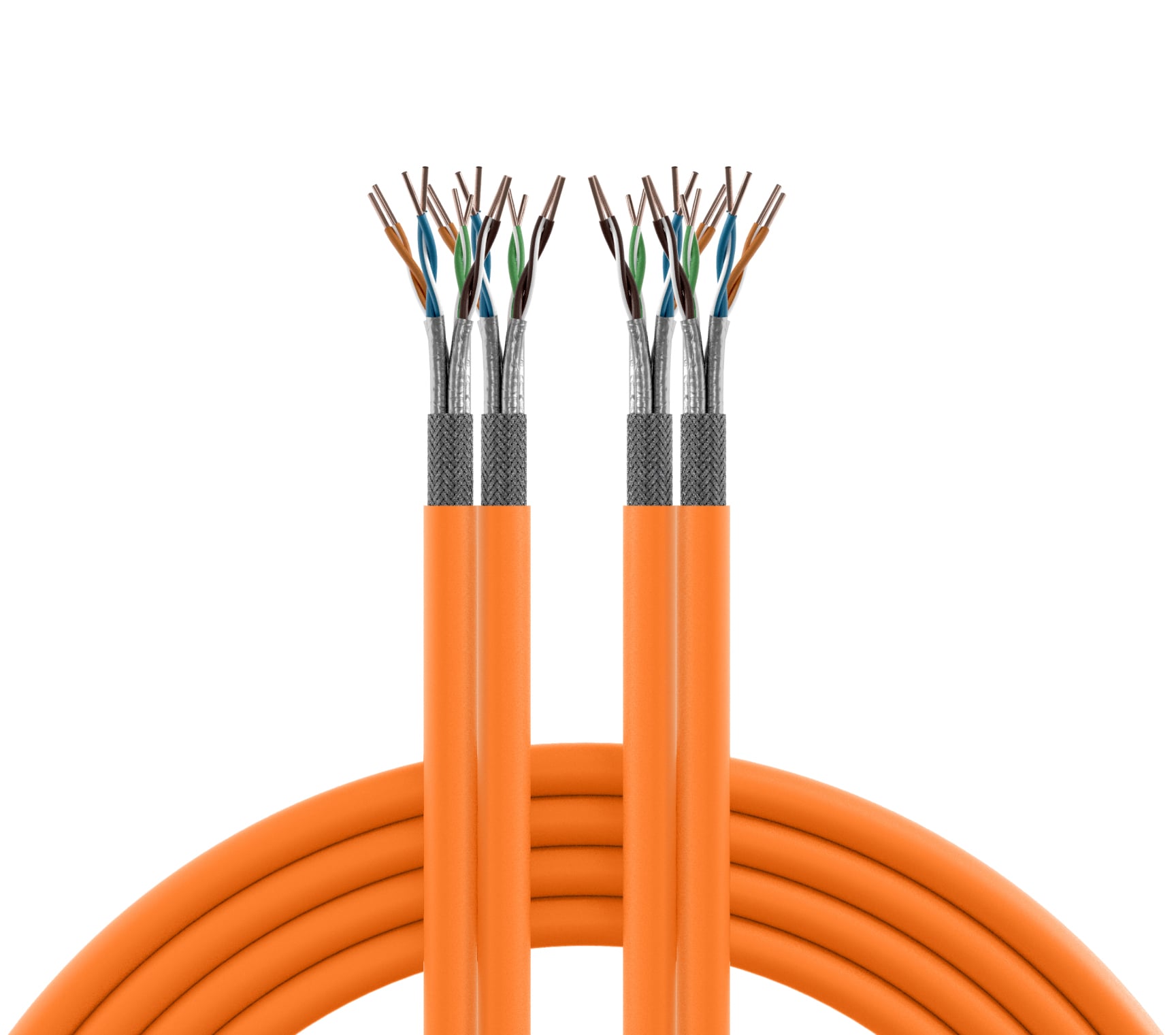

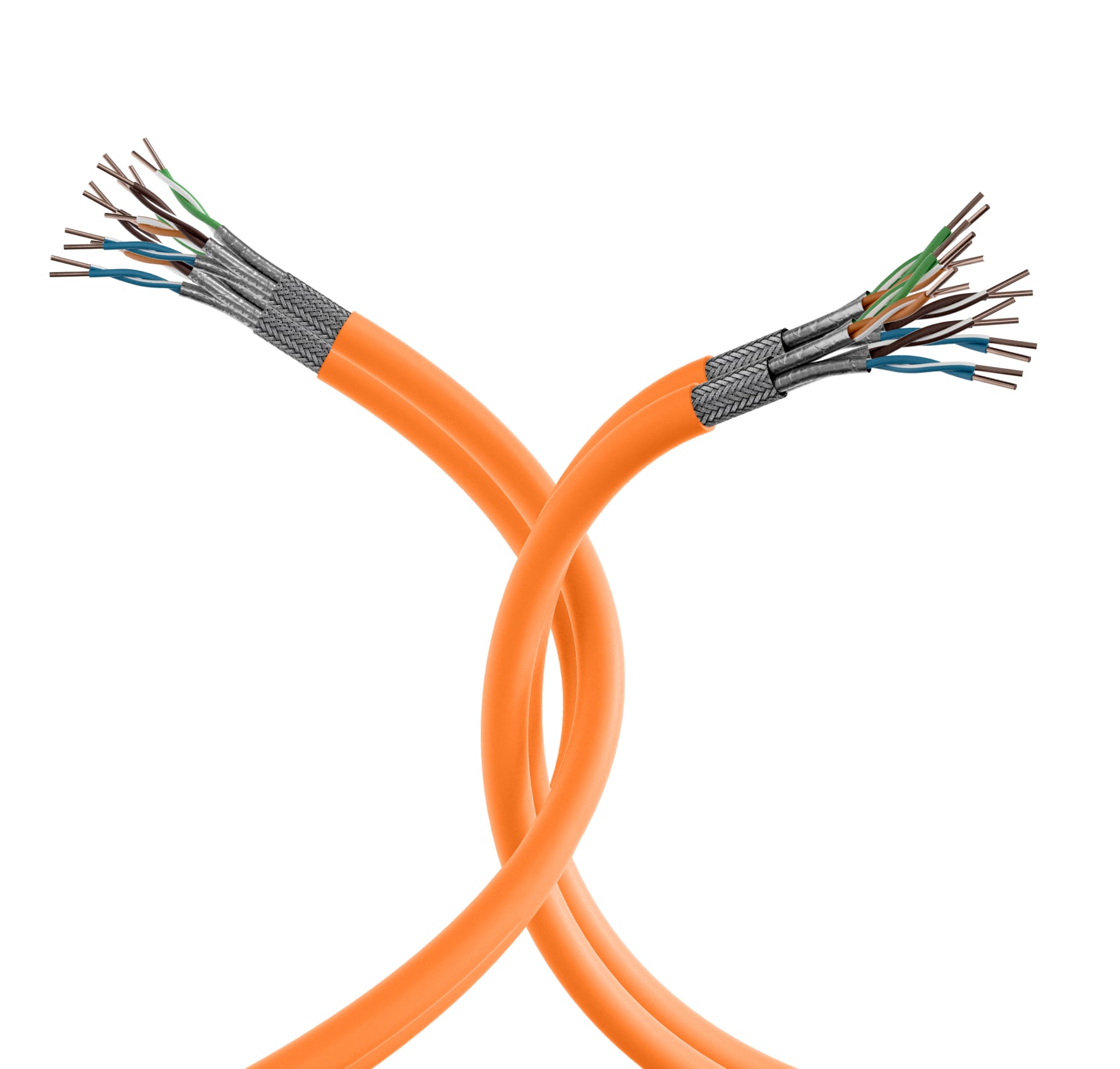

Installation cable S/FTP Cat. 7 Duplex (2 x 8 core) for transmissions up to 1000 MHz and 10 Gbit Ethernet. AWG 23 / 1 conductor in tinned copper. FRNC-B sheath. CPR class Eca. Length 100 m. Orange color.



Return policy



Delivery policy



Direct contact for info



Secure Payment

Installation cable S/FTP Cat. 7 Duplex designed for transmissions up to 1000 MHz and compliant with Cat. 7 . With this cable are possible transmission speed à up to 10 Gbit Ethernet according to IEEE 802.3 .



Characteristic

  • Duplex 2 x 8

  • S/FTP Screen

  • Cat. 7 ; transmissions up to 1000 MHz

  • CPR (EU 305 / 2011) class Eca - EN 50575 : 2014 + A 1 : 2016

  • Conductor category Kl. 1 = single wire

  • CU conductive material, tinned

  • Size/quantità core AWG 23 / 1

  • Conductor diameter 0,56 mm

  • Nominal conductor cross-section 0,26 mm²



Specifications

  • Length of skein: 100 m

  • Number of cores: 2 x 8

  • Duplex cable

  • External sheath material: FRNC-B

  • Outer diameter 7.2 x 15.0 mm

  • Maximum traction force: 220 N

  • Fire load: 1190 MJ/km

  • Color: orange

  • Bending radius (dynamic): 8 x OD

  • Bending radius (static): 4 x OD

  • Flame retardant according to EN 60332 - 1

  • Halogen free EN 60754 - 1 / 2

  • Low smoke EN 61034



Environmental features

  • Working temperature, flexible 0 – 50 °C

  • Operating temperature, fix - 20 – 60 °C

  • Operating temperature, storage- 15 – 75 °C



Certifications

  • CE

  • RoHS



Package contents

  • ITP 5 cable mat -PIMF- 0100 DX

  • Brand
  • Reference
    ITP5-PIMF-0100DX
  • In stock
    1 Item
  • EAN13
    4049759180799
