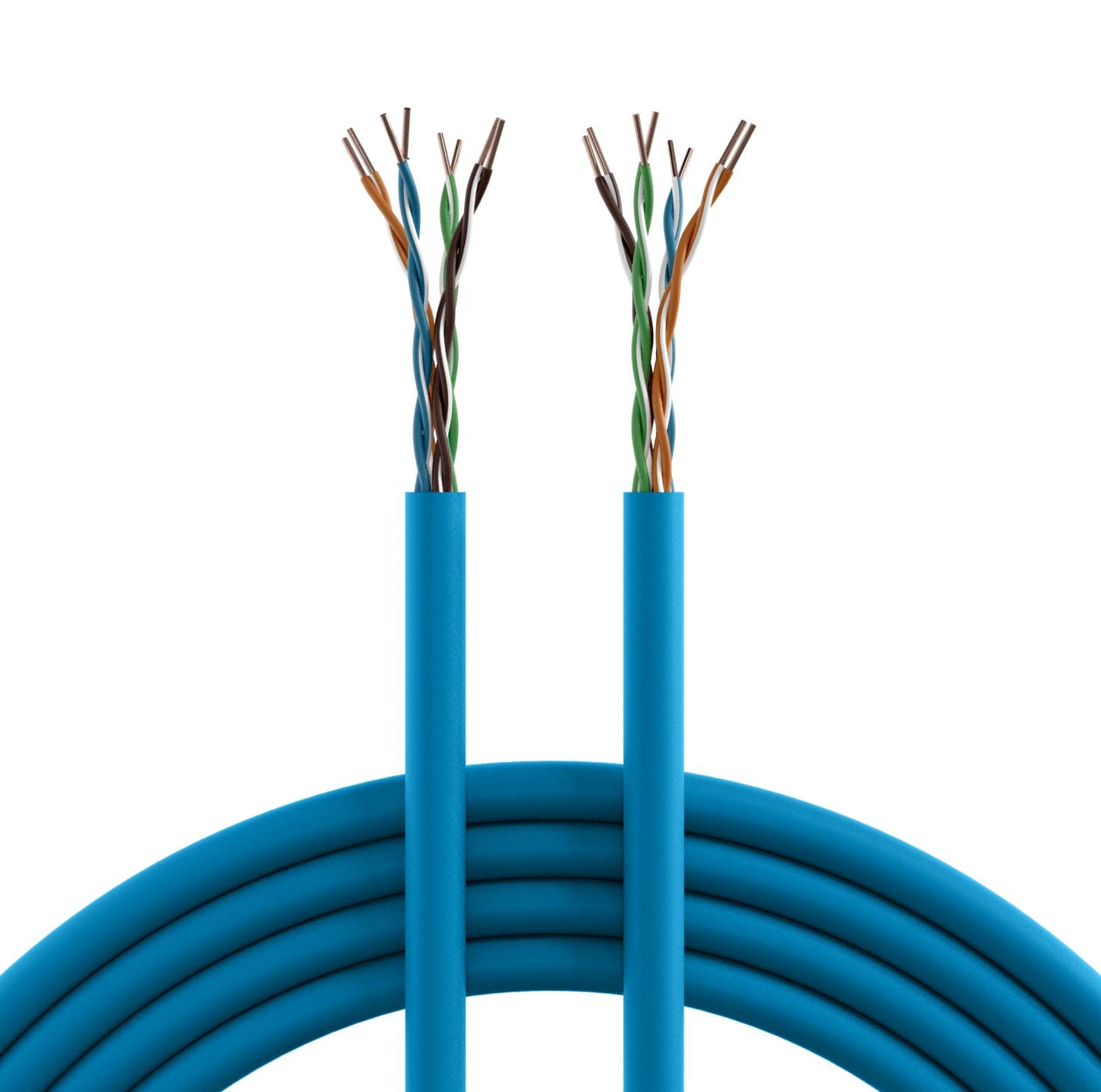

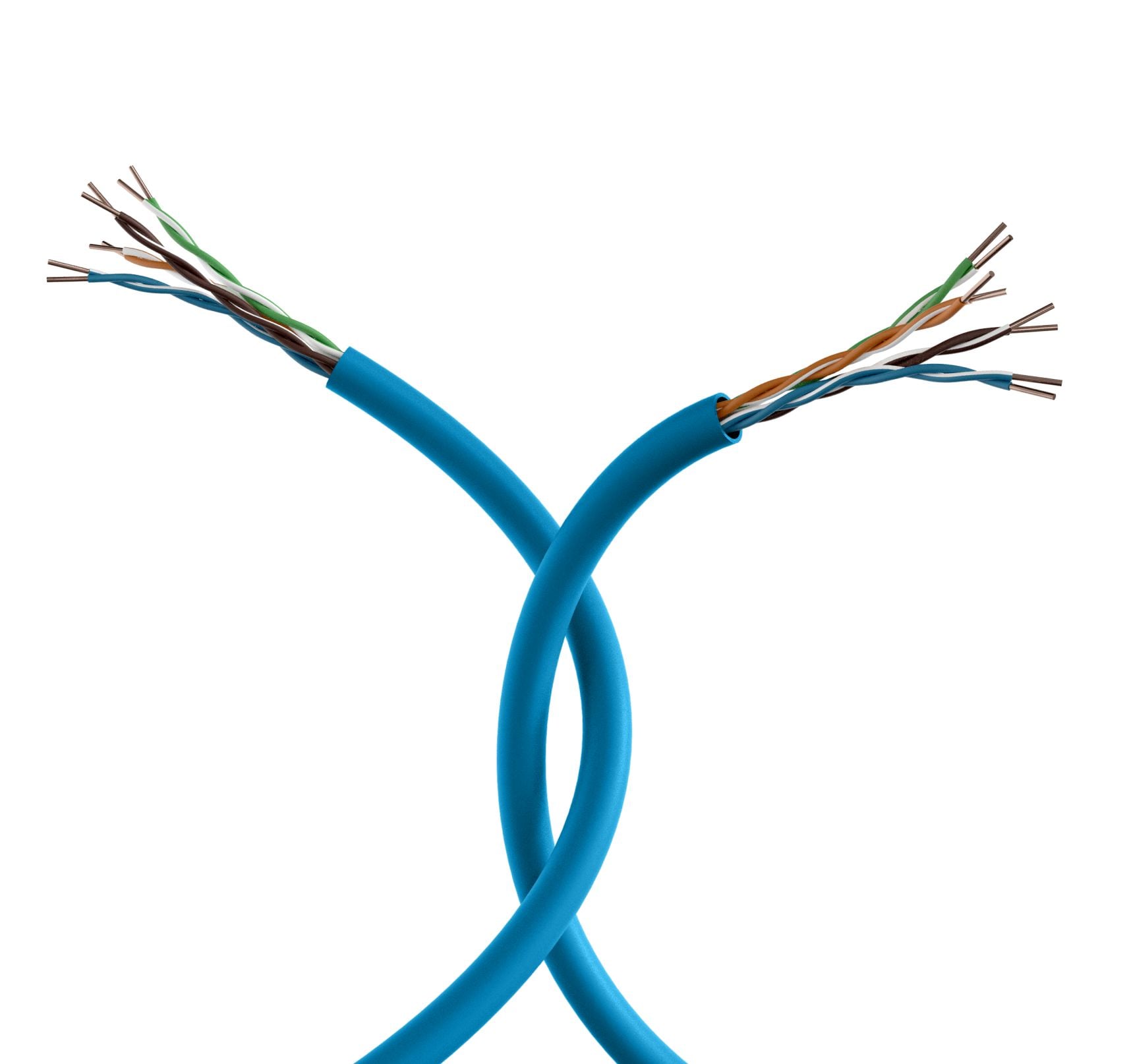

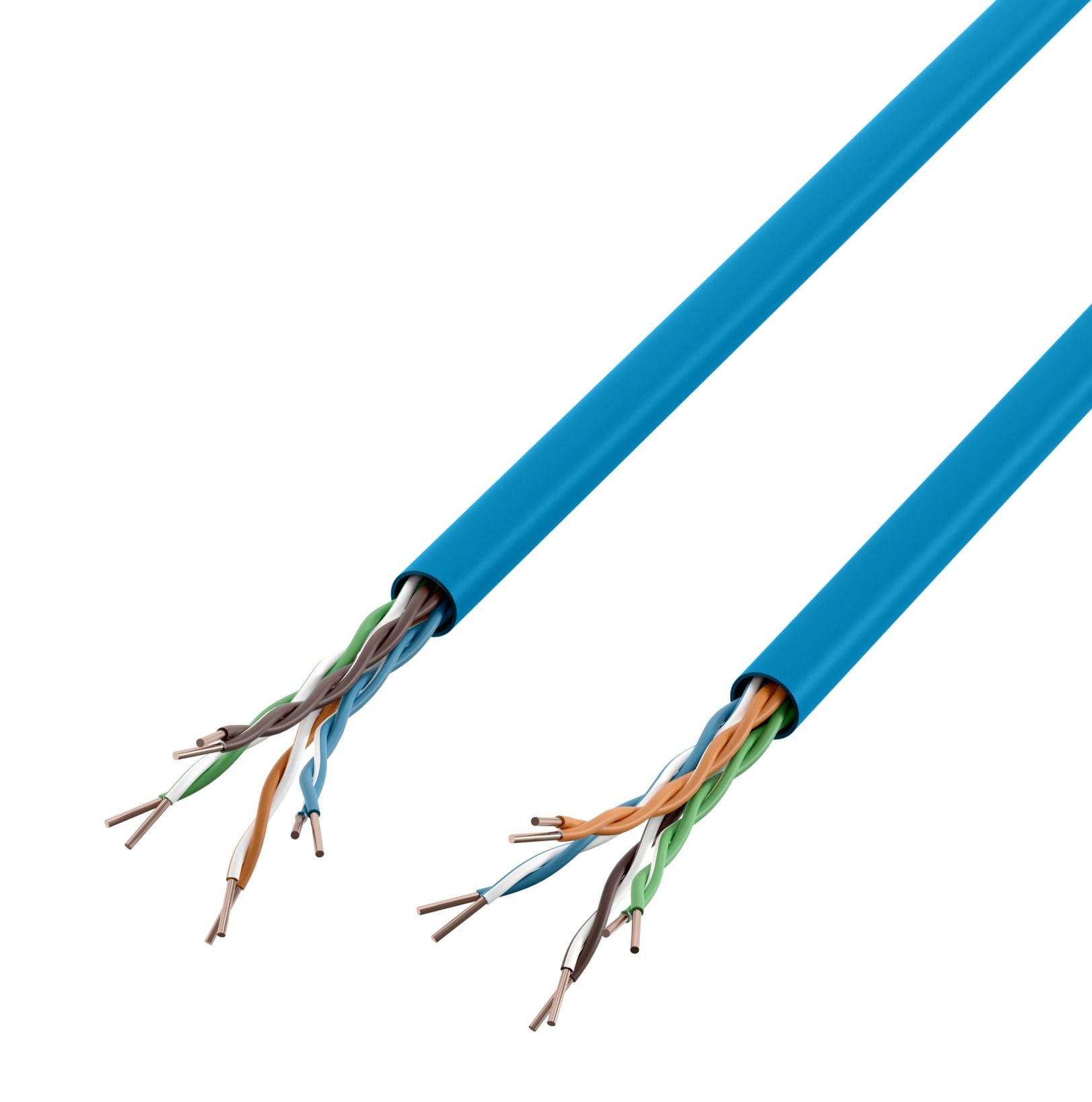

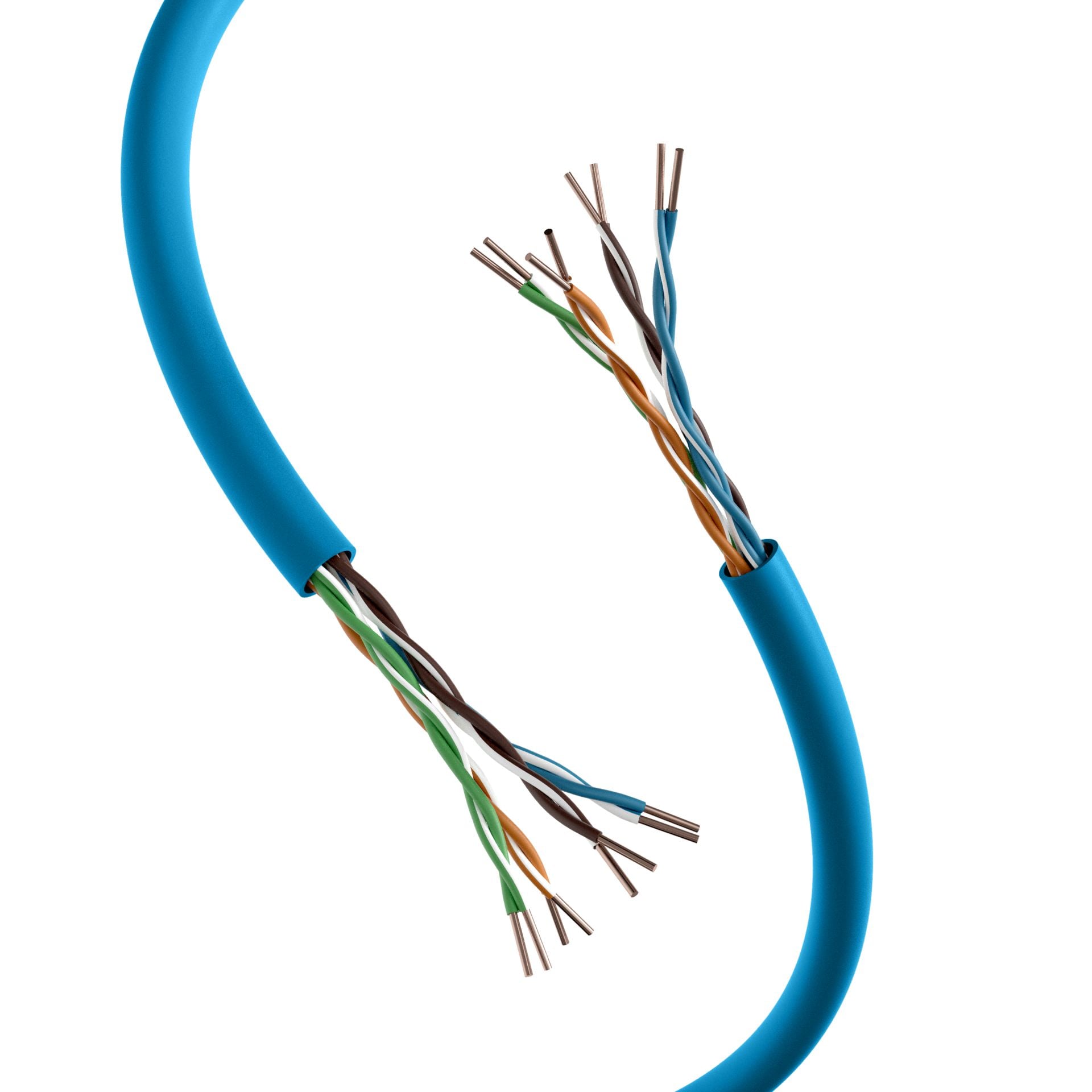

Matassa U/UTP Cat 6 A Copper 500 MHz B 2 ca 305 m Rigid LSZH Blue - ITP-C 6 A-RIS 305 UB 2

Installation cable U/UTP Cat. 6 A designed for transmissions up to 500 MHz and compliant with Cat. 6 A. With this cable are possible transmission speed à up to 10 Gbit Ethernet. Thanks to the small external diameter of only 6,6 mm, the cable è also suitable for passage in narrow channels. The standard B 2 ca, according to the regulation on construction products and its cable structure of 4 x 2 xAWG 23 / 1, makes sì that the cable can be used in all sectors of installation in buildings.



Technical specifications

• Silicone-free cable


• Bending radius (static and dynamic): 65 mm

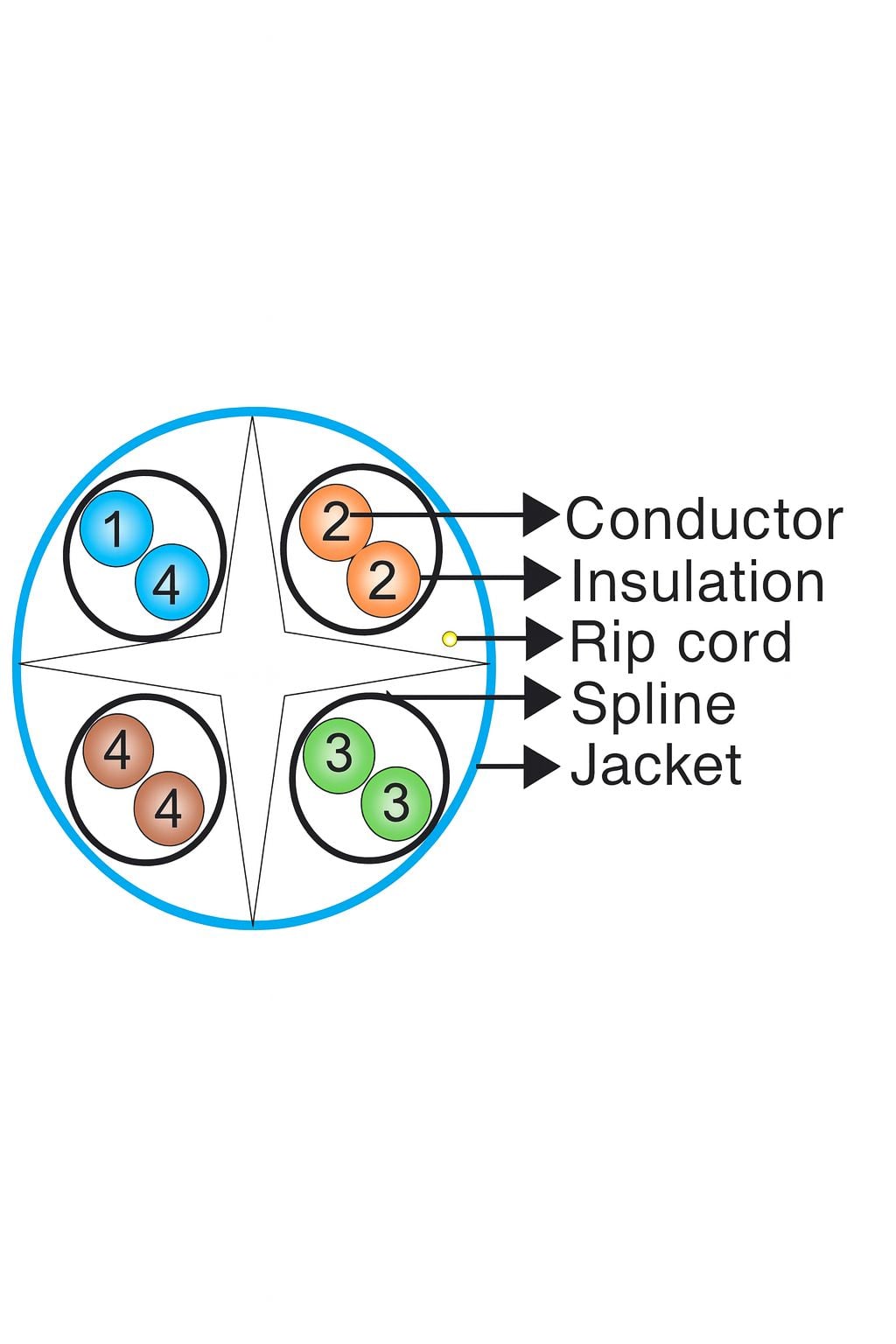

• Cable structure: U/UTP


• Category 6 A


• Conductor category Kl. 1 = single wire


• CU conductive material, tinned


• Size/quantità core AWG 23 / 1


• Conductor diameter 0,57 mm


• Nominal conductor cross-section 0,26 mm²


• PE foam-leather insulation core


• Core Identification Color


• LSZH sheath


• CPR (EU 305 / 2011) class B 2 approx. - EN 50575 : 2014 + A 1 : 2016


• Flame retardant
  According to IEC/EN 60332 - 1 - 2 ;
  According to IEC/EN 60332 - 3 - 24

• Halogen free according to EN 60754 - 1 / 2


• Low smoke according to EN 61034 - 2


• PoE according to IEEE 802.3 at;acc. to IEEE 802.3 af;yes;PoE+;UPOE


• NVP value 68,2 %


• Resistance of loop 164 Ohm/km


• Resistance imbalance≤ 5 %


• Insulation resistance (500 V) ≥ 5000 MOhm/km


• Test voltage DC, 1 min 500 V


• Landing capacity 330 pF/km


• Separating class sec. EN 50174 - 2: C


• Attenuation coupling ≥ 50 dB


• Maximum frequency: 500 MHz


• Electrical wiring EN 50173 - 1 ;ISO/IEC 11801


• Installation standard EN 50174


• Harmonised standard EN 50575


• Directive/Regulation RoHS 2011 / 65 /EU; REACH 1907 / 2006 /EC


• IEEE 802.3 transmission standard from 10 Mbit to 10 Gbit


• IEC 61156 cable - 5


• Length of skein: 305 m


• Color: blue



Environmental features

• Working temperature, flexible 0 – 60 °C

• Operating temperature, fix- 15 – 75 °C

• Operating temperature, storage- 15 – 75 °C

Certifications

• CE


• RoHS



Package contents

• Cable skein cat. 6 A rigid B 2 ca ITP-C 6 A-RIS 305 UB 2
