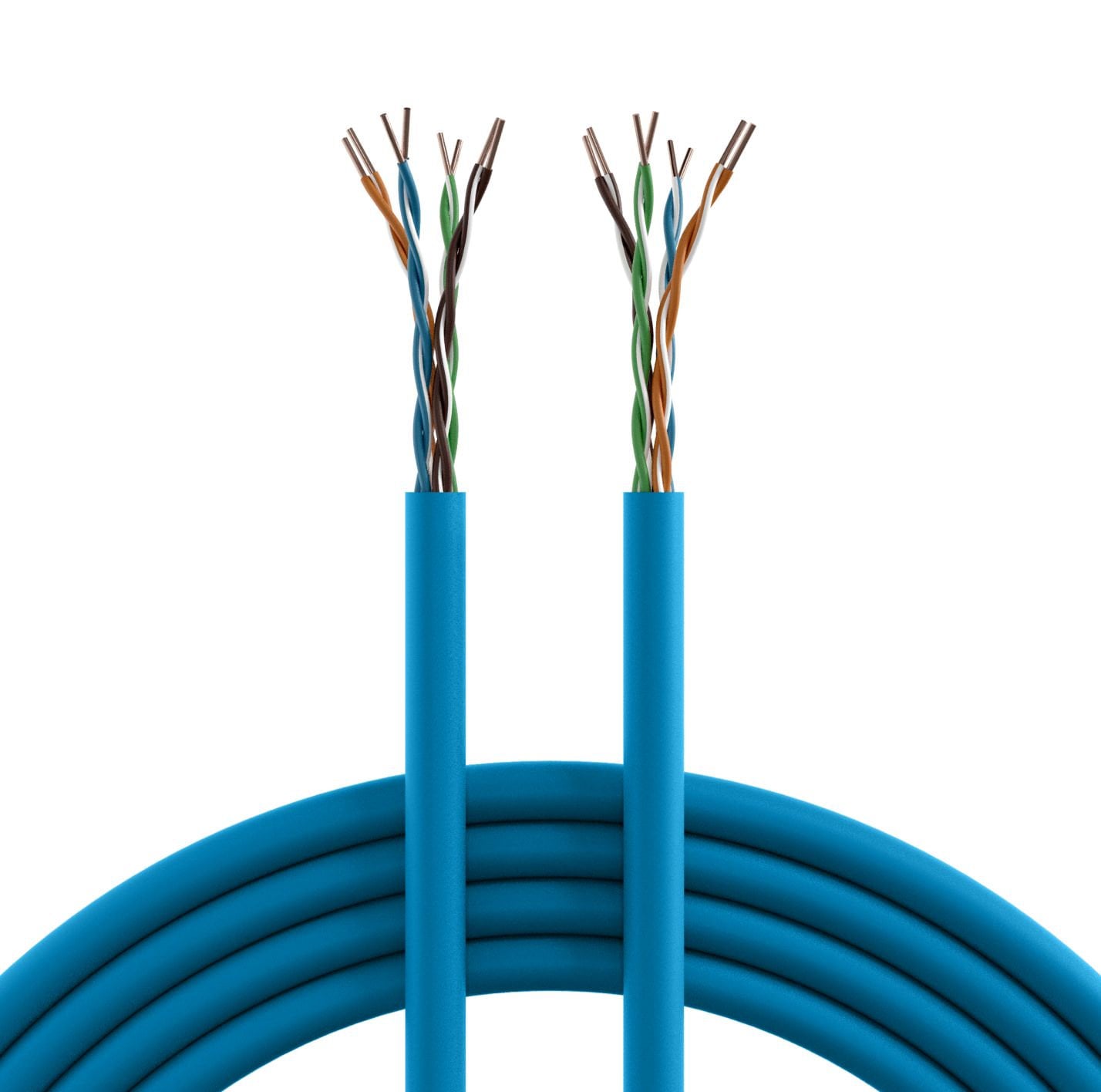

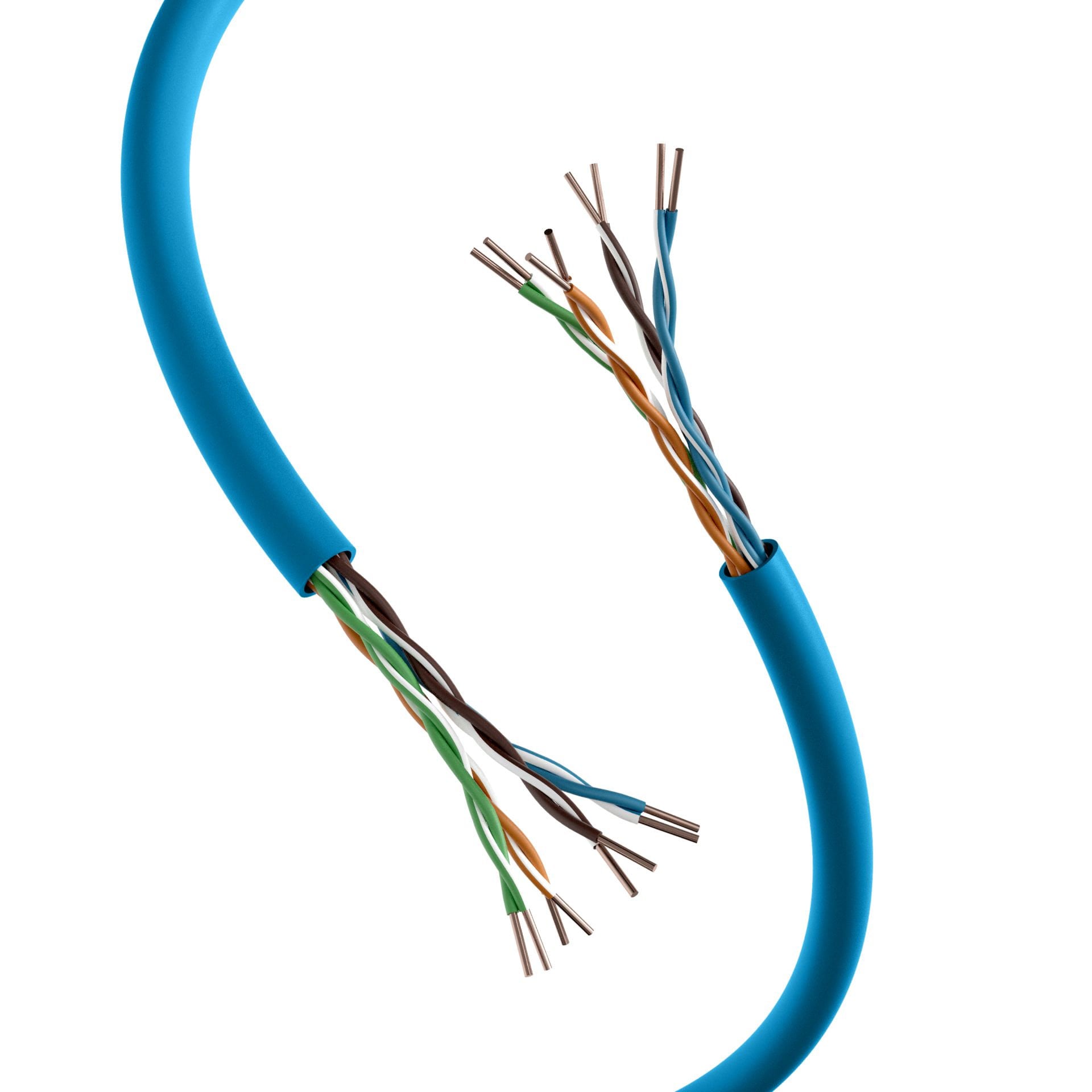

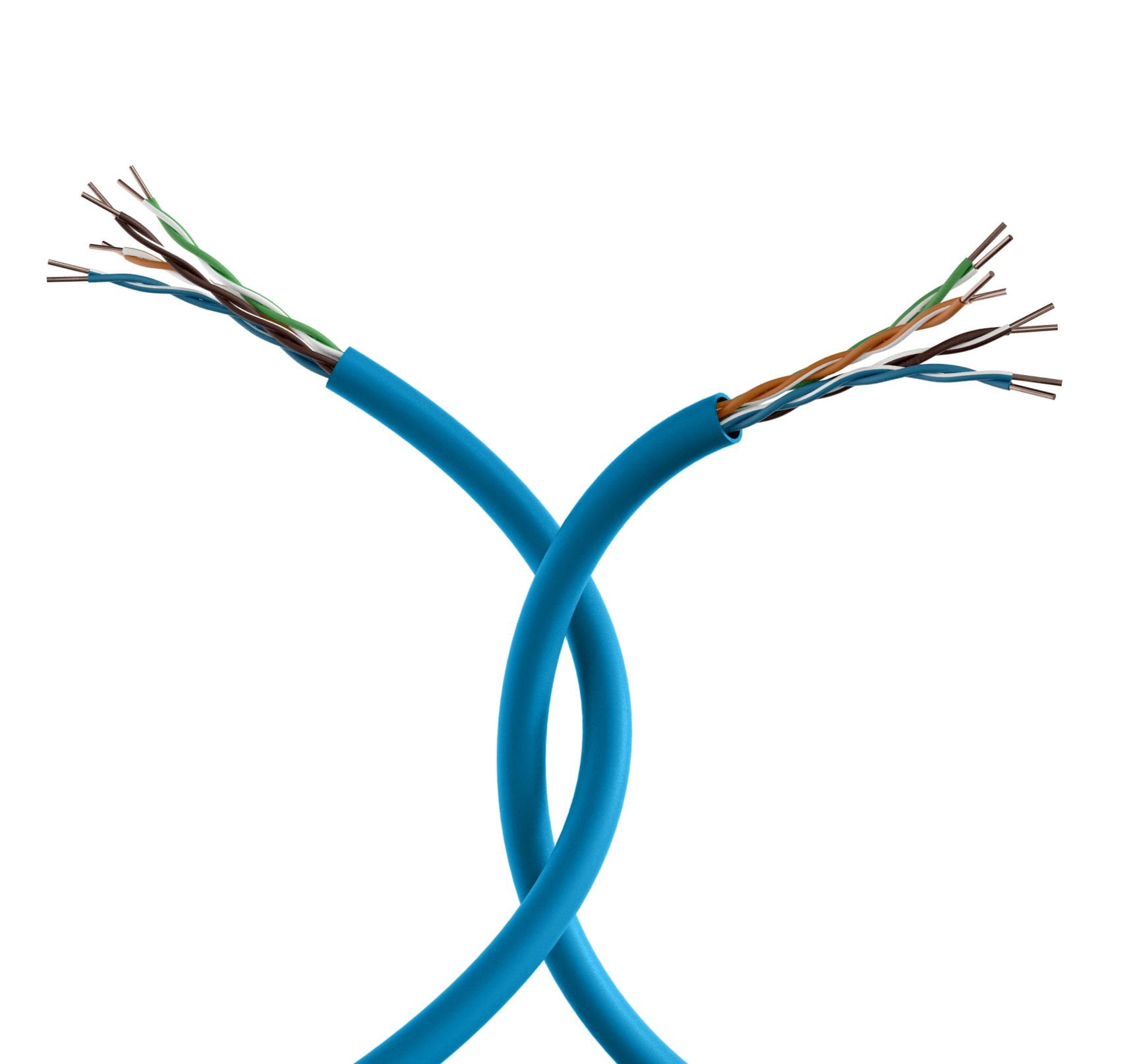

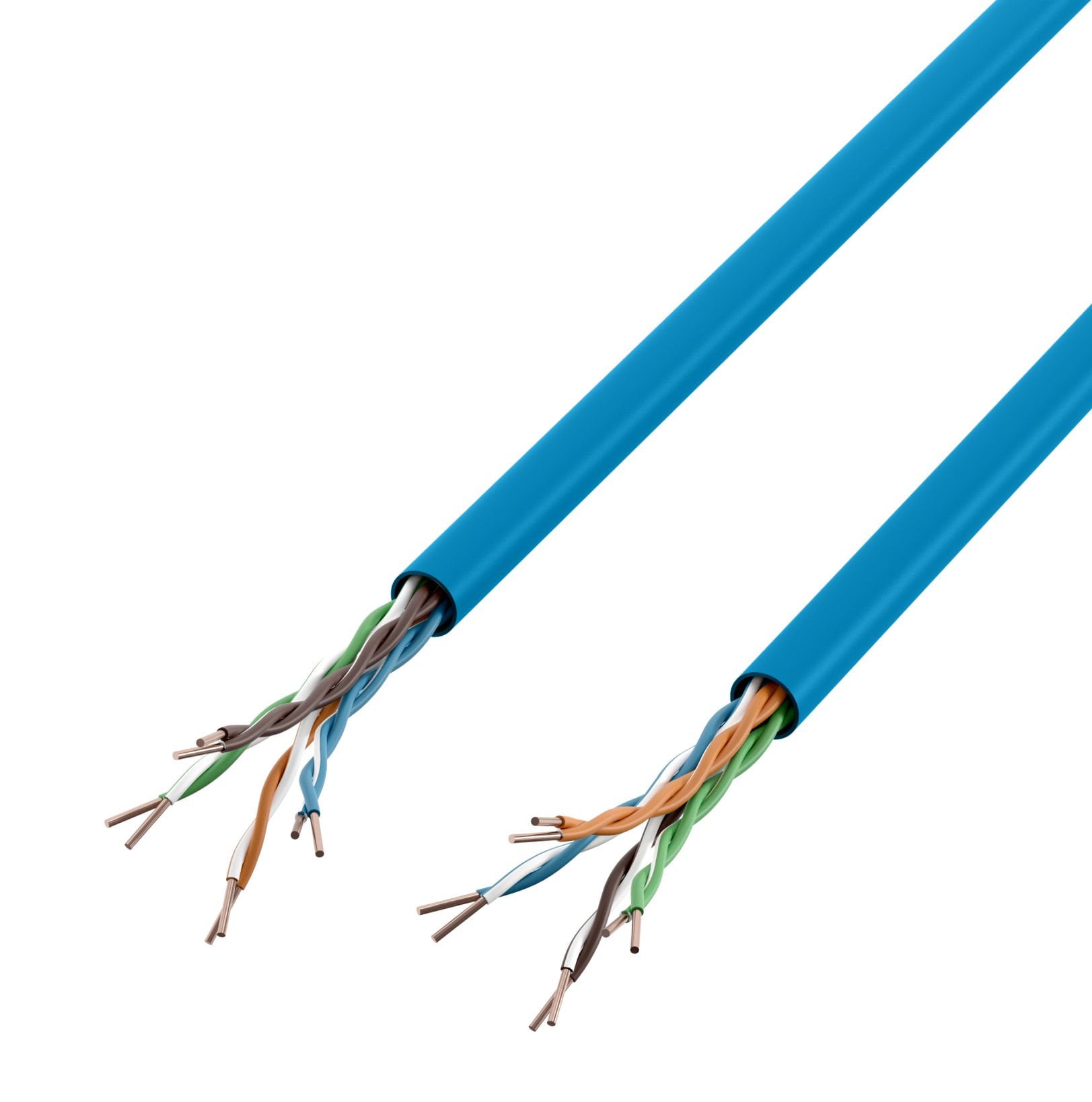

U/UTP Cable Cat 6 A Copper 500 MHz B 2 ca 305 m Rigid LSZH Blue - OEM ITP-C 6 A-RIS 305 UB 2 B

U/UTP installation cable designed for transmissions up to 500 MHz and compliant with Cat. 6 A. With this cable, transmission speeds up to 10 Gbit Ethernet are possible. Thanks to the small external diameter of only 6,2 mm, the cable è also suitable for the passage into narrow channels. The standard B 2 ca, according to the regulation on construction products and its cable structure of 4 x 2 xAWG 23 / 1 , makes sì that the cable can be used in all areas of installation in buildings.

Technical specifications

• Silicone-free cable

• Bending radius (static and dynamic): 65 mm

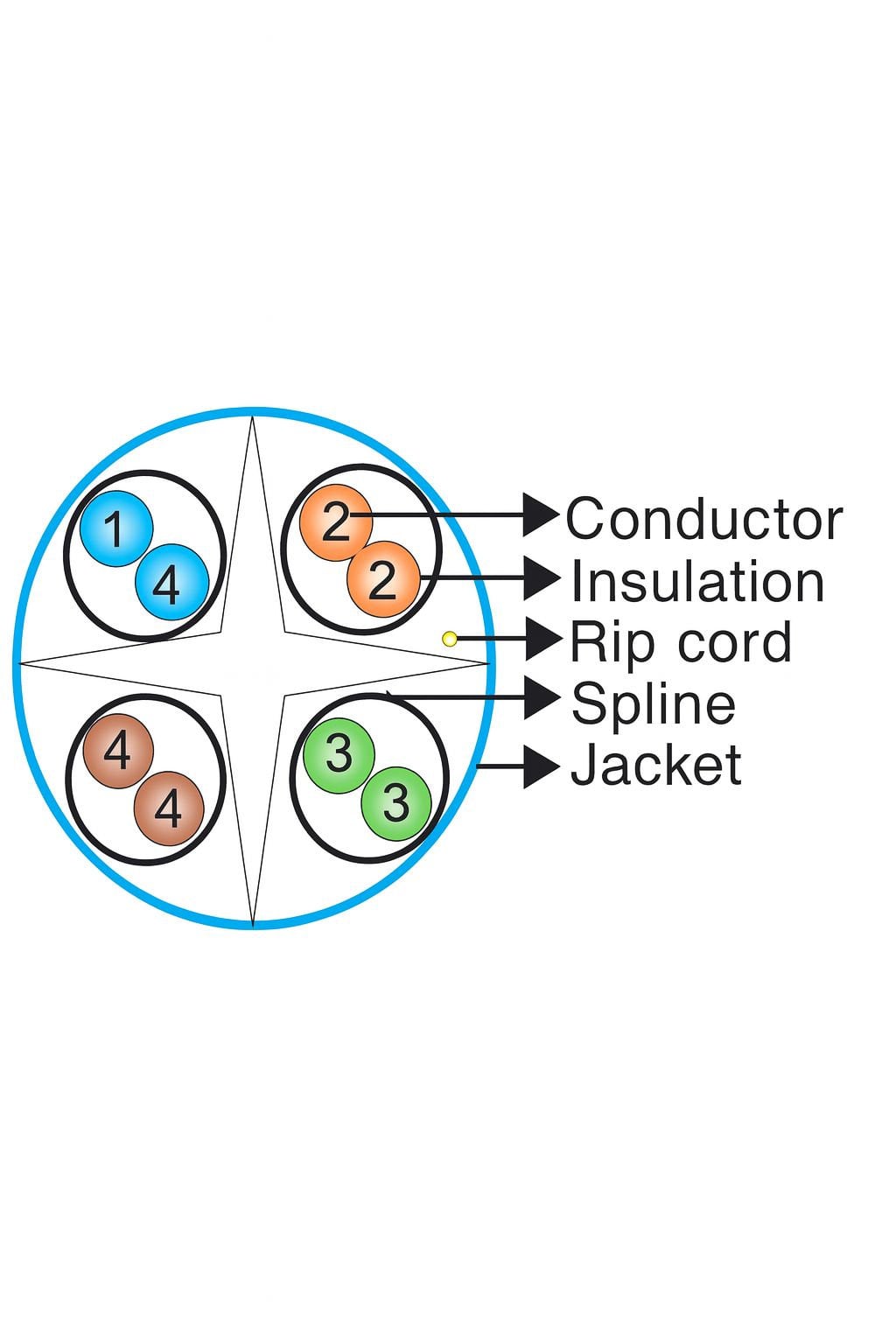

• Cable structure: U/UTP

• Category 6 A

• Conductor category Kl. 1 = single wire

• CU conductive material, tinned

• Size/quantità core AWG 23 / 1

• Conductor diameter 0,546 mm

• Nominal conductor cross-section 0,26 mm²

• PE foam-leather insulation core

• Core Identification Color

• LSZH sheath

• CPR (EU 305 / 2011) class B 2 approx. - EN 50575 : 2014 + A 1 : 2016

• Flame retardant (Second IEC/EN 60332 - 1 - 2)
• Halogen free according to EN 60754 - 1 / 2
• Low smoke according to EN 61034 - 2

• PoE according to IEEE 802.3 at;acc. to IEEE 802.3 af;yes;PoE+;UPOE

• NVP value 68,2 %

• Resistance of loop 164 Ohm/km

• Resistance imbalance≤ 5 %

• Insulation resistance (500 V) ≥ 5000 MOhm/km

• Test voltage DC, 1 min 500 V

• Landing capacity 330 pF/km

• Separating class sec. EN 50174 - 2: C

• Attenuation coupling ≥ 50 dB

• Maximum frequency: 500 MHz

• Electrical wiring EN 50173 - 1 ;ISO/IEC 11801

• Installation standard EN 50174

• Harmonised standard EN 50575

• Directive/Regulation RoHS 2011 / 65 /EU; REACH 1907 / 2006 /EC

• IEEE 802.3 transmission standard from 10 Mbit to 10 Gbit

• IEC 61156 cable - 5

• Cable length in coil: 500 m

• Color: blue


Environmental features

• Operating temperature, - 20 ° – 60 °C

• Installation temperature 0 – 50 °C

Certifications

• CE

• RoHS


Package contents

• Cable mat Cat. 6 A rigid B 2 ca blue color ITP-C 6 A-RIS 500 UB 2 B
