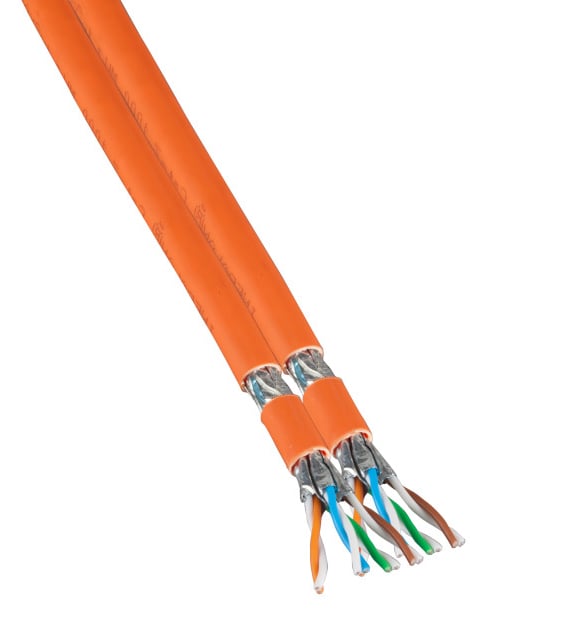

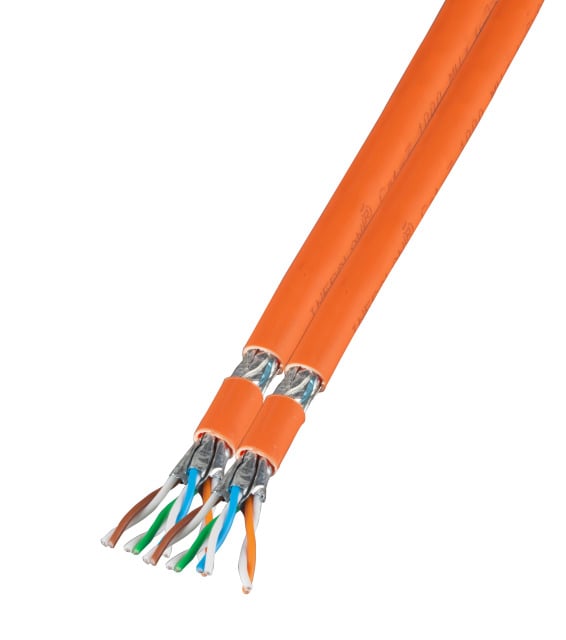

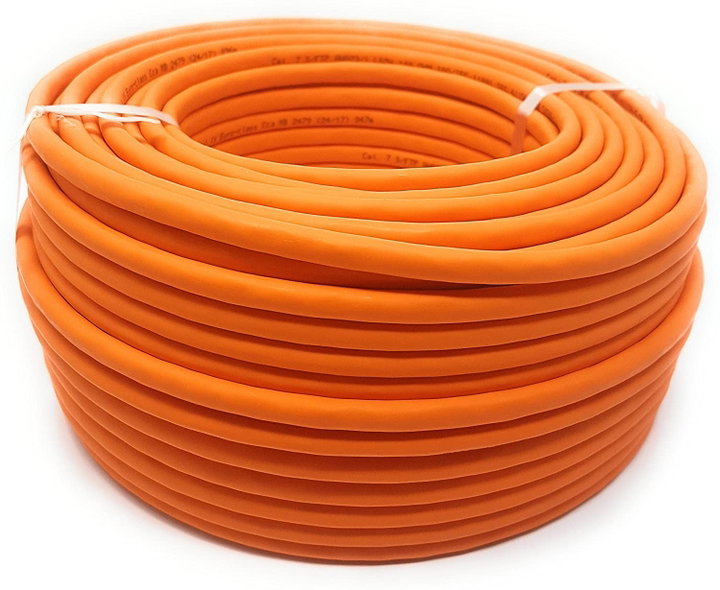

S/FTP Cable Cat 7 Copper Duplex 1000 MHz Dca 100 m Hard FRNC-B Orange - OEM ITP 10 -PIMF- 0100 DX

Cable for installation with rigid copper conductors, duplex, 2 x 4 x 2 xAWG 23 / 1 , for the use in structured wiring of buildings according to ISO/IEC 11801 or EN 50173 - 1 . Data cable for transmissions up to 1000 MHz, meets the requirements of category 7 with its own electrical transmission properties and allows transmission of network up to 10 GBit .

Nude copper conductor structure ø 0,56 mm (AWG 23), two braided wires to form a pair, 8 color coded wires according to TIA/EIA 568 C- 2 , pairs shielded by aluminium foil and total screen with copper braid.

Harmonised standard EN 50575 , halogen free according to EN 60754 and low smoke emission according to EN 61034 , self-extinguishing according to EN 60332 - 1 - 2 (FRNC-B), fire protection class Dca



Specifications

• Cable structure: S/FTP


• Category: 7


• Number of conductors: 2 x 8


• Cable type: duplex


• Conductor category: Kl. 1 = single wire


• Conductor material: copper, tinned


• AWG: 23 / 1


• Conductor diameter: 0,56 mm


• Approximate external diameter: 7,4 x 15,0 mm


• Screen on braiding: braid


• Threading elements: Pairs


• Total Tremble Screen: Sheet + braid


• Core insulation: PE foam-skin


• External sheath material: FRNC-B


• Euro class: Dca


• Fiamm delayr: acc. EN 60332 - 1 - 2


• NVP value: 76 %


• Frequency: 1000 MHz


• Cable-locking standards ISO/IEC 11801 ;EN 50173 - 1 ;EN 50288


• Harmonised standard: EN 50575


• Transmission standards: IEEE 802.3 from 10 Mbit to 10 Gbit, IEC 61156 - 5


• Length: 100 m


• Sheath color: orange



Certifications

• CE


• RoHS
