S/FTP Cable Cat 7 A Copper 1200 MHz B 2 ca 100 m Hard Orange - OEM ITP 10 -PIMF- 0100 B 2

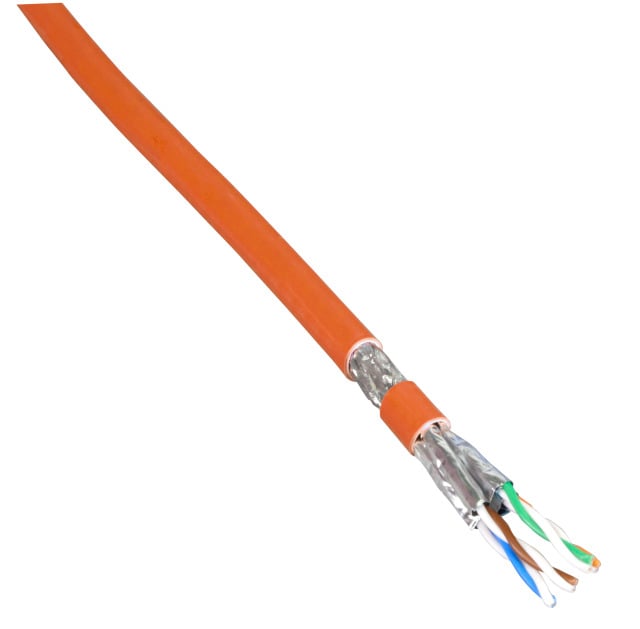

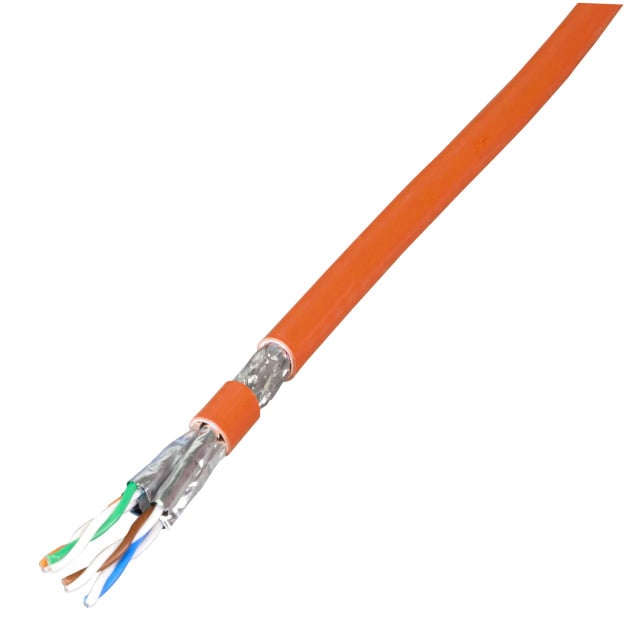

Data installation cable with solid copper conductors, simplex, 4x2xAWG22/1 for use in structured building cabling with channel classes E, EA, F and FA according to ISO/IEC 11801 or EN50173-1 as well as IEC 61156-5. Data cable for transmissions up to 1200MHz, meets category 7A requirements with its electrical transmission properties, enables data transmission up to 10GBit according to IEEE 802.3. Bare copper conductor structure ø 0,62 mm (AWG 22), two wires twisted to form a pair, 8 color-coded wires according to TIA/EIA 568 C-2, pairs shielded by aluminum foil and overall shield with copper braid to ensure maximum protection against interference.

Harmonised standard EN 50575 , halogen free according to EN 60754 - 2 and low smoke emission according to EN 61034 , self-extinguishing according to EN 60332 - 3 - 24 (FRNC-C), separation class D according to EN 50174 - 2 , fire protection class B 2 ca-s 1 a, d 1 , a 1



Specifications

• Cable structure: S/FTP


• Category: 7 A


• Number of conductors: 8


• Cable type: simplex


• Conductor category: Kl. 1 = single wire


• Conductor material: copper, tinned


• AWG: 22 / 1


• Conductor diameter: 0,62 mm


• Approximate external diameter: 8.4 mm


• Screen on braiding: braid


• Bending radius (dynamic): 8 x OD


• Bending radius (static): 4 x OD


• Threading elements: Pairs


• Total Tremble Screen: Sheet + braid


• External sheath material: FRNC


• Euro class: B 2 ca


• Fiamm delayr: EN 60332 - 1 compliant


• Halogen free: conforme EN 60754 - 1 / 2


• Low smoke emission: EN 61034 - 2 compliant


• Working temperature, flexible: - 20 – 50 °C


• Operating temperature, fixed: - 20 – 60 °C


• Storage temperature: 0 – 50 °C


• NVP value: 78 %


• Loop strength: 143,4 Ohm/km


• Separation class according to EN 50174 - 2 : D


• Coupling attenuation class: type 1


• Coupling relaxation: 90 dBMax.


• Frequency: 1200 MHz


• Wiring standards: ISO/IEC 11801 and EN 50173 - 1 ;EN 50288


• Harmonised standard: EN 50575


• Transmission standards: IEEE 802.3 from 10 Mbit to 10 Gbit; IEC 61156 - 5

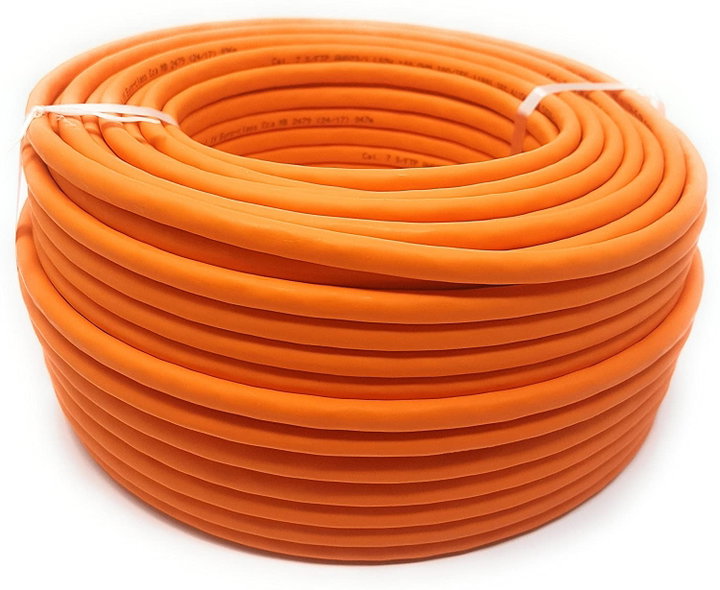

• Length: 100 m


• Sheath color: orange



Certifications

• CE


• RoHS
