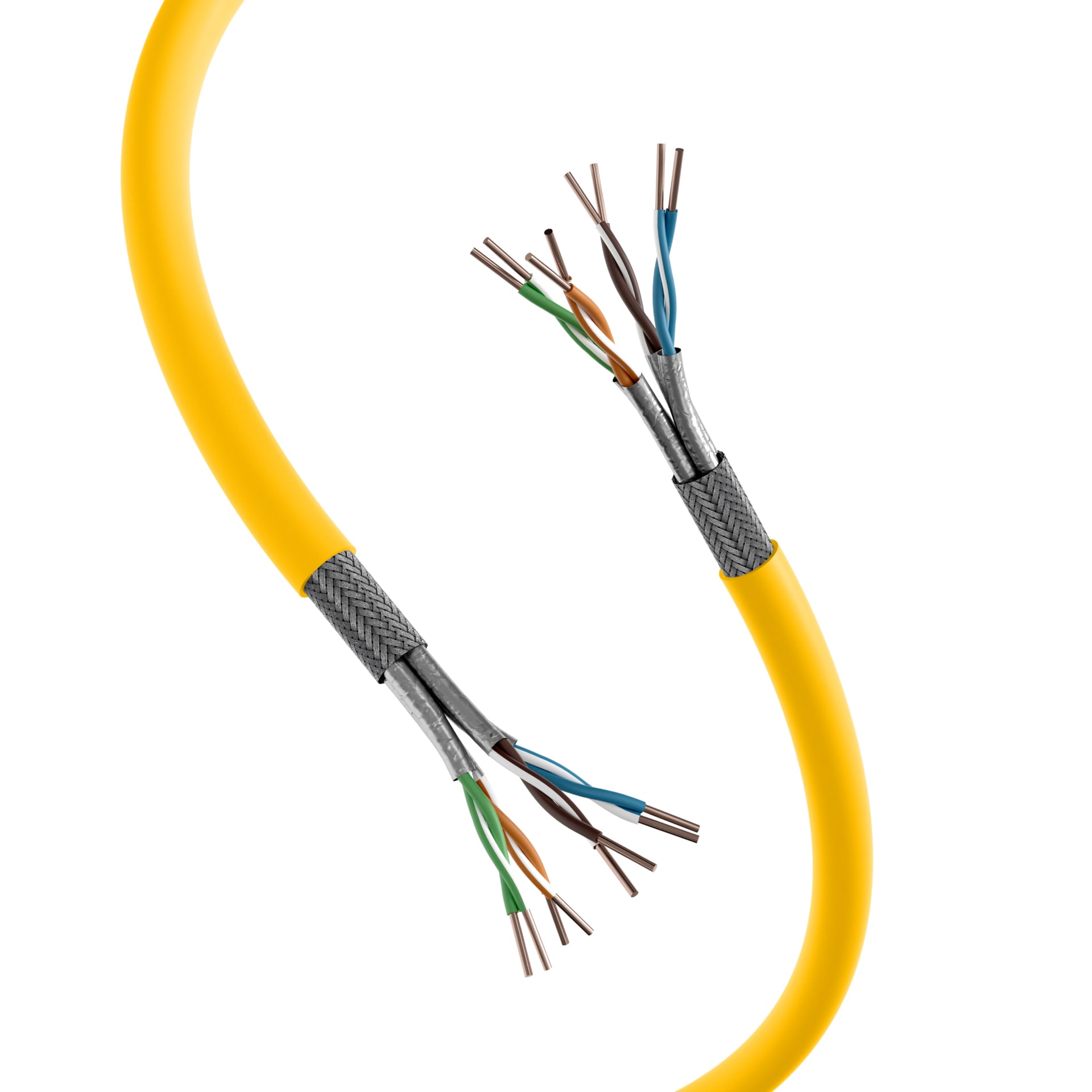

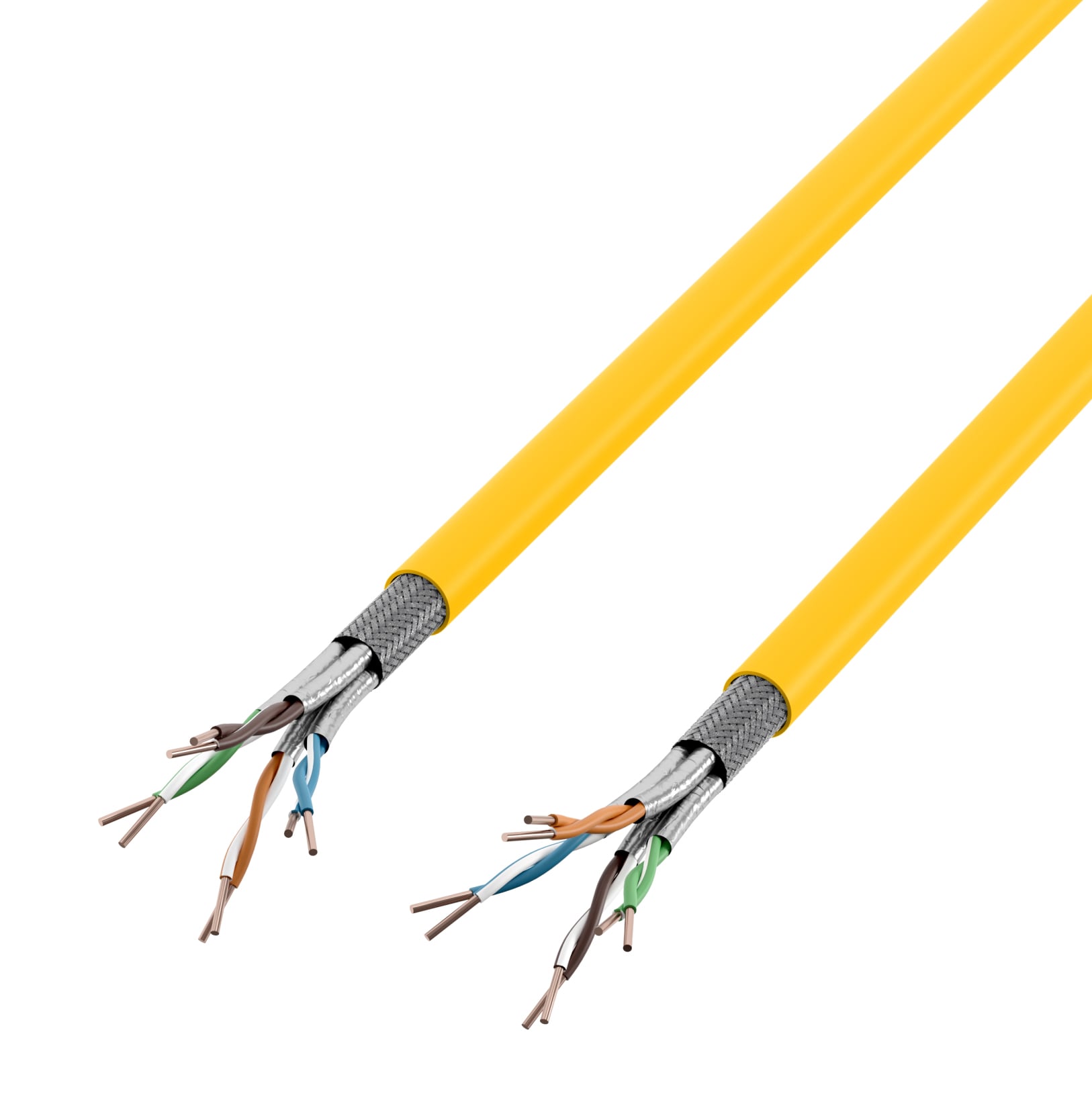

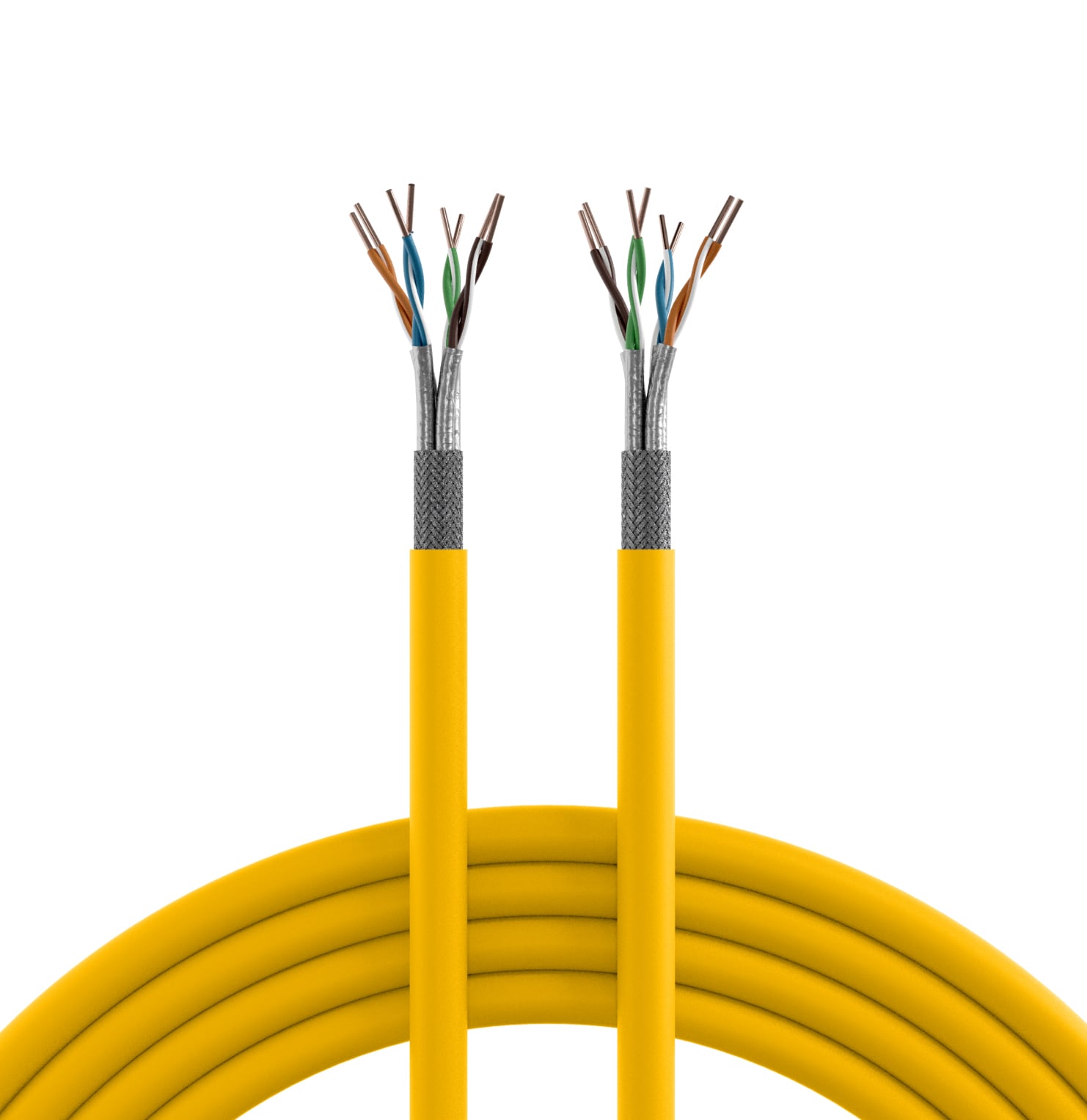

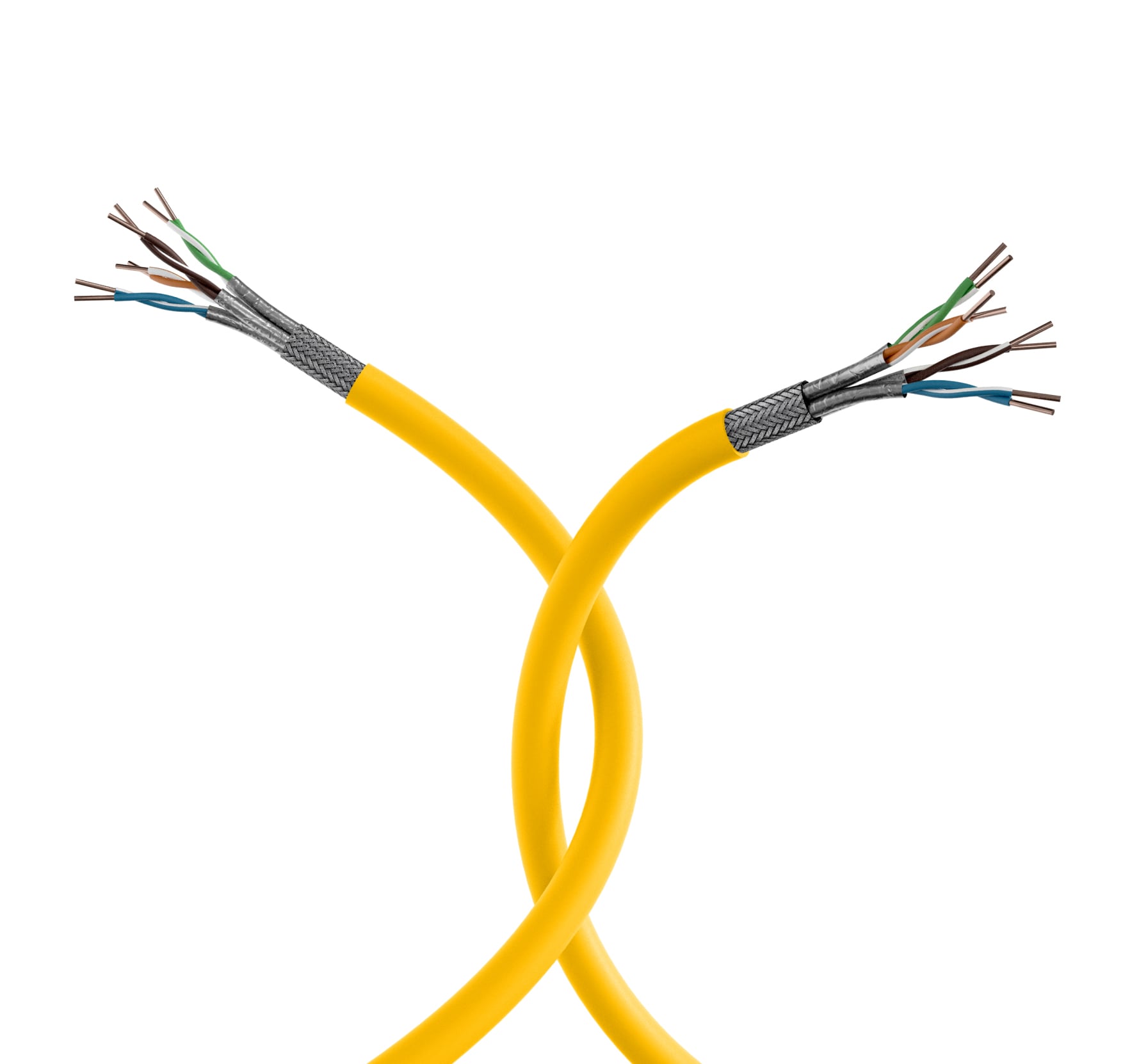

Matassa S/FTP Cat cable 8.2 Copper 2000 MHz Dca 100 m Hard LSZH Yellow - ITP 82 -PIMF- 0100

€279.31
Tax included €228.90 excl. VAT

Installation cable Cat. 8.2 S/FTP, 100 meters, conductor AWG 22 / 1 . Transmission up to 2000 MHz, sheath LSZH, Euroclass Dca.



Return policy



Delivery policy



Direct contact for info



Secure Payment

The installation cable ITP 82 -PIMF- 0100 è built for transmissions up to 2000 MHz and exceeds the requirements of category 8 and lower with the electric transmission properties.

With this è cable you can reach transmission speed à up to 40 GBits IEEE 802.3 .

Application: Primary (campus), Secondary (lifted), Tertiary (horizontal).



Technical specifications

  • Bending radius (dynamic) 8 x OD

  • Bending radius (static) 4 x OD

  • S/FTP cable shielding

  • Category 8.2

  • Conductor category Kl. 1 = single wire

  • CU conductive material, tinned

  • Size/quantità core AWG 22 / 1

  • Conductor diameter 0,64 mm

  • Screen on braided braid

  • Pair of stranded elements

  • Screen on cording element

  • PE foam-leather insulation core

  • Core Identification Color

  • External sheath material FRNC-C

  • Euroclass Dca

  • Flame retardant cc. EN 60332 - 3 - 24

  • Without halogens acc. EN 60754 - 1 / 2

  • Low smoke acc. EN 61034 - 2

  • PoE acc. a IEEE 802.3 a

  • NVP value 73 %

  • Resistance of 130 Ohm/km

  • 1 resistance imbalance %

  • Insulation resistance (500 V) ≥ 5000 MOhm/km

  • Test voltage DC, 1 min 1000 V

  • Capacity & agrave; Earth nom. 43 nF/km

  • 100 impedance ± 5 Ohm

  • Late inclination 20 ns/ 100 m

  • Transfer impedance at 1 MHz 5 mOhm/m

  • Transfer impedance at 10 MHz 5 mOhm/m

  • Transfer impedance at 30 MHz 10 mOhm/m

  • Transfer impedance at 100 MHz 20 mOhm/m

  • Separating class sec. EN 50174 - 2 D

  • Type of coupling mitigation Type 1

  • Pairing Attenuation 85 dB

  • Maximum frequency 2000 MHz

  • Electrical wiring EN 50173 - 1 ;ISO/IEC 11801

  • Harmonised standard EN 50575

  • Transmission standard IEEE 802.3 10 Mbit bis 40 Gbit

  • IEC 61156 - 5 ;EN 50288 - 9 - 1



Environmental features

  • Operating temperature: 0 – 50 °C

  • Storage temperature: - 20 – 60 °C



Certifications

  • CE

  • RoHS



Package contents

  • ITP 82 cable skein -PIMF- 0100

  • Brand
  • Reference
    ITP82-PIMF-0100
  • In stock
    2 Items
  • EAN13
    4049759264581
