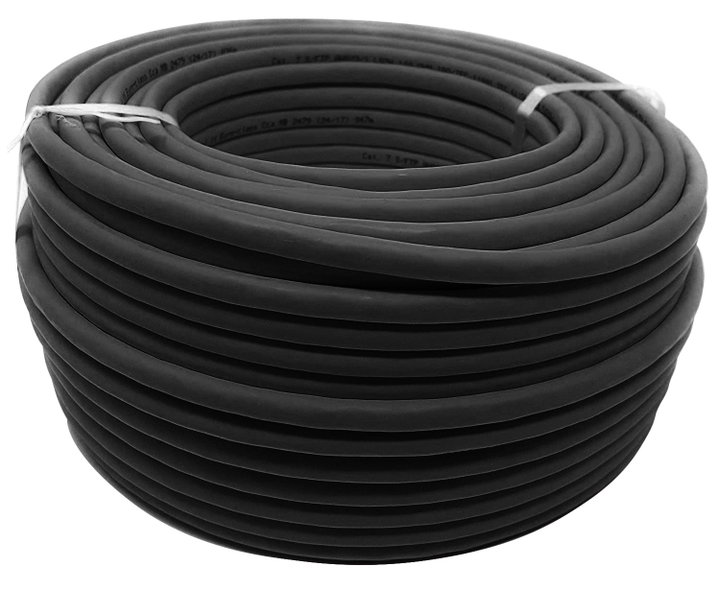

S/FTP Cat Cable 7 Outdoor Copper 100 m Hard Black - OEM ITP 10 -PIMF- 0100 PE

The Cat. 7 S/FTP cable from inside/outside è characterized by the construction of the cable 4 x 2 xAWG 23 / 1 and reaches a frequency of transmission up to 1200 MHz. It has an outer sheath in PE and an inner sheath free of halogens and è conform to the standard IEC 60332 - 1 and to the Regulation on construction products (BauPVO) Euroclass Dca.

The è cable is suitable for installation in dry or humid environments, outdoor or underground. It complies with ISO/IEC 11801 , DIN EN 50173 , DIN EN 50288 - 4 .



Features

• UV-resistant


• Bending radius (dynamic) 8 x OD


• Bending radius (static) 7 x OD


• Shielding class: S/FTP (PiMF)


• Specification: CAT 7


• Conductor category Class 1 : rigid


• Internal conductor material: copper


• AWG: 23 / 1


• Conductor diameter: 0.56 mm


• Outer sheath material: PE + LSZH


• Flame retardant: acc. EN 60332 - 1 ;acc. IEC 60754 - 2 ;acc. IEC 61034


• Without halogens: EN 60754 - 1 / 2 ;acc. EN 60754


• Low smoke emission: EN 61034


• impedance: 100 ± 15 Ohm


• Maximum frequency: 1200 MHz


• Transmission standard: IEEE 802.3 10 Mbit to 10 Gbit


• Cable: EN 50288 - 4 - 1 ;IEC 61156 - 5


• CPR (EU 305 / 2011) class DCA - EN 50575 : 2014 +A 1 : 2016



Environmental features

• Operating temperature: - 20 - 70 °C


• Operating temperature: 0 - 50 °C



Certifications

• CE


• RoHS



Package contents

• ITP 10 cable mat - PIMF- 0100 PE
