- Extends an existing PoE connection beyond the limit of 100 m
- Saves time and money by providing data and current via existing network cables
- It allows to cover higher distances by putting multiple PoE extender in cascade (model 561211)
- It can be cascaded up to four PoE extenders up to a distance of 500 m
- Supports speed à data transmission 10 / 100 / 1000 Mbps and offers up to 25 W for a connected PoE device
- The PoE function ensures that the power supply is sent only to IEEE 802.3 af/at compatible devices; non-PoE devices receive only data
- Does not require additional power supply; calls the power directly from the PoE input
- Compatible with IEEE 802.3 at/af (PES) compliant POE injectors and switches
- Compatible with IEEE 802.3 at/af compliant powered peripherals (PD)
- Fanless design ideal for quiet operation
- Compact aluminium structure
- IP 65 - waterproof and dust protected
- Mounting holes for wall mounting
Standards- IEEE 802.3 af (Power over Ethernet)
- IEEE 802.3 at (ad alta potenza PoE+ Power over Ethernet)
- IEEE 802.3 (Ethernet 10 Base-T)
- IEEE 802.3 ab (Gigabit Ethernet)
- IEEE 802.3 u (100 Base-TX Fast Ethernet)

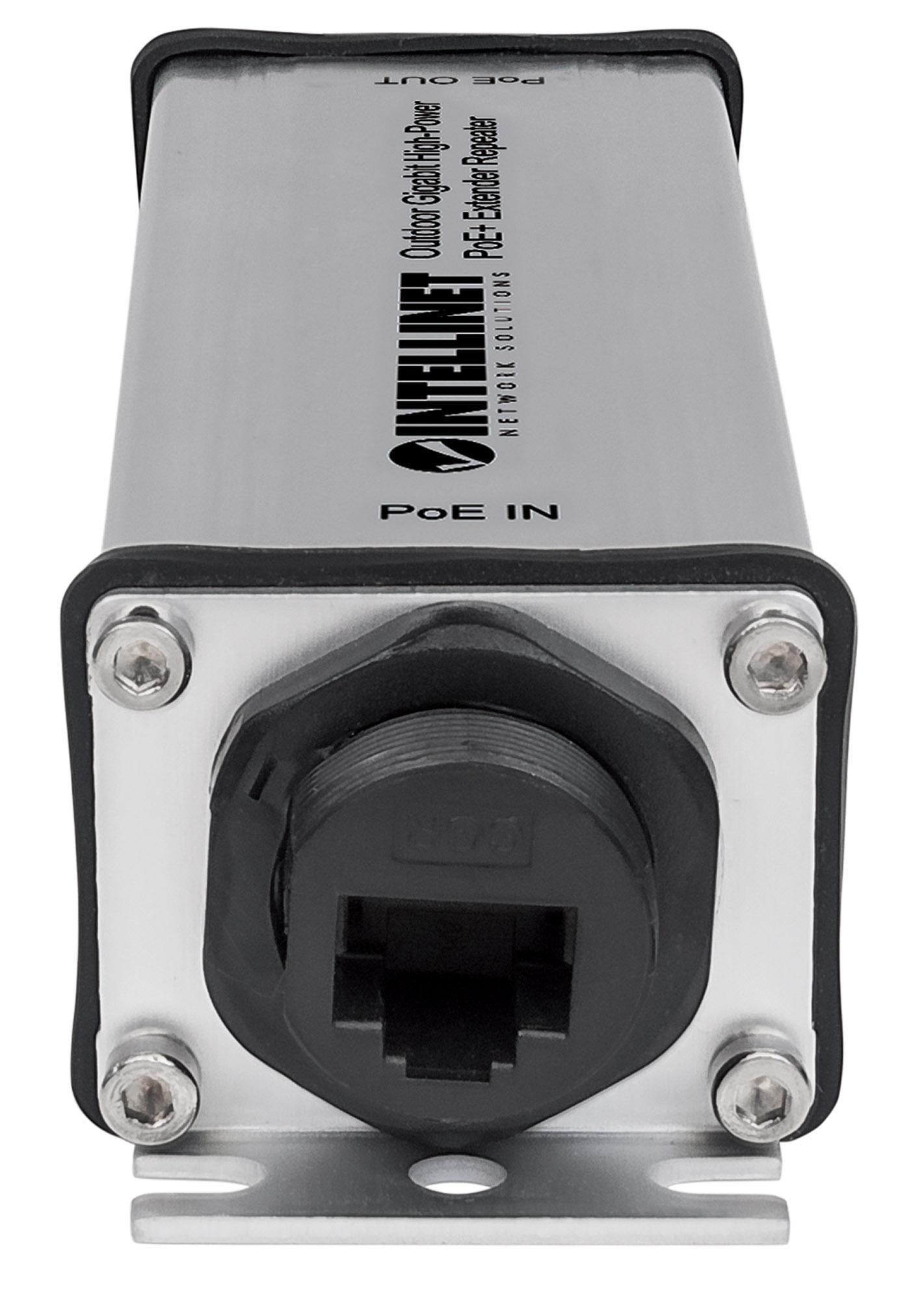

General - An input port RJ 45 10 / 100 / 1000 Mbps for 48 V compatible IEEE 802.3 af/at
- An output door RJ 45 10 / 100 / 1000 Mbps PoE
- Certifications: FCC Class B, EC
Feeding- Maximum output PD current: 25 W max
- Maximum consumption: 4 W
- Power input: IEEE 802.3 af/at compatible PSE
- PoE Pinout Input:
- IEEE Alternative A (pairs 1 / 2 and 3 / 6)
- IEEE Alternative B (pairs 4 / 5 and 7 / 8)
- IEEE Alternative A (pairs 1 / 2 and 3 / 6)
Environmental information- Metal housing: IP 65
- Dimensions: 102.8 (L) x 31 (P) x 20 (A) [mm]
- Weight: 0.13 kg
- Operating temperature: - 40 - 75 °C

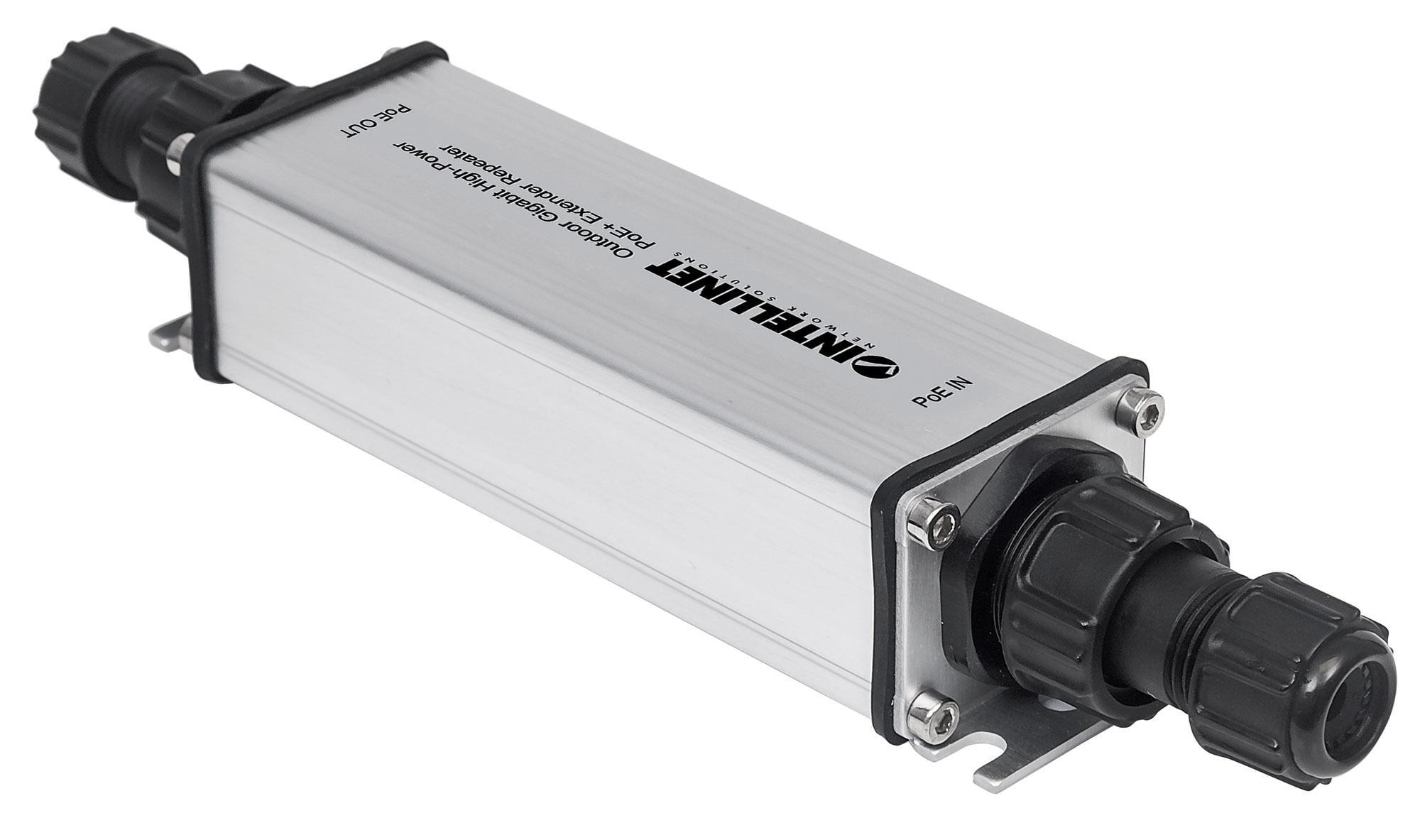

Package contents- Extender Repeater PoE+ Gigabit ad alta potenza for Outdoor
- Instructions manual
