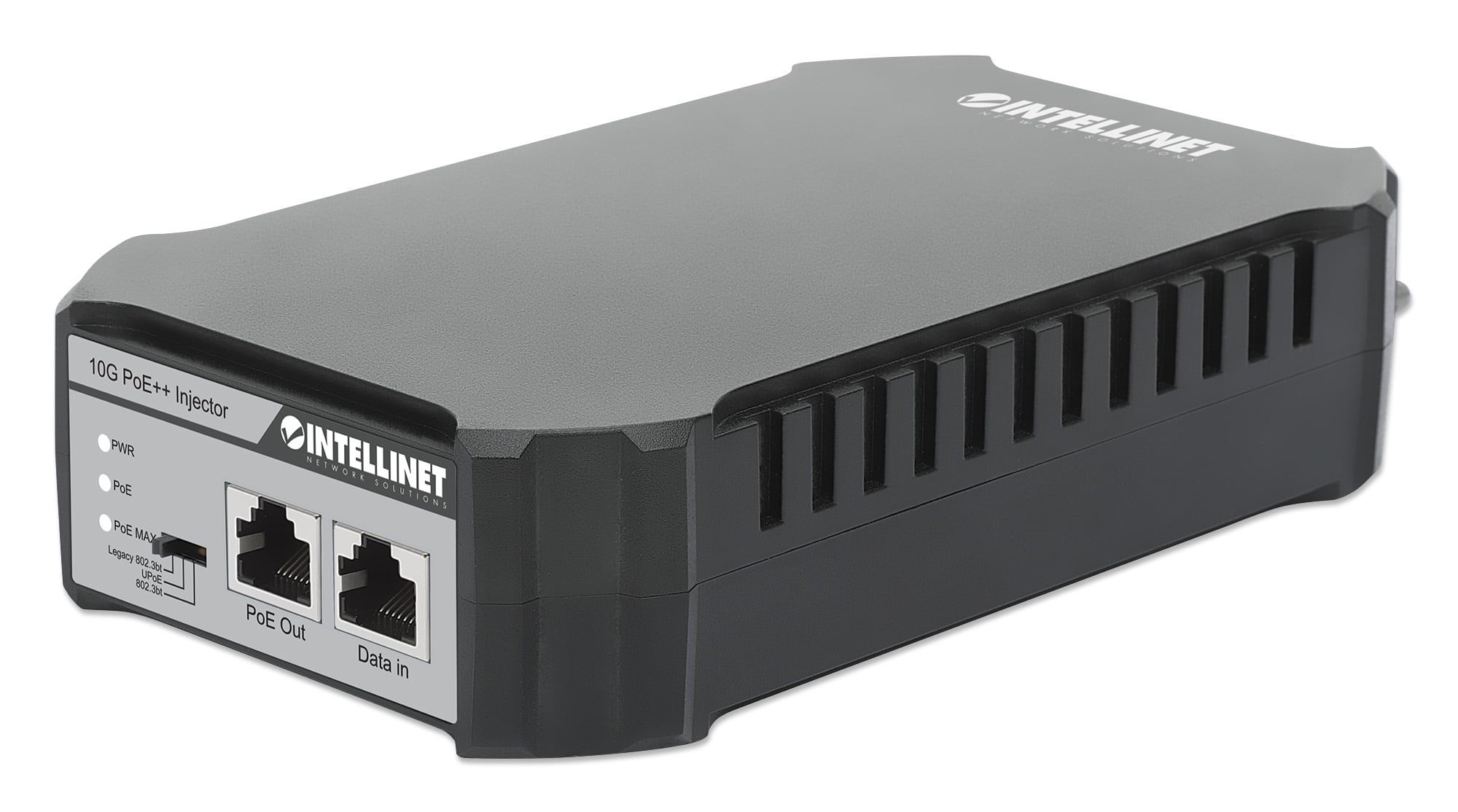

PoE++ injector 10G - Intellinet I-SWHUB POE-10G

• Power over Ethernet with output up to 95 watts


• RJ45 10GBASE-T Ultra-fast Ethernet port, compliant with IEEE 802.3bz


• Compatible with powered devices (PD) compliant with IEEE 802.3bt/at/af such as network cameras, wireless access points, VoIP phones and more


• Supports distance up to 100 m


• Internal power supply


• Auto-sensing PoE with automatic detection to ensure power is sent only to devices compliant with IEEE 802.3bt/at/af; non-PoE devices receive data only


• Short circuit, overload, and high voltage protection

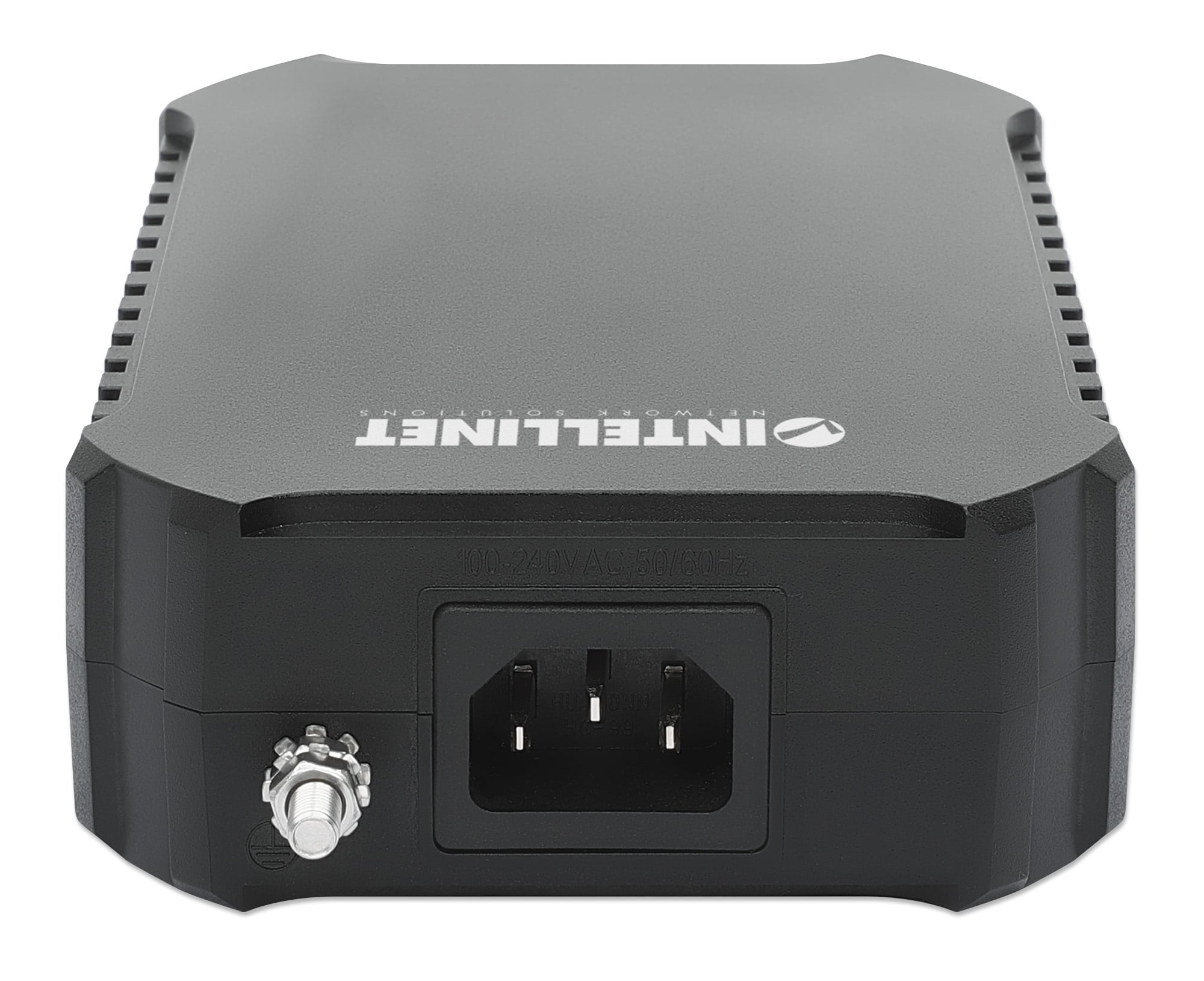

• Equipped with grounding to protect the equipment from external electrical surges


• Surge protection up to 4 kV per port


• ESD protection up to 8 kV (air) and 6 kV (contact)

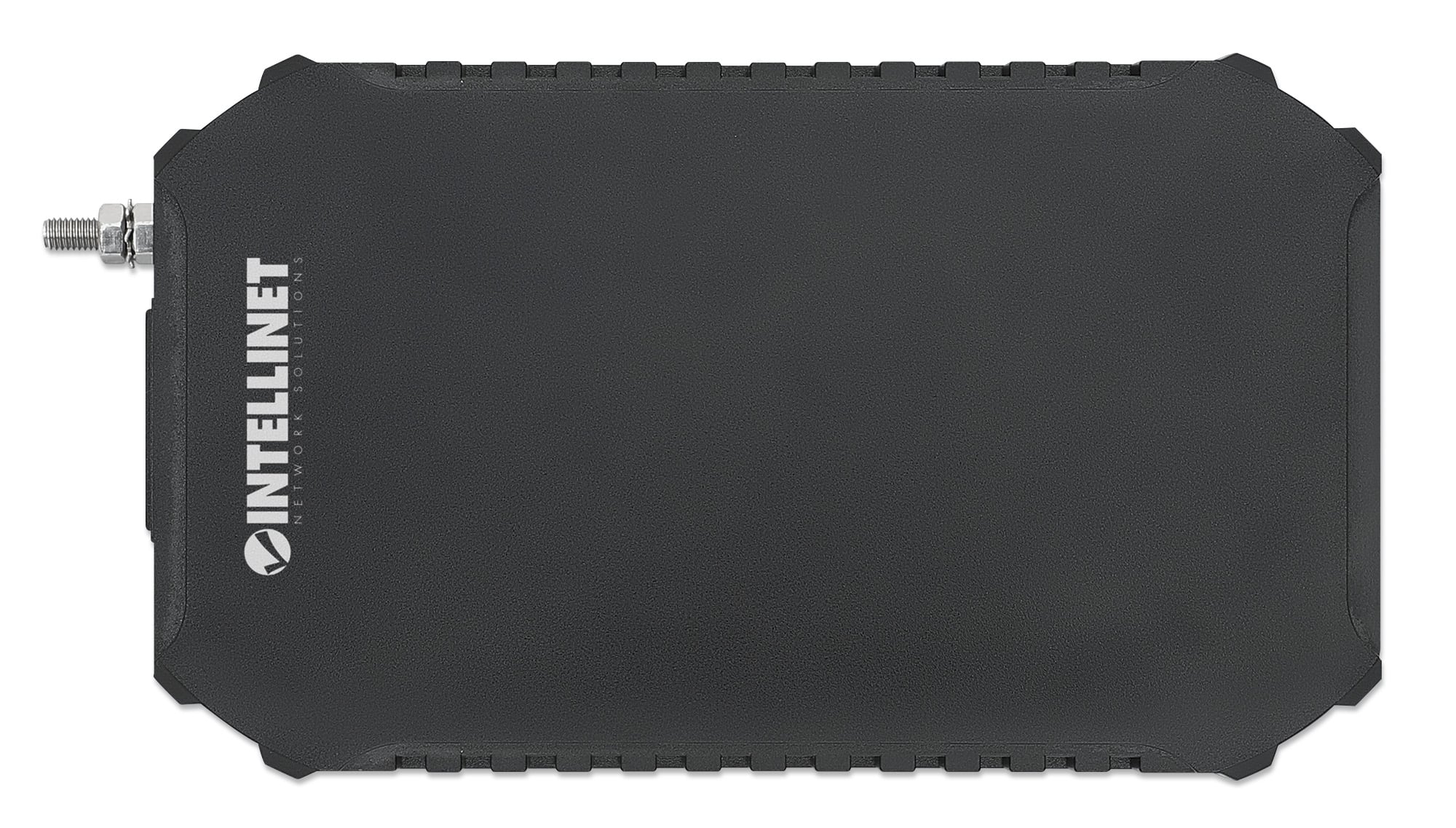

• Mounting holes for wall installation


• Includes grounding kit


• Ideal for IoT devices that require plenty of power such as motorized IP cameras, thin clients, PoE lighting and more


• Save time and money with a system that provides data and power using existing network cables


• Plug-and-play installation; no configuration required



Standard

• IEEE 802.3af (Power over Ethernet)


• IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)


• IEEE 802.3bt Type 4 (PoE++/4PPoE Power over Ethernet)


• IEEE 802.3 (Ethernet 10Base-T)


• IEEE 802.3u (100Base-TX Fast Ethernet)


• IEEE 802.3ab (1000BASE-T Gigabit Ethernet)


• IEEE 802.3bz (2.5G/5G/10GBASE-T Ethernet)



General information

• Media support:



- 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45

- 100Base-TX Cat5/5e/6/6a UTP/STP RJ45

- 1000Base-T Cat5e/6/6a UTP/STP RJ45

- 2.5G/5GBase-T Cat5e/Cat6/6a UTP/STP RJ45

- 10GBase-T Cat6/6a or higher UTP/STP RJ45

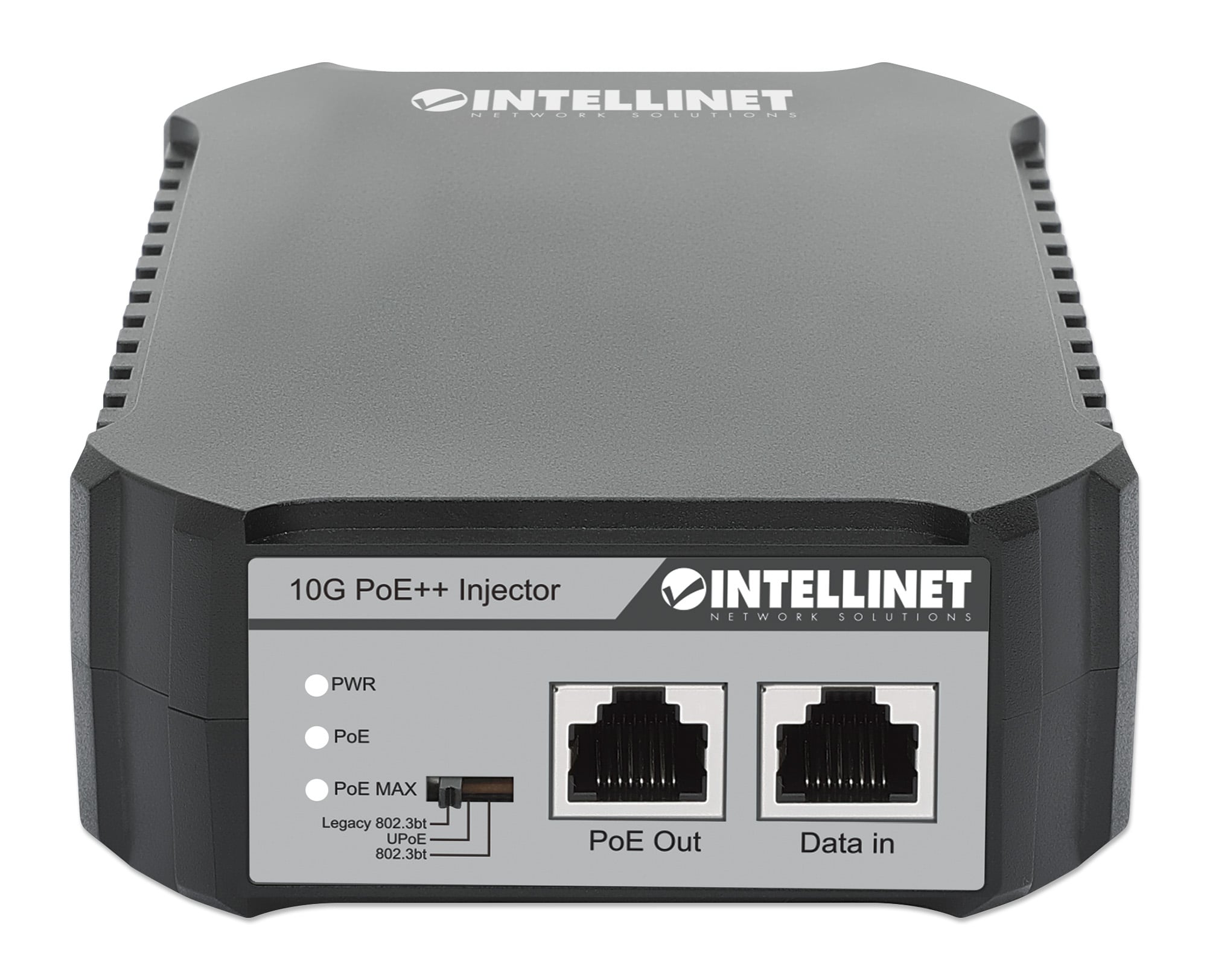

• Ports:



- One RJ45 10G data input port

- One RJ45 PoE power + data output port 10G



Certifications

• CE


• RoHS


• FCC Class A


• UKCA



Pinout PoE

- Pin 1: DC (-)

- Pin 2: DC (-)

- Pin 3: DC (+)

- Pin 4: CC (+)

- Pin 5: CC (+)

- Pin 6: DC (+)

- Pin 7: CC (-)

- Pin 8: CC (-)

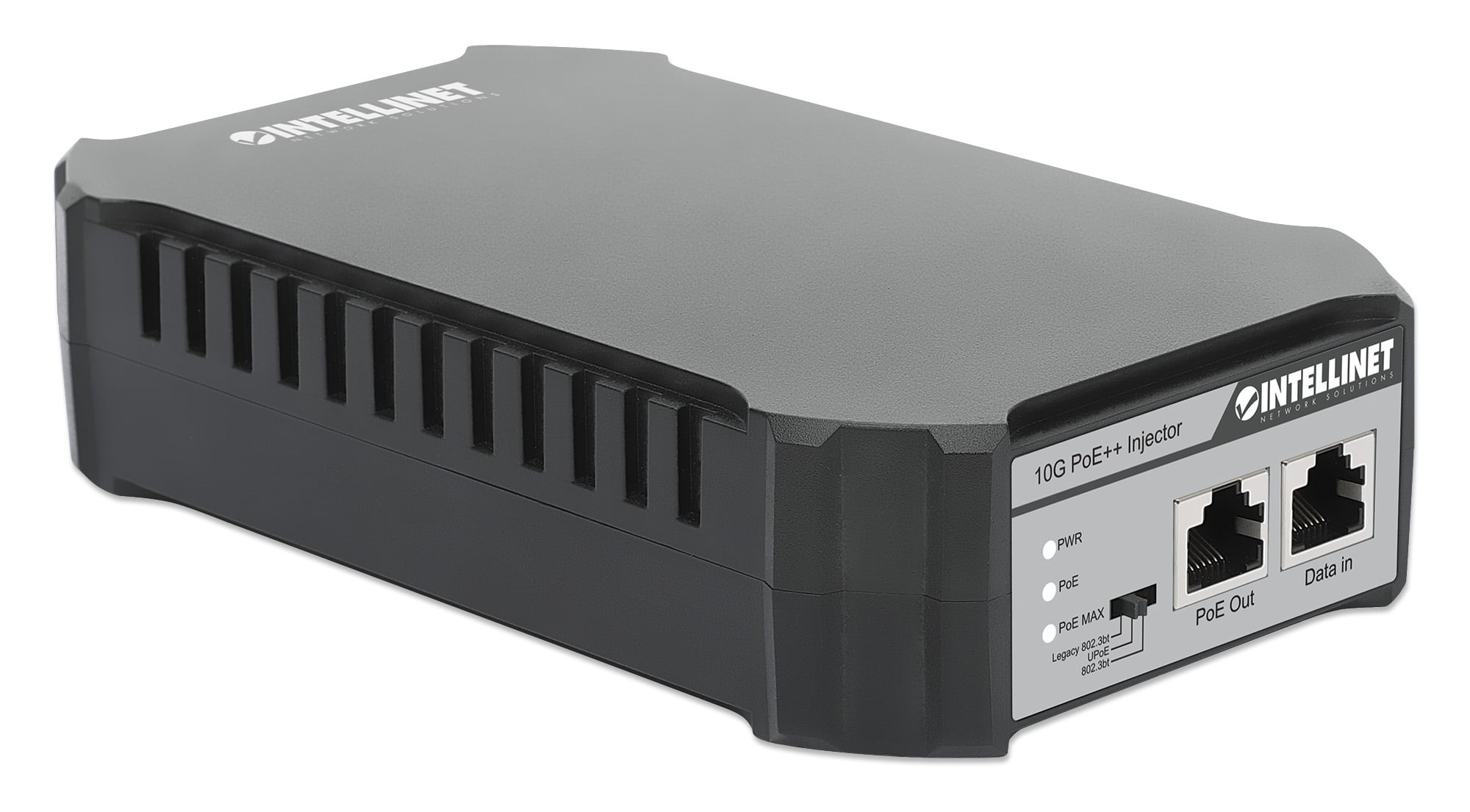

LED

• Power


• PoE


• PoE max

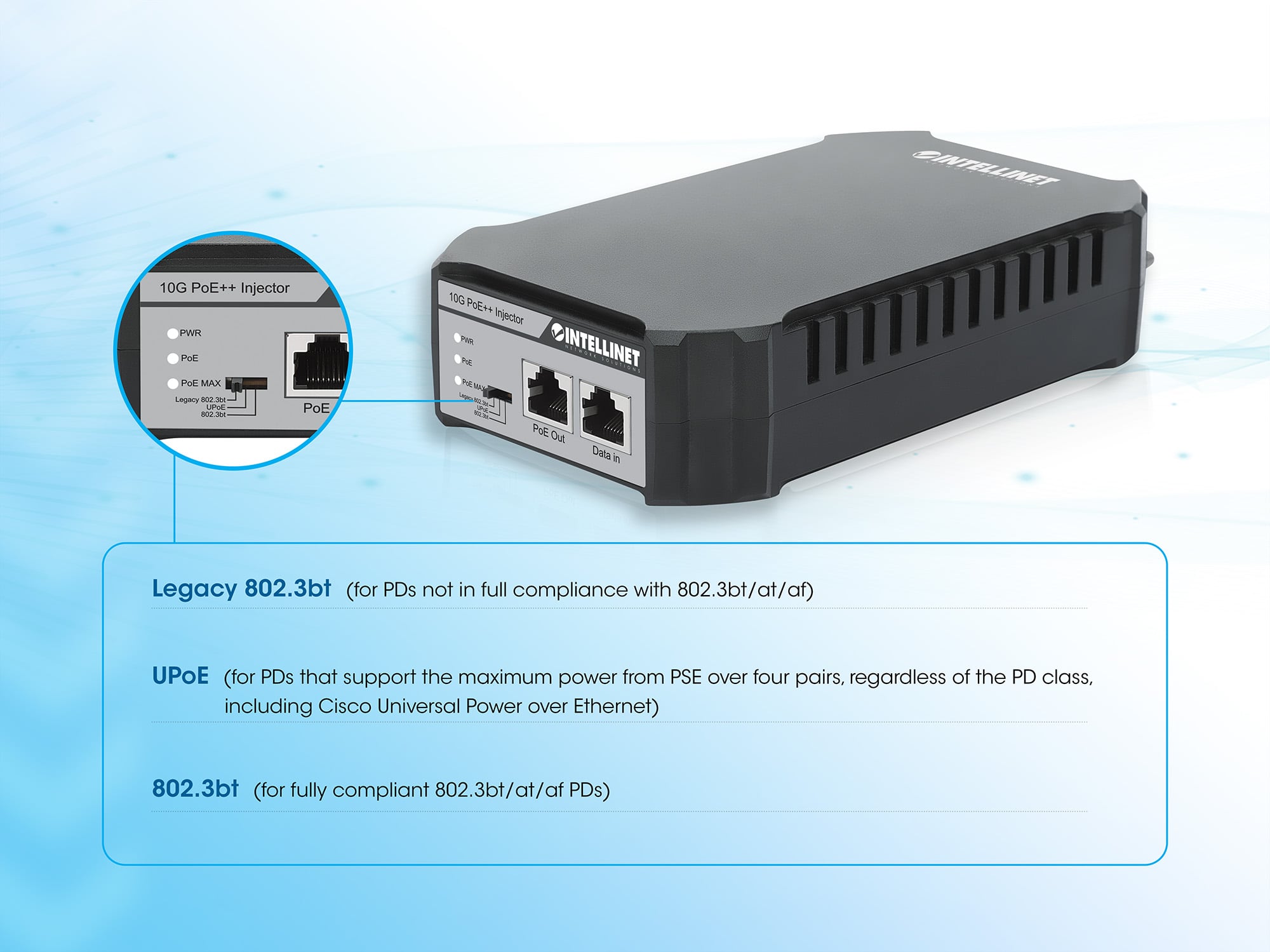

DIP switch functions to select the PoE standard of the connected PD:

• 802.3bt (for fully compliant 802.3bt/at/af PDs)


• UPoE (for PDs that support maximum power from PSE on four pairs, regardless of PD class, including Cisco Universal Power over Ethernet)


• Legacy 802.3bt (for PDs not fully compliant with 802.3bt/at/af)



Power

• Internal power supply:



- Input: 100.0 - 240.0 VAC, 50 - 60 Hz

- Output: DC, 54.0 V, 1.76 A

- PoE Budget: 95.0 watts (maximum)

- Consumption: 100.0 watts (maximum)



Physical information

• Plastic housing


• Dimensions (D x W x H): 172 x 100 x 40 mm


• Net weight: 500 g


• Gross weight: 877 g


• Operating temperature: from 0 to 40°C


• Storage temperature: -⁠40 to 70°C


• Operating humidity: 10 - 90% RH, non-condensing


• Storage humidity: 5 - 90% RH, non-condensing



Package contents

• PoE++ Injector 10G


• Power cable


• Grounding kit


• Instructions
