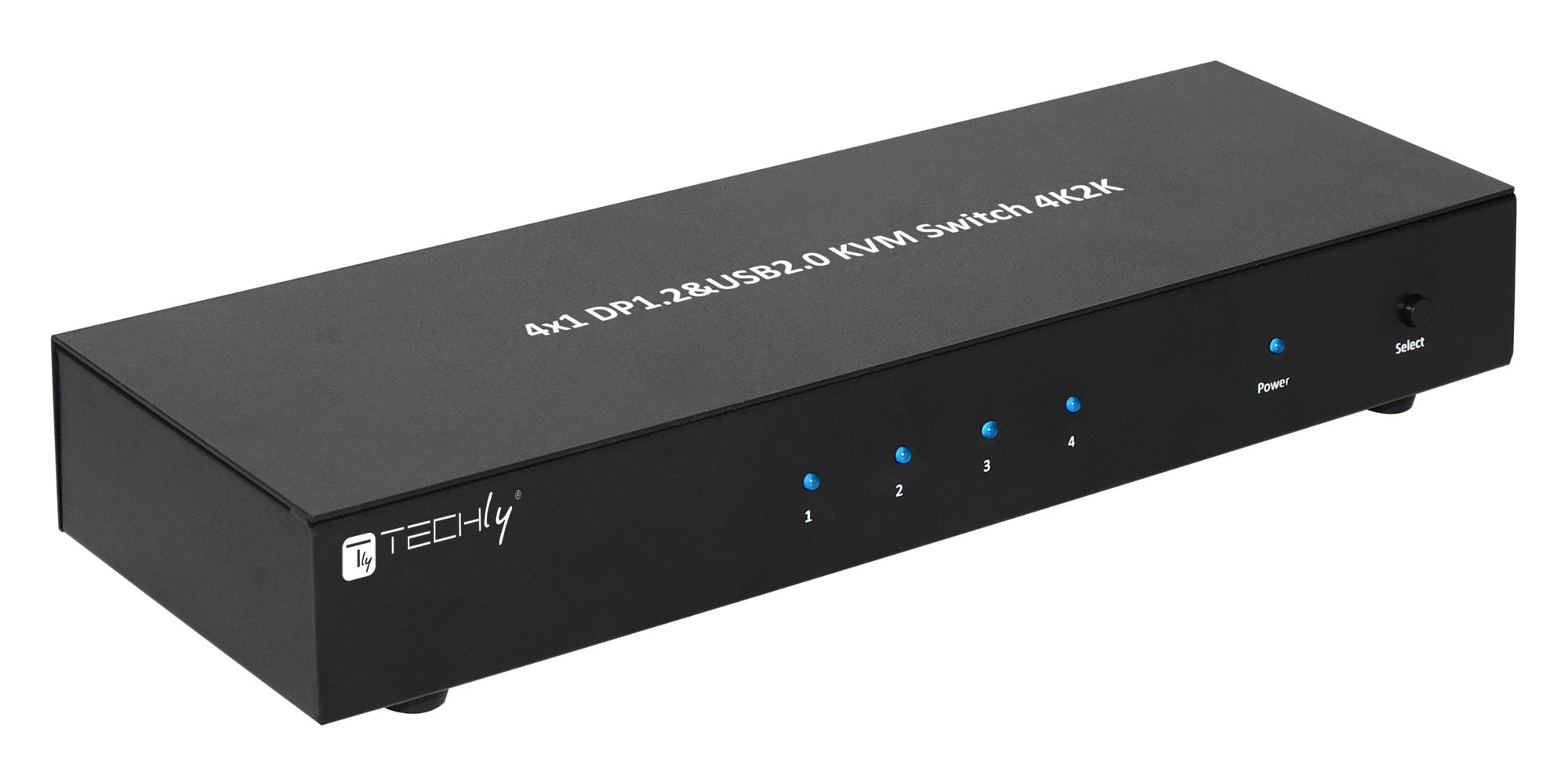

Switch KVM DisplayPort 1.2 and USB 2.0 4 ports with hub and audio - Techly IDATA DP-KVM 4

This 4 x 1 DP&USB KVM Switch allows you to share a screen, keyboard and USB mouse with audio and microphone between two DP and USB computers. It is equipped with two extra USB 2.0 ports with detection and protection from power peaks to connect two additional peripherals. It supports video resolution up to 4096 * 2160 @ 60 Hz with video link rates up to 21.6 Gbps and audio formats Dolby True HD and DTS HD Master Audio. It is also characterized by a metal housing for better shielding against electromagnetic interference and allows the user to switch the device using the front button of selection or through hotkey. It is fully compatible with a wide range of Windows and Mac operating systems.



Features

• Switch KVM DisplayPort 1.2 and USB 2.0 4 ports with hub and audio

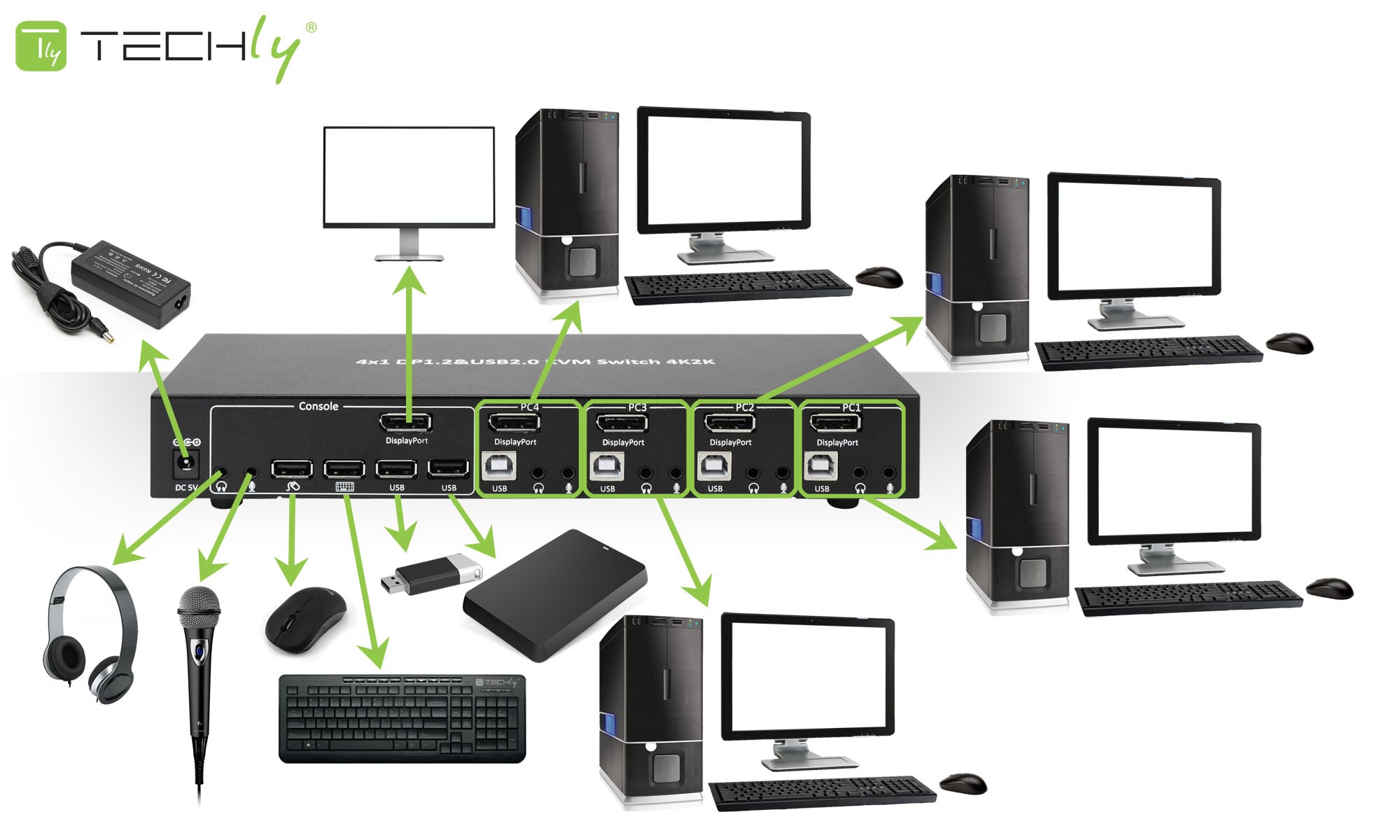

• KVM switch can handle four computers through a DisplayPort monitor, USB keyboard, USB mouse and other connected USB 2.0 devices

• DisplayPort 1.2 Conform

• The built-in USB hub 2.0 offers the possibility to share two USB devices

• Supports video resolution up to 4096 * 2160 @ 60 Hz with video link rate up to 21.6 Gbps

• Supports Dolby True and DTS HD Master Audio audio formats

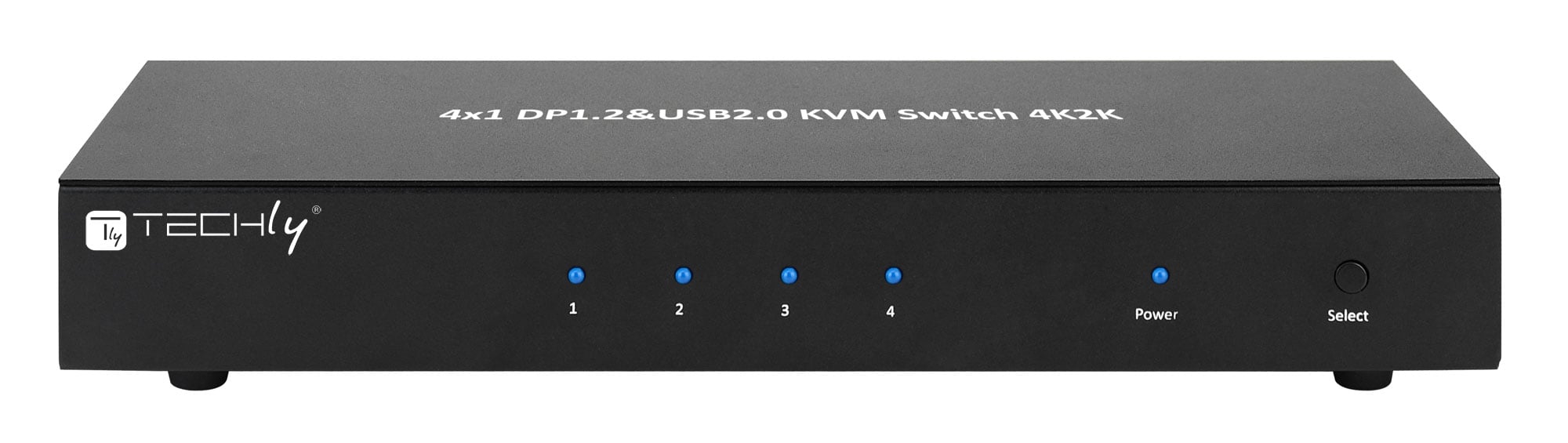

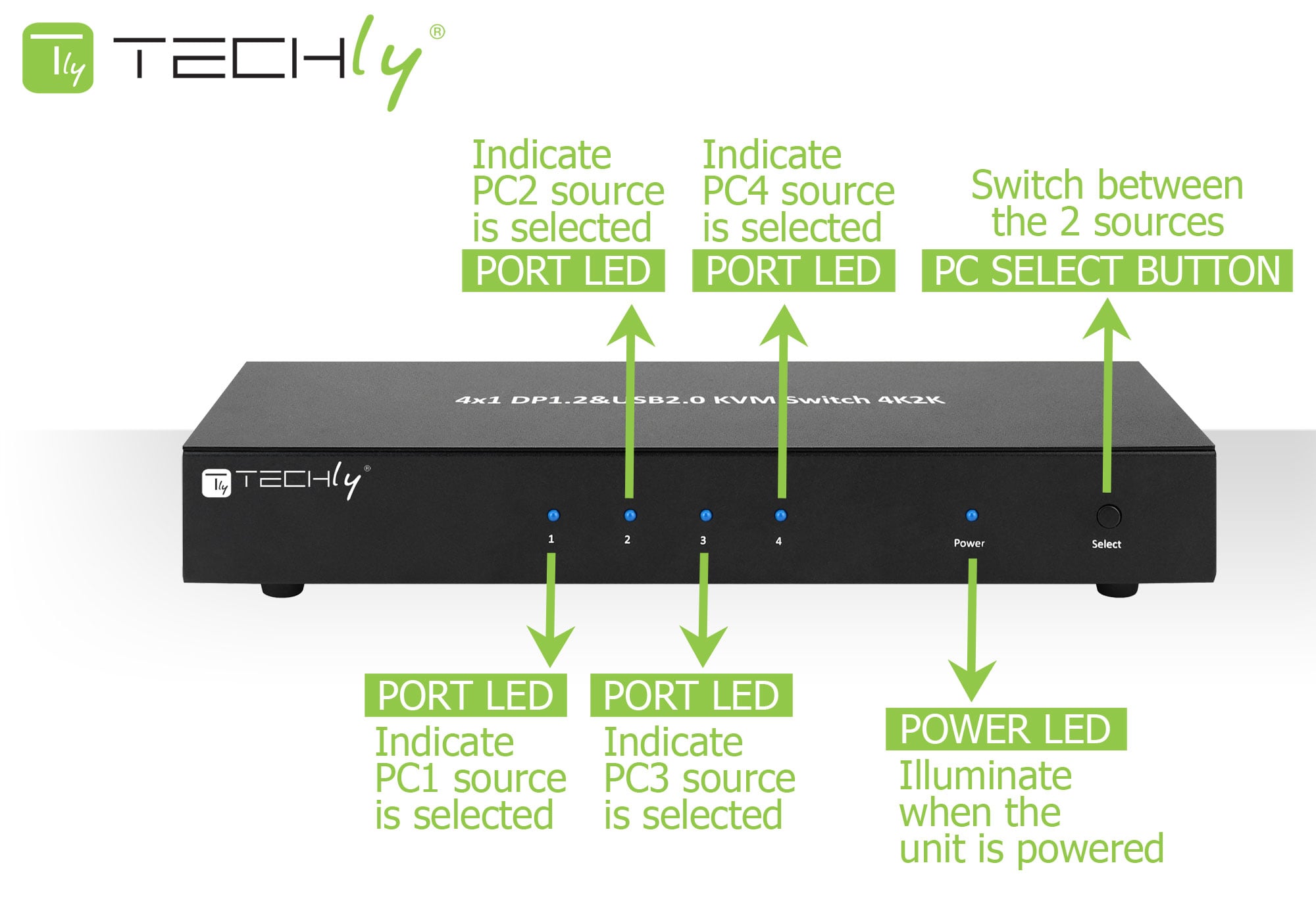

• Switch between the devices via button on the device or via hotkey

• Housing: metal

• Color: black


Technical specifications

• Switch KVM DP&USB 4 x 1 compliant DP v 1.2 , saves costs for additional equipment and reduces occupied spaces

• Allows you to share a screen, keyboard and USB mouse with audio and microphone between 4 USB/DP computers and USB devices*

• Integrate a USB hub to 2 USB ports 2.0 with overvoltage detection and protection

• Switch between the devices via button on the device or via hotkey

• Supports Dolby True and DTS HD Master Audio audio formats

• Metal housing for better shielding

• At least one of the connected peripheral 4 must be a PC with USB port otherwise the switching mechanism will not work


Requirements

• Computer with Windows, Mac, Linux

• Game consoles, Blu-Ray DVD players and other consumer electronics products

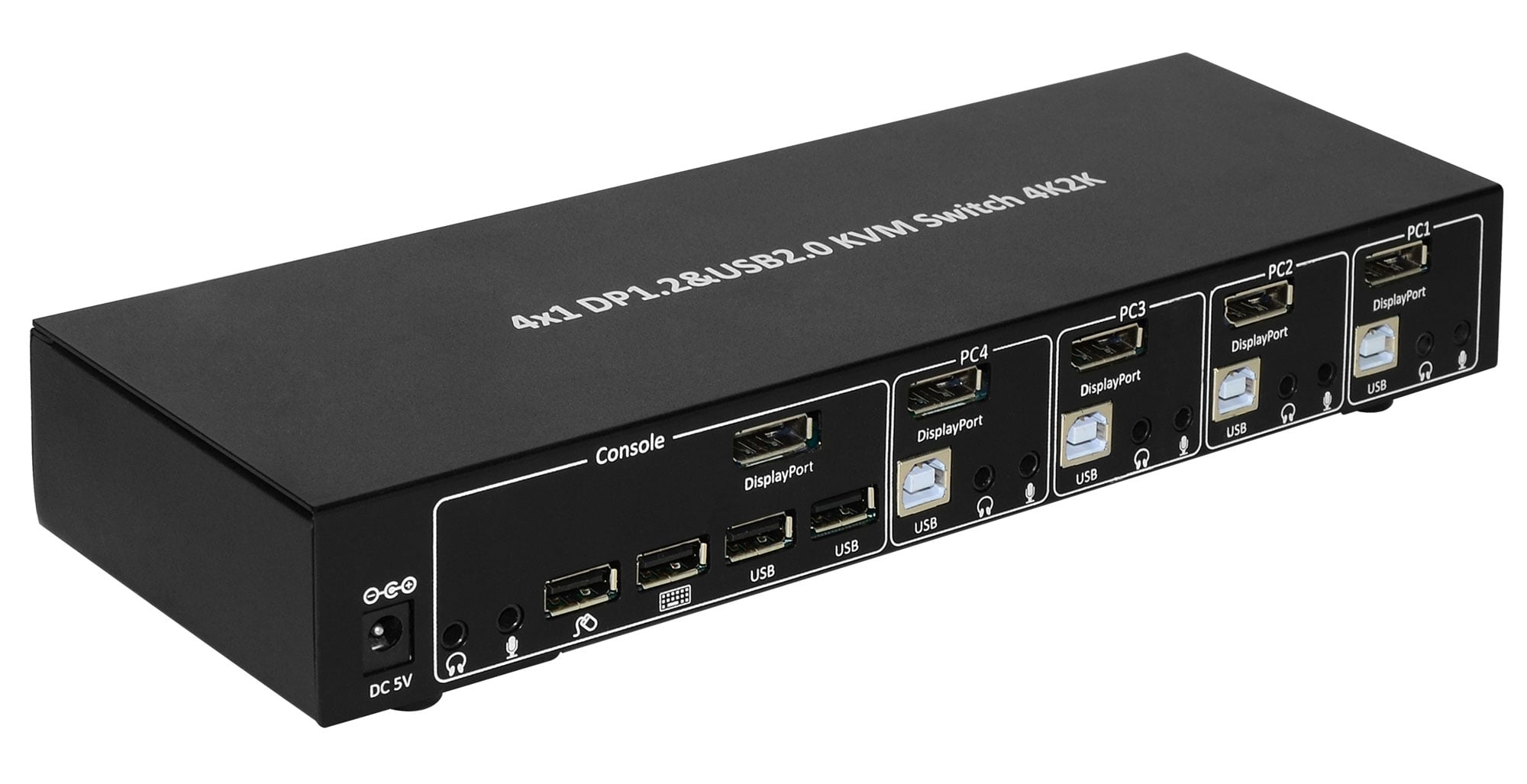

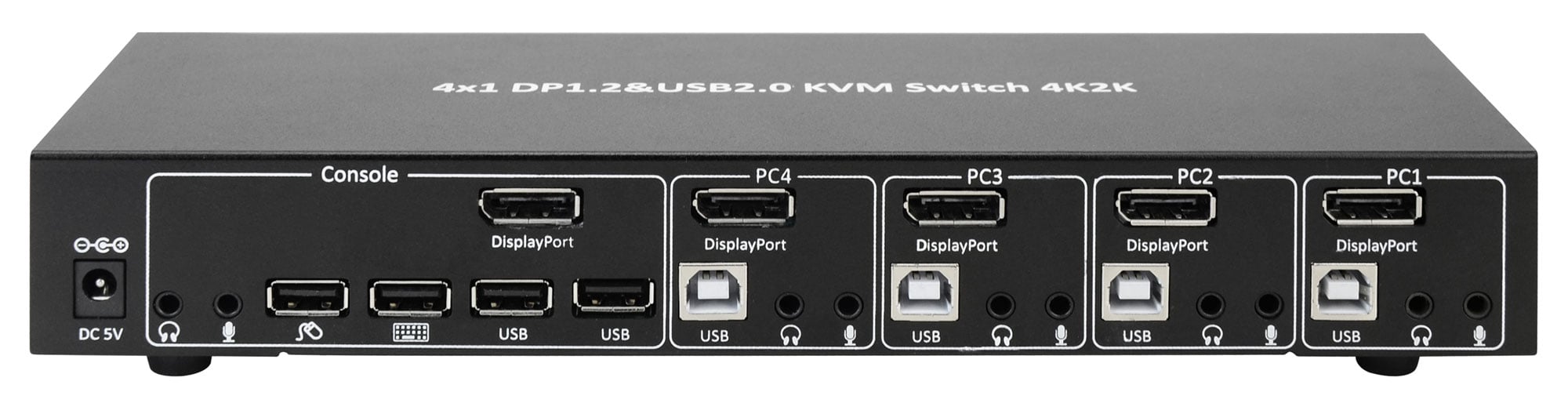

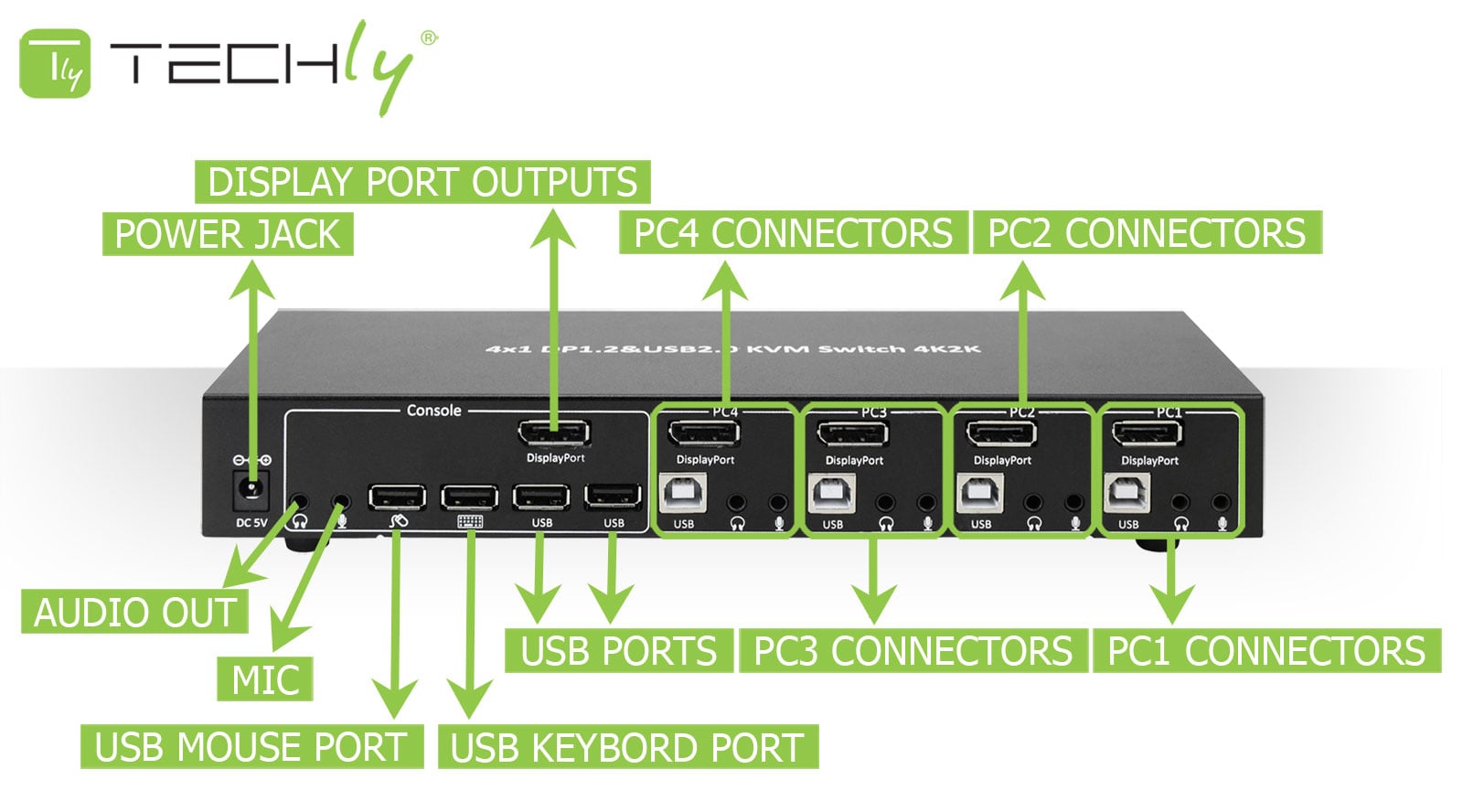

Connections

• Input: DisplayPort Female x 4

• Input: 4 -pin, type B, USB 2.0 Female x 4

• Output: DisplayPort Female x 1

• Output: 4 -pin, USB 2.0 , type A Female (keyboard) x 1

• Output: 4 -pin, USB 2.0 , type A Female (mouse) x 1

• Output: 4 -pin, USB 2.0 type A Female x 2

• Output: microphone jack x 1

• Output: stereo audio jack (headphones) x 1


Feeding

• Input: 100 – 240 V, 50 - 60 Hz

• Output: 5 V DC, 2.0 A


• Switch KVM DisplayPort 1.2 and USB 2.0 4 ports with hub and audio
• Manual of instructions
• Power supply. Input: 100 – 240 Vac, 50 - 60 Hz; Output: 5 Vdc, 2 A
