Extender Splitter HDMI 2 routes on Network Cable 70 m PoC - Techly IDATA EX-HL 21 TYP

IDATA EX-HL 21 TYP is the reliable solution to extend an HDMI signal over long distances ensuring sharpness and stabilityà both for qualityà video and for qualityà audio, with full support of full hd video signal and PCM audio, all optimizing the costs thanks to the use of a common copper network cable.

Supports the power function via network cable so only the transmitter needs to be powered

Find application in various contexts: training, school, health care or business. Suitable for digital advertising, video surveillance systems through DVR, congress halls, exhibition halls or commercial exhibitions and much more.

IDATA EX-HL 21 TYP è can connect devices with HDMI output such as PC, DVR, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.



Features

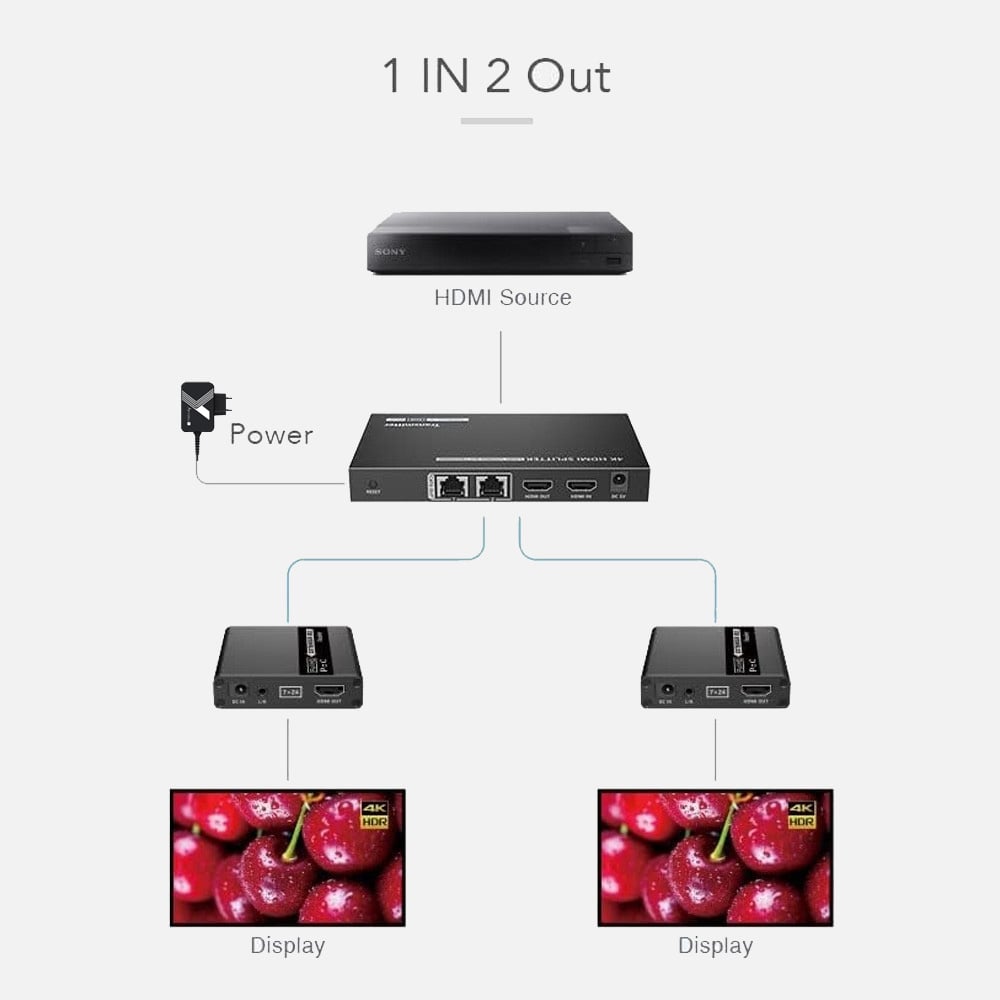

• Connect two HDMI displays to an HDMI signal source via a CAT 6/6 a/ 7 cable

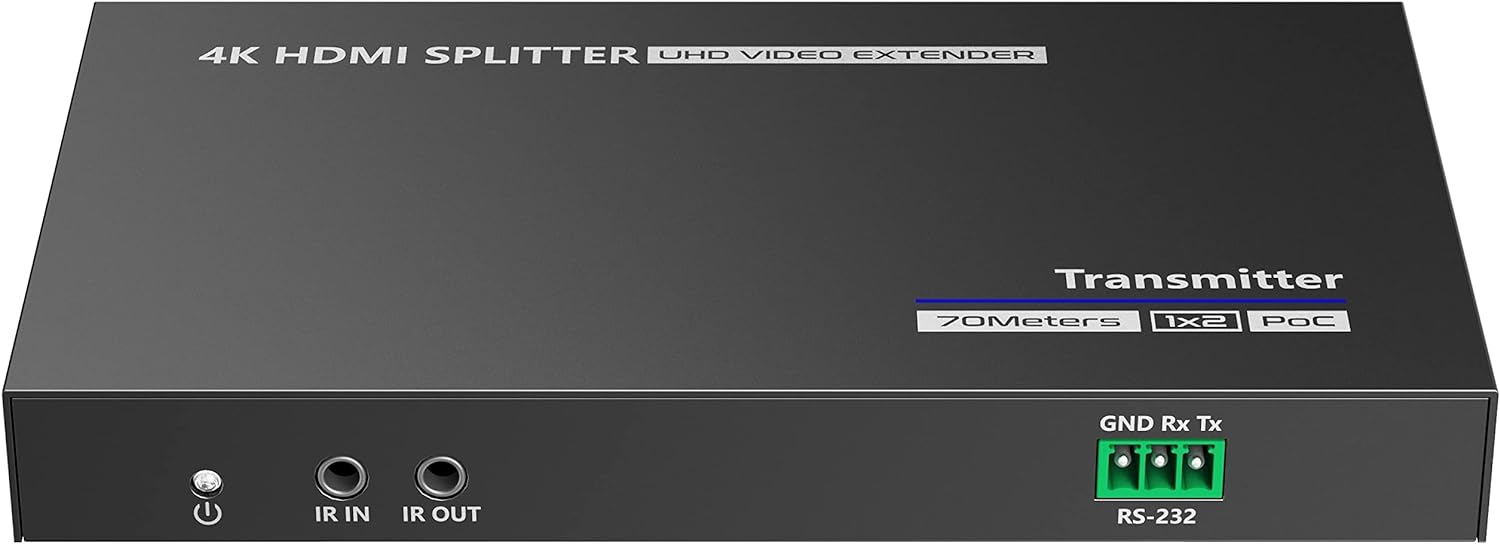

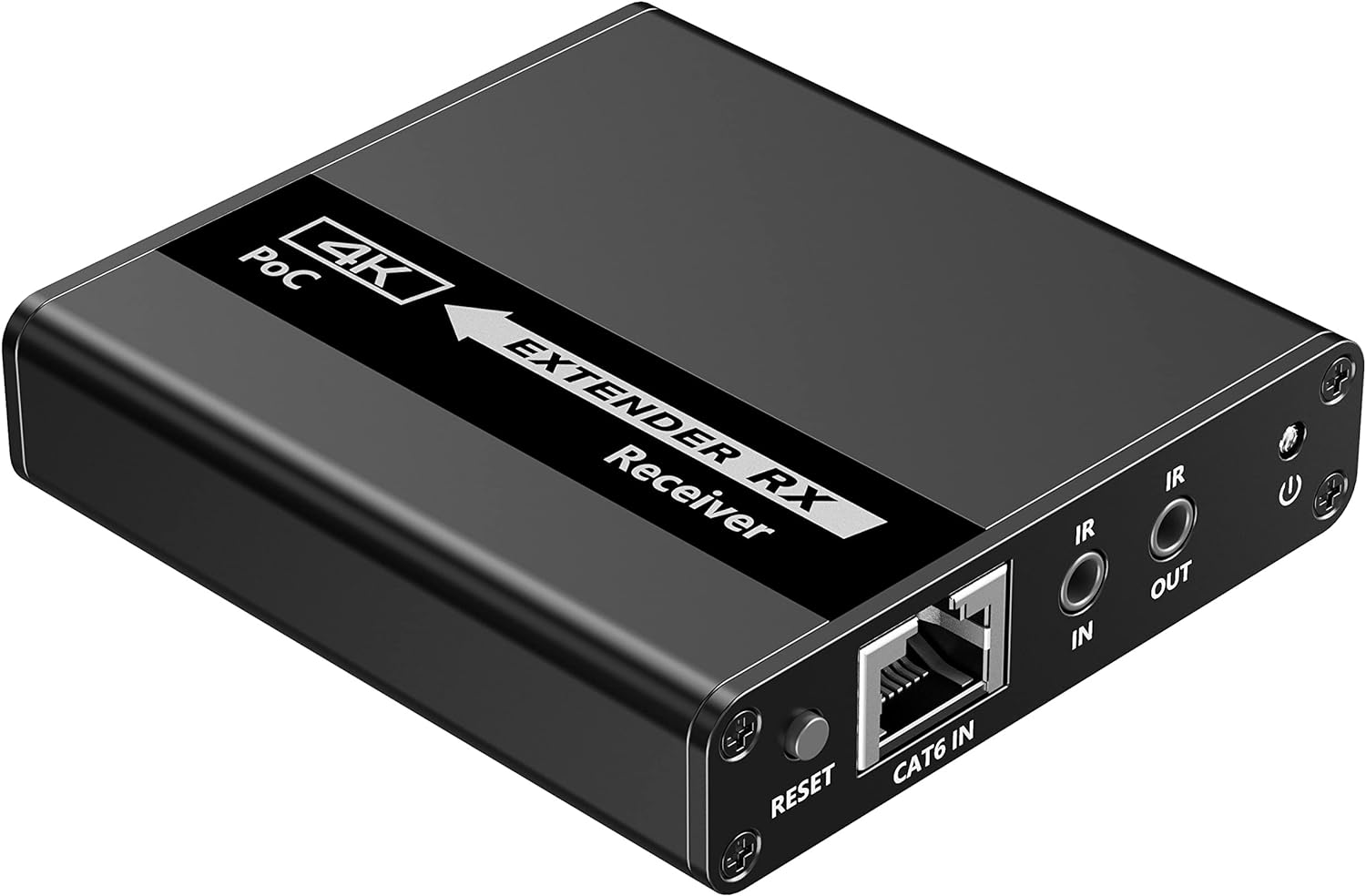

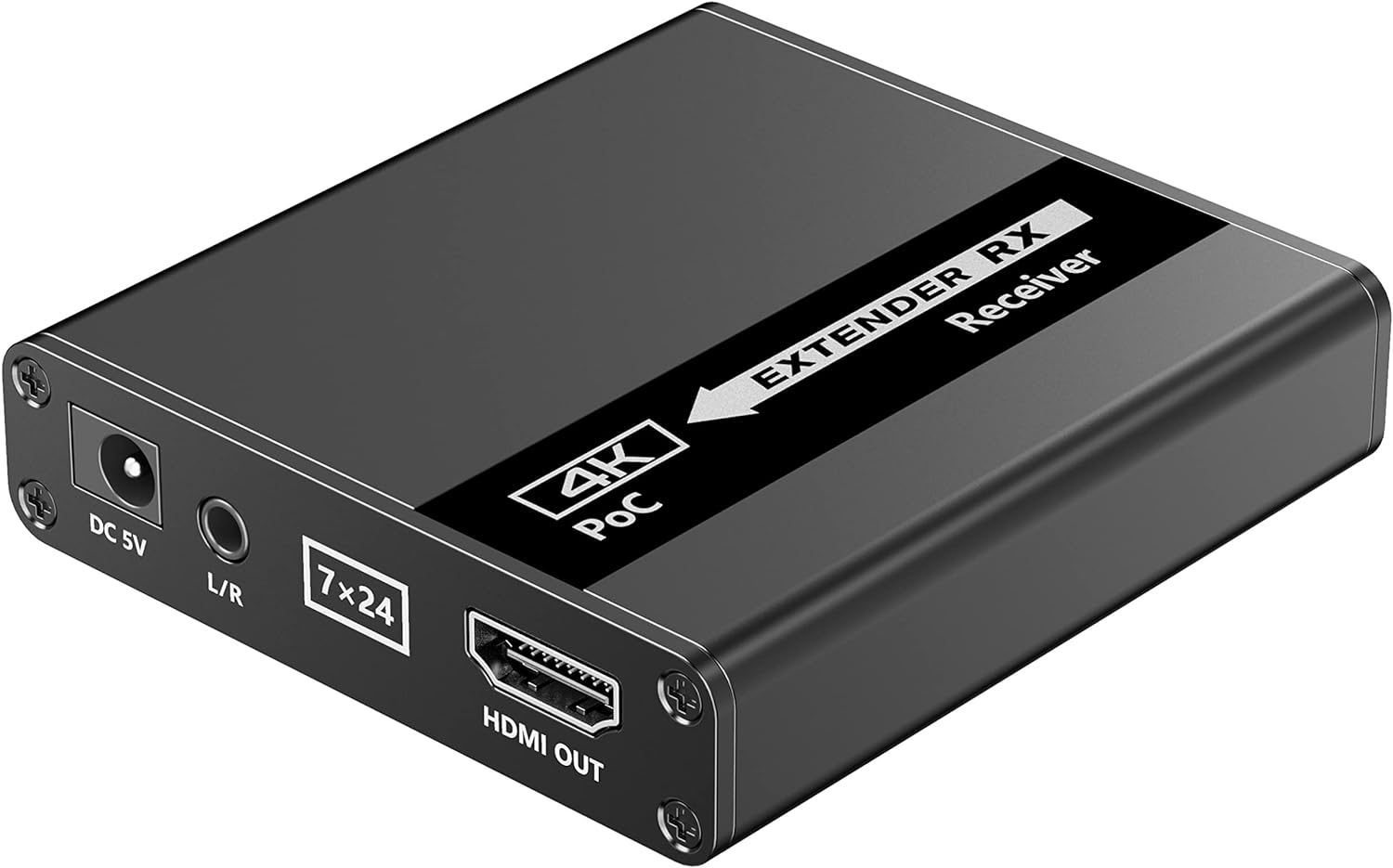

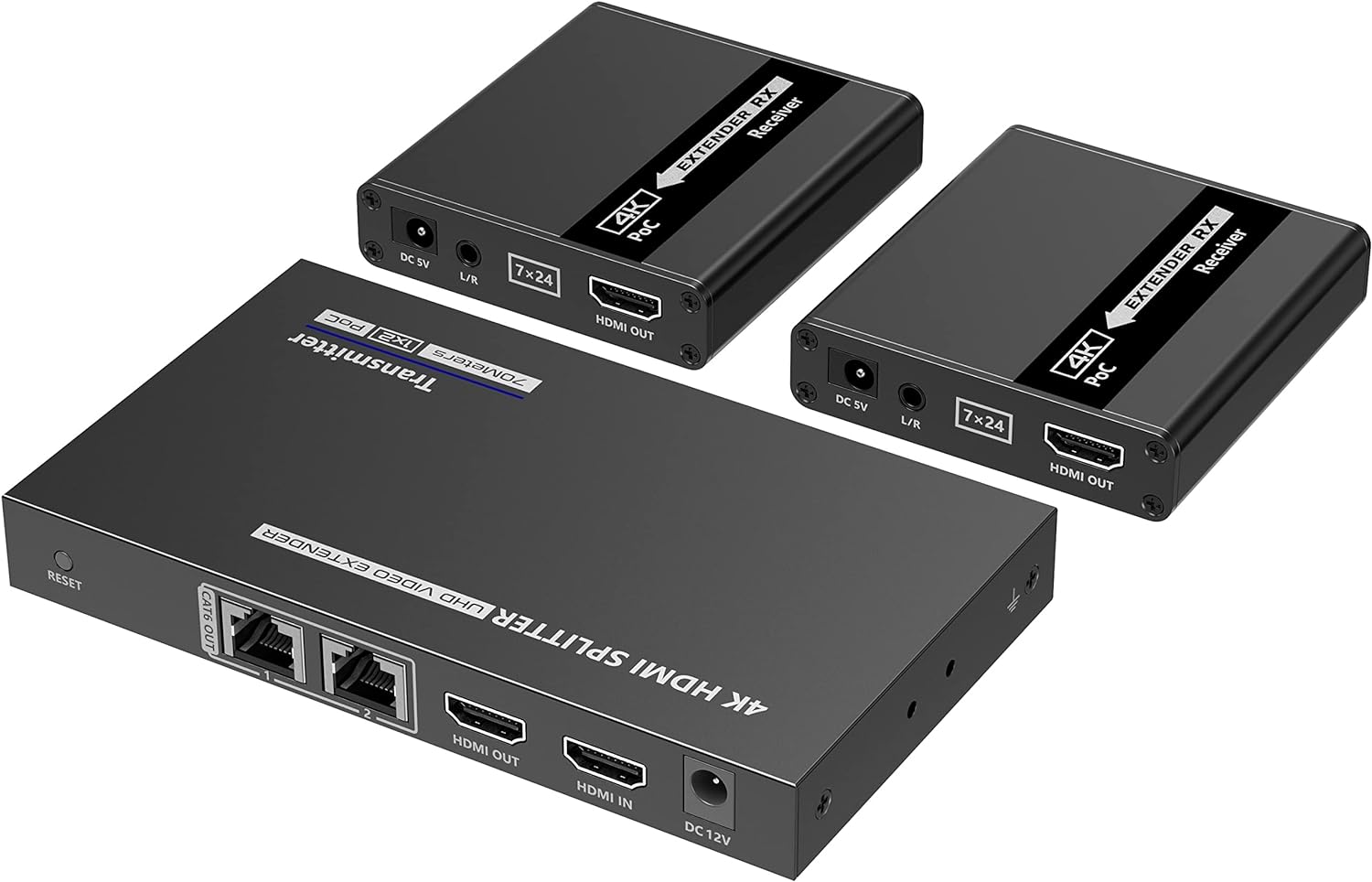

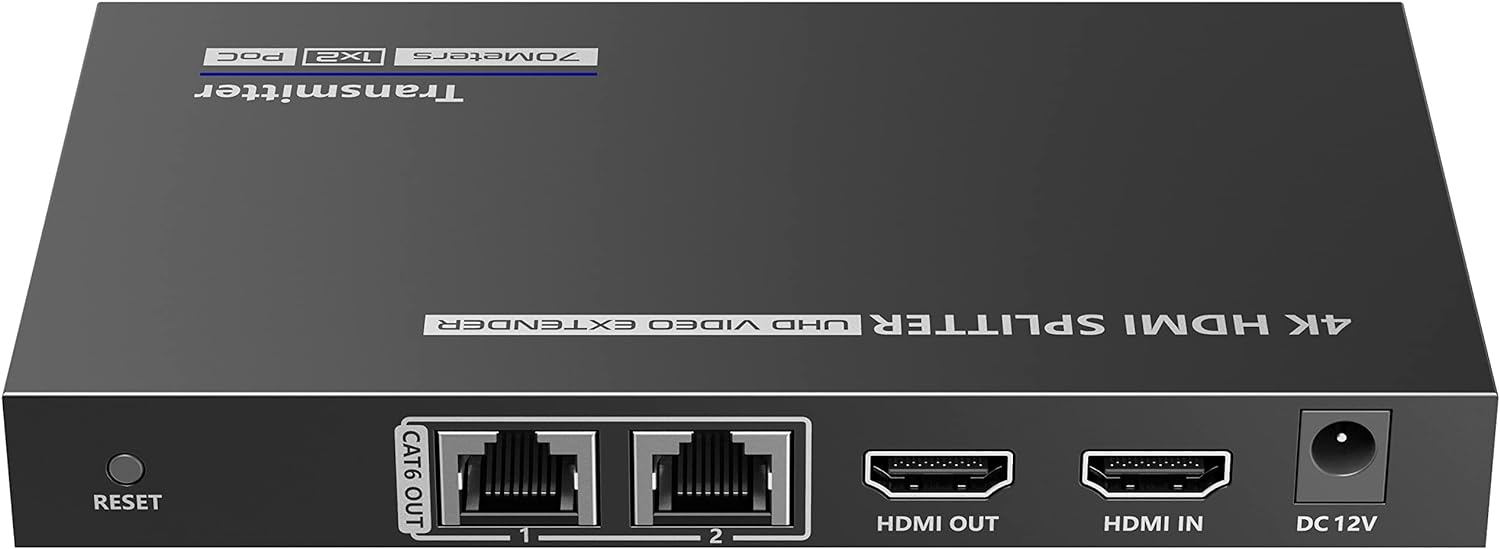

• The è extender consists of a local drive unit with HDMI output and two receivers connected to the transmitter via a CAT 6 / 6 a/ 7 cable

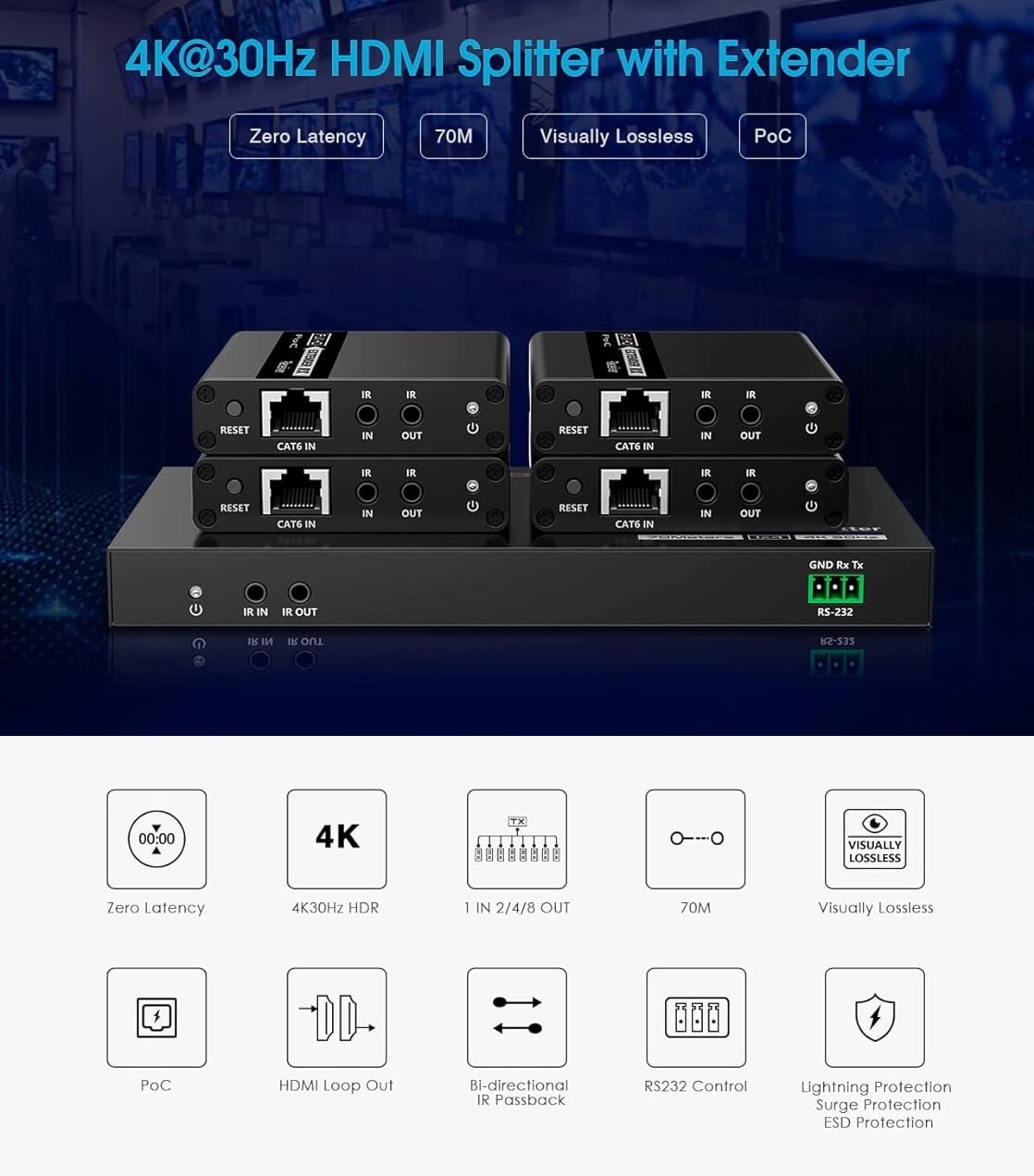

• Splitter + Extender: allows you to connect up to two HDMI monitors at a distance of 70 meters and supports display UHD 4 K@ 30 Hz

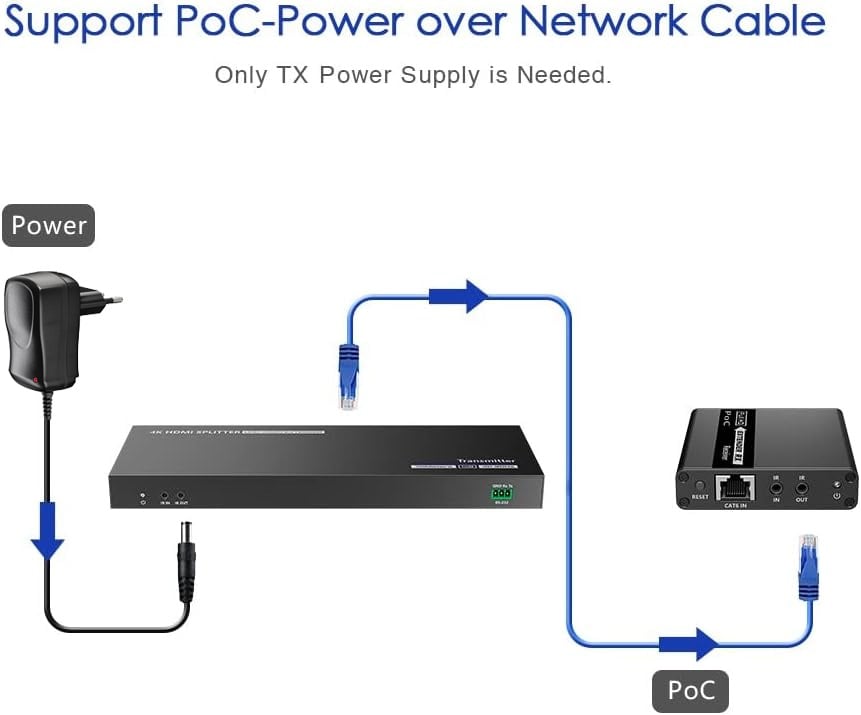

• Requires to power only the transmitter, the receivers are powered by network cable


• Supports control via RS 232 commands and IR control



Technical specifications

• Supports HDMI 1.4


• Supports HDCP 1.4


• Supports HDR 10


• Supported resolutions: 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz


• Audio formats: PCM, LPCM, DTS-HD, DTS-Audio


• Supported transmission distance with Cat cable. 6 / 6 A/ 7 : 1080 p@ 60 Hz up to 70 meters; 4 K@ 30 Hz up to 40 meters


• Two-way IR passback (20 - 60 khz)


• Power supply: TX DC 12 V/ 1 A - RX DC 5 V/ 1 A


• Consumption: TX < 10W; RX < 2.5W


• Material: metal


• Color: black



Protection

• ESD protection


• Lightning


• Overvoltage



Environmental features

• Operating temperature: - 20 / 60 °C


• Storage temperature: - 30 / 70 °C


• Humidità: 0 - 90 % (without condensation)



Dimensions

• TX: 151.5 x 86.5 x 19.0 mm; 280 g


• RX: 75.0 x 80.0 x 18.0 mm; 160 g x 2



Package contents

• 1 x Transmitter


• 2 x Receivers


• 1 x DC power supply 12 V/ 1 A


• 2 x Extension cables for IR receiver


• 1 x IR blaster extension cable


• 1 x RS- 232 Morsettiera


• 2 x Fixing brackets


• 8 x Screws


• 1x User manual
