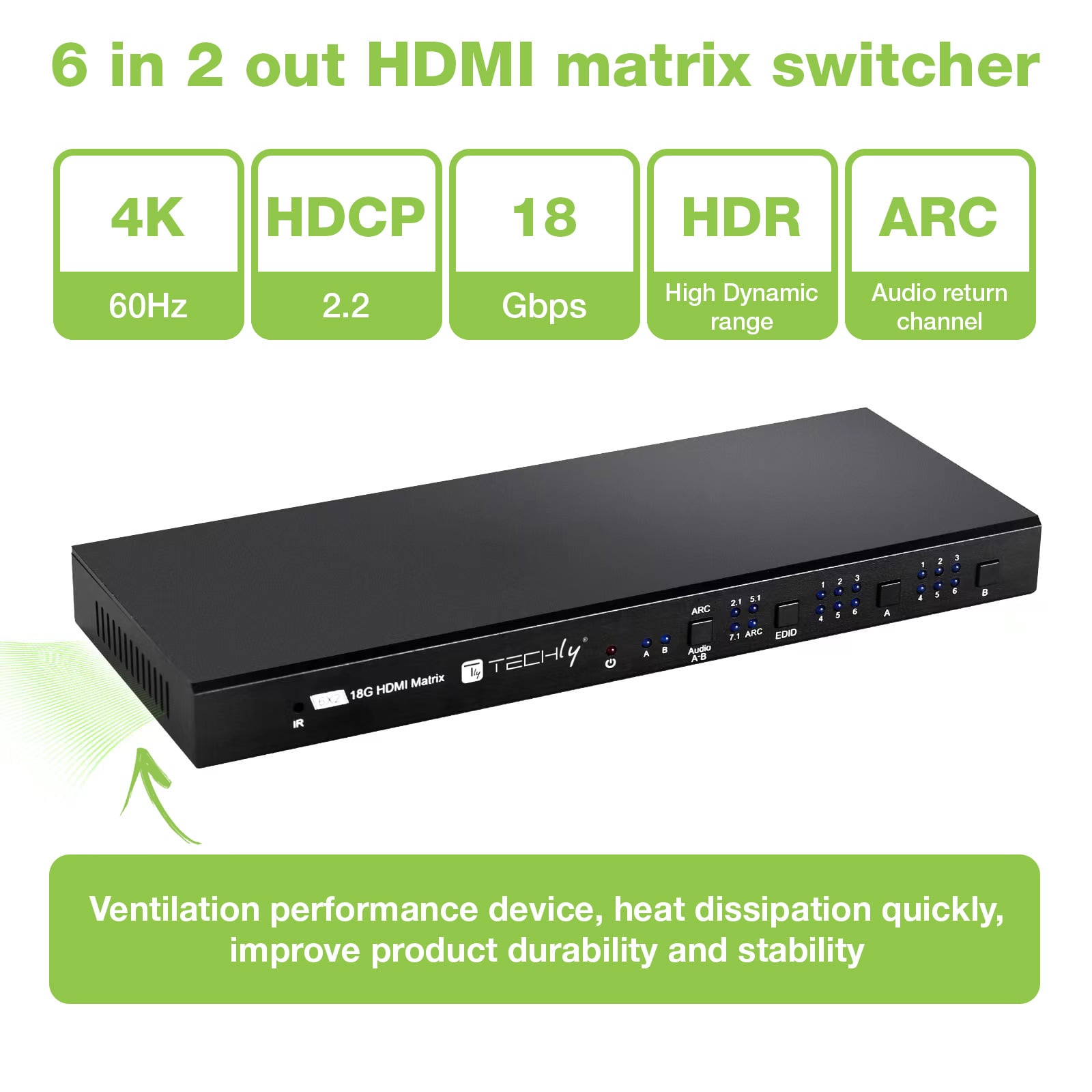

Matrix HDMI 2.0 6 x 2 18 Gbps 4 K@ 60 Hz with ARC - Techly IDATA HDMI-H 62 V

IDATA HDMI-H 62 V è a matrix 6 x 2 UHD (HDMI 2.0). The system supports all TV formats 3 D in addition to all HDTV formats up to 4 Kx 2 K@ 60 HZ with YCBCR 4: 4: 4 to 8 bit, supports EDID.

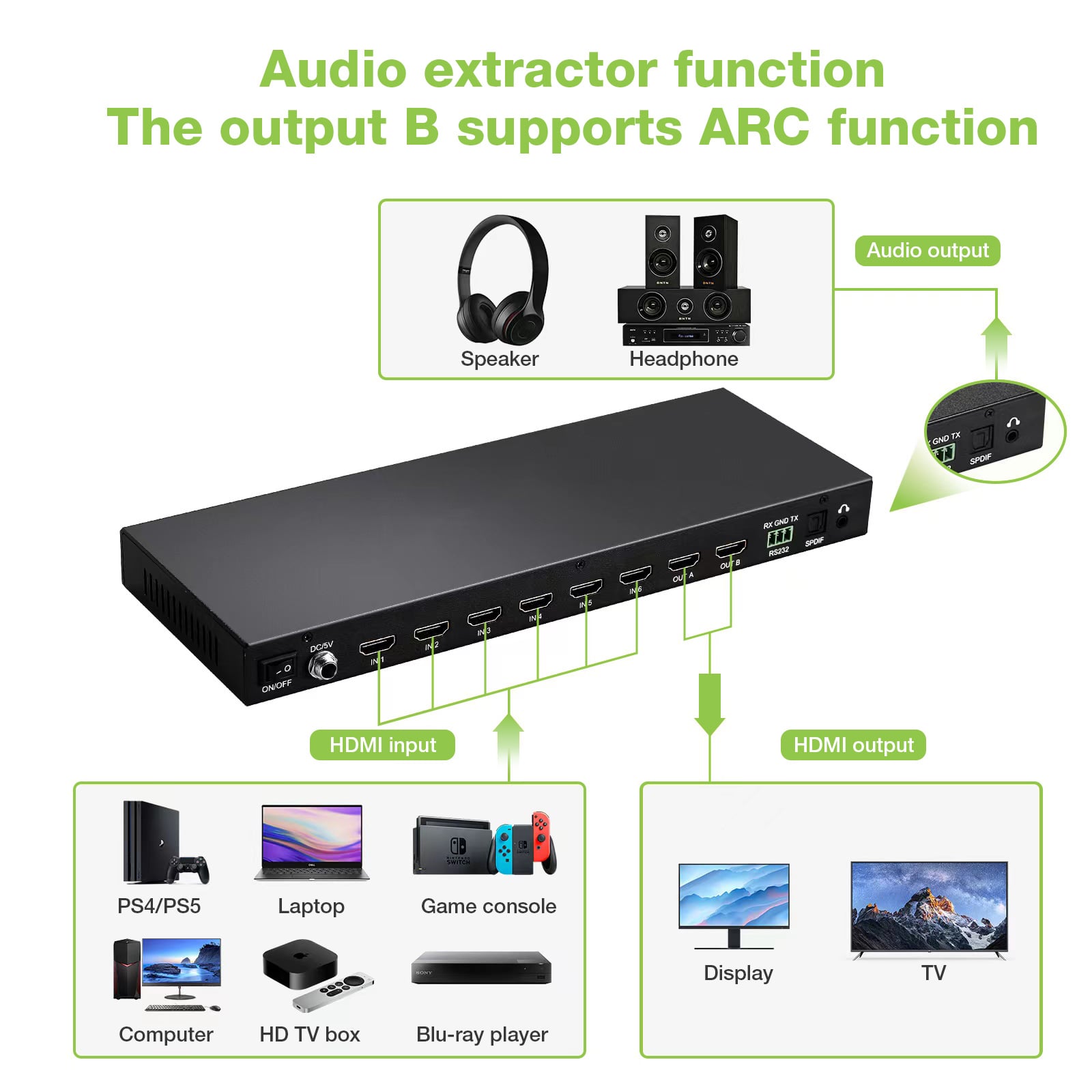

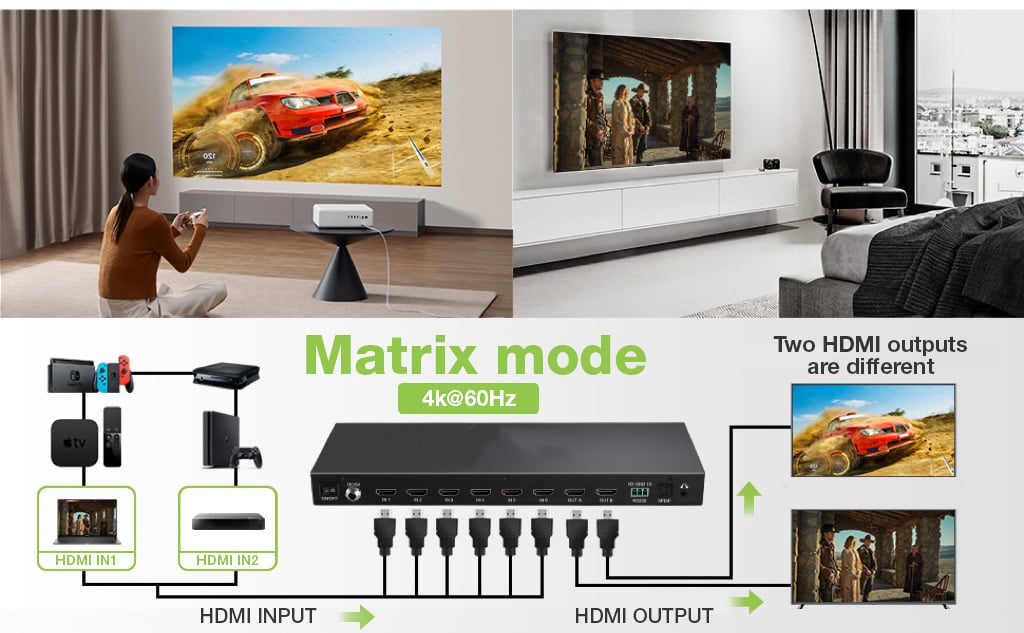

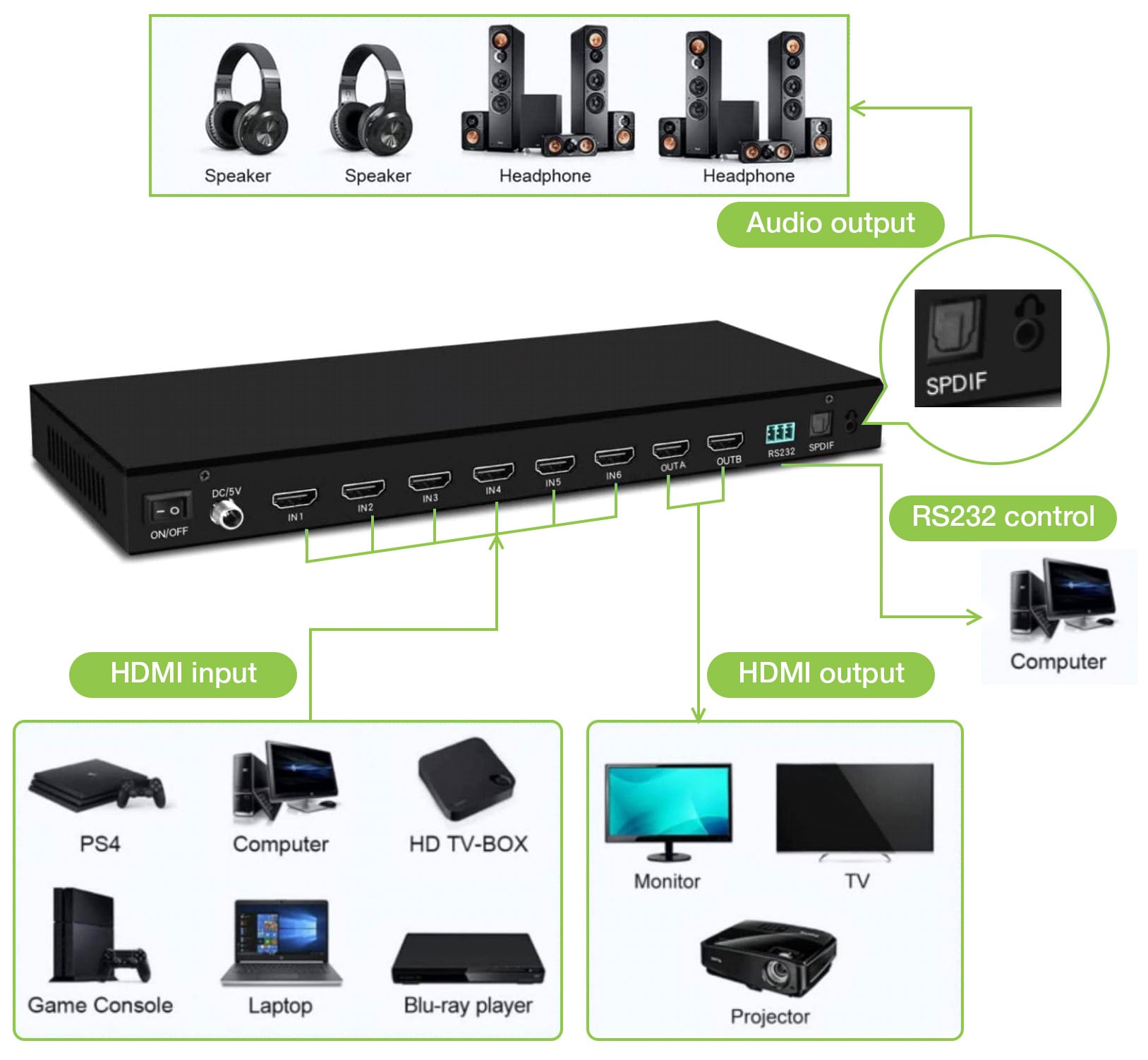

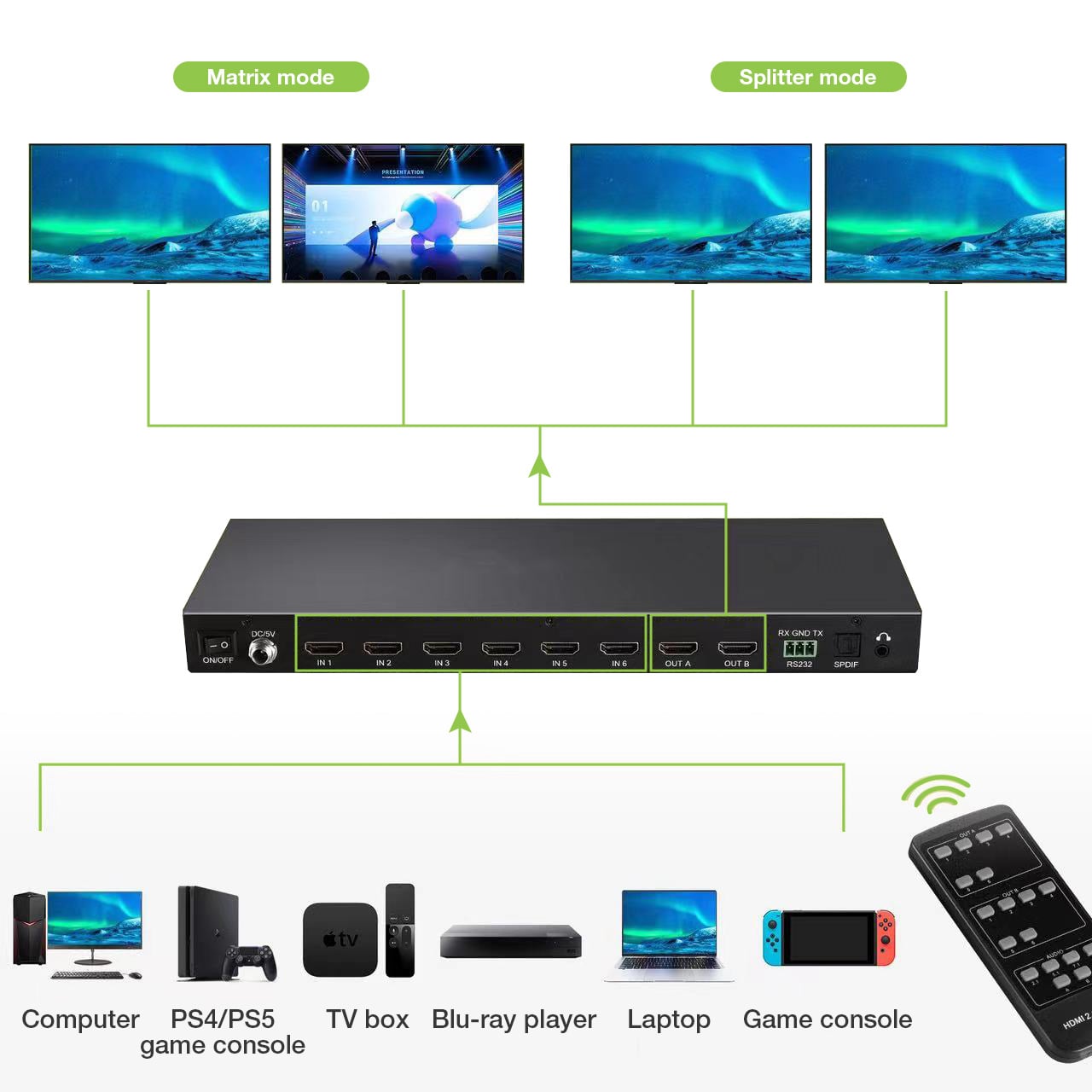

It can connect six HD sources with two HD displays, which can also perform an extra audio output via the SPDIF port or headphone port. It can easily switch or distribute the six HD sources on the two HD displays. The matrix can also support the ARC function, which can ` upgrade the TV audio to the amplifier.



Features

• HDMI input to 6 ports, HDMI output to 2 ports

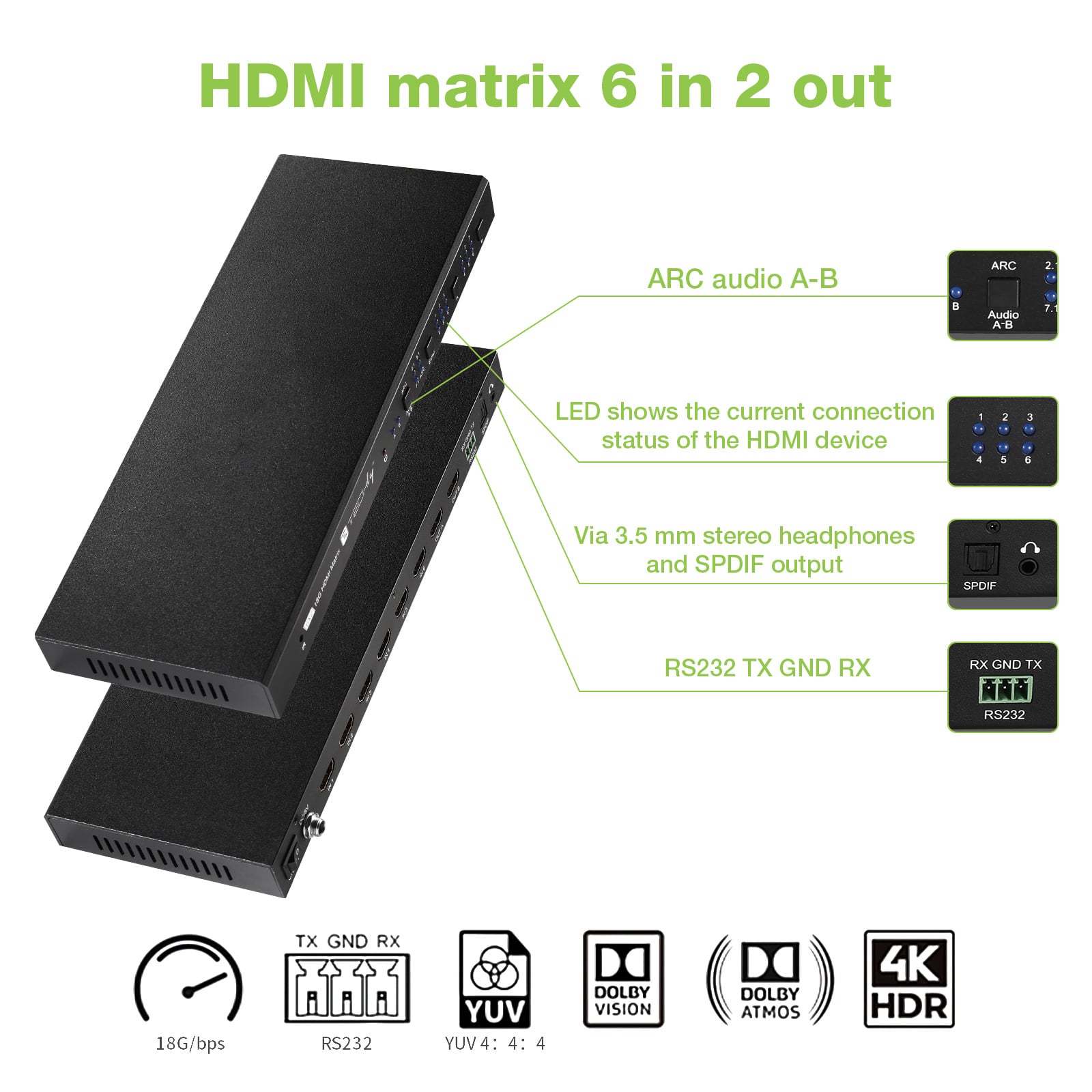

• Supports additional audio output via SPDIF port and 3,5 mm headphone port


• HDMI to get audio signal separation synchronization. Three types of mode are available; 2.1 CH / 5.1 CH/ 7.1 CH


• HDMI 2.0 , HDCP 2.2 and DVI 1.0


• Supports HDR and Dolby vision

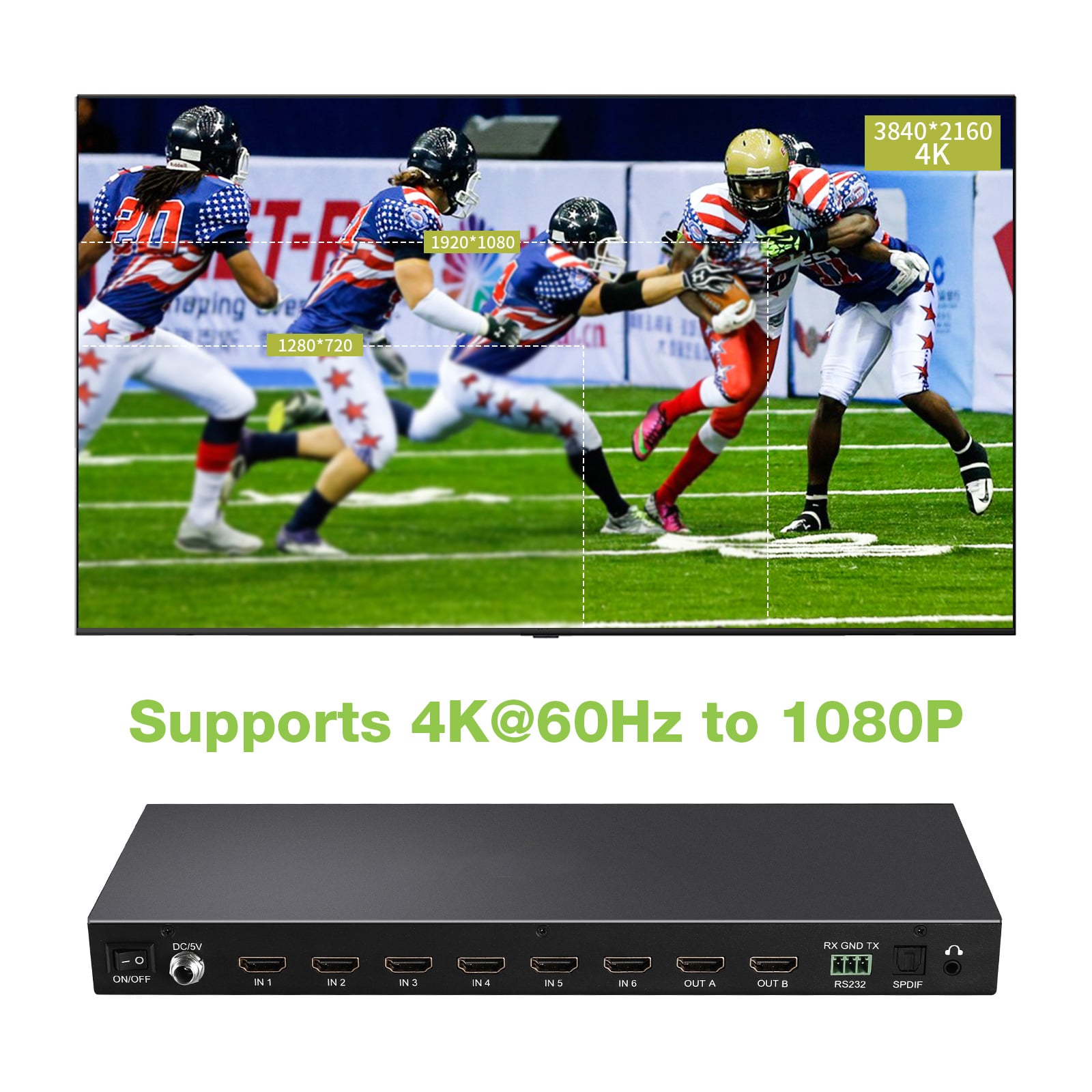

• Supports up to 4 Kx 2 K@ 60 HZ with YcbCR 4: 4: 4 to 8 bit, bandwidth up to 18 Gbps


• Supports LPCM, Dolby TrueHD and DTS-HD Master Audio


• Supports deep colors to 36 bits


• Support remote control


• Supports RS 232


• B output supports ARC function



Technical specifications

• Input Doors: 6 xHDMI-A Female


• Output port: 2 xHDMI-A Female, SPDIF and Stereo from 3,5 mm


• Bandwidth support up to 18 Gbps


• LPCM, Dolby True HD and DTS-HD Master Audio audio support


• Video resolution up to 4 KX 2 K/ 60 HZ


• Support 3 D format up to 4 KX 2 K/ 30 HZ


• Operating temperature from 0 °C to 40 °C


• Storage temperature: from 20 °C to 60 °C


• Conformityà HDCP 2.2


• Maximum transmission bandwidth: 600 MHz


• Velocità maximum transmission: 18 Gbps


• TMDS input/output signal: 0,5 ~ 1,5 Volt p-p


• DDC input/output signal: 5 Volt p-p (TTL)


• Input cable distance ≤ 5 m Standard cable AWG 24 HDMI


• Output cable distance ≤ 5 m Standard cable AWG 24 HDMI

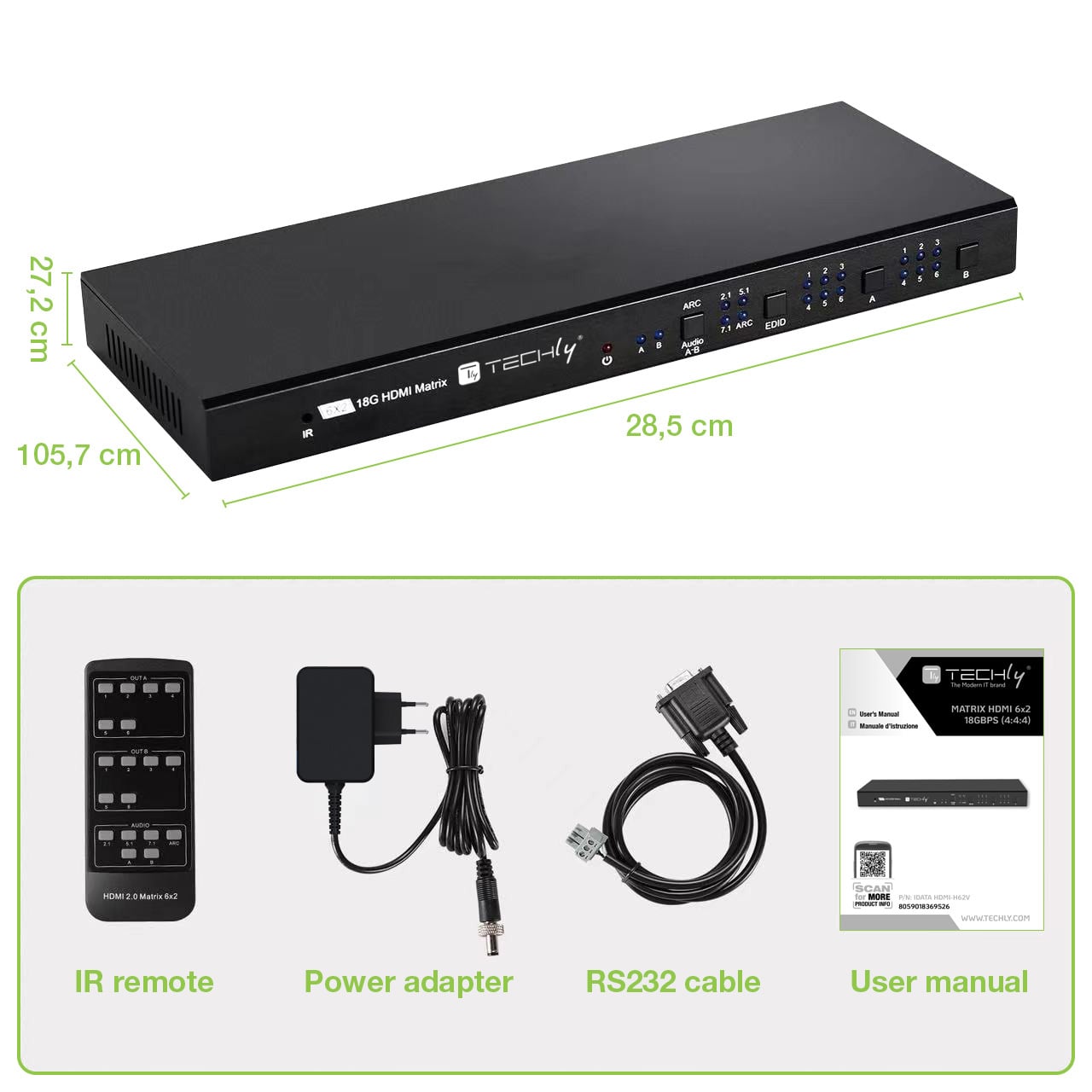

Dimensions

• Width: 285,0 mm


• Height: 27,2 mm


• Depthà: 105,7 mm



Package contents

• 1 x Matrix IDATA HDMI-H 62 V


• 1 x Power supply 5 V 2 A


• 1 x Remote control


• 1 x RS cable 232


• 1x User manual
