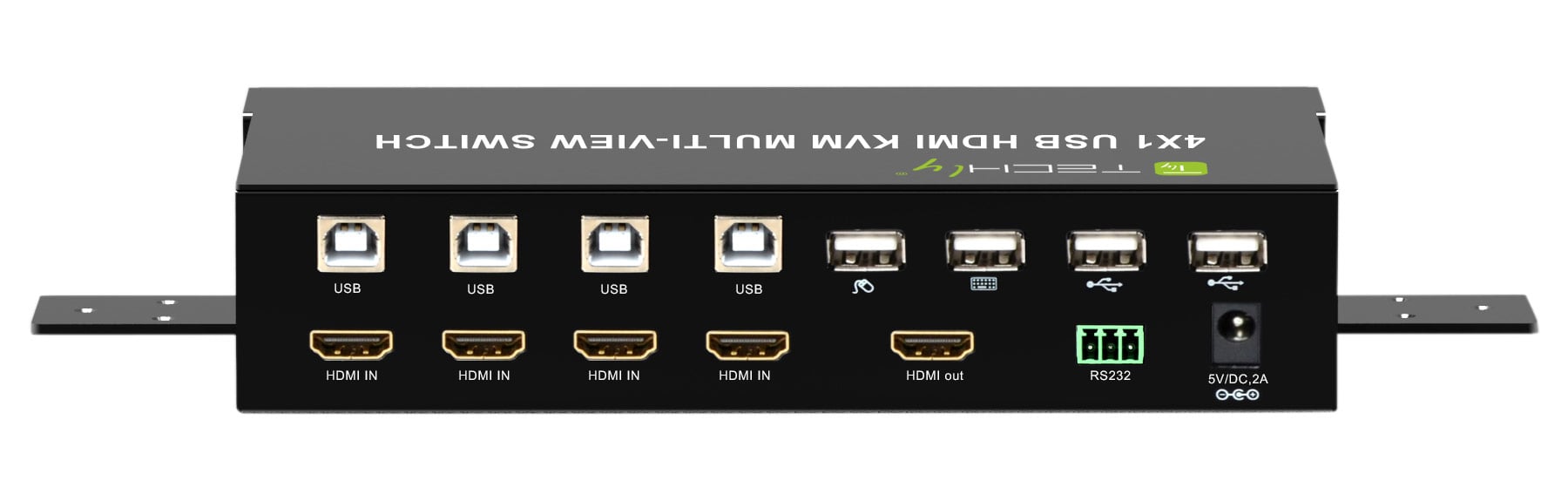

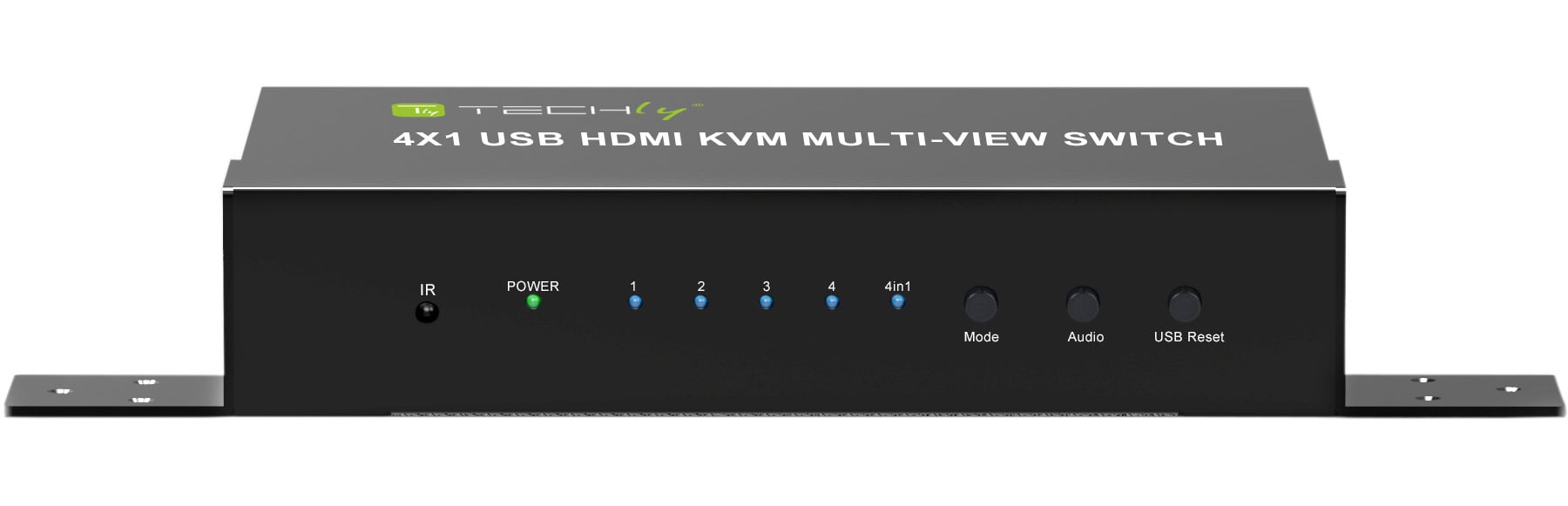

HDMI Switch 4 x 1 KVM Quad Multiviewer with IR remote control 1080 p - Techly IDATA HDMI- 401 MV

The HDMI 4 X 1 Quad Multi-Viewer switch with seamless switcher supports four HDMI input sources to display on a screen. It can also switch the four HDMI inputs freely.

Provides additional 2 USB 2.0 sharing ports, allows 4 PC to share a printer or other USB 2.0 devices.

Supports resolutions up to 1080 p @ 60 Hz. In addition, è fully compatible with a wide variety à of Windows and Mac OS operating systems.

The product can be controlled in various ways, via the mouse button, keyboard shortcut key, front panel button, IR control, etc.



Features

• HDMI 1.3 a compatible, HDCP 1.2


• Supports sharing of 4 HDMI inputs and one output


• Allows you to share 4 PC with a monitor, keyboard and mouse


• Supports 1080 p@ 60 Hz high definition resolution


• Supports mouse button, keyboard shortcut keys, front panel button, IR control


• Supports multi-output resolution



Technical specifications

• Maximum connection interval: 1920 x 1080 @ 60


• HDMI connection type A 19 pin


• Vertical frequency range: 50 / 60 Hz


• Video amplifier bandwidth: 2.25 Gbps


• Input resolution: 480 i 60 Hz, 480 p 60 Hz, 576 i 50 Hz, 576 p 50 Hz, 720 p 50 / 60 Hz, 1080 i 50 / 60 Hz, 1080 p 24 / 25 / 30 / 50 / 60 Hz


• Output resolution: 720 p, 1080 p


• External power supply: 12 V DC@ 2 A


• Maximum consumption 24 W


• Material chassis: metal


• Color: black



Environmental features

• Operating temperature: 0 - 70 °C


• Humidità operating: 10 %- 85 % without condensation


• Storage temperature: - 10 - 80 °C


• Storage humidità 5 %- 90 % without condensation



Certifications

• CE


• FCC



Package contents

• 1 x Unità central


• 1 x Power supply 12 V/DC


• 1x User manual


• 1 x Remote control


• 2 x L-shaped bracket


• 1 x RS 232 termination plug


• 6 x Lives
