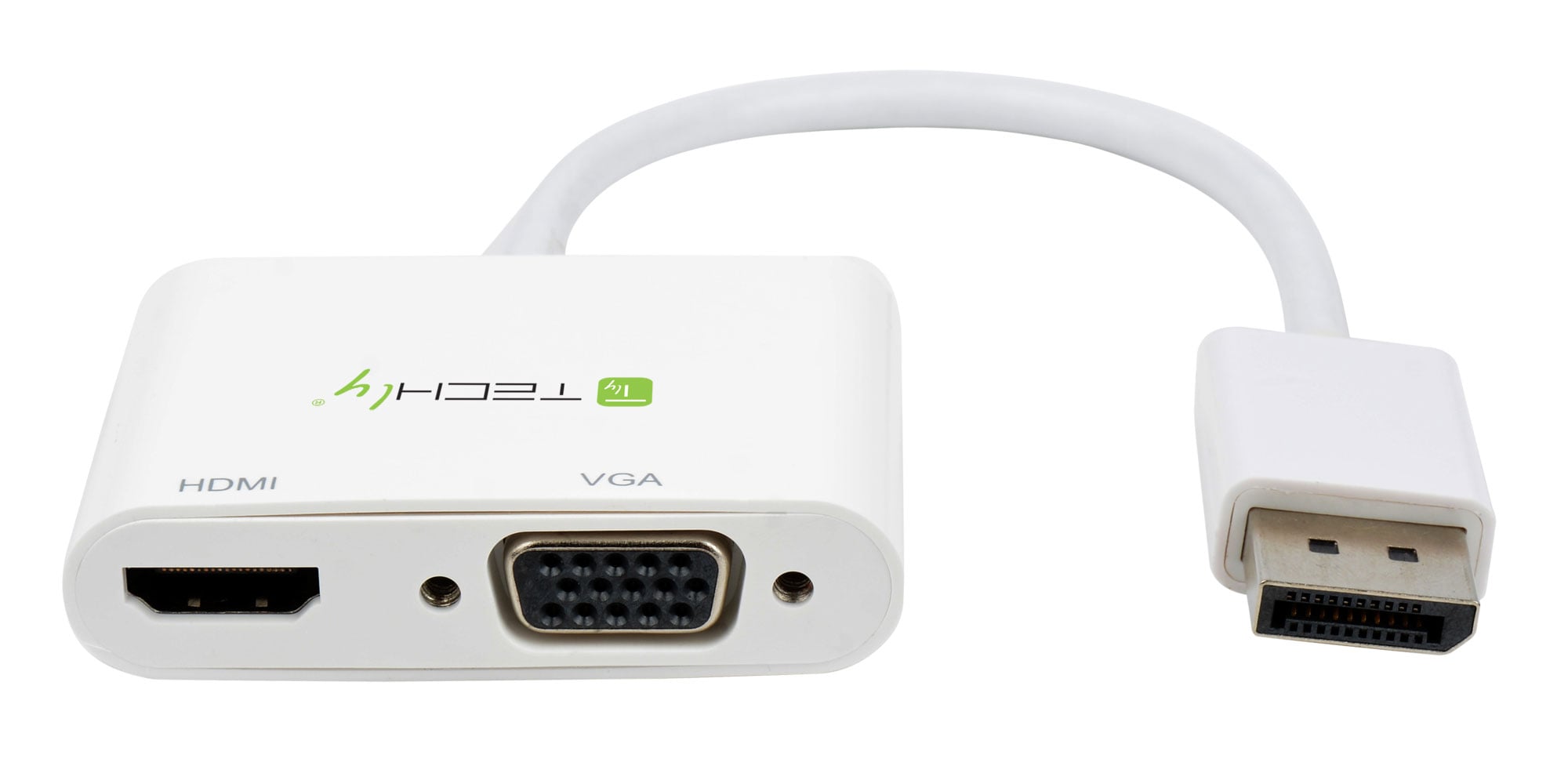

DisplayPort adapter to HDMI/VGA 4 K 30 Hz - Techly ICOC DSP-VH 12

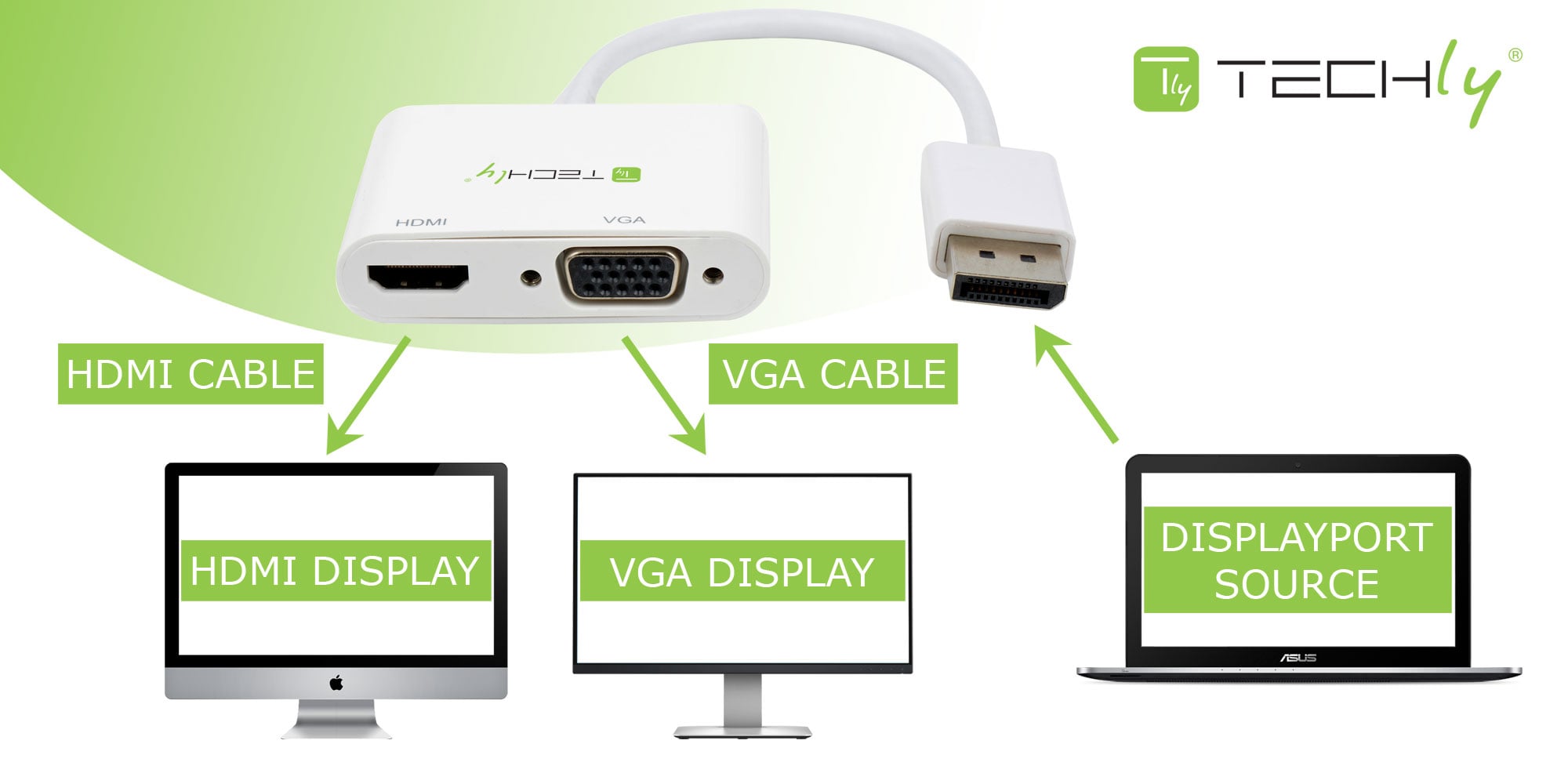

ICOC DSP-VH 12 è an adapter from DisplayPort to HDMI and VGA. Allows the transmission of the signal from a DisplayPort screen to a high definition HDMI or VGA screen (televisions, projectors, etc.). With this product you can see both video or presentations on a large screen. If both outputs are connected, only one output can receive the input signal, the HDMI output è priority on the VGA output.

Features

•

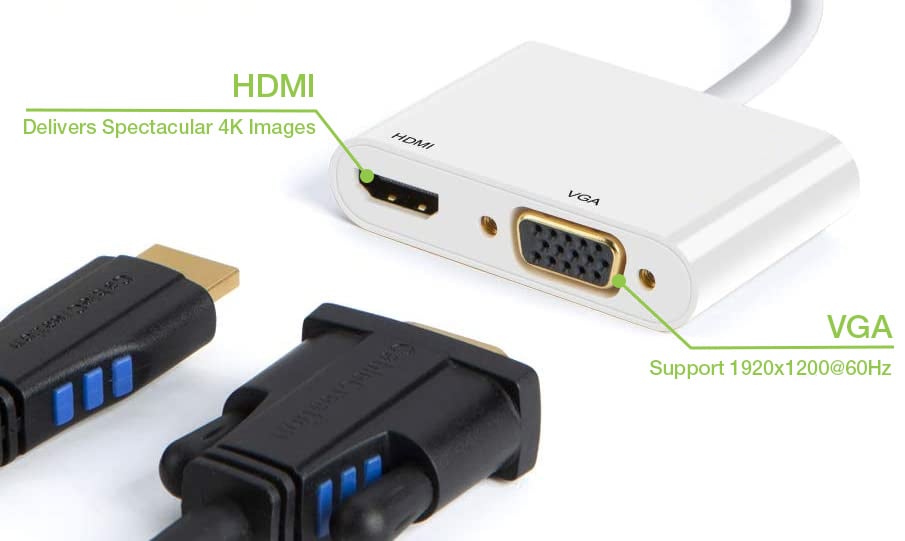

• Adapter from DisplayPort male to HDMI and female VGA

• Complies with DisplayPort 1.2 specifications

• Supports HDMI resolution up to 4 kx 2 k@ 30 HZ

• Supports VGA resolution up to 1920 x 1200 @ 60 HZ

• Supports 3 D format and conforms to previous versions

• Supports HDCP and EDID pass-through from PC source to monitor


Technical specifications

•

• Input connector: DisplayPort Male x 1

• Output connector: HDMI Female (HDMI V 1.4) x 1

• Output connector: VGA Female (Max VGA 1920 x 1200) x 1

• HDMI resolution: up to 4 KX 2 K@ 30 HZ

• VGA resolutions: up to 1920 X 1200 @ 60 HZ

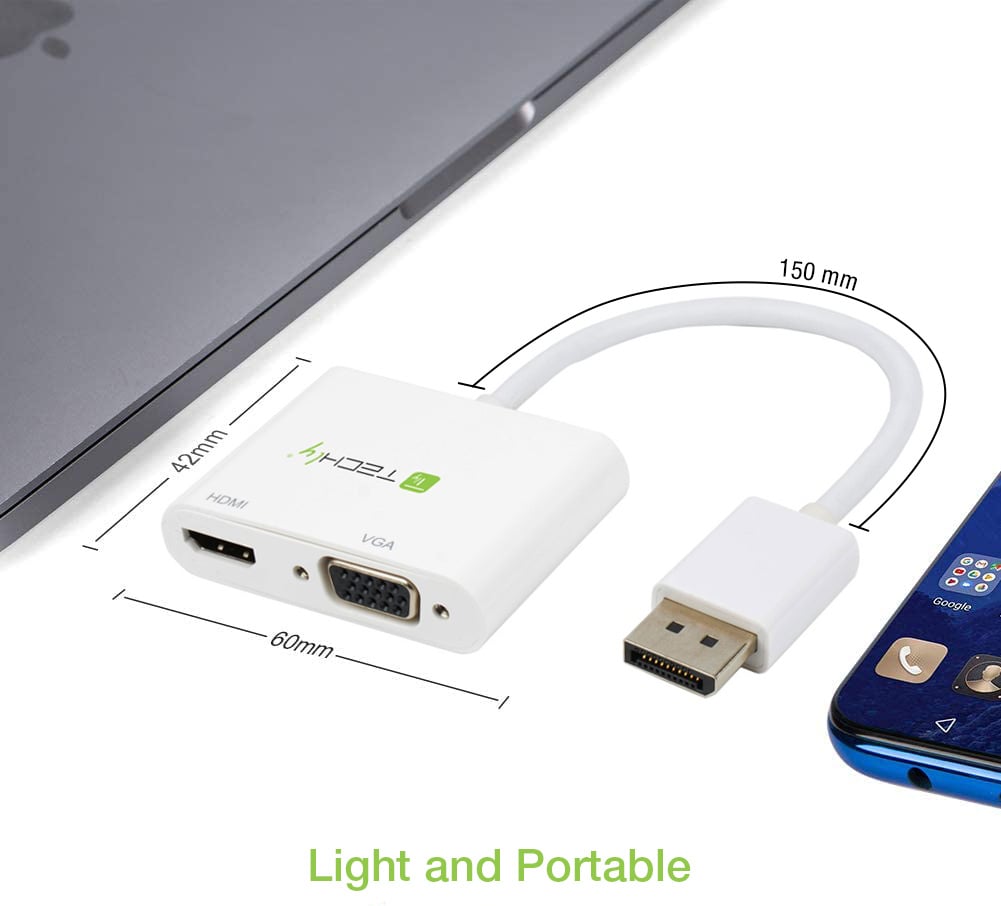

Dimensions

•

• Length: 60 mm

• Large: 42 mm

• Depthà: 14 mm

• Cable length: 150 mm

• Weight (Net): 39 g


Environmental information

•

• Operating temperature: a 0 °C a + 45 °C

• Humidità exercise: 10 % to 85 % RH (without condensation)

• Storage temperature: from - 10 °C to + 70 °C

• Storage humidità from 5 % to 90 % RH (without condensation)


Feeding

•

• The DP cable provides power to the product

• Power consumption with TV or monitor connected directly:


- HDMI output: < 400 mA
- VGA exit: < 400 mA
- No output device: < 20 mA

Package contents

•

• Unità main

• Education manual
