Mini DisplayPort to HDMI/VGA Adapter - Techly IADAP MDP-VGAH12

IADAP MDP-VGAH12 is a Mini DisplayPort to HDMI and VGA adapter. It allows transmitting signals from a Mini DisplayPort screen ( Macbook Pro，Macbook Air, etc.) to an HDMI or VGA high-definition screen (TVs, projectors, etc.). With this product, you can view both videos and presentations on a large screen. If both outputs are connected, only one output can receive the input signal, the HDMI output has priority over the VGA output.



Features

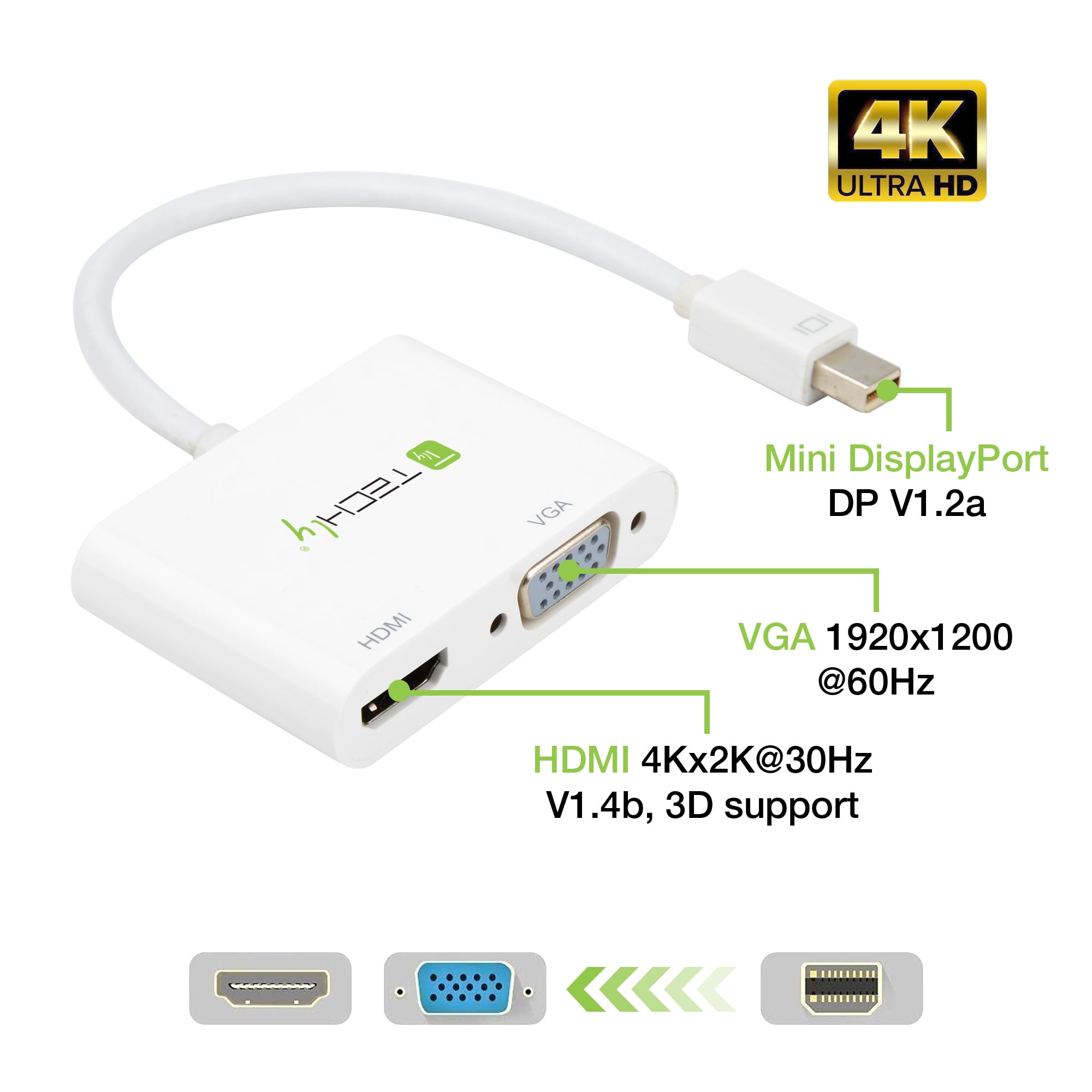

• Mini DisplayPort Male to HDMI and VGA Female Adapter


• Compliant with Mini DisplayPort 1.2 specifications


• Supports HDMI resolution up to 4k x 2k @30HZ


• Supports VGA resolution up to 1920 x 1200 @60HZ


• Supports 3D format and backward compatible


• Supports HDCP and EDID pass-through from the source PC PC to the monitor


• Color: white



Technical specifications

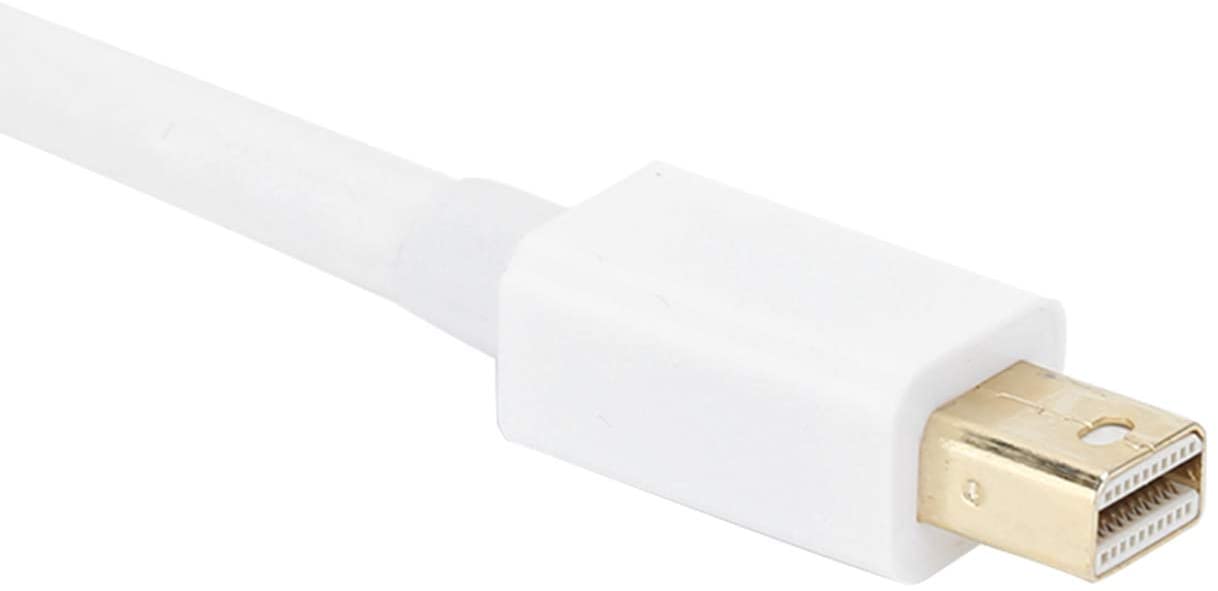

• Input connector: Mini DisplayPort male

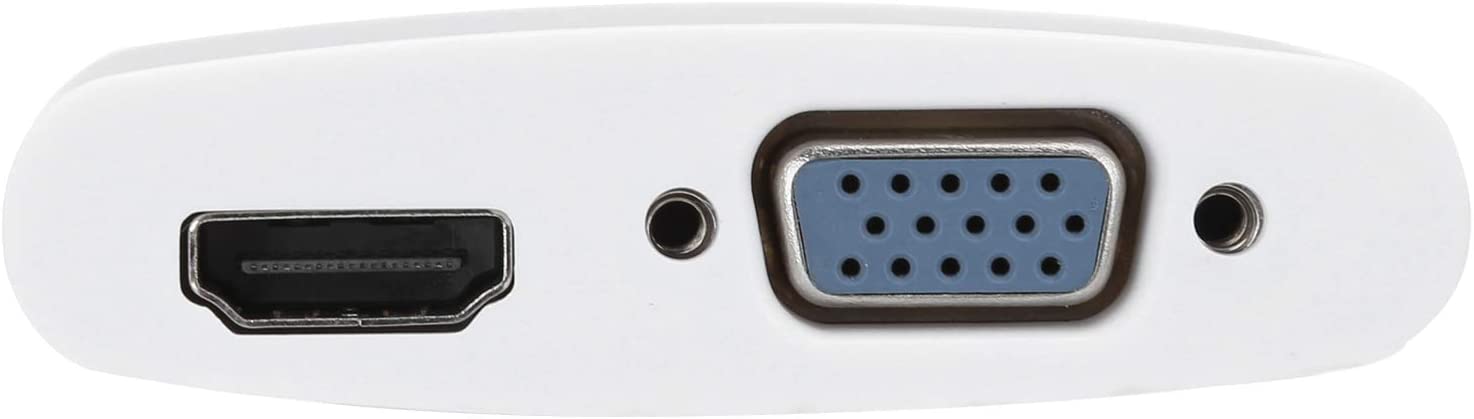

• Output connector: HDMI Female (HDMI V1.4) and VGA Female (Max VGA 1920x1200)


• HDMI resolutions: up to 4k x 2k @30HZ


• VGA resolutions: up to 1920 x 1200 @60HZ


• Compliant with DP1.2 specifications, backward compatible with previous versions


• Supports automatic power management



Connections

• Input: Mini DisplayPort Male x1


• Output: HDMI Female（HDMI V1.4） x1


• Output: VGA Female (Max VGA 1920x1200) x1



Power

• The Mini DP cable provides power from the product


• Current consumption for directly connecting the TV or monitor:



- HDMI output: < 400mA

- VGA output: < 400mA

- No output device: < 20mA

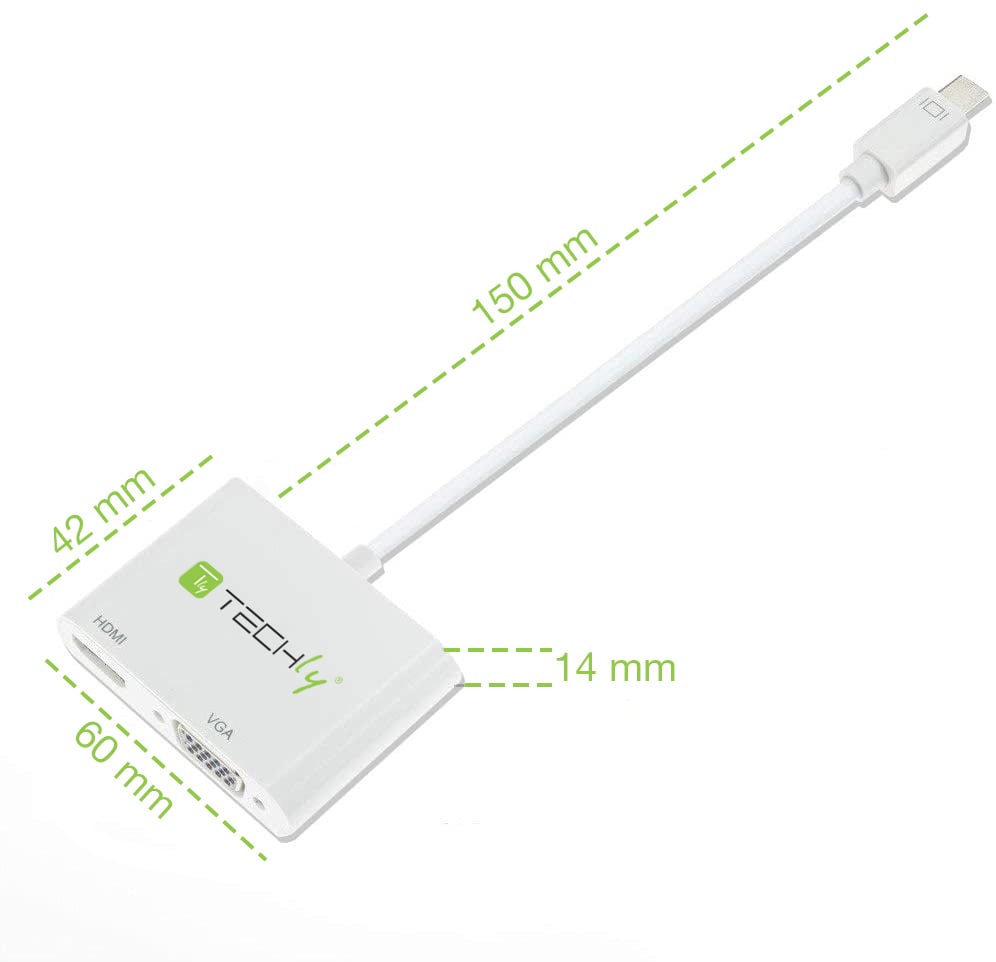

Dimensions

• Length: 60 mm


• Width: 42 mm


• Depth: 14 mm


• Cable length: 150 mm



Environmental features 

• Operating temperature: from 0°C to +45°C


• Operating humidity: from 10% to 85% RH (non-condensing)


• Storage temperature: from -10°C to +70°C


• Storage humidity: from 5% to 90% RH (non-condensing)



Package contents

• Mini DisplayPort to HDMI/VGA Adapter


• Instruction manual
