DisplayPort to DVI/HDMI/DP 3-in-1 adapter - Techly IADAP DP-COMBOF3

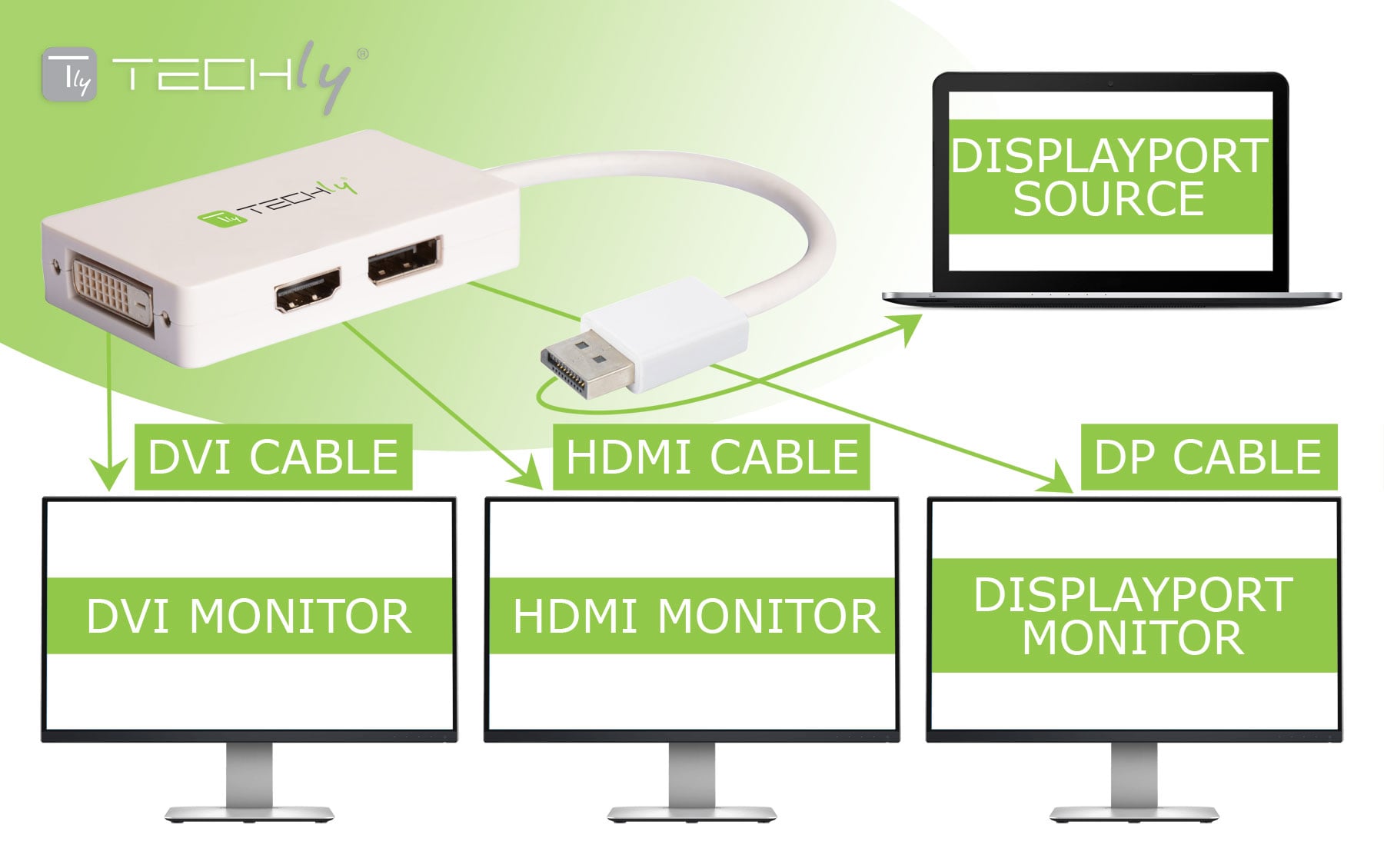

IADAP DP-COMBOF3 is a DisplayPort 1.2 to DVI, HDMI and DisplayPort adapter, designed to transmit the signal from a DisplayPort screen (Macbook Pro, Macbook Air, etc.) to three HD screens with DVI, HDMI and DP ports. This adapter saves the user the hassle of continuously connecting and disconnecting the output. With this product, both video and presentations can be viewed on a large screen. When two or three outputs are connected, only one output can receive the input signal, the priority sequence is as follows: DVI>HDMI>DP.



Features

• 3 in 1 adapter from DisplayPort Male to DVI, HDMI and DisplayPort Female


• Supports dual DisplayPort 1.2 input mode


• Supports DVI resolution up to 1080P @ 60HZ


• Supports HDMI resolution up to 4kx2k @ 30HZ


• Supports DP resolution up to 4kx2k @ 60HZ


• Supports 3D format and backward compatible


• Powered by the DisplayPort source


• Supports automatic power management


• Color: white



Connections

• Input: DisplayPort Male x1


• Output: HDMI Female x1


• Output: DVI Female


• Output: DP Female x1



Dimensions

• Length: 78 mm


• Width: 44 mm


• Height: 15 mm



Environmental features

• Operating temperature: from 0°C to +45°C


• Operating humidity: from 10% to 85% RH (non-condensing)


• Storage temperature: from -10°C to +70°C


• Storage humidity: from 5% to 90% RH (non-condensing)



Power

• Powered by the DisplayPort source


• Power consumption:



- DVI output: < 200mA

- HDMI output: < 400mA

- DP output: < 400mA

- No output: < 20mA

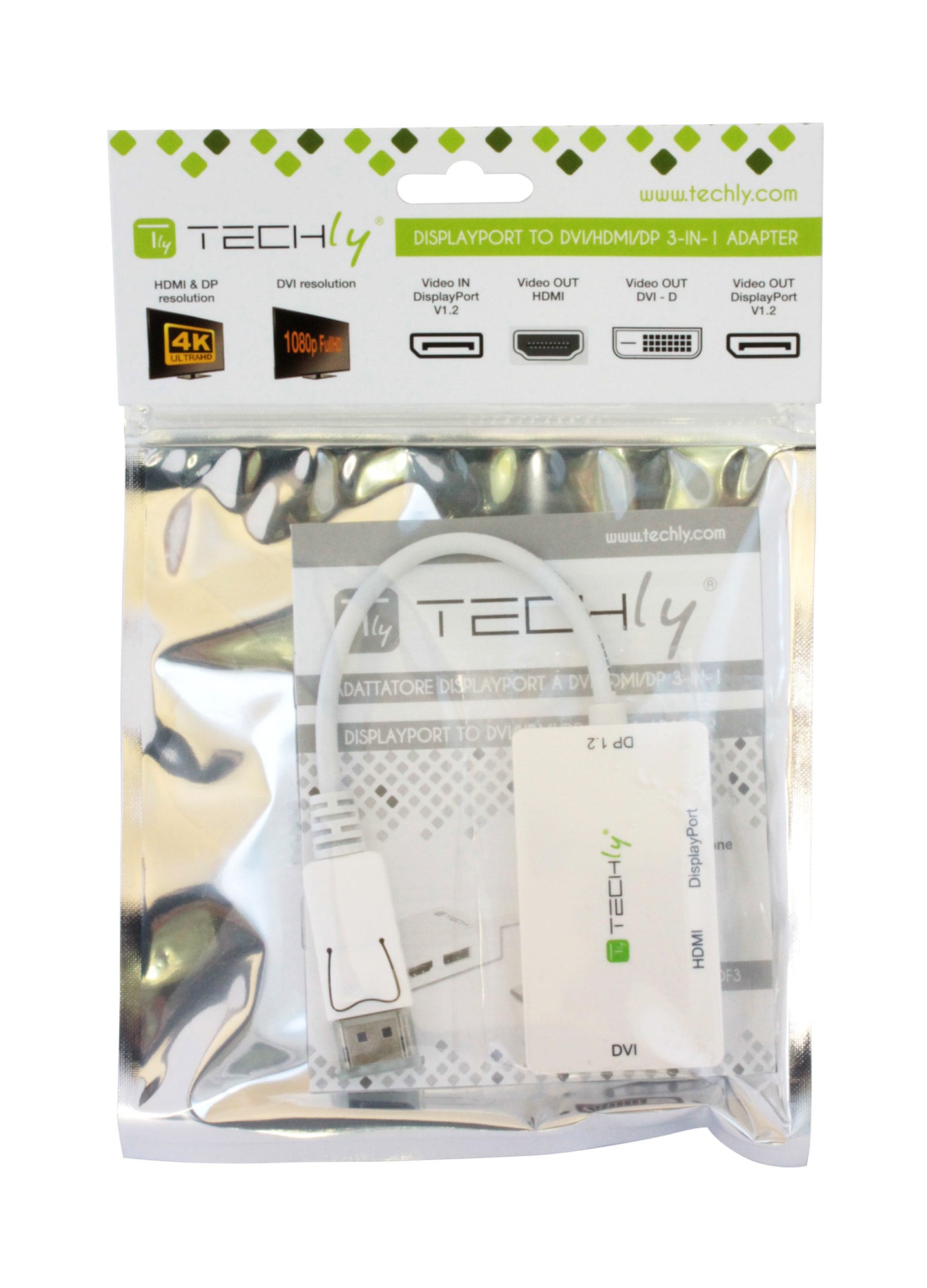

Package contents

• DisplayPort to DVI/HDMI/DP Adapter 3-in-1


• Instruction manual
